Description

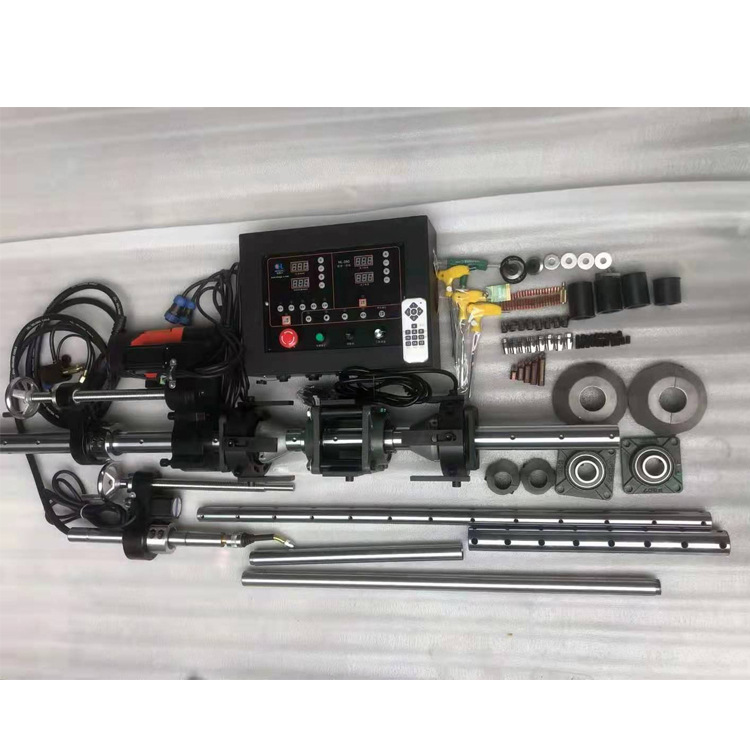

1. Introduction to the Boring and Welding Machine:

Portable bore-welding machine is a specialized tool for repairing engineering machinery shaft holes. This machine is lightweight, compact in structure, fully functional, and has stable and reliable performance, with a very high power-to-weight ratio.

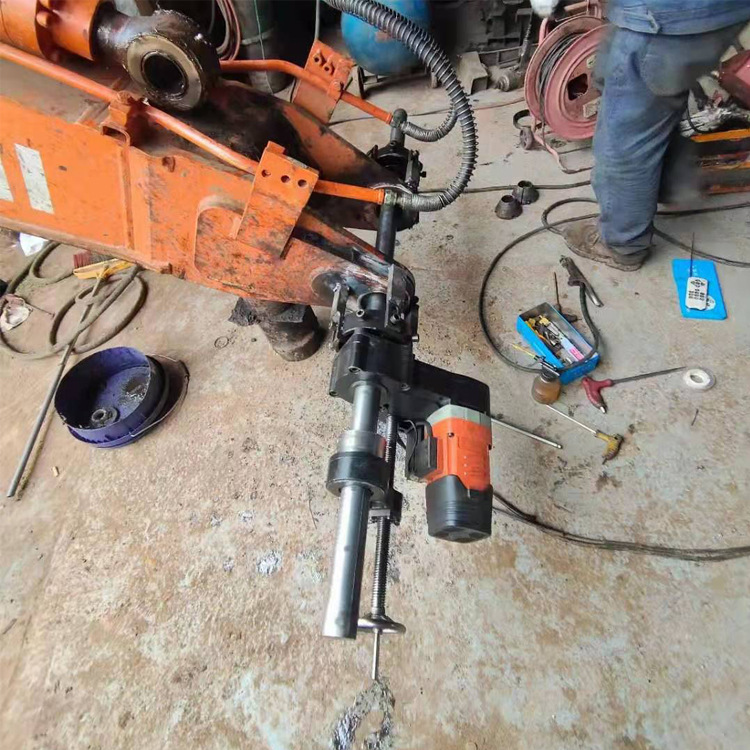

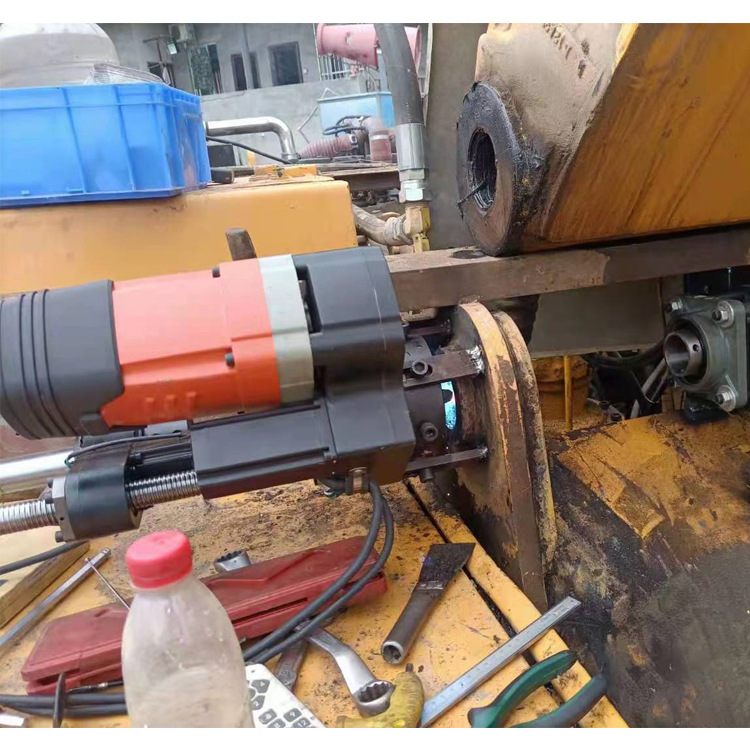

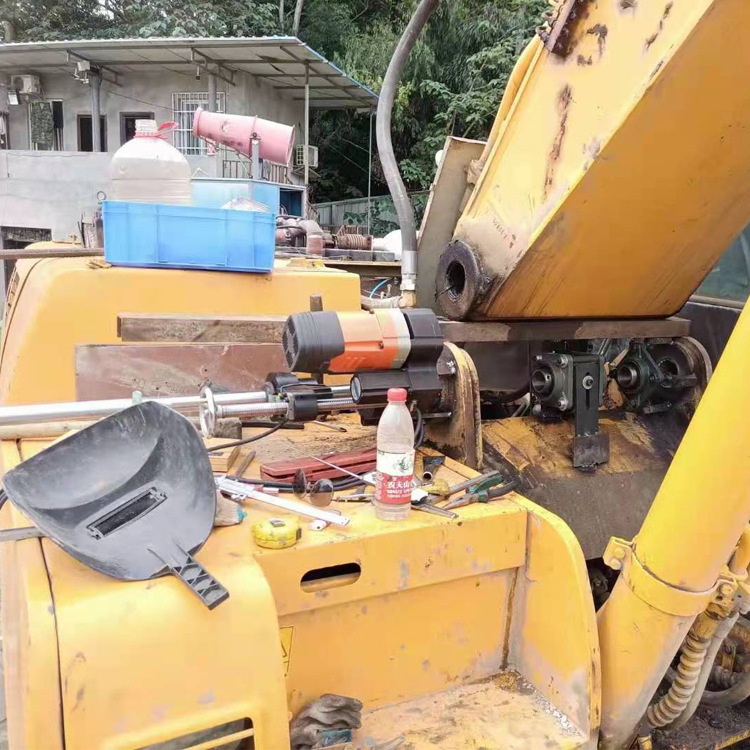

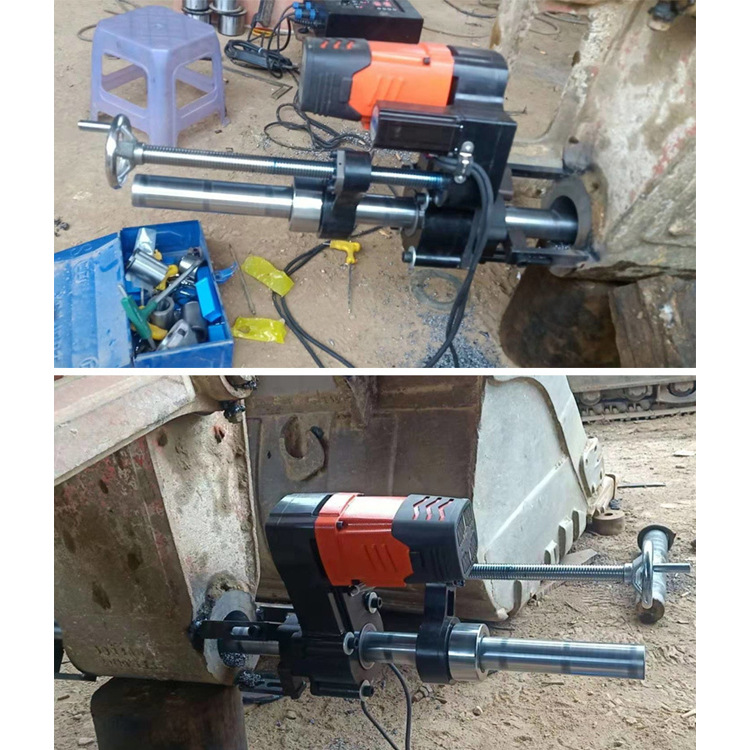

Widely used for on-site processing and maintenance of large equipment shaft holes, suitable for excavators, crane, crane and other construction machinery as well as the shaft hole of the ship's roundness repair. Due to its light and easy to carry, it can be repaired on-site in the construction site, thereby avoiding the costs of transporting large heavy machinery back to the workshop, it is a necessary tool for the maintenance and renewal of construction machinery!

The tungsten rod is made of high-strength alloy steel, which is quenched after processing. It is stress-hardened and polished with hard chromium plating, ensuring high precision and low deformation.

The machine is controlled by industrial-grade intelligent chips, with key parameters displayed digitally, making it easy to operate. Remote control via a remote controller adds convenience. It employs photocontrol technology, enabling automatic pendulum welding and skipping welding without the need for programming.

Parameter:

Power: 3KW

RPM: 350 r/min

Frequency: 50Hz

Single trip: 300mm

Boring hole diameter: 150mm/350mm

Tong bar diameter: 35/50mm

Boring bar length: 1.5m

Cutting Speed Adjustment: Continuous

Cutting depth: 5mm

Bolt hole diameter: 150mm/350mm
