    This remote control is a fixed-frequency type that can copy various cars without using a copy machine.,Remote control electric windows and doors, etc. Anti-theft remote control, with copying and transmission in one, suitable for copying various coded and learning code remote control.

The parameters and setting methods of this remote control are as follows:

Performance:

1、The replicable chip types are as follows: 2260 (such as PT2260, SC2260, HS2260, LX2260, HX2260, etc.); 2262 (such as PT2262, SC2262, LX2262, HS2262, HX2262, etc.), PT2264, PT2240 (LX2240, LX2241).SCL2240），CS5211，1527(EV1527, HS1527, HX1527, SC1527, GP1527, CP1527, AD1527, SCL1527, TL1527, ZX1527, SMC918, AX5026, SMC926, AX5326-3, AX5326-4, FP527, HT600, HT680, HT6207, HT6010, HT6012, HT6013, HT6014, HT12D, HT46F49E, PIC16F630, ULN2003 HCS101andHCS200\HCS201(Part of the code）andHCS300\HCS301(Part of the code, part of the microcontroller..........Wait。

Remote Control Parameters:

1.Working Voltage: DC12V

2.Working Current: ≤8mA

3.Working Frequency: 315MHz / 433.92MHz / Other

4.Modulation Mode: ASK (Amplitude Shift Keying)

5.Emission Power: ≤10MW

6.Transmission distance: 50~100 meters (open area)

7.Coding Type: Copy (Copy, Self-Copy, Self-Learning Type).

8.Working temperature: -20℃ to +60℃

 【3】Steps and Methods:

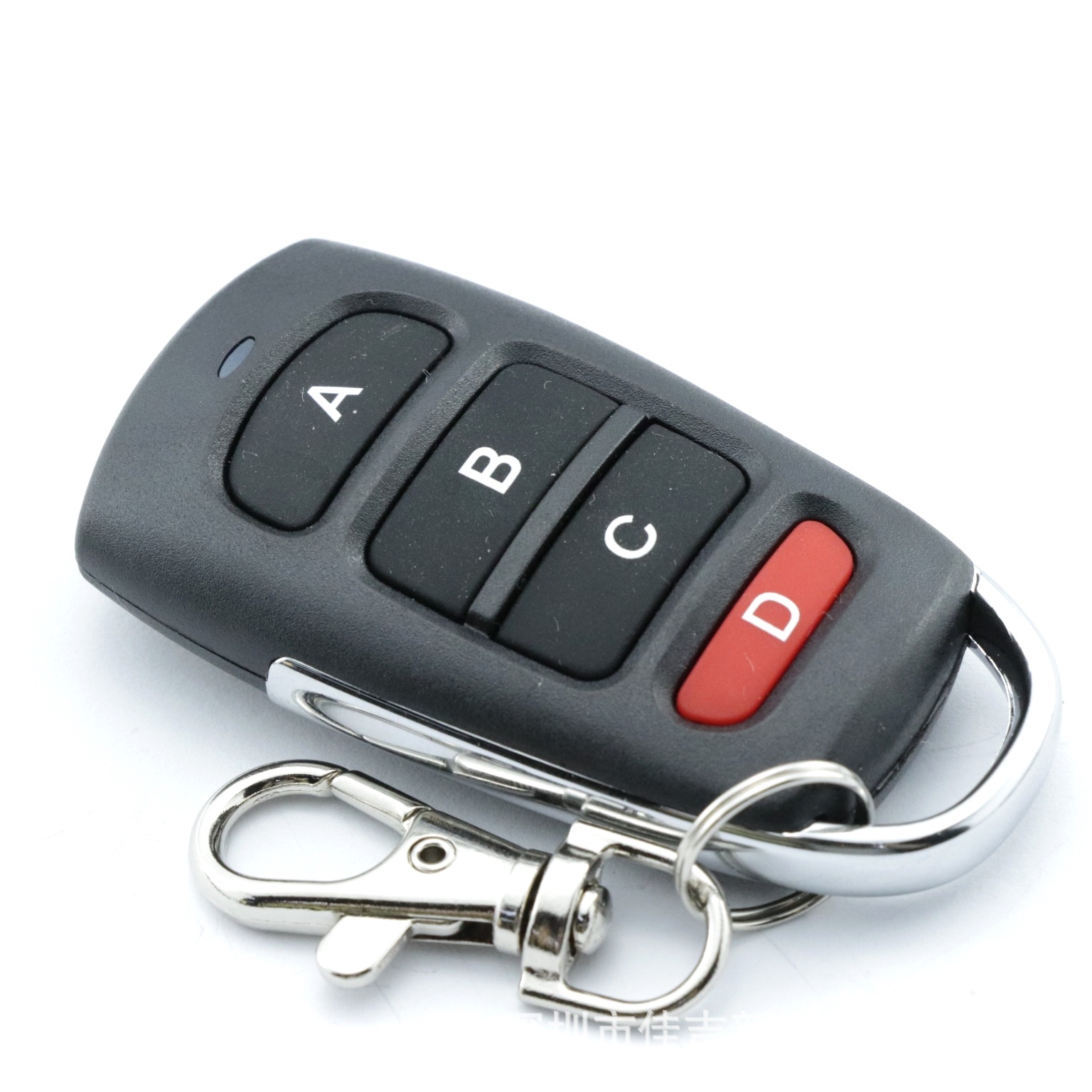

1Clear code: Press the A and B keys with two fingers simultaneously for about 2 seconds, and then release one finger while keeping the other pressed. Then tap the released key three times with the freed hand, and the LED light will flash continuously quickly. You can release both fingers now. If you press any key on the remote control, the LED light will not be lit, indicating that the code has been successfully cleared. If the light is on after pressing any key on the remote control, it means the original code was not successfully cleared! You need to re-clear the code.

2Copy: Hold the original remote control in your left hand and our copy remote control in your right hand, with both remotes as close as possible. Press both remotes' first button at the same time, and after about 2 seconds, the LED light will flash quickly twice -- then again flash 3 times in 1 second -- and then stay on for 1 second. When the indicator light stays on, release your hands and press the button that was successfully learned. The light will stay on, indicating that the code for the first button on the original remote has been copied into our copy remote. Repeat the same process for the second, third, and so on buttons. If the copy is successful, the functions of the buttons on the copy remote will match the functions of the buttons on the matched remote.

3Recovery: If you accidentally clear the code of the clone remote, you can press the bottom two buttons simultaneously on the clone remote, and the LED light will flash rapidly. After releasing your fingers, press any button again, and the light will stay on for a long time, indicating that the code of the clone remote has been restored. Please make sure to clear the existing code of the clone remote before using our clone remote to copy.

4Here is a method to test whether the existing code of the remote control has been successfully cleared: When you finish the code clearing action, you can press any key on the clone, and if the LED is not lit at this time, it means that the clone code has been completely cleared. If the LED is in a constant-on state, it means that the clone code still exists.

5How to deal with the situation where one of the buttons does not work after a duplicate operation, while the others work normally, you can use a little trick of clearing and restoring operations: if you find that a button did not work after the duplicate operation, but the others are normal, you can use this little trick. The specific operation is as follows:

（1）、Perform the decoding operation first.

(2) Copy the button that failed to be copied earlier once more, but do not copy the buttons that have already been successfully copied; (3) Perform the decoding operation again.

Step 4: Perform the recovery operation once. At this point, the original unsuccessful copy of the button is now covered by the code that was just copied, while the successfully copied code remains intact. This can be utilized to reduce the hassle of repeated operations.

 Notes

1. The necessary conditions for selecting a clone remote control: the original remote control functions normally, the chip is compatible, and the frequency is correct.

2. The cloning remote control can only copy the fixed code and learning code chip of the remote control (chip model see the second paragraph of the instructions).

3Bidirectional remote control, rolling code remote control part IC, program encryption remote control cannot be copied.

4Before copying a remote control, please ensure that the existing code has been cleared. Otherwise, the copying cannot be performed.

5To avoid interference during the operation process. Stay away from all electronic signals, such as mobile phones, during the copying process, such as wireless routers. Ensure that your remote control has enough battery power, and the closer the distance between the two remotes during the copying process is better! When holding down the button of the original remote control, you need to ensure that the signal is completely correct.

Constantly, and then press the clone remote control button to ensure that the function is completely copied.
