Product Introduction:

Please indicate the instructions based on the product's actual physical effect picture.

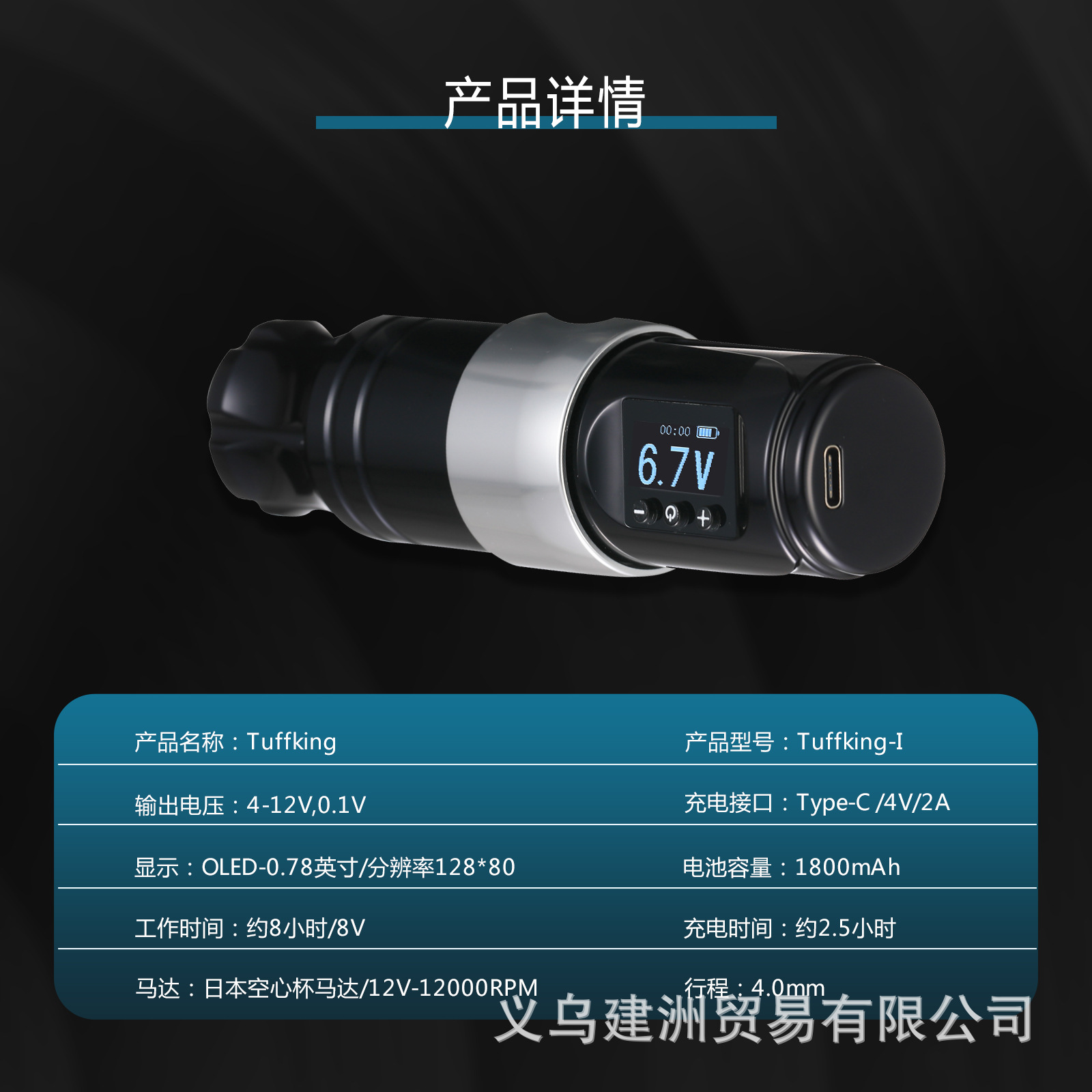

Basic Parameters:

Product Name: Tuffking Wireless Battery Pen Generation 1 (for reference)

Product model: Tuffking-I (for reference)

Product Size: Length 14, Width 3.5, Handheld Diameter 3"

Packing Size: Length 19, Width 12.5, Height 5.7

Weight: 260g

Output Voltage: 4-12V, Adjustable to 0.1V

Motor: Centripedal Motor/12V-12000RPM

Display: OLED-0.78 inch/Resolution: 128*80

Battery capacity: 1800mAh

Working hours: About 8 hours/8V

Charging time: About 2.5 hours

Charging interface: TYPE-C/5V/2A

Travel: 4.0mm

Usage Method

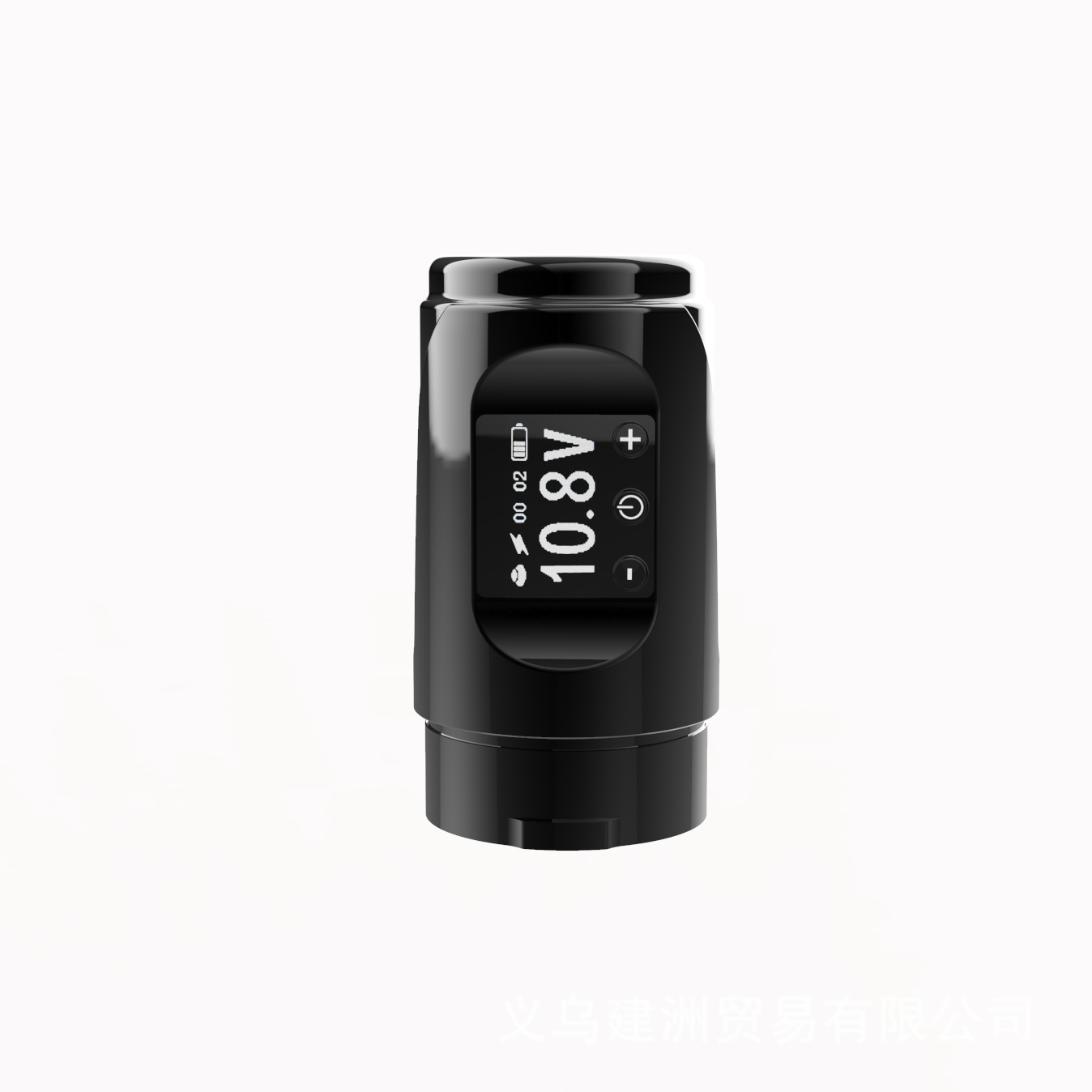

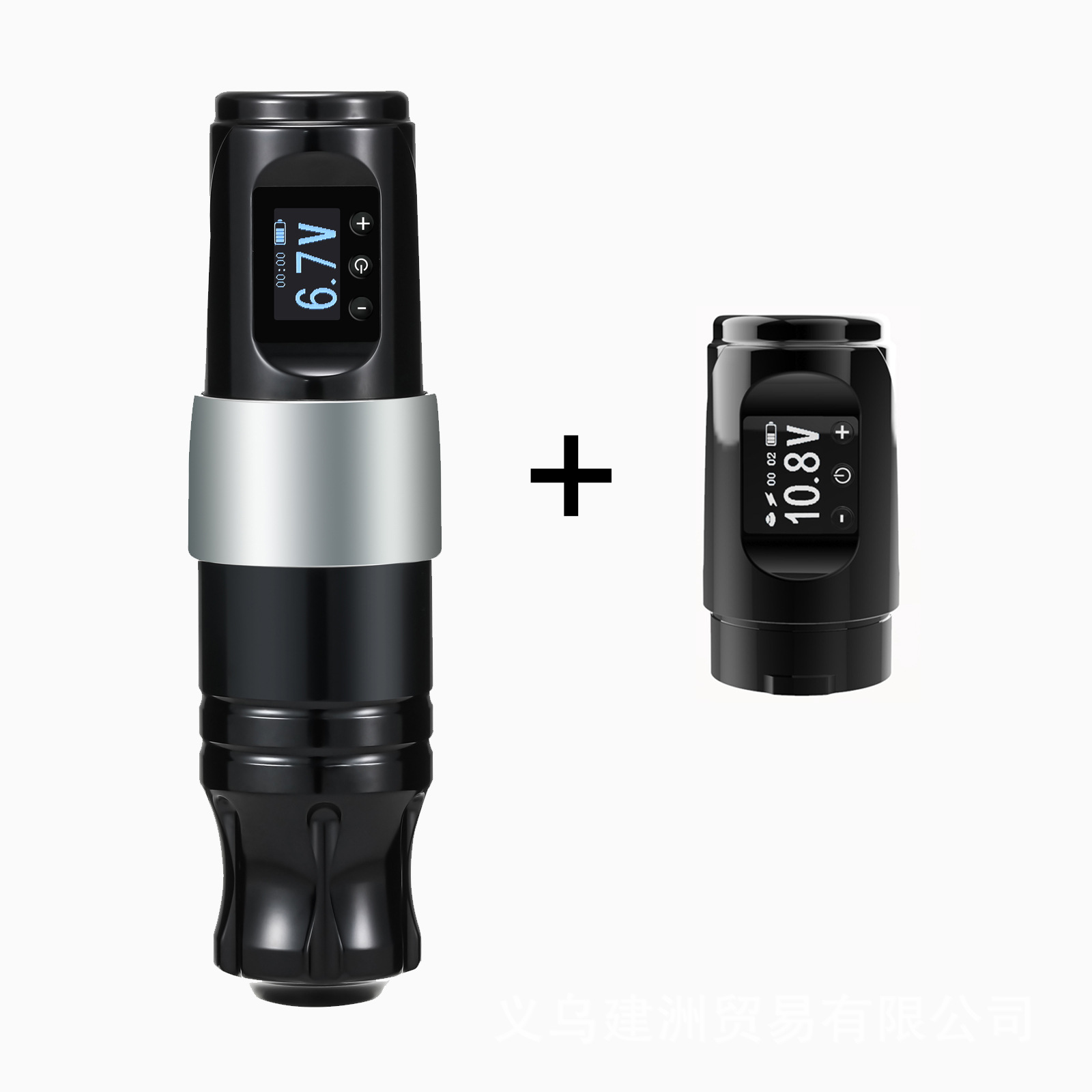

1. Connect the battery compartment clockwise to the motor section, and adjust the needle length.

2. Power-on/Pause: Includes 2 power-on modes. Press and hold the power button to enter the normal start-up mode, then press the power button to start the machine, and then press the power button to stop the machine. Press and hold the power button to enter the enhanced start-up mode, with a lightning symbol appearing, then press the power button to start the machine, rising to 10V for 0.2 seconds before dropping to the current set voltage, then press the power button to stop the machine.

3. Shutdown: Press and hold the power button to turn off the device in the on state. If no operation is performed for 10 seconds, the screen brightness will decrease to save power; the device will automatically turn off after 5 minutes without output, and it will automatically turn off after 5 minutes with output but no load. When the battery is low, an alarm will sound when the battery is low, and then the device will shut down.

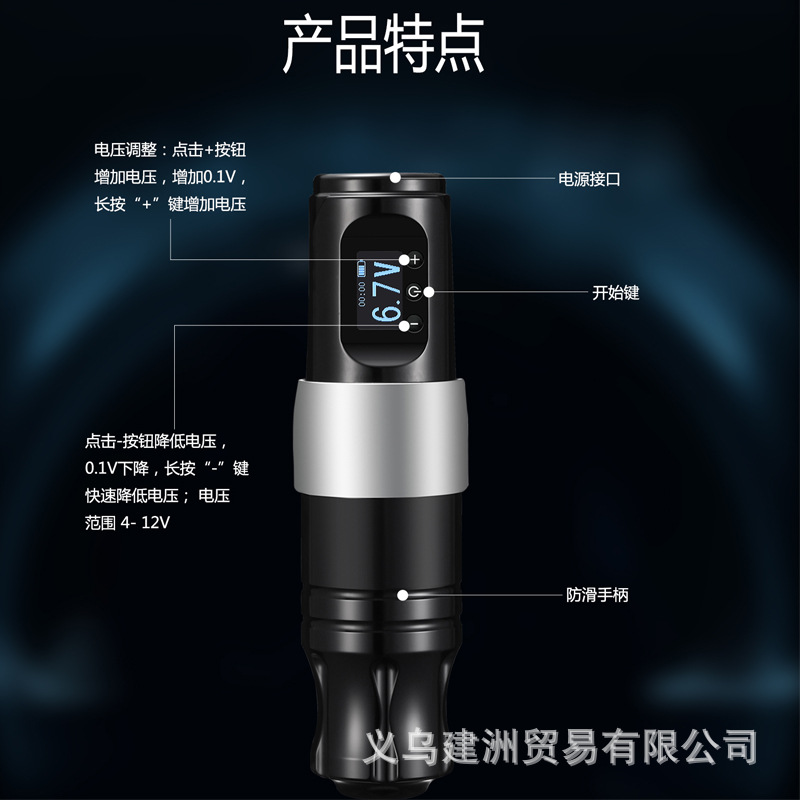

4. Voltage Adjustment: Click the + button to increase the voltage by 0.1V, and hold the + button down to quickly increase the voltage; Click the - button to decrease the voltage by 0.1V, and hold the - button down to quickly decrease the voltage; The voltage range is 4-12V.

Charging: Connect the TYPE-C charging cable to charge. When charging, the display will show "Charging". After charging is complete, the display will show "Charge complete".
