Product Features

The structure is made of aluminum alloy with hard anodized surface, reliable and durable; the circuit hardware and software algorithm have been completely upgraded, providing more precise and rapid voltage adjustment; the digital tube display screen has overcharge protection, card pin protection, output short circuit protection, and various abnormal conditions are reminded by text on the display screen.

Basic Parameters

Size: 31.8*53.7MM

Output Voltage: 4-12V, Adjustable to 0.1V

Display: Digital Tube

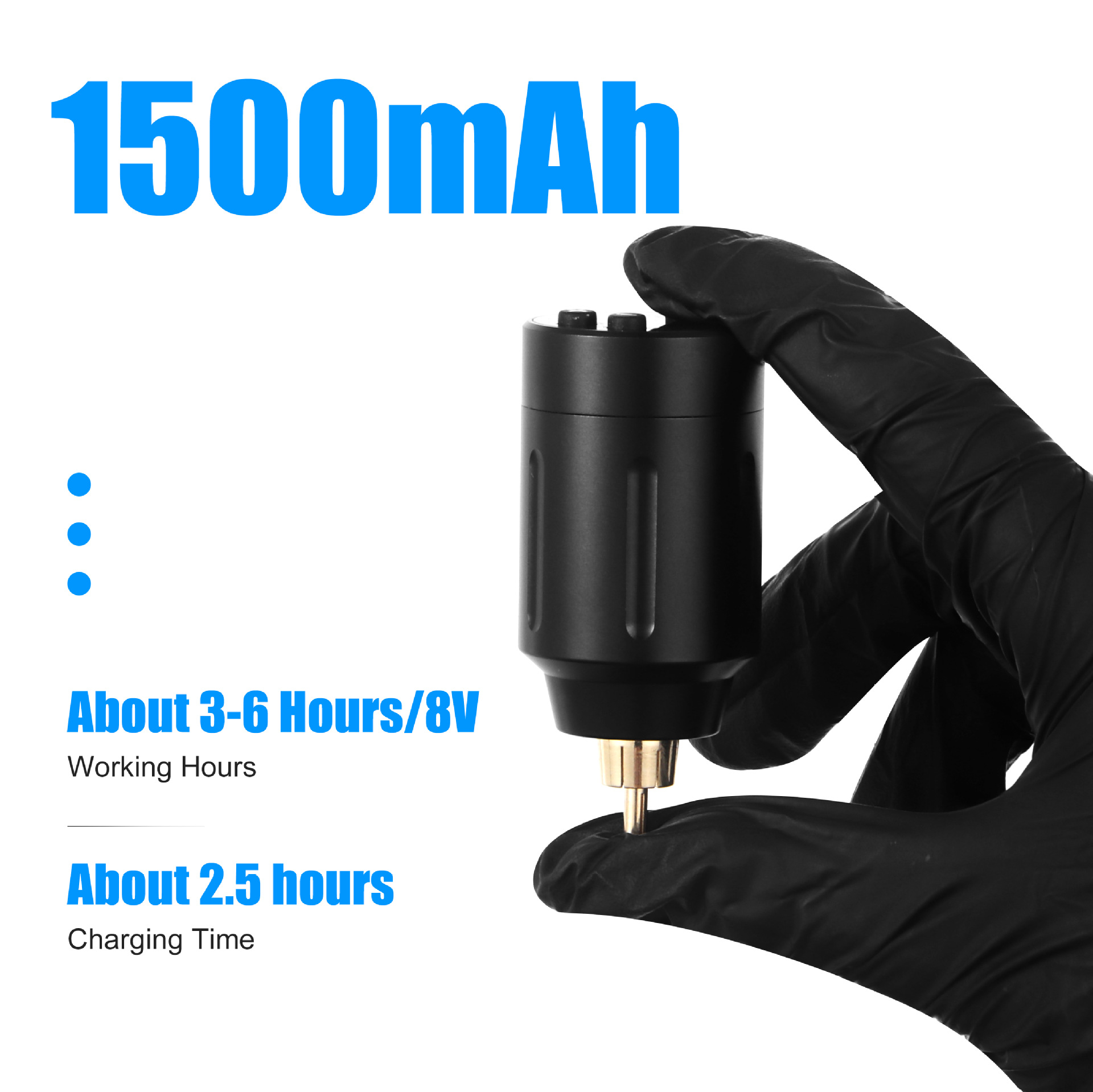

Battery capacity: 1500mAh

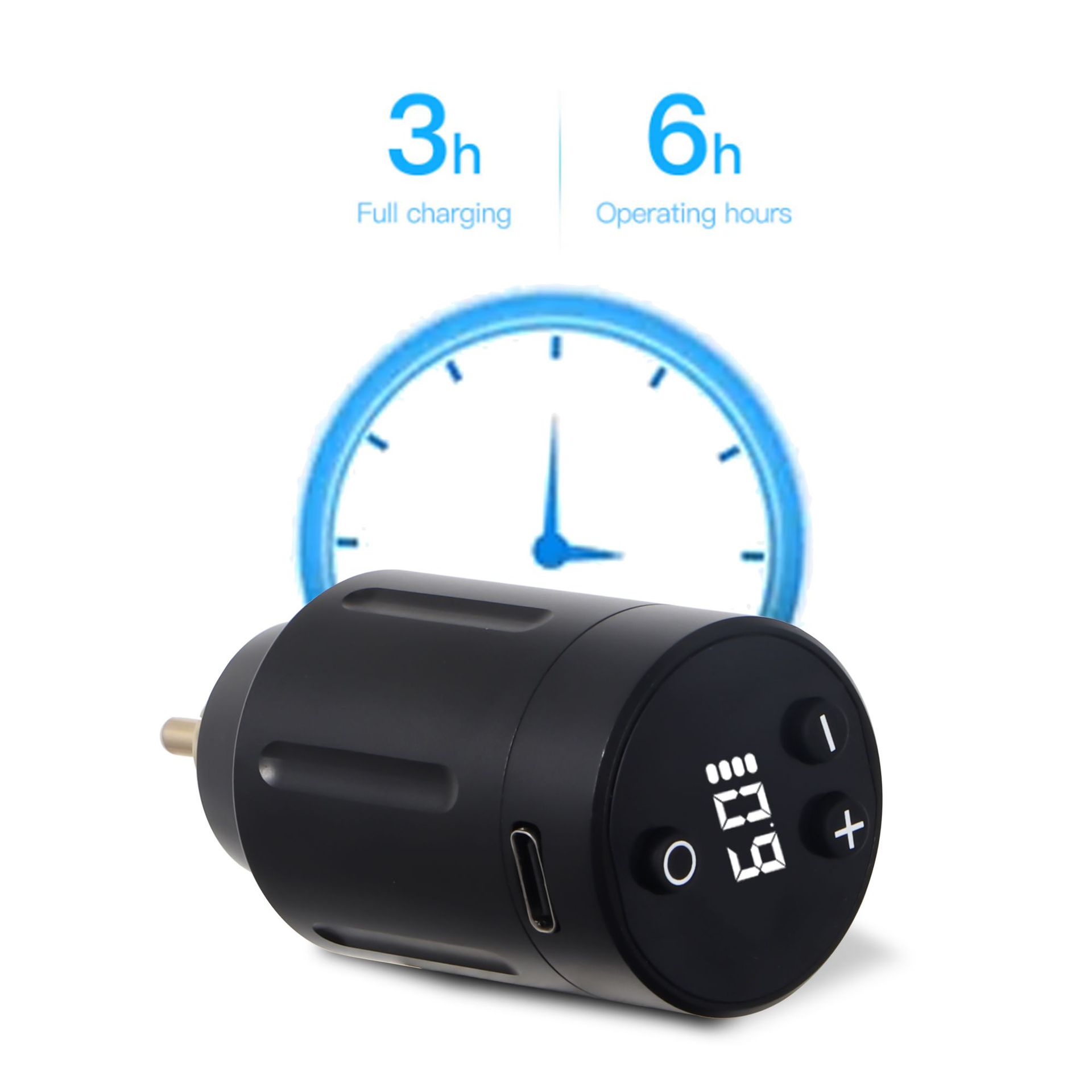

Working hours: About 3-6 hours/8V

Charging time: About 2.5 hours

Charging interface: TYPE-C/5V/1A

Usage Method

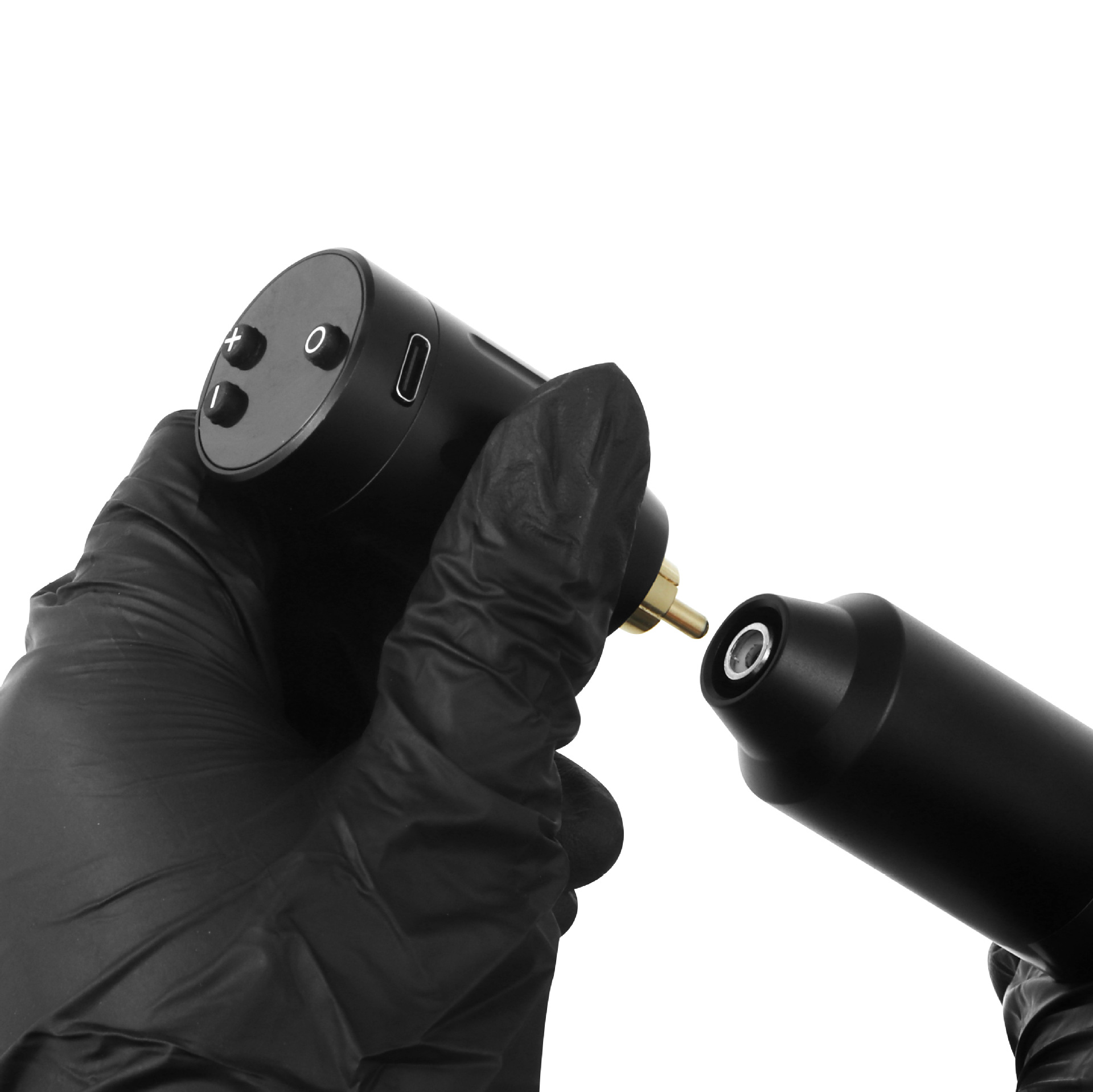

1. Connect the battery to the machine.

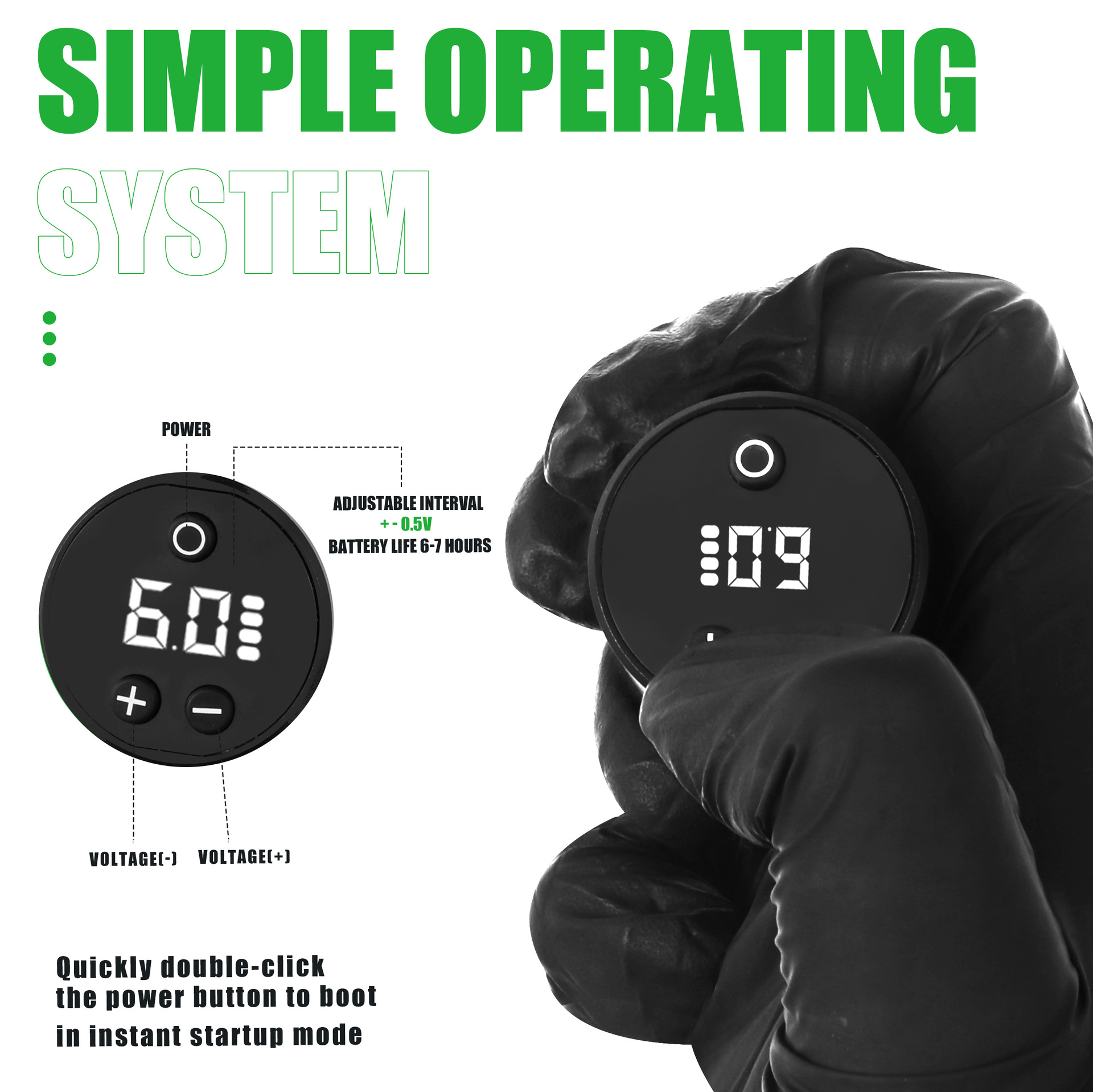

2. Power-on/Pause: Includes 2 power-on modes. Press and hold the power button to enter the normal start-up mode, then press the power button to start the machine, and then press the power button to stop the machine. Double-tap the power button to enter the enhanced start-up mode, then press the power button to start the machine, rise to 10V for 0.2 seconds, then drop to the current set voltage, and then press the power button to stop the machine.

3. Shutdown: Press and hold the power button to turn off the device in the on state. The device will automatically turn off after 5 minutes without output. If there is output but no load, it will automatically turn off after 5 minutes. If the battery is less than 5%, an alarm will sound to indicate low battery, and then the device will shut down.

4. Voltage Adjustment: Click the + button to increase the voltage by 0.1V, and hold the + button down to quickly increase the voltage; Click the - button to decrease the voltage by 0.1V, and hold the - button down to quickly decrease the voltage; The voltage range is 4-12V.

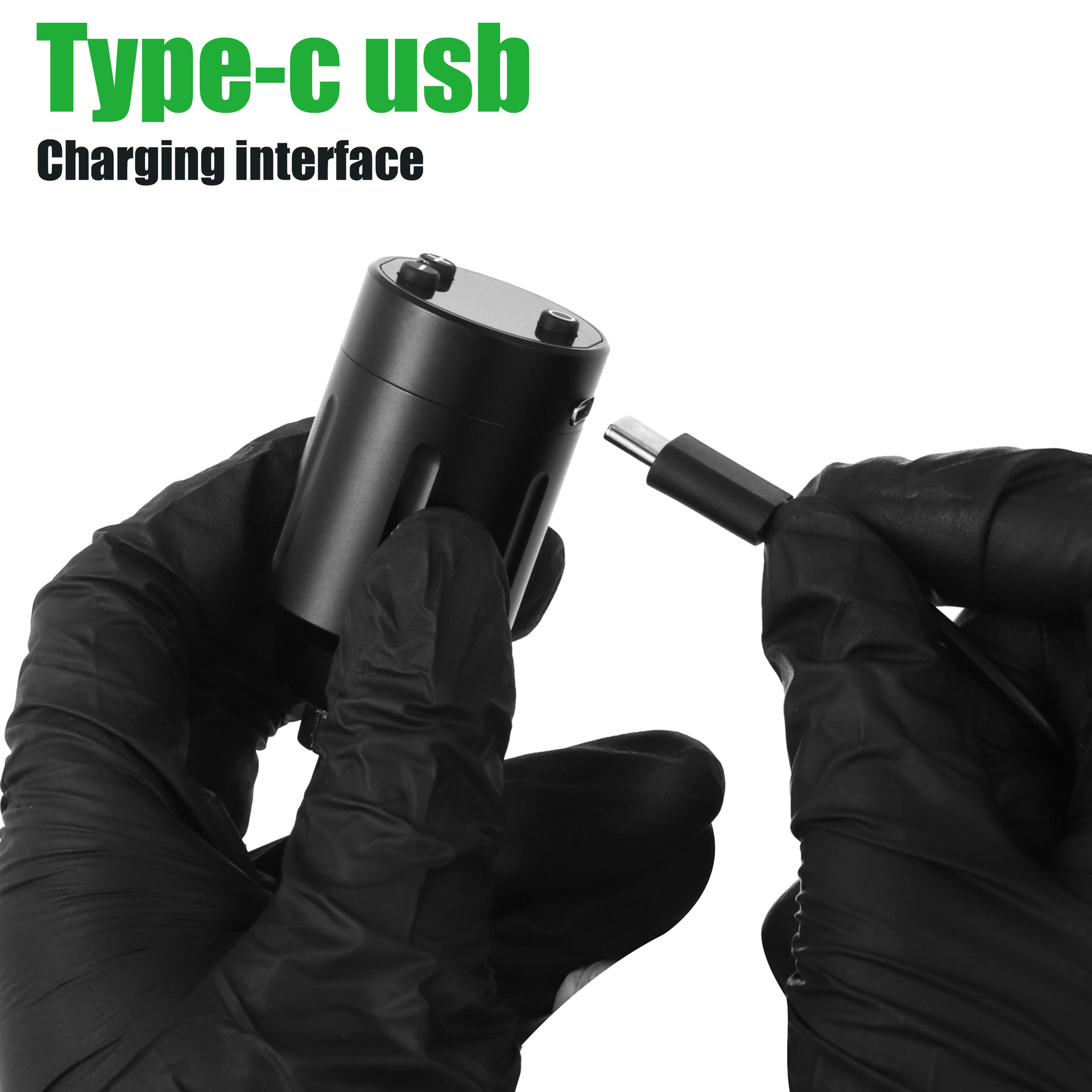

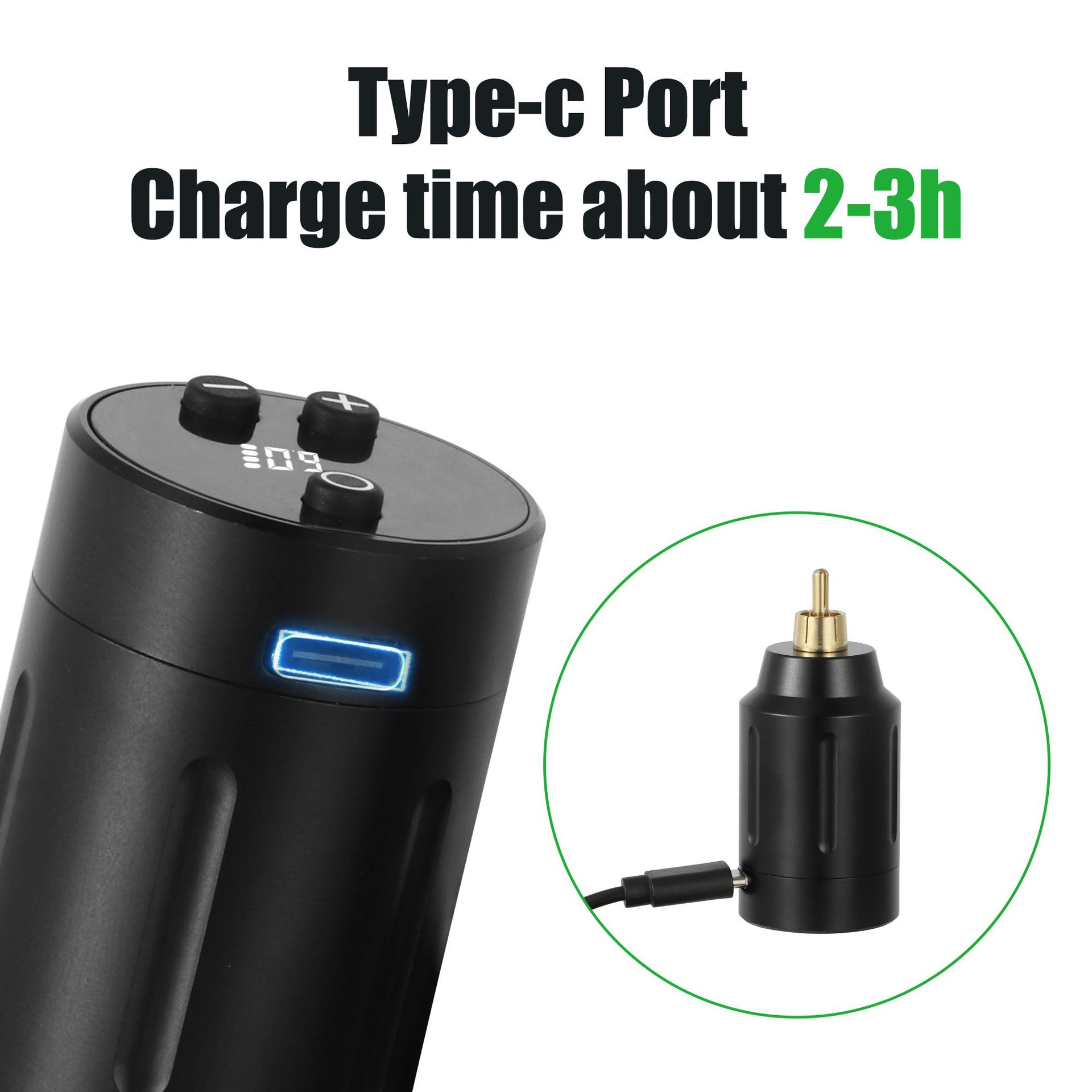

Charging: Connect the TYPE-C charging cable for charging. When charging, the battery level will flash in increments. After charging is complete, the battery level will show full and no longer flash.
