This power supply does not include a pedal hook.

1. Introduction

The new generation of mini tattoo power supply, with a volume only the size of the palm; uses a metal shell, with a beautiful appearance and excellent workmanship; voltage setting
Precision, voltage can be adjusted below 18V at will. Suitable for power supply of various tattoo machines, it is an ideal tattoo tool for tattoo artists.
Section Two: Technical Specifications
Model Specification: PS-002K
Rated Input Voltage: 100-240Vac 50/60Hz
Input Voltage Range: 90—264Vac 50/60Hz
Input Current: 0.5A max
Output Voltage: 0-18Vdc ±2% Adjustable at Will
Output Current: 1.5A (max)
Shell Material:
Dimensions: L10cm * W7.0cm * H2.5cm

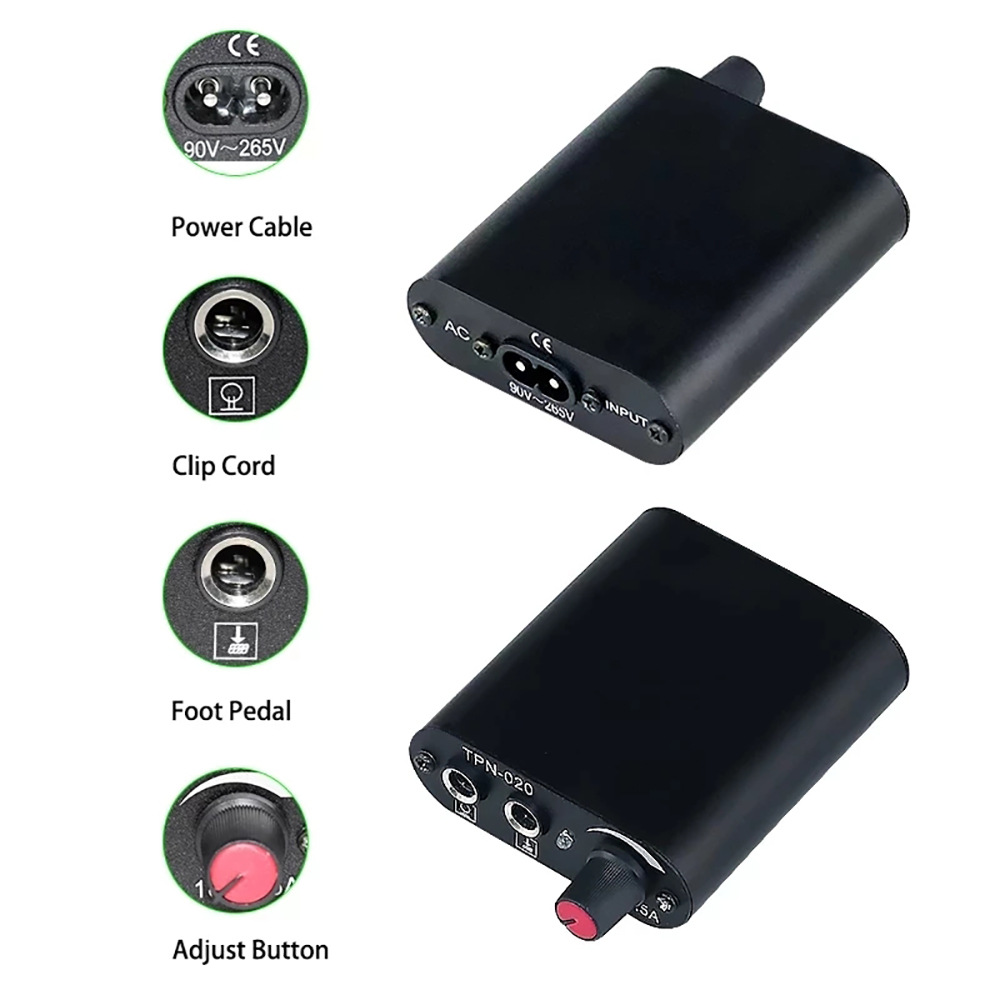

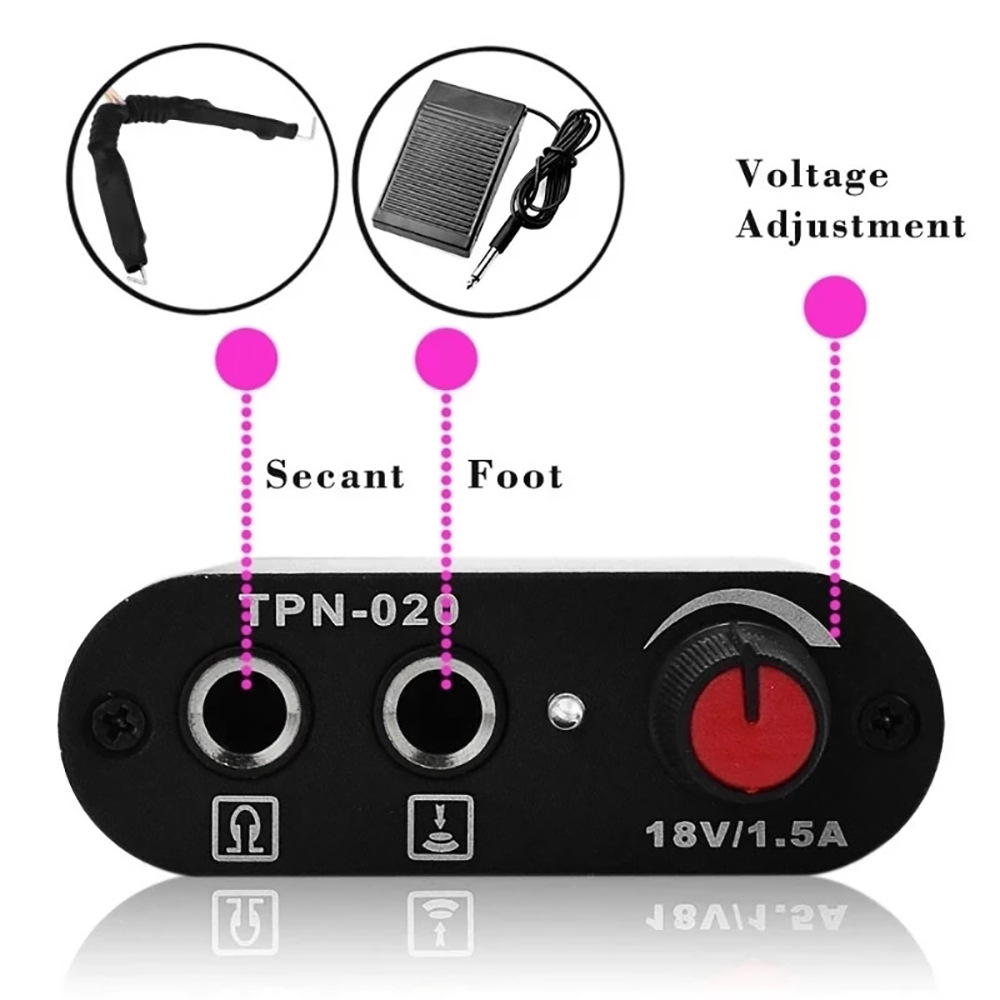

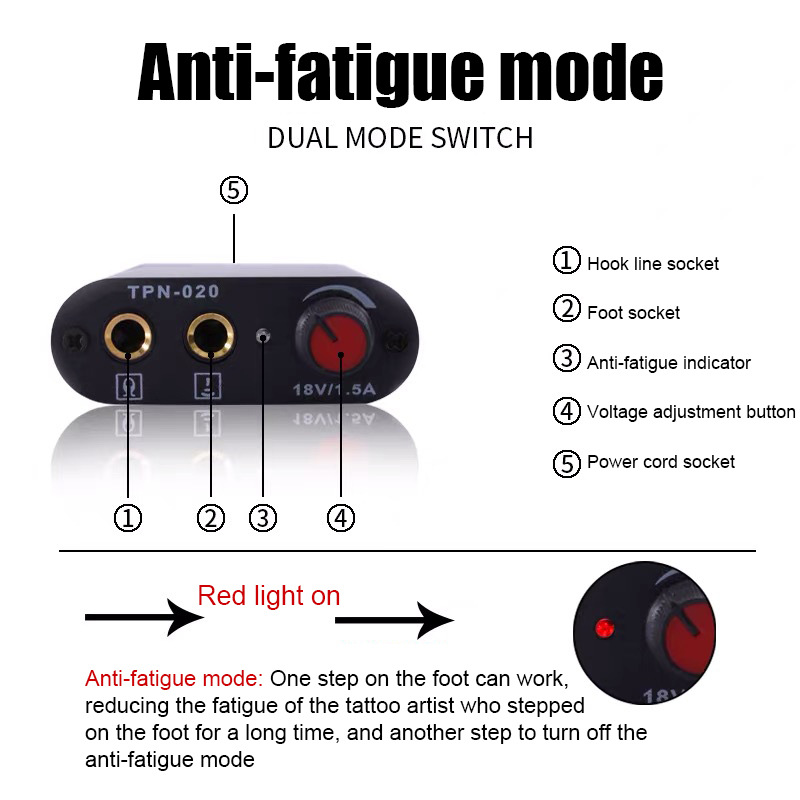

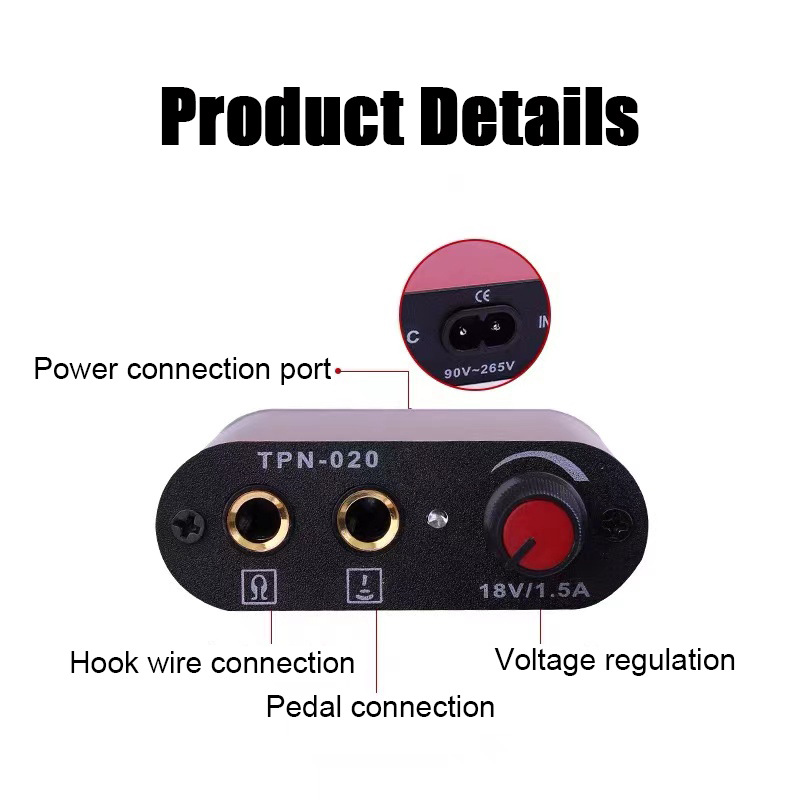

Section Three: Structural Diagram
1. AC Power Input Socket
2. Power Output Sockets
3. Foot-operated switch
4. Power Output Indicator
5. Output Voltage Regulation
Section 4: Usage Method
1. Power-on Preparation: Insert the AC cable provided randomly into the power socket at the rear of the TPN-020, as shown in the diagram above at position 1, and the other end into the city electricity.
Outlet; Insert the foot-operated switch into the socket shown in the picture at position 3, and insert the tattoo machine into the socket shown in the picture at position 2.
2. Turn on the power: Step on the pedal, and the LED lights up, indicating that the socket at the indicated position in the diagram has a voltage output.
3. Set the voltage: Adjust the rotary knob at position 5 as shown in the diagram to set the output voltage to the required value. After 5 minutes, the power will automatically turn off.

5. Safety Precautions
Please use the product within the rated input and output range. If there is any abnormality, please check if the input and output lines are connected normally.
(2) Do not apply excessive pressure, do not drop or fall, if the shell deforms, please stop using.
(3) High voltage danger, do not disassemble the machine without authorization.
