Basic Information

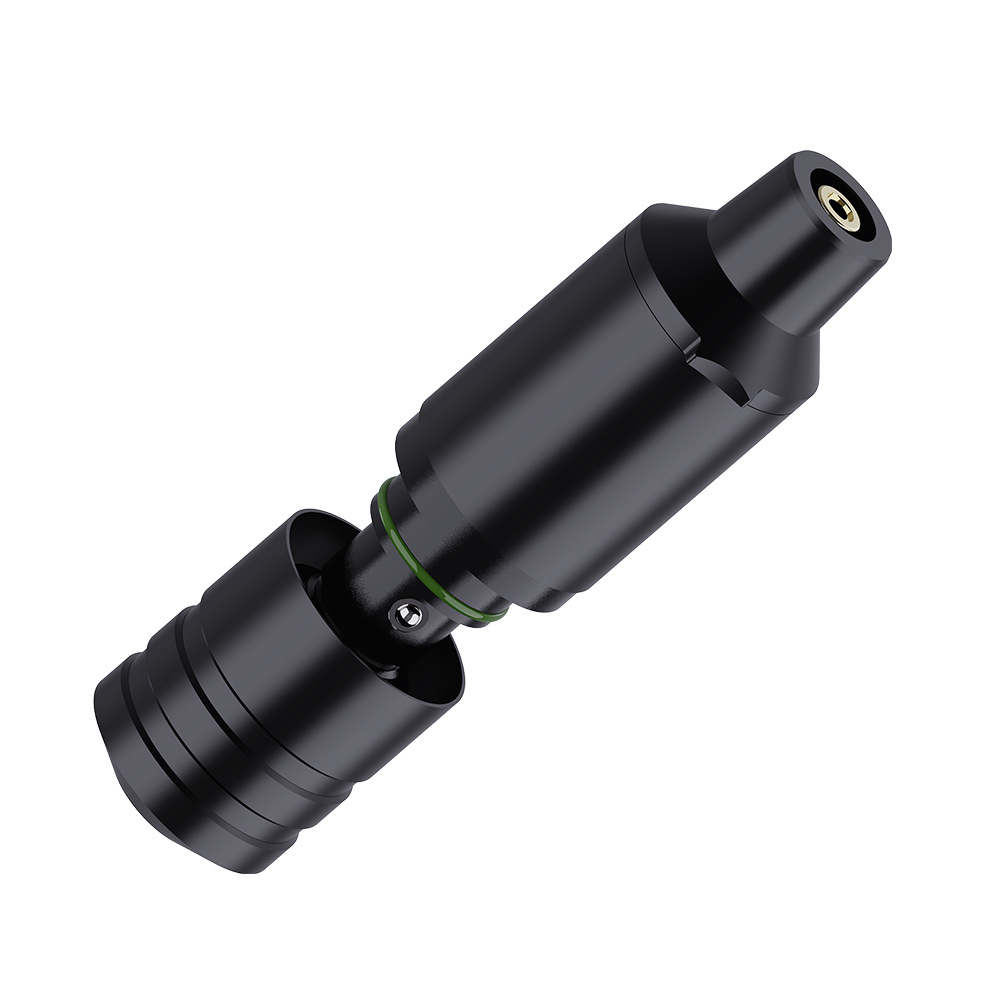

Product NameXiaan Lithium Battery Tattoo Pen

Net WeightWeight: 205g (Single Machine) Gross Weight: g

尺寸129mm*34mm

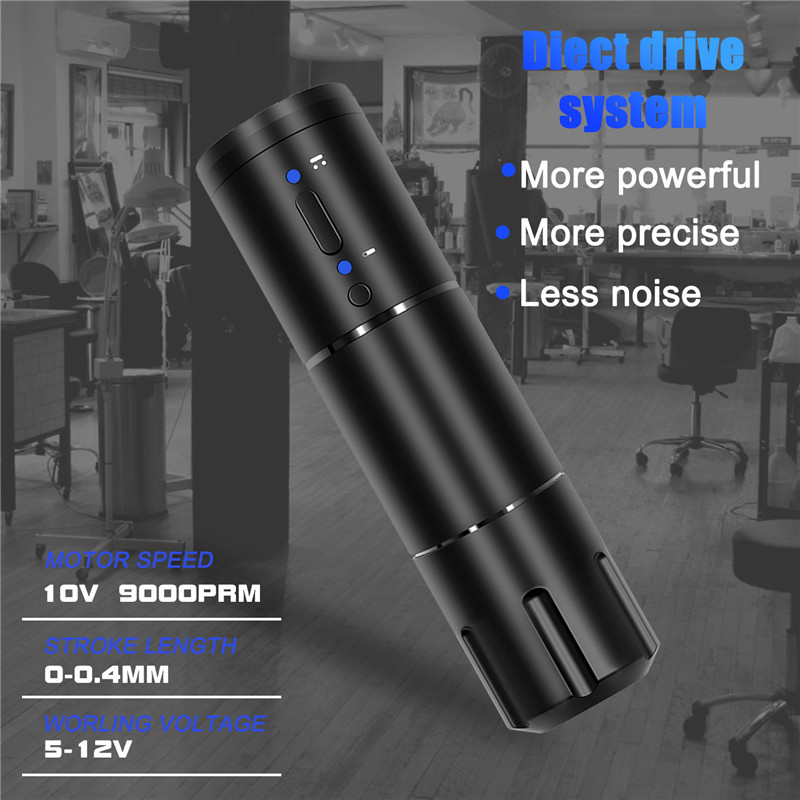

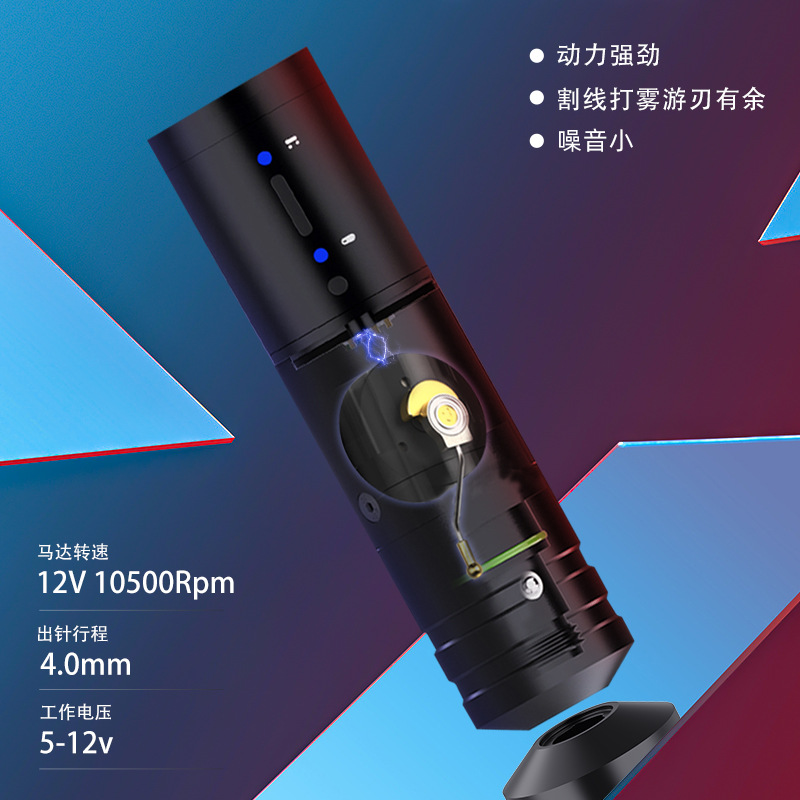

马达Hollow Cup Small Motor (17*19.8mm, 9V10000 RPM)

接口type-c接口 (USB-C)

结构Integrated lithium battery pen structure with built-in lithium battery and rotatable and removable battery compartment.

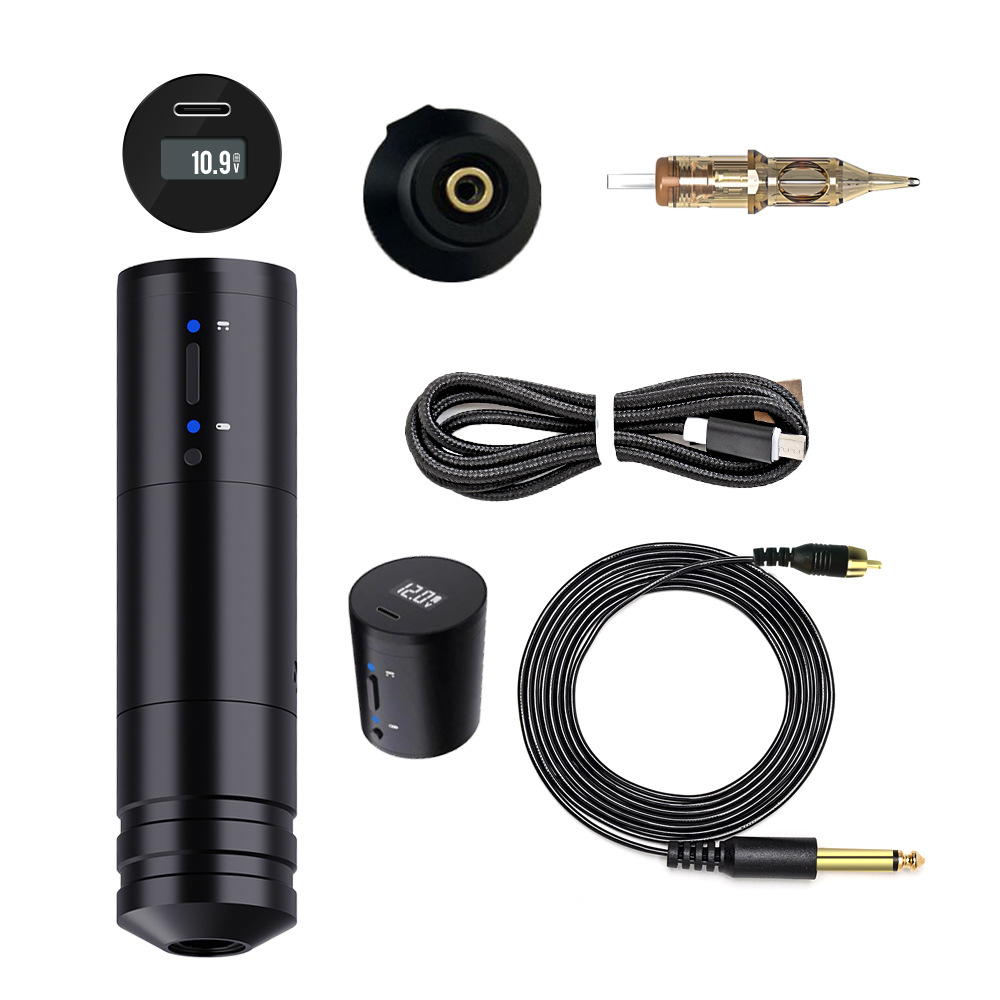

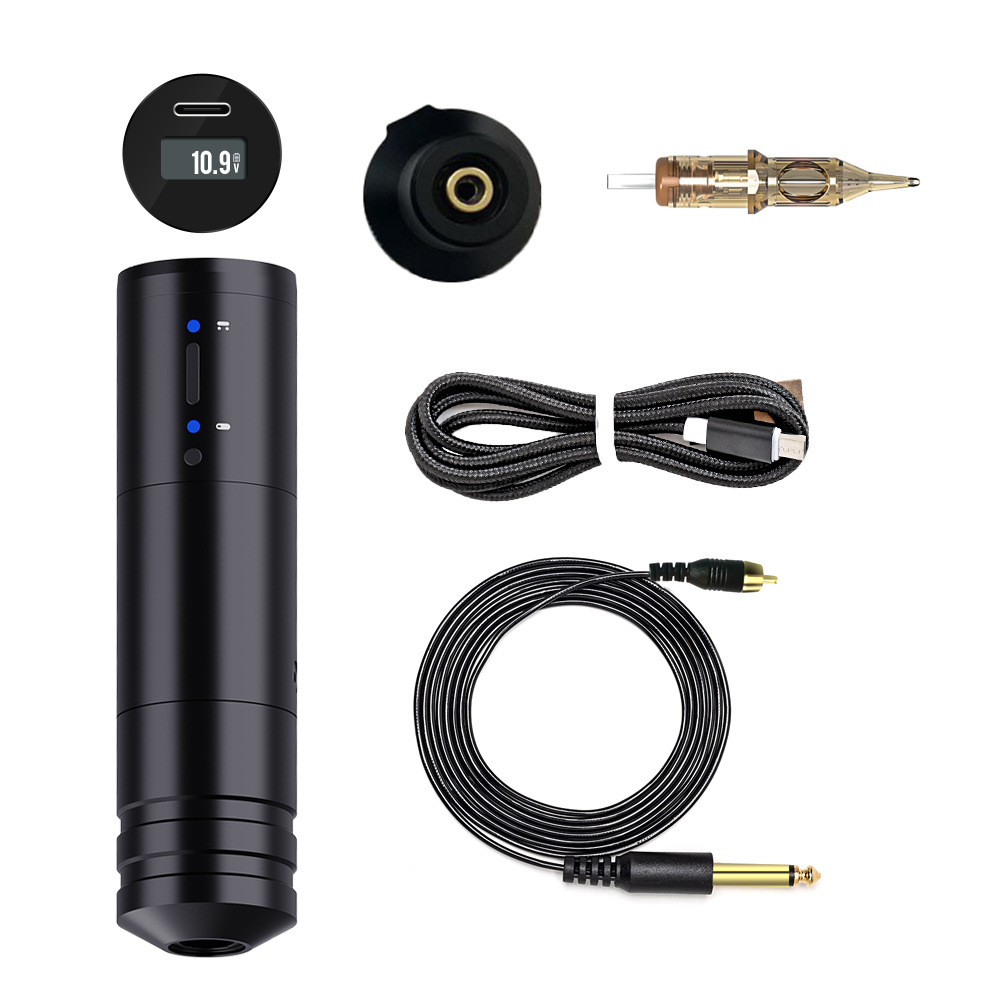

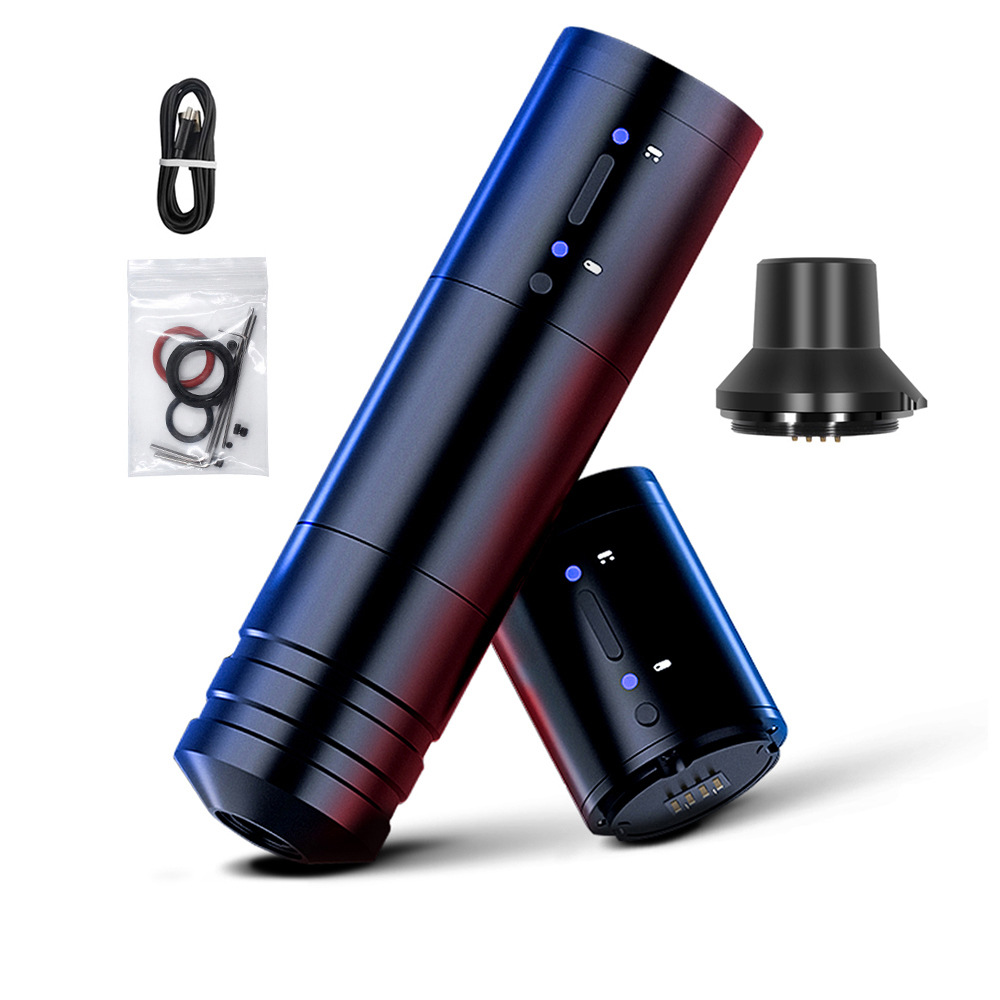

ConfigurationLithium battery tattoo pen + RCA converter + RCA soft silicone wire + USB data cable + accessory kit, and additional spare batteries can be purchased separately.

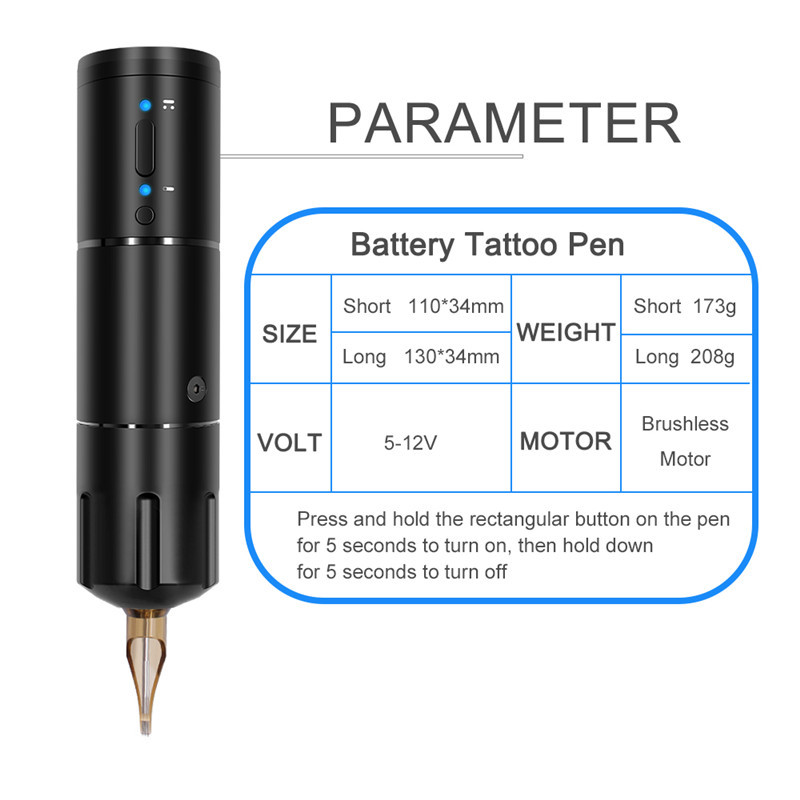

Product Parameters

1.  Material: Aluminum Alloy
2.  Craftsmanship: CNC integrated precision engraving;
3.  Color: Black
4.  Thickness: 0-0.38mm;
5.  Gear position: Adjustable voltage range 5-12V, short press for 0.1V increase, long press for 0.5V increase.
6. Display: The top of the tattoo pen shows a high-definition LCD screen (voltage -- battery usage).
7.  Applicable: The size of the Xianka needle hole is suitable for most integrated needles on the market.
8. Battery capacity: 1600mAh (milliampere-hour);9.Working Voltage: 5-12V;
9.  Charging time: Fast charge, fully charged in 1.5 hours when the battery is empty.
10.  Time of use: Output current is 2.0A, under normal 8V voltage working conditions, it can work continuously for more than 5 hours, with stable voltage. If used intermittently, it can last about 6-7 hours.

11. Start-up Voltage: With memory function, the start-up voltage is the voltage at the time of last use when it was turned off.

12. Forced Start Function: The device can be started forcefully to ensure that it does not get stuck, and it can drive large rows of pins.

Instruction Manual

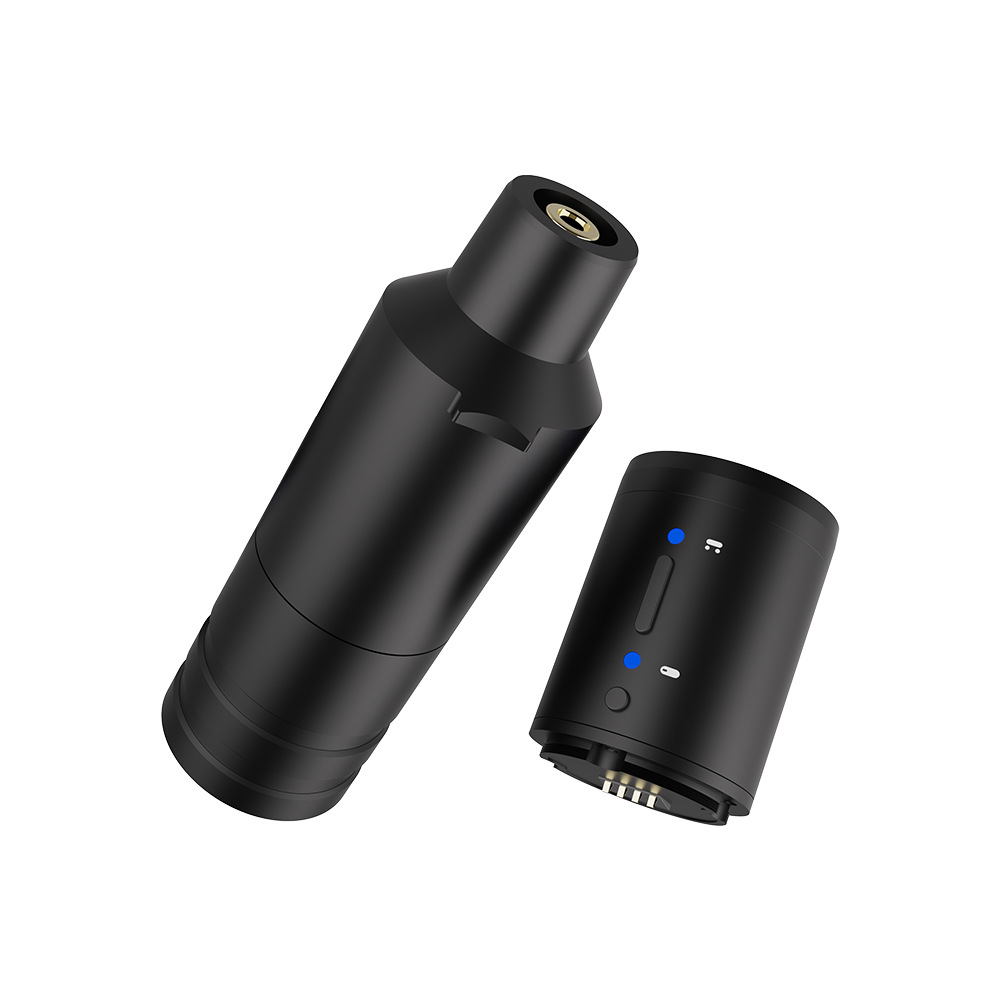

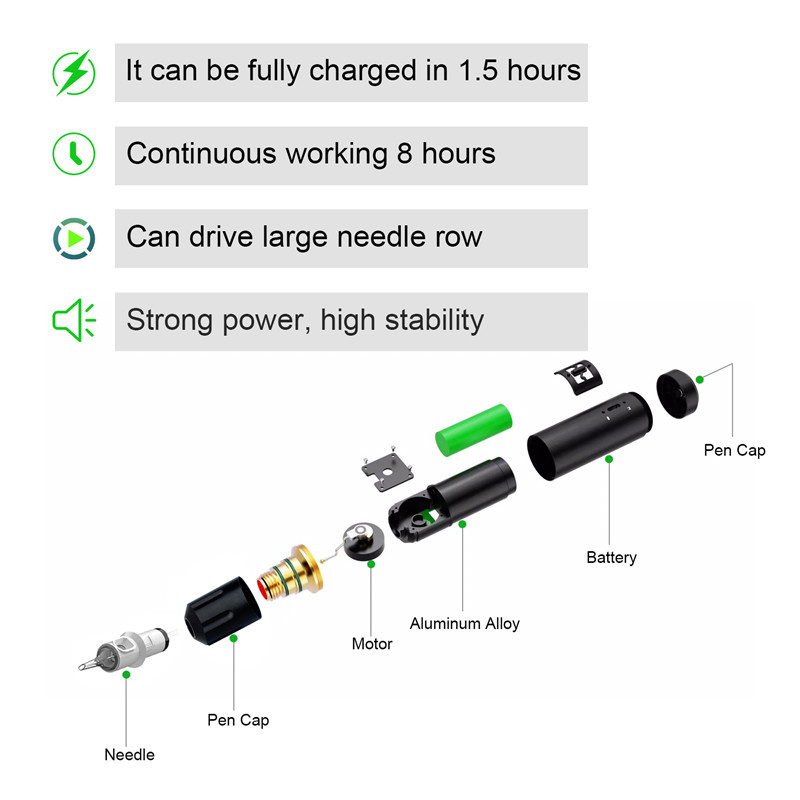

The device is a tattoo pen with built-in lithium battery, which can be directly used without the need for a foot pedal or hook line. It is composed of two parts: 1. The upper half is the lithium battery power supply, and 2. The lower half is the tattoo pen. The middle part can be rotated to replace the upper half of the lithium battery, or equipped with an RCA converter for use. The specific function operation is as follows:

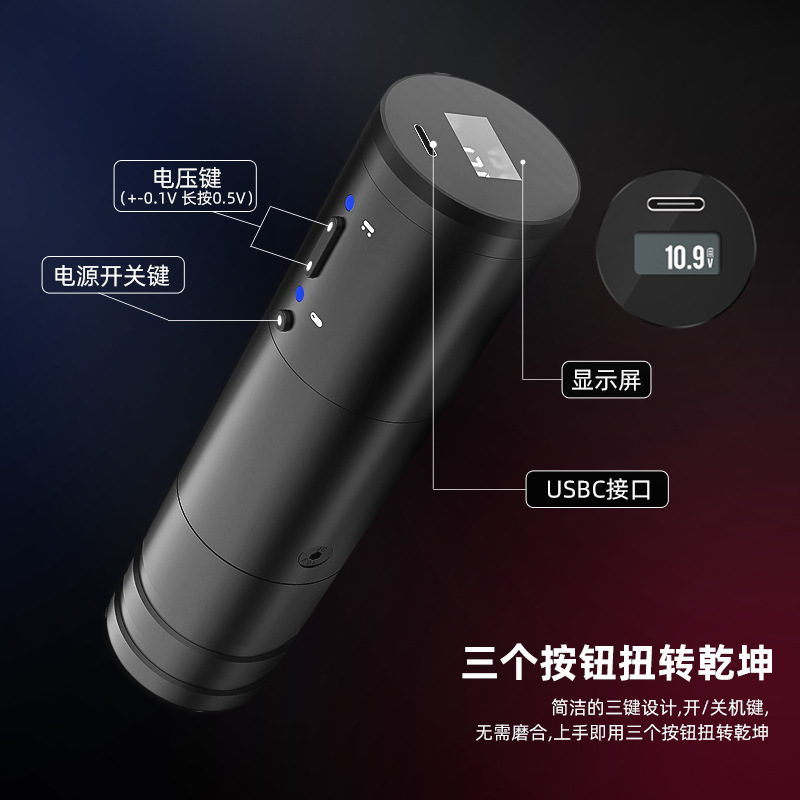

1. Power On: Press and hold the black '●' button on the battery for 5 seconds to turn on, then press and hold for 5 seconds to turn off.
2. Pause: Press the black '●' key briefly to pause the work, and press it again briefly to resume the working state.

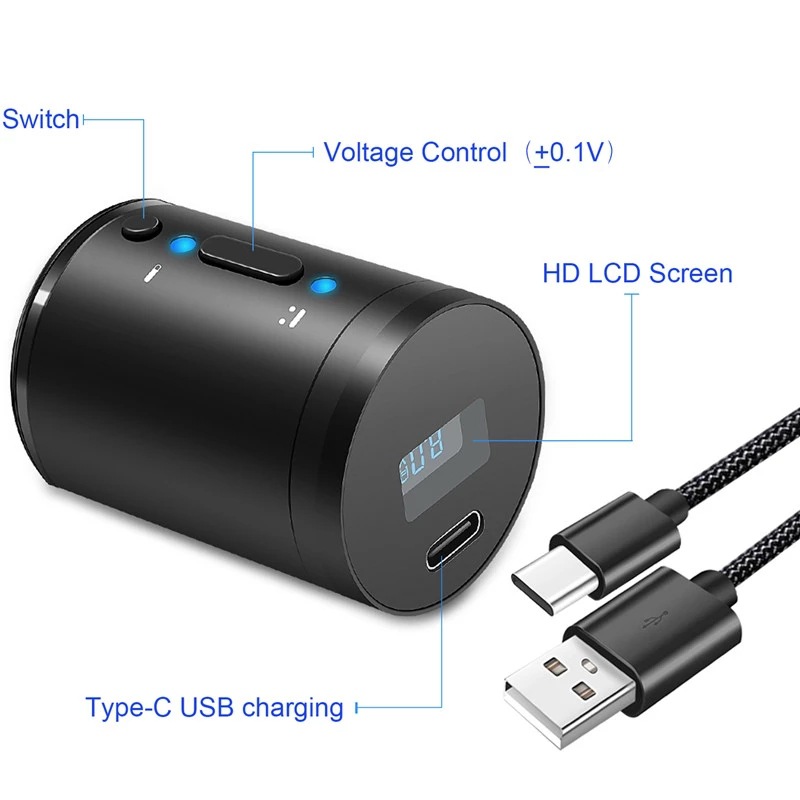

3. Adjust voltage: Use the up and down buttons to adjust the voltage level by pressing once for 0.1V or holding down for 0.5V.
4. Indicator light display: Blue indicator light: The device is powered on and ready for use; Red indicator light: The device needs to be charged.
5. Daily Charging: The battery has an external charging port, and it can be charged using a type-c data cable.
6. Lithium battery warranty: The battery is warranted for one year. You can purchase the upper half of the lithium battery separately for backup use.

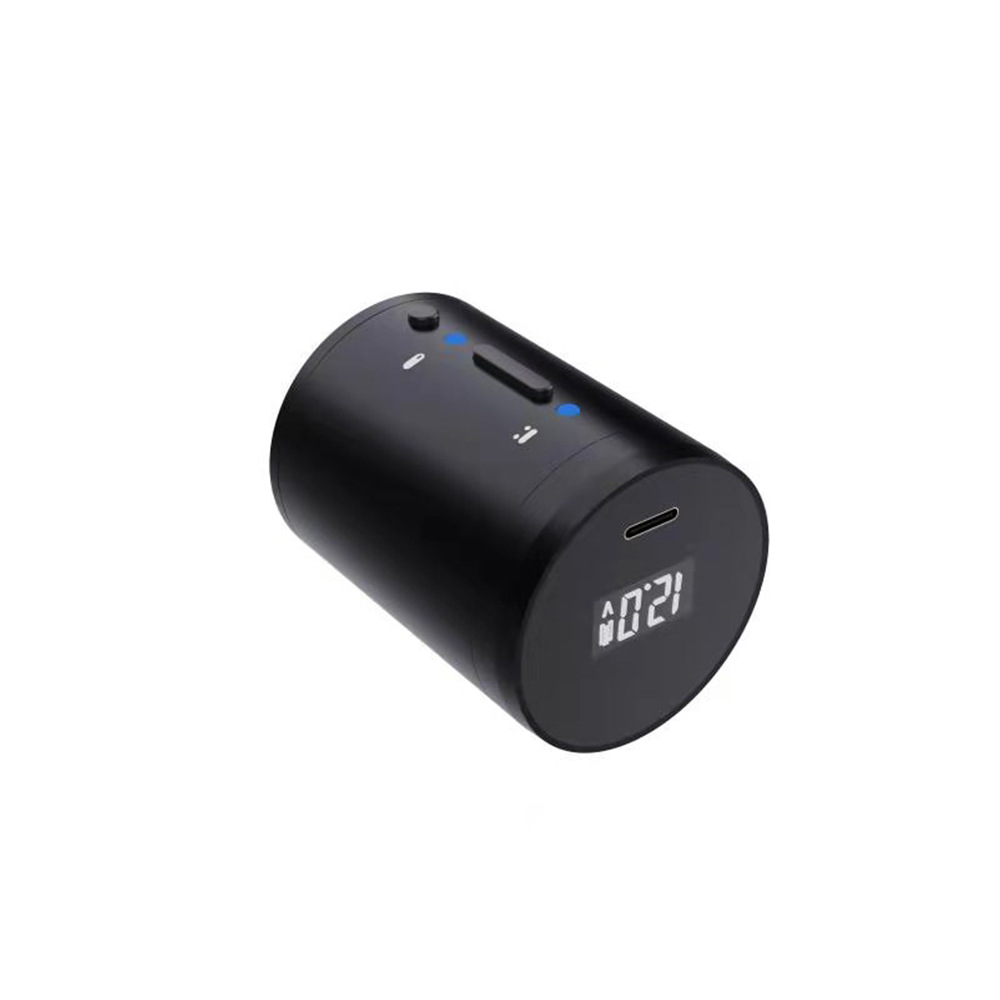

Lithium Battery Parameters

1. Input: The device can be charged by connecting a USB cable to the type-C charging port and power supply, and then the lithium battery has a built-in power storage function, with a battery capacity of 1600mAh.

2. Output: The output current is fixed at 2A. The lithium battery releases the stored electricity through the start button, powering the built-in motor, thus starting the tattoo machine and driving the needle out. Output voltage settings: (5-12V), with 5V as the minimum voltage and 12V as the maximum voltage;

Product USP

①. Simple operation, convenient to use, a pen can work, no need for foot pedal tracing power;

②. High-end display, with a high-definition LCD screen at the top, the display content is rich, and the voltage value is clearly visible.

③. 1600mAh capacity, 8V operation can last up to 5 hours, stable power output.

Equipped with a small hollow cup motor, it has sufficient power, high cost performance, long service life, and meets the needs of tattoo artists for various patterns.

⑤. The two handshake areas are finely carved with anti-slip design, which makes it comfortable to use for a long time and does not slip when sweating.

⑥. You can purchase the spare lithium battery for the upper half separately for replacement, which is convenient and hassle-free, providing longer battery life and more convenient use.

7. The product is equipped with a RCA converter and a fine RCA cable, offering exceptional value for money. It can be used with a lithium battery or with traditional power sources, such as a clip or pedal, for convenient multi-purpose use.

⑧. The card pin hole is a standard Xiahann size, suitable for most one-piece needles on the market.

The pen body is equipped with detachable screws, and the pen has a detachable structure, making it very simple to disassemble and replace parts.

Enhance output, 2.0A battery output, ensure that the lithium battery pen power coordination, cutting and fogging can be handled with ease.

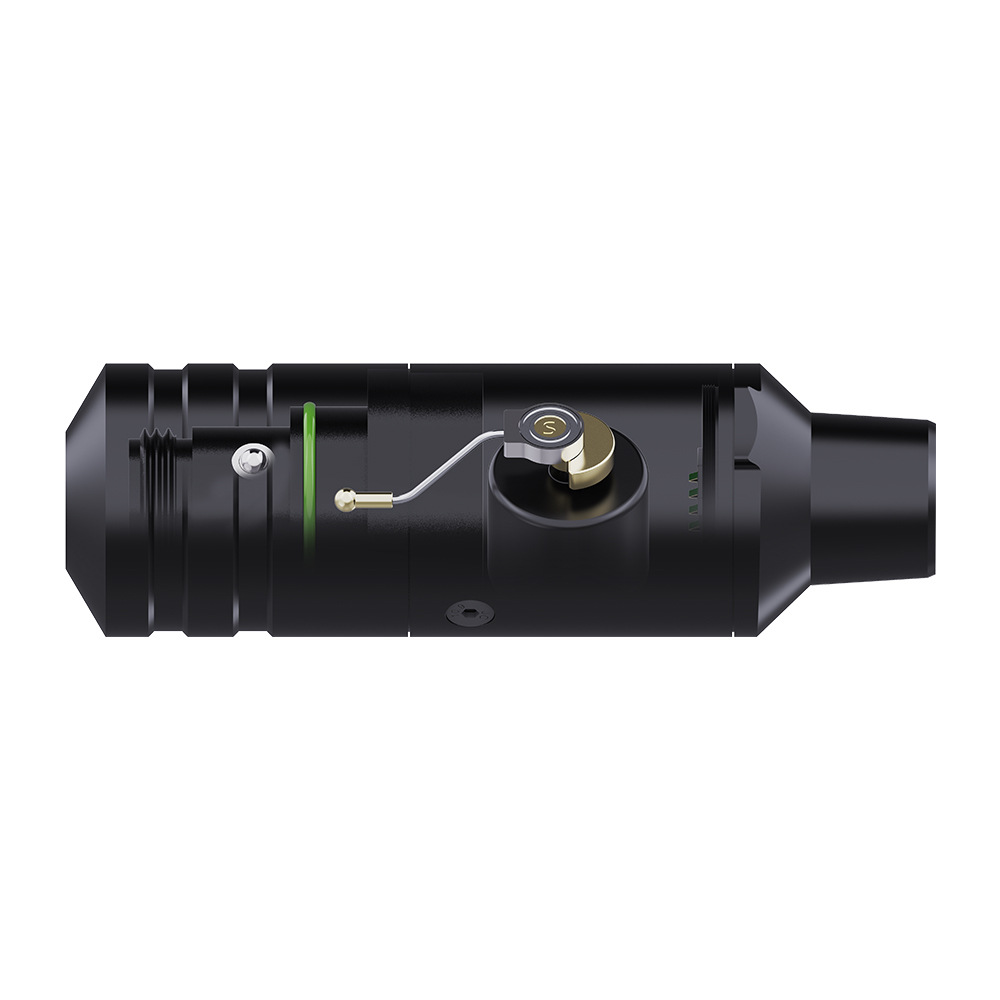

11. The internal stainless steel high-grade positioning beads at the needle outlet position are adjustable with precise settings, producing a clear sound, and providing a good user experience.

12. The charging port is equipped with a Type-C interface, which provides more stable charging and ensures safety and peace of mind.

13. Dual-mode voltage adjustment system, short press for 0.1V adjustment, long press for 0.5V adjustment, making it more convenient for tattoo artists.

14. Classic style, stylish and elegant with a simple design.

15. The body of the pen can be customized with laser engraving, and free engraving is available for orders of 20 pieces; custom deep engraving is available for orders of 100 pieces.
