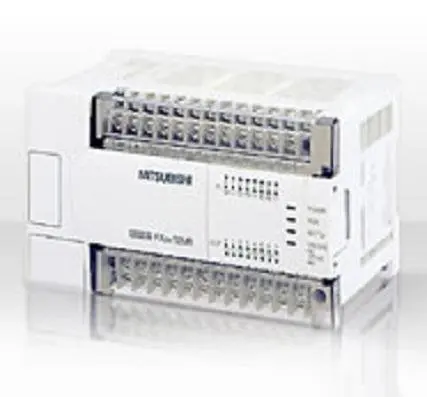

Mitsubishi PLC FX1N Part Series(FX1N-24MR-ES/)



1.FX1N series:
The FX1N combines the benefits of an inexpensive compact controller with the flexible expansion capabilities of a modular control system. It can be expanded for up to 128 inputs and outputs. FX1N Part Series base units are 14,24,40,60 input/output points relay and transistor.

FX1N-60MR-ES/ FX1N-60MR-001

FX1N-60MT-ES/  FX1N-60MT-001

FX1N-40MR-ES/ FX1N-40MR-001

FX1N-40MT-ES  FX1N-40MT-001

FX1N-24MR-ES FX1N-24MR-001

FX1N-24MT-ES FX1N-24MT-001

FX1N-14MR-ES  FX1N-14MR-001

FX1N-14MT-ES FX1N-14MT-001





2. FX3U:
The new FX3U s1.eries is the third generation of Mitsubishi Electrics successful compact PLC family. Developed for the international market, the new controllers feature a special second "adapter bus" system, which complements the existing system bus used for expansion, special function and network modules. Up to ten additional modules can be connected to this new adapter bus.
The FX3U controllers also impress with their speed (0.065µs per logical instruction), a significantly larger instruction set with a total of 209 instructions and improved functions and modules, particularly for positioning tasks. Other improvements include enhanced communications capabilities with Ethernet, USB and RS-422 mini DIN connectors.
The enhanced networking support has also increased the I/O capacity of the new flagship model, which can now be expanded to a maximum of 384 I/Os, including networked connections. FX3U Part Series base units are 16,32,64,80,128 input/output points relay and transistor

FX3U-128MR-ES/A  FX3U-128MT-ES/A

FX3U-80MR-ES/A   FX3U-80MT-ES/A

FX3U-64MR-ES/A  FX3U-64MT-ES/A

FX3U-32MR-ES/A  FX3U-32MT-ES/A

FX3U-16MR-ES/A  FX3U-16MT-ES/A



FX3G-60MR-ES/A FX3G-60MT-ES/A

3.FX2N:
Small and cost efficient, micro FX2N PLCs have opened up a world of opportunities for manufacturers, with new applications never before considered, such as barriers to security systems and more. Mitsubishi Electrics micro PLCs feature one of the worlds best-selling, cost-effective products, with high compatibility. Each PLC offers a unique benefit, from ultra small size to wide application versatility. FX2N Part Series base units are 16,32,48,80,128 input/output points relay and transistor

FX2N-128MR-ES/UL  FX2N-128MR-001

FX2N-128MT-ES/UL  FX2N-128MT-001

FX2N-80MR-ES/UL  FX2N-80MR-001

FX2N-80MT-ES/UL  FX2N-80MT-001

FX2N-64MR-ES/UL  FX2N-64MR-001

FX2N-64MT-ES/UL  FX2N-64MT-001

FX2N-32MR-ES/UL  FX2N-32MR-001

FX2N-32MT-ES/UL  FX2N-32MT-001

FX2N-16MR-ES/UL  FX2N-16MR-001

FX2N-16MT-ES/UL  FX2N-16MT-001

4. FX1S:
The controllers of the FX1S series deliver outstanding functionality with up to 30 inputs and outputs in a very compact package. The FX1S is ideal for applications in difficult-to-access installations and systems where normal servicing is not possible. The integrated real-time clock and maintenance-free EEPROM with capacity for up to 2,000 program steps make the FX1S an autonomous and very service-friendly system. FX1S Part Series base units are 10,14,20,30 input/output points relay and transistor

FX1S-30MR-ES FX1S-30MR-001

FX1S-30MT-ES  FX1S-30MT-001

FX1S-20MR-ES  FX1S-20MR-001

FX1S-20MT-ES  FX1S-20MT-001

FX1S-14MR-ES FX1S-14MR-001

FX1S-14MT-ESFX1S-14MT-001

FX1S-10MR-ES  FX1S-10MR-001

FX1S-10MT-ESFX1S-10MT-001
