Main
|
|
|
|
|
|
|
Range of product
|

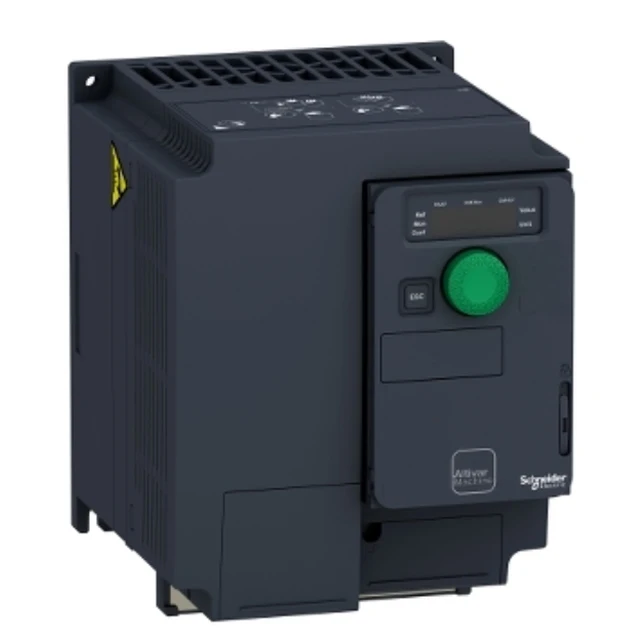

Altivar Machine ATV320
|
|
|
|
|
|
Product or component type
|
Variable speed drive
|
|
|
|
|
|
Product specific application
|
Complex machines
|
|
|
|
|
|
Variant
|
Standard version
|
|
|
|
|
|
Format of the drive
|
Compact
|
|
|
|
|
|
Mounting mode
|
Wall mount
|
|
|
|
|
|
Communication port protocol
|
Modbus serial
|
|
|
|
|
|
|
CANopen
|
|
|
|
|
|
option card
|
Communication module, CANopen
|
|
|
|
|
|
|
Communication module, EtherCAT
|
|
|
|
|
|
|
Communication module, Profibus DP V1
|
|
|
|
|
|
|
Communication module, PROFINET
|
|
|
|
|
|
|
Communication module, Ethernet Powerlink
|
|
|
|
|
|
|
Communication module, EtherNet/IP
|
|
|
|
|
|
|
Communication module, DeviceNet
|
|
|
|
|
|
[Us] rated supply voltage
|
380...500 V - 15...10 %
|
|
|
|
|
|
Nominal output current
|
7.1 A
|
|
|
|
|
|
motor power kW
|
3.0 kW for heavy duty
|
|
|
|
|
|
EMC filter
|
Class C2 EMC filter integrated
|
|
|
|
|
|
IP degree of protection
|
IP20
|
|
|
|
|
|
Complementary
|
|
|
|
|
|
|
Discrete input number
|
7
|
|
|
|
|
|
discrete input type
|
STO safe torque off, 24 V DC, impedance: 1.5 kOhm
|
|
|
|
|
|
|
DI1...DI6 logic inputs, 24 V DC (30 V)
|
|
|
|
|
|
|
DI5 programmable as pulse input: 0…30 kHz, 24 V DC (30 V)
|
|
|
|
|
|
Discrete input logic
|
Positive logic (source)
|
|
|
|
|
|
|
Negative logic (sink)
|
|
|
|
|
|
Discrete output number
|
3
|
|
|
|
|
|
discrete output type
|
Open collector DQ+ 0…1 kHz 30 V DC 100 mA
|
|
|
|
|
|
|
Open collector DQ- 0…1 kHz 30 V DC 100 mA
|
|
|
|
|
