7 inch Delta DOP-107BV HMI Touch Screen Human Machine Interface Display Replace DOP -B07S411 DOP-B07SS411 B07S410

EXW Price:

Price Negotiable

The price for this item is to be negotiated.
Please contact supplier for further information.

Send Inquiry Chat with supplier

A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.

Continue Shopping View Shopping Cart

Beijing Zhongping Technology Co., Ltd 5yr.

Contacts:Huang Ting Chat

Mobile:86-13811814778

E-mail:ht@gongboshi.com

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description
Reviews(/5)

Product descriptions from the supplier

Product Description

Delta Touch Panel HMI Touch screen Panel Display 7inch Replaces Human Machine Interface HMI DOP-103BQ

Delta's HMI DOP-100 series includes basic, standard, advanced, and handheld models with built-in HMI programming software DOPSoft 4.0 and Lua editor for user-friendly programming, and features such as alarms, historical data, and user rights management to enhance the efficiency of use. The 12" / 15" advanced HMIs are powered by Cortex-A7 dual-core 1GHz high-speed processor, while the rest of the models are powered by Cortex-A8 (800 MHz) processor, with high-brightness, high-contrast, and high-color 16-bit or 24-bit LCD display screens to provide excellent picture quality. The remaining models feature a Cortex-A8 (800 MHz) high-speed processor.

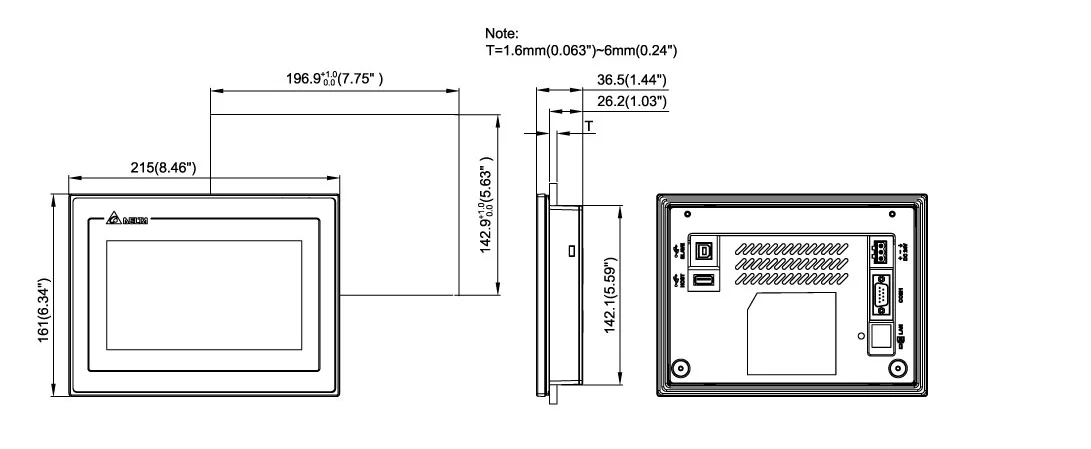

	External dimensions (W x H x D, mm)	Opening Size (W x H, mm)
DOP-103BQ	137 x 103 x 37.1	118.8 x 92.8
DOP-107BV	215 x 161 x 35.5	196.9 x 142.9

Specification

	DOP-103BQ	DOP-107BV
Panel size	4.3" TFT	7" TFT
Resolution (Pixels)	480 x 272	800 x 480
color	16-bit
CPU	Cortex-A8 800 MHz
ROM	256 MB
RAM	256 MB
serial communications port	1 Entity COM 1 Extended COM
USB	1 Slave / 1 Host
safety certification	CE / UL
operating temperature	0 ~ 50°C
Storage temperature	-20 ~ 60°C
Number of presses	More than 1,000,000 times

Update time：20231212132002
