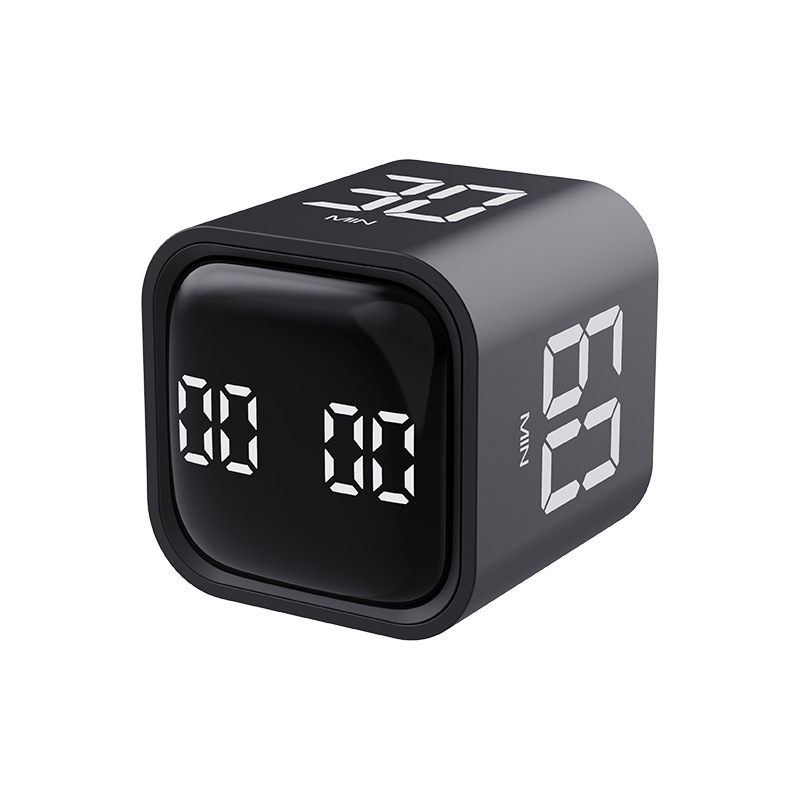

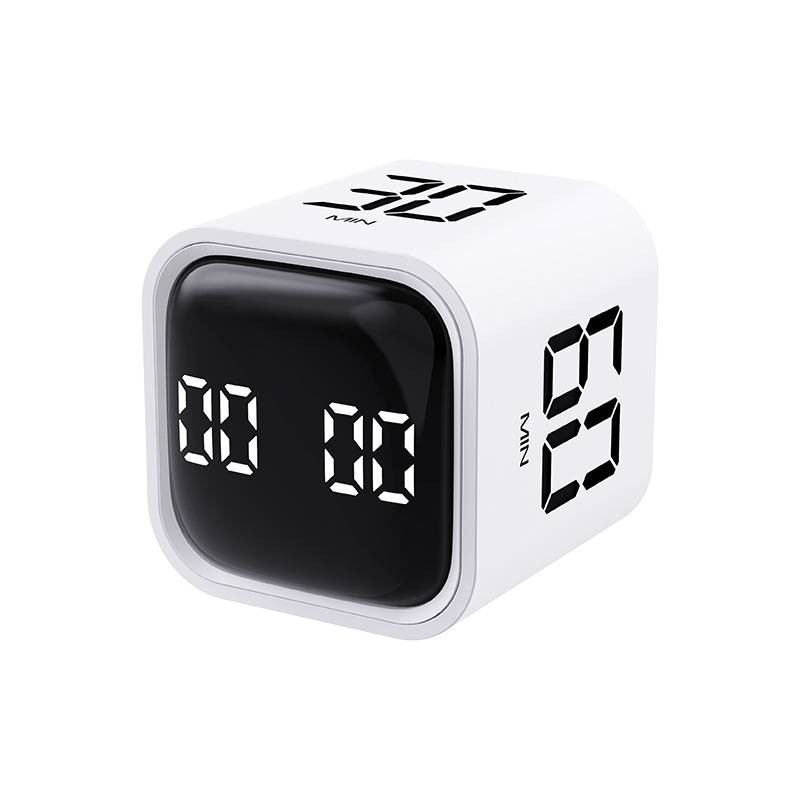

Product Name: F4 gravity sensor timer (rechargeable)
product color: black, white

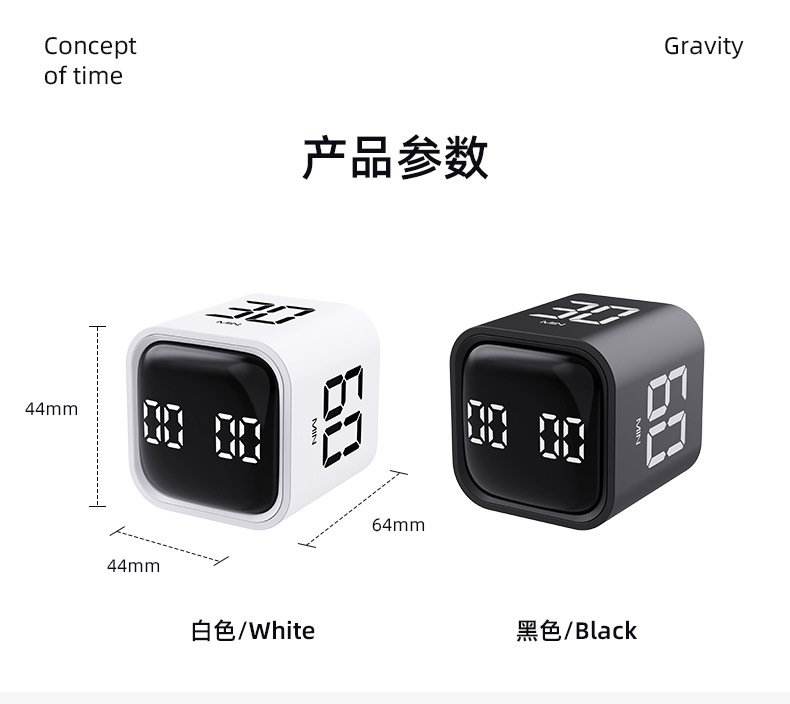

product Size: 44*44 * 46mm
color box size: 64*64 * 65mm
packing information: 33*20.6*20.1cm/60PCs
gross/net weight: 5.86kg/4.86kg
product Weight (bare metal):47.5g
product weight (including packaging):81.3g
packaging: thin pit color box

product material: ABS

product parameters: battery capacity: 500mAh, operating temperature: 0°C-50°C, standby power consumption:<20uA,

sleep power consumption:<150uA, work Current: 11mA, charging current: 500mA,
volume: Mute/vibration, loud 90 ~ 100DB, low 70 ~ 80DB;

product instructions: Gravity mode: dial button to Mode 1

flip up for 5-10-30-60 minutes to automatically start the countdown. The screen turns up to pause. On the contrary, the screen turns down to zero.

Manual mode: dial button to Mode 2
adjustable M/S key, press intermediate button ST/SP to enable countdown
positive timing:

1. When the display is 00: 00, press the [SP/ST] key to start positive timing;
during the timing process, press the [SP/ST] key to pause/start the positive timing;
3. In the paused state, press the [ST/SP] Key to clear.

Countdown settings: 1. Press the [M/S] Key to adjust the countdown time incrementally, and press the [M/S] Key to adjust the countdown time quickly. After the setting is completed, press the [SP/ST] key to start the countdown;
during the timing process, press the [SP/ST] key to pause/start the countdown;
3. In the paused state, press the [SP/ST] key for a long time to clear;
4. After the countdown time reaches 00:00, there will be a one-minute alarm clock ("DRIP" LED screen lights up/sound stops LED screen goes out-these two prompts are a group of 1 second-cycle) to remind.
Silent mode vibration reminder.
5. Memory mode: after the countdown ends, press the [SP/ST] Key again to display the set time. To clear, Press ST/SP button. Short press to loop again.

Note:

1. If the user forgets to shut down or does not operate after 5 minutes, the product will automatically sleep;
2. After the positive/countdown, the alarm duration is 1min;
3. After sleep, if you do not toggle to shut down the gravity mode, you can turn it over and use the manual mode;
4. In mute mode, vibration feedback is available at the end of the timing or any operation. In volume mode, there is a drop of Howl round;
5. The power is less than 10%, the screen flickers, reminding to charge, the charging process is bright red light, full green light is always on.
