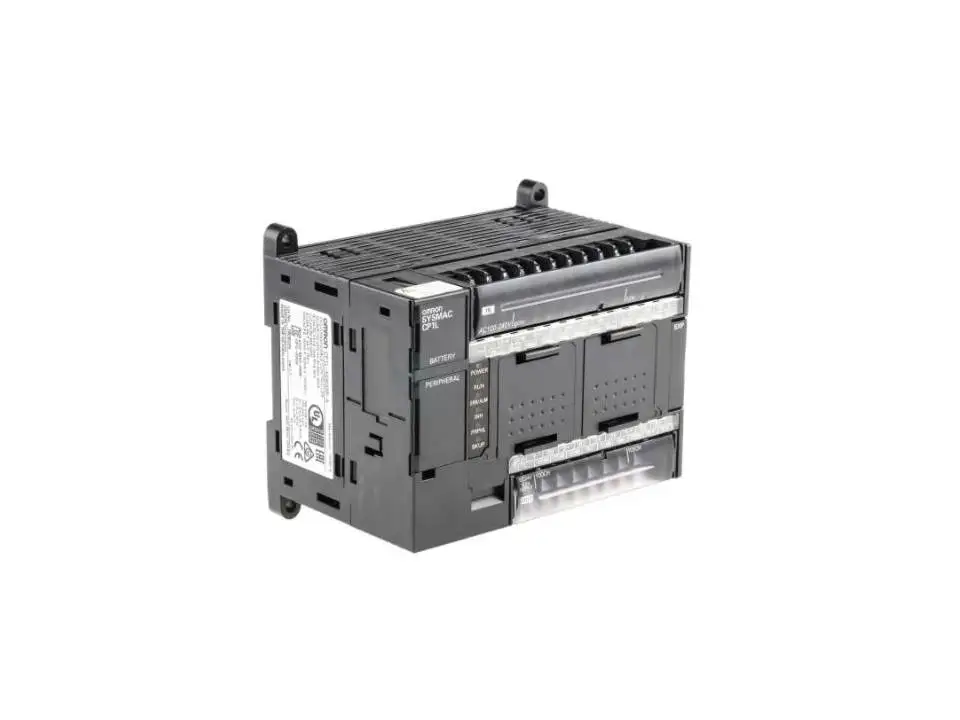

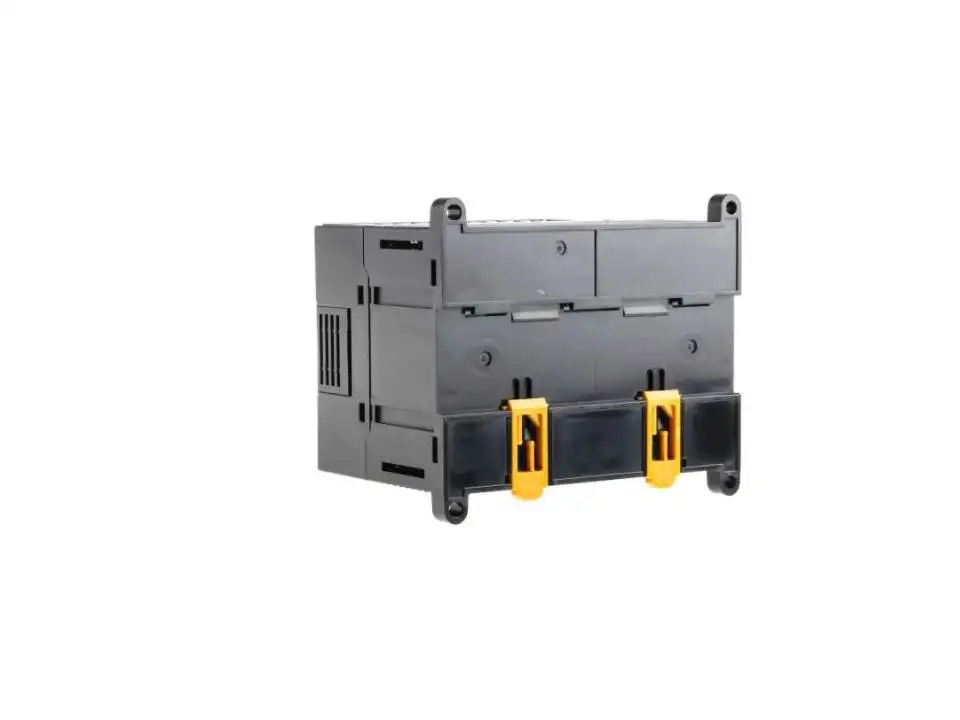

CP1H-X40DR-A original omron plc low cost high quality omron plc made in Japan omron plc
Advantages
1) Brick style controller features powerful position control and communications capabilities.
2) Built-in functions include digital I/O, high-speed counters, pulse outputs and analog input/outputs integrate process data with 3) sequential control.
4) Integrated communications gateway functions make CP1H the first compact PLC in omron’s smart platform concept.5)
6) All omron devices connected to CP1H by Ethernet, devicenet or serial link can be configured, programmed and monitored 7) 7) through a single connection, using CX-one software suite.
Specification
|
Type: |
Economic Programmable logistic Controllers |
|
I/O: |
40 |
|
Digital Inputs: |
24 24VDC |
|
Digital Outputs: |
16 Relay |
|
Voltage: |
120/240VAC |
|
Memory: |
20 Kstep |
|
Communication Ports: |
1RS-232 1 RS-422/485, USB, Peripheral |
|
Programming: |
CX-Programmer Jr. |
|
Included Functions: |
Encoder inputs, Counter, Display, Real-time Clock and I/O Expandable. |
.
CP1H Controller CPU
|
I/O points |
Dimensions (HxWxD)Mm |
Input voltage |
Built-in capabilities |
No. of input |
No. of output |
Output type |
Model |
|
40 |
110x150x85 |
100-240VAC, 50-60Hz |
4 encoder inputs (100kHz) 8 interrupts/Counters |
24DC |
16 |
Relay |
CP1H-X40DR-A |
|
110x150x85 |
24VDC |
4 encoder inputs (100kHz) 4 PULSE OUTPUTS:4X100kHz 8 interrupts/counters |
24DC |
16 |
NPN transistor (sinking) |
CP1H-X40DT-D |
|
|
110x150x85 |
24VDC |
24DC |
16 |
NPN transistor (sourcing) |
CP1H-X40DT1-D |

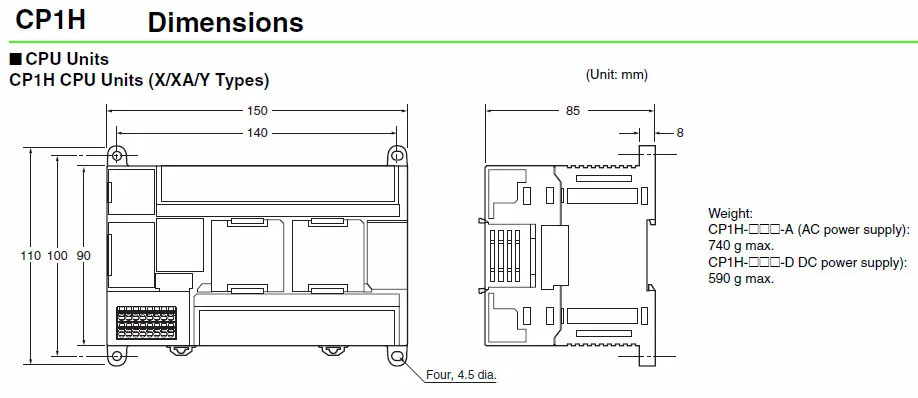

Diemension
CP1H-X40DR-A original omron plc low cost high quality omron plc made in Japan omron plc
Analog I/O units
