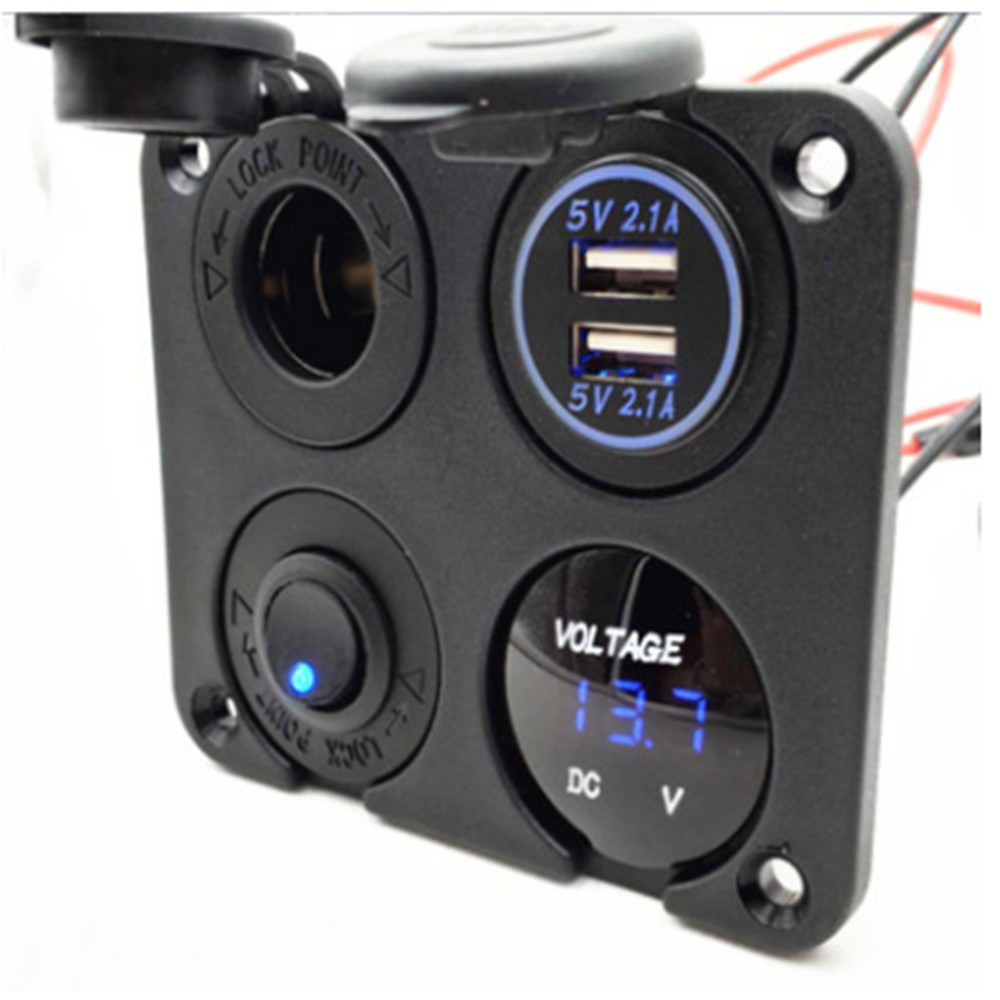

Double USB charger 2.1 A & 2.1 A + LED voltmeter +12V power socket + switch switch 4 functional panels

  Product Information:

Product Name: car recreational vehicle yacht modification 4 panel double USB charger + voltmeter +12V power socket + small switch

Product Weight: 128g

Product color: black
product Size: length 10.3cm * width 8.5cm * height 6CM
accessories: 4 screws, 9 blue terminals
input voltage: 12-24V
output Current: 5v 4.2A
voltmeter measurement range>:6-33V
product material: ABS,
cigarette lighter input voltage: 12v 20A,24v fiberglass

Product packaging method: separate pp bag packaging
product advantages: high-performance stable IC, stable output current, double USB Car Charger + cigarette lighter socket,
large capacity can charge general navigation and tablet computers!

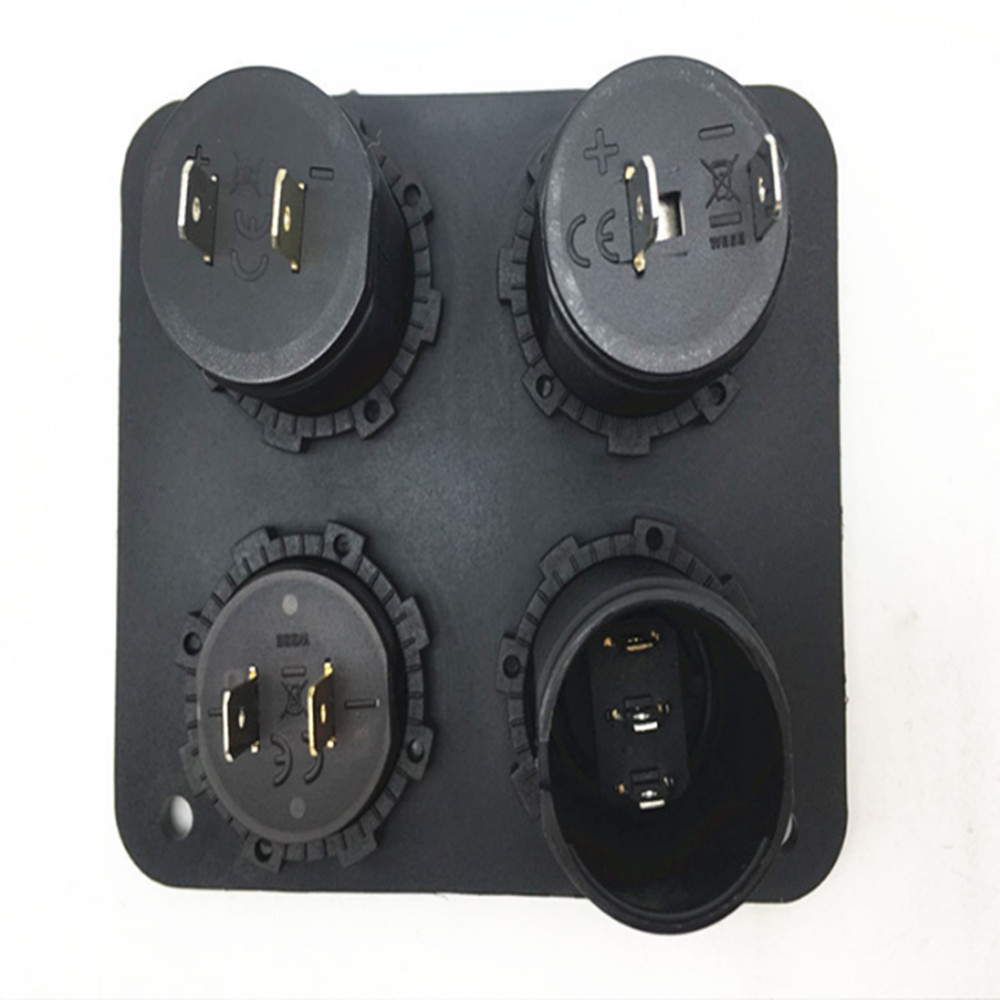

Wiring method: the back of charging set is marked with "+" "-", which is connected to the positive and negative poles of the power supply.
Installation scope: the product is suitable for all cars, RVs, yachts, ships with 12-24V voltage,
engineering vehicles can be installed and used.
Installation method: First use Tapper, put the product in, and then tighten the thread fixed ring!
Product features: 1. Dual USB sockets and cigarette lighter can be used with USB to support charging of various electronic products.
2.USB with LED indicator light and voltmeter blue light display.
3. High current, high temperature and wear resistance.
4. With waterproof cover, the rubber cover can be covered with dustproof and waterproof without use.
5. The wiring has positive and negative connection protection, and the reverse connection will not burn out.
6. Timely grasp whether the battery voltage is within the normal use range

• Specification:

Color: Black
Material: ABS
USB Output: DC 5V / 4.2A.
Power Outlet: DC 12V.
Voltmeter Display Range: 0 - 24V.
Toggle Switch: 20A 12V DC.
USB socket dimension: Approx. 2.9 * 4cm (Screw Diameter * Height)
Voltmeter socket dimension: Approx. 2.8 * 1.6cm (Screw Diameter * Height)
Power socket dimension: Approx. 2.9 * 4cm (Screw Diameter * Height)
ON-OFF Toggle Switch: Approx. 2.9 * 1.8cm (Screw Diameter * Height)
Four hole panel dimension: Approx. 10.5*8.7 * 0.5cm (L * W * H)
Package Weight: 120g / 4.2oz
