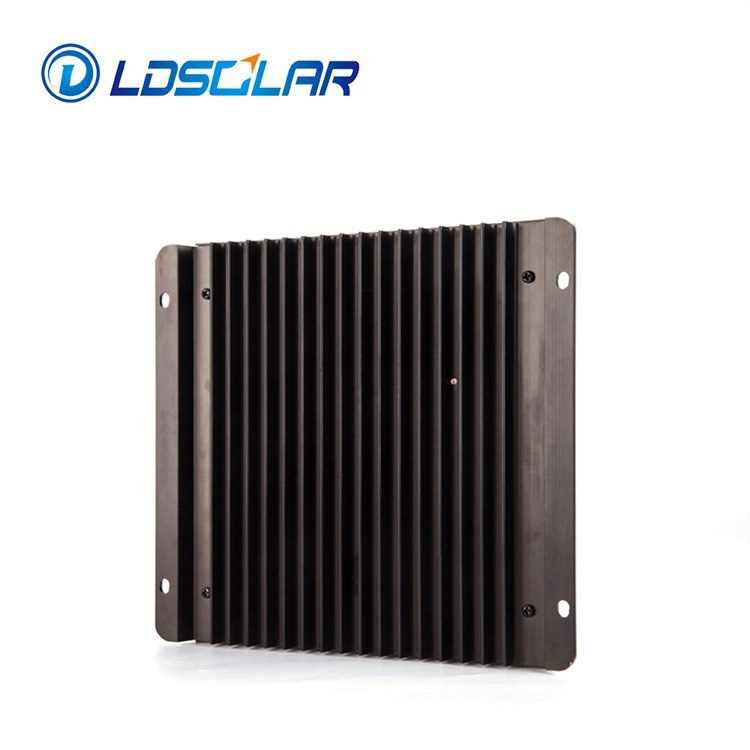

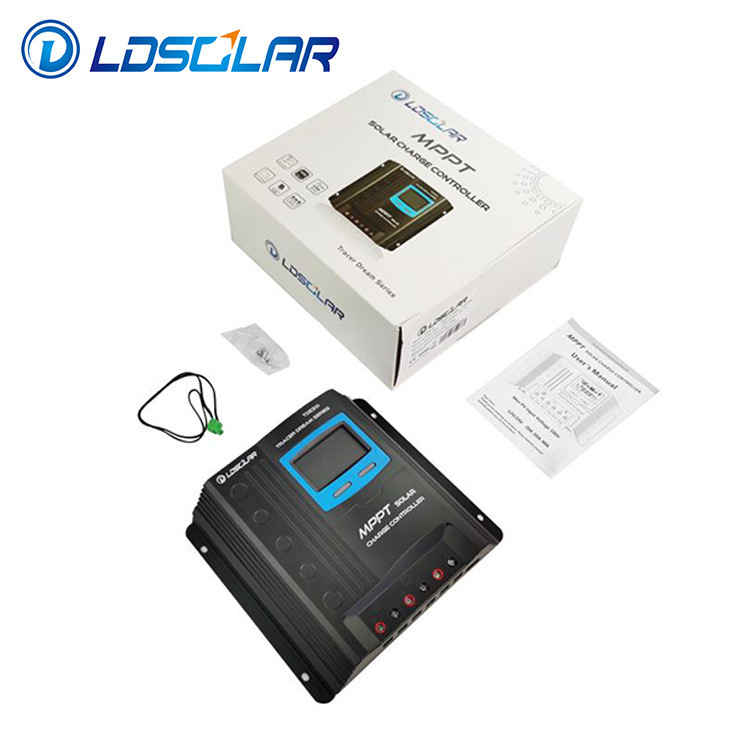

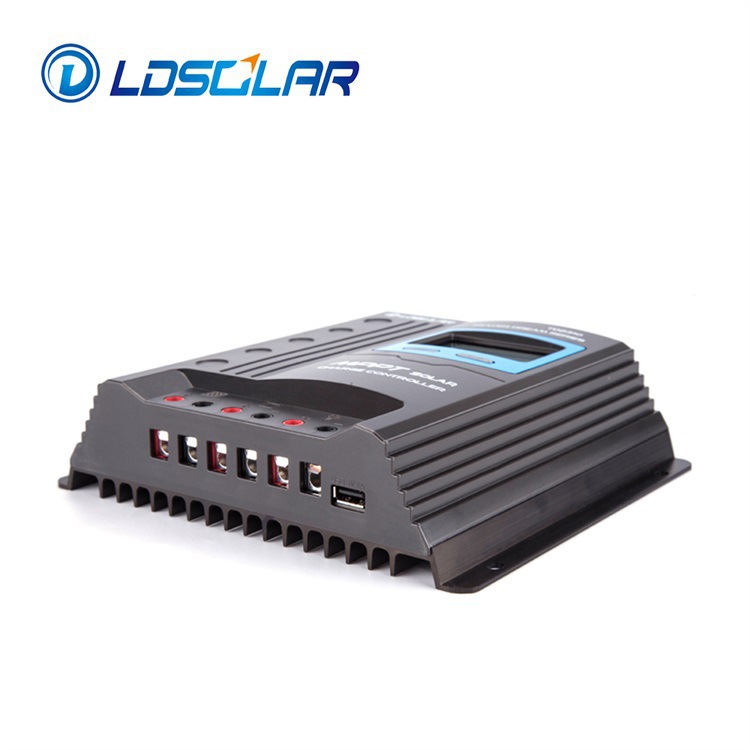

LDSOLAR solar charging controller 30a 12/24v efficient charging MPPT solar controller
PS:# When the battery type is lithium ion battery, the temperature compensation coefficient is 0, which cannot be changed.
※ All the above parameters are measured under the condition that the ambient temperature is 25℃ and the system voltage is 12V, 24V
System parameters multiplied by 2,48V parameters multiplied by 4 * default value is set based on lead-acid battery, such
For other types of battery parameters, see the instructions.
Product features:
1. Advanced MPPT maximum power point tracking technology can track the maximum power point quickly and stably with tracking accuracy99.5%.
2. Adopt synchronous rectification technology to significantly improve the conversion efficiency of the circuit, up to 98%.
3. It has the accurate identification and tracking function of multi-peak maximum power point.
4. It has the function of photovoltaic array input power limit to ensure that the controller will not overload under any conditions.
5. Wide photovoltaic array maximum power point operating voltage range maximum photovoltaic array voltage up to 100V.
6.12/24VDC system voltage automatic identification.
7. Adopt humanized LCD screen design to dynamically display the running data and working status of the equipment.
8. Built-in work log function can count the running data of the system.
9. Various load control modes: General mode, light control mode, and light time control mode.
10. 3-stage charging mode, sealing, colloid, open and lithium battery four types of battery charging program optional.
11. It has the function of battery temperature compensation.
12. It has the charging and discharging power accumulation function and real-time power generation power display function.
13. Perfect electronic protection function: it has perfect protection such as reverse connection, overcharge, overdischarge, overvoltage, overload, short circuit, etc.
Function
14. The customized wiring terminal for mold opening uses red and black colors to distinguish positive and negative poles, and the maximum wiring area can reach 16 mm².
