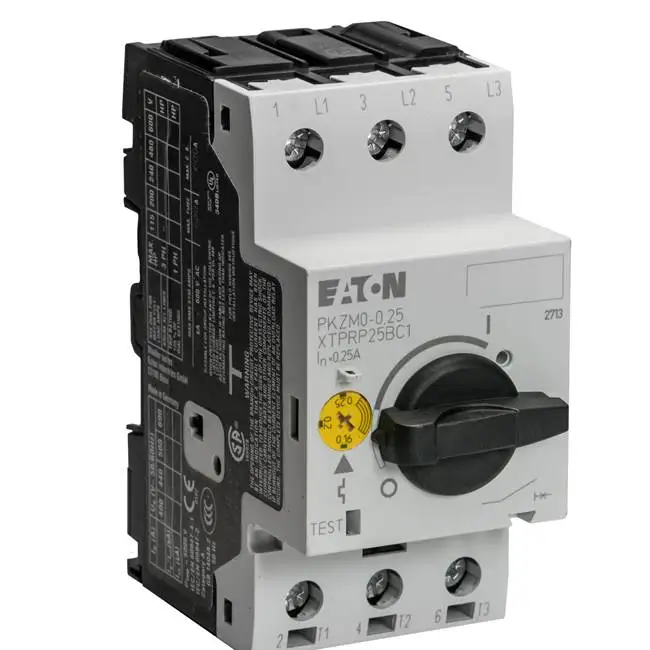

for Eatonmoeller PKZM0-0.63 rotary handle type 3phase Motor protective circuit breaker
|
Protection type |
motor breaker |
|
Max motor power |
7.5kW |
|
Operating voltage |
220...690V AC |
|
Mounting |
DIN |
|
Range of overcurrent release settings |
0.4-0.63A |
|
Electrical connection |
screw terminals |
|
Short circuit release |
224A |
|
Rated continuous current |
0.63A |
|
Sealing |
IP20 |
|
Operating temperature |
-25...55°C |
|
Actuator Style |
Rotary |
|
No. of Poles |
3 |
|
Protection against direct contact |
Finger and back of hand proof |
|
RoHS Compliant |
Yes |
|
Standards |
IEC/EN, VDE, UL, CSA |
|
Weight: |
0.31kg |
|

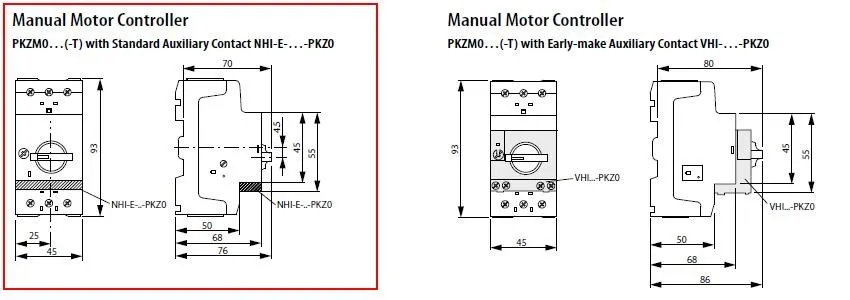

Dimension LxWxH (mm) |
45x93x76 |
