Main functions:

• Real-time free tracking, GSM/GPS dual-mode positioning, positioning accuracy can reach within 5 meters;
• 5000mAh ultra-large capacity battery, can last for 7200 hours with a single charge.
• Compact in size, with a powerful magnet, can be attached to the car for low-profile tracking and positioning; comes with a waterproof bag.
• Electronic fence, excessive speed, low battery alarm.
• Free tracking platform, computer, mobile client, IOS/Android APP.
• Users can directly download the mobile client or log in to the platform by entering the ID number on the device's back as their username, with the initial password being: 123456.

1. USB Charging Port 2. Signal Indicator Light 4. SIM Card Slot 4. Pendant Loop 5. Strong Magnet

2. Placement of the SIM card

As indicated in the diagram, open the cap, push the SIM chip up into the SIM card slot, and the device will automatically turn on.

Attention:

1. Please use a GSM SIM card from China Mobile or China Unicom.

2. Insert a standard-size SIM card, pay attention to the direction of the card, and follow the illustration on the shell.

3. Device Start

The device automatically powers on when the card is inserted, and the indicator light turns on, indicating that the device has started working.

After powering on for 30 seconds, activate the use of GPRS according to the 4.0 settings.

When the device has GPS signal, it automatically GPS location, and when there is no GPS signal, it automatically switches to LBS location.

The device will automatically start working when it senses vibration, and if there is no vibration for 5 minutes, it will enter a power-saving sleep mode.

When the SIM card is removed, the device automatically turns off.

4.0 Activation Device Starting Location

Activate the device and send a text message to turn on GPRS.

Send 'gprs123456' to the device's card number.

After the locator blinks blue and green light alternately, you can check the location of the locator. There are four ways to check: mobile phone APP, website platform, SMS.

4.1 Use the mobile phone APP to determine the location

1. Android phones: Scan the QR code to choose Android to download and install software to your phone, or search for "TKSTAR GPS" in the Android Market to download and install it to your phone.

2. Apple phones: Scan the QR code to choose iPhone to download and install software to the phone, or search for "TKSTAR GPS" in the store to download and install to the phone.

3. Select the "IMEI number login" at the bottom right.

Platform address: www.mytkstar.net

IMEI number: The IMEI number on the device back cover

Password: Default 123456 (You can log in to the platform to change the password).

Real-time tracking: Display the last location of the device, dial the phone number inside the device to wake it up, and the device will automatically update its location to the latest position.

Historical Trajectory: Query the historical trajectory of the device by time period. (The error of LBS base station data is relatively large, you can choose to filter it or not).

Electronic Fence: Set up a fence. When the device enters or exits the fence, send an alarm to the APP and the platform.

Command issued: Set the product parameter function of the device.

Device Information: Edit device information.

Device Message: Display the alarm information generated by the device.

Peripheral navigation: Navigate to nearby public places.

Alarm Reminder: The APP pushes the alarm information.

Offline Maps: After downloading the offline map, the APP buffers faster.

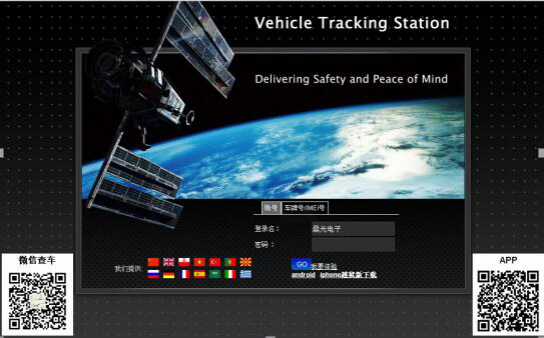

4.2 Using Platform Positioning

1. Open the website: www.mytkstar.netSelect Chinese language.

2. Choose: "IMEI/ID number".

IMEI/ID number: The IMEI number on the back cover of the device

Password: Default 123456 (You can log in to the platform to change the password).

4.3 Using WeChat Location

1. Add the public account "MYTKSTAR" or scan the QR code to add.

2. After adding, bind the device according to the prompt instructions, and send 123 to check the location.

For example: @4109000001#123456

4.4 Using SMS positioning

Send" G123456# "to the device's phone number, and you will receive a google link with latitude and longitude information.

For example:
