Main functions:

• Real-time free tracking, GSM/GPS dual-mode positioning, positioning accuracy;
• 5000mAh large capacity battery, one charge can last up to 7200 hours.

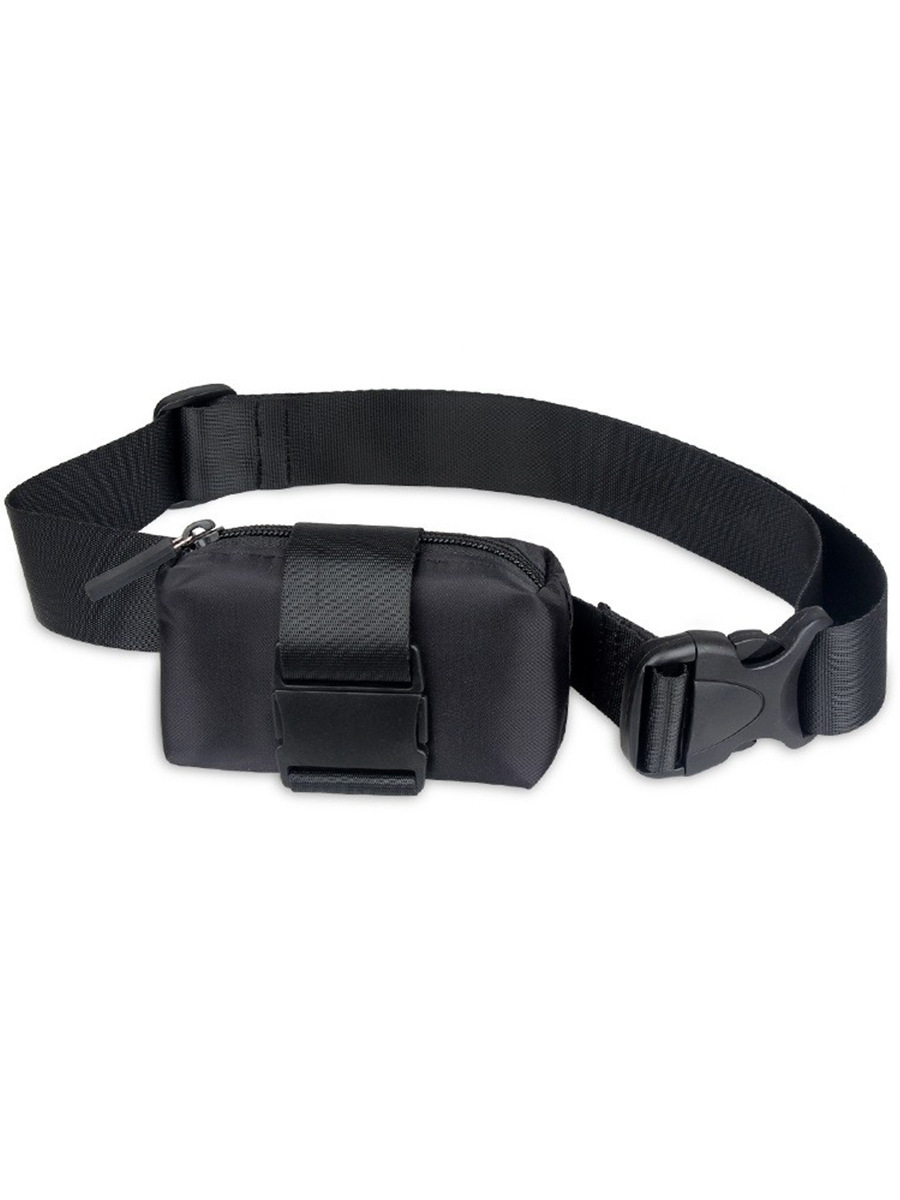

• Compact in size with a magnet for attachment to vehicle undercarriage for tracking and positioning, with a waterproof bag.
• Electronic fence, excessive speed, low battery alarm.
• Free tracking platform, computer, mobile client, IOS/Android APP, WeChat.
• Users can directly download the mobile client or log in to the platform by entering the ID number on the device's back as their username, with the initial password being: 123456.

1. GPS and Location Based Service
Location Based service, also known as A-GPS, can obtain location when the tracker is in an underground or tunnel environment using AGPS.
2. Real-time tracking
Real-time tracking is available through the platform. It can also support getting the location every 5 seconds, and the GPS accuracy is 5 meters.
3. Check the history of route on the platform
Can check and replay within one year history of route of device, by web monitor center.
4. 节能模式
The device will go into standby mode when there is no vibration for 3 minutes, and it will go into working mode when it detects vibration.
5. Google map on mobile
Check the location with Google Maps on your mobile.
6. Geofence and movement alert
Set up a geo-fence for the unit to restrict its movements within a district, and the unit will send a message to the authorized number when it breaches the district.
7. 超速警告
Set the speed as your requirement, and you will receive an alert when you exceed the speed.
8.低电量警报

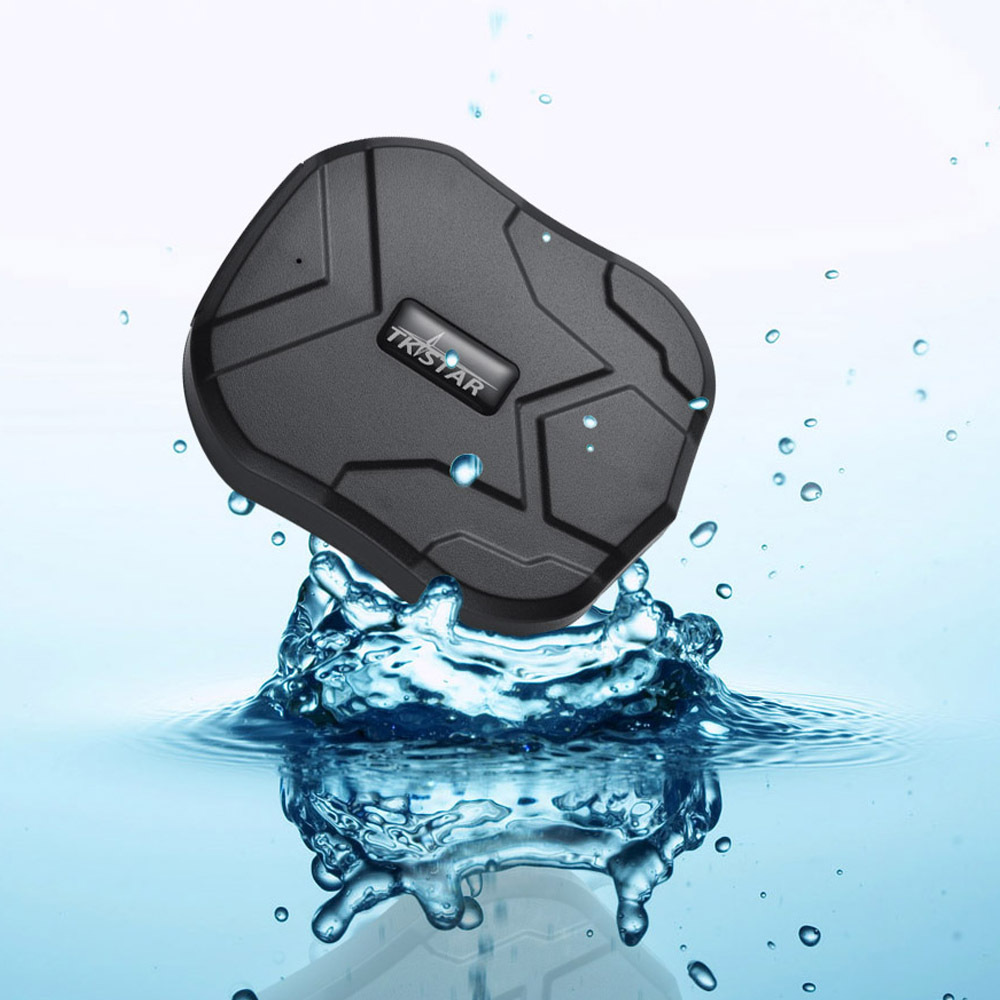

9. Waterproof IP66

• Network: GSM/GPRS
• GSM/GPRS module: MTK
• Band: 2G 850/900/1800/1900 MHz
• Communication protocol: TCP
• GPS chip: NXP
• Size: 90 x 74 x 25 mm (3.54 x 2.91 x 0.98 in)
• GPS accuracy: 5 – 50 meters
• Time to first fix: Cold status 45 seconds, hot status 1 second
• Car charger: 12 – 24 V (input), 5 V (output)
• Wall charger: 110 – 220 V (input), 5 V (output)
• Weight: 168 grams
• Storage temperature :-40° to 85°C (-40° to 185°F)
• Operation temperature: -20° to 55°C (-4° to 131°F)
Humidity: 5%--95% (non-condensing)
