Applicable products: picture frames, foam strips, etc.

Product Description:
Model: AC-K13 (KXD-QJ200J)

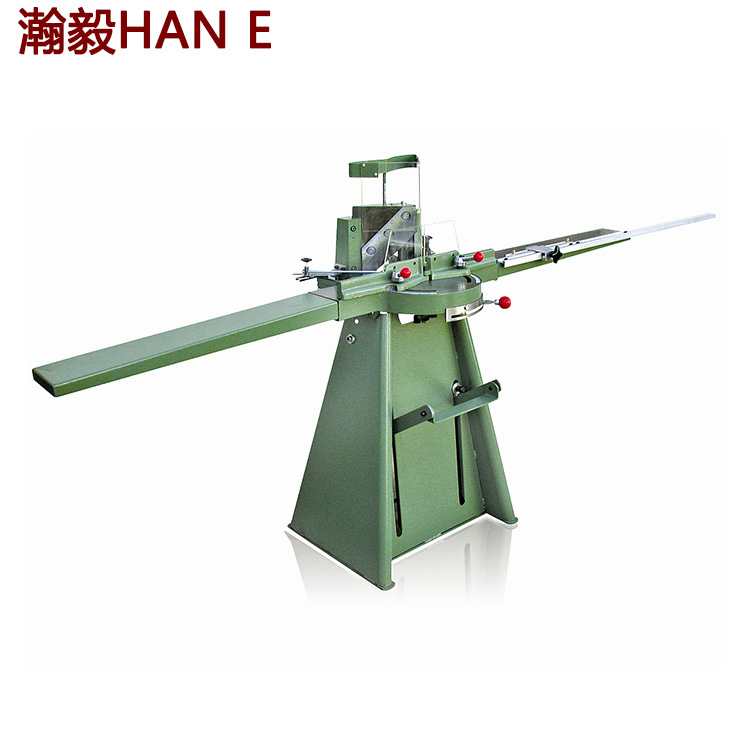

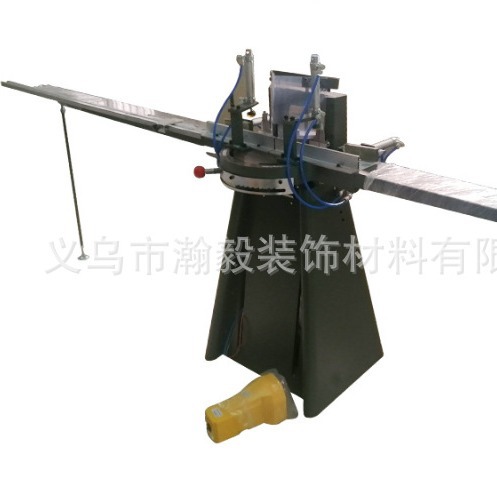

Product Name: Foot-operated Inclined Angle Beveling Machine
Detailed Introduction:

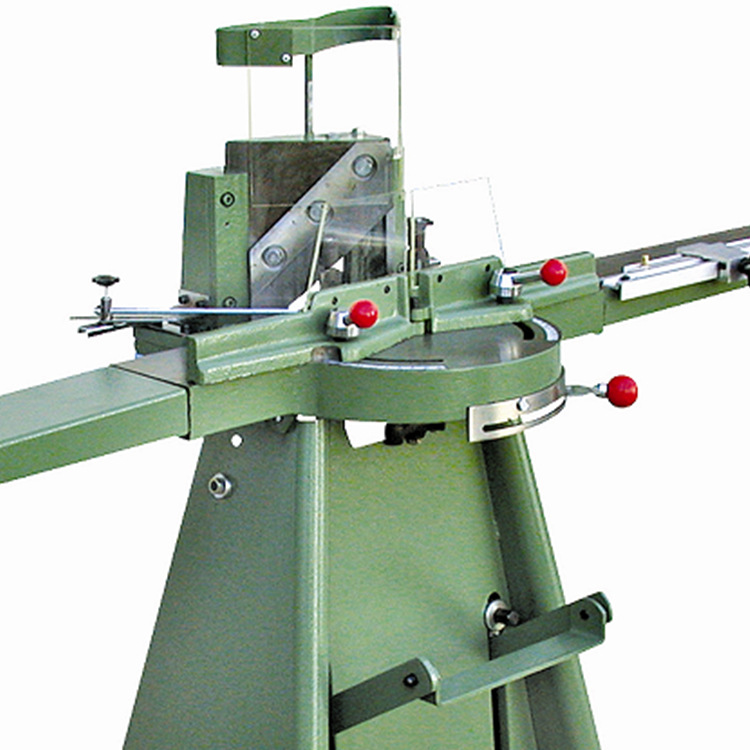

KXD-QJ200J foot-operated oblique cutting machine is equipped with: longitudinal sliding stop device, ruler, adjustable guard arm (45°-90° angle), adjustable slot-type support.
Can be cut into 45° double oblique angles, and can cut the maximum single oblique angle of 90°; vertebra, vertebral canal and various types of angles can be cut, the wood line cut is smooth and precise,
No further processing is needed before the joining, and the horizontal moving blade holder can be adjusted gradually; the longitudinal sliding stop device and the ruler can ensure the precise and repeatable cutting.

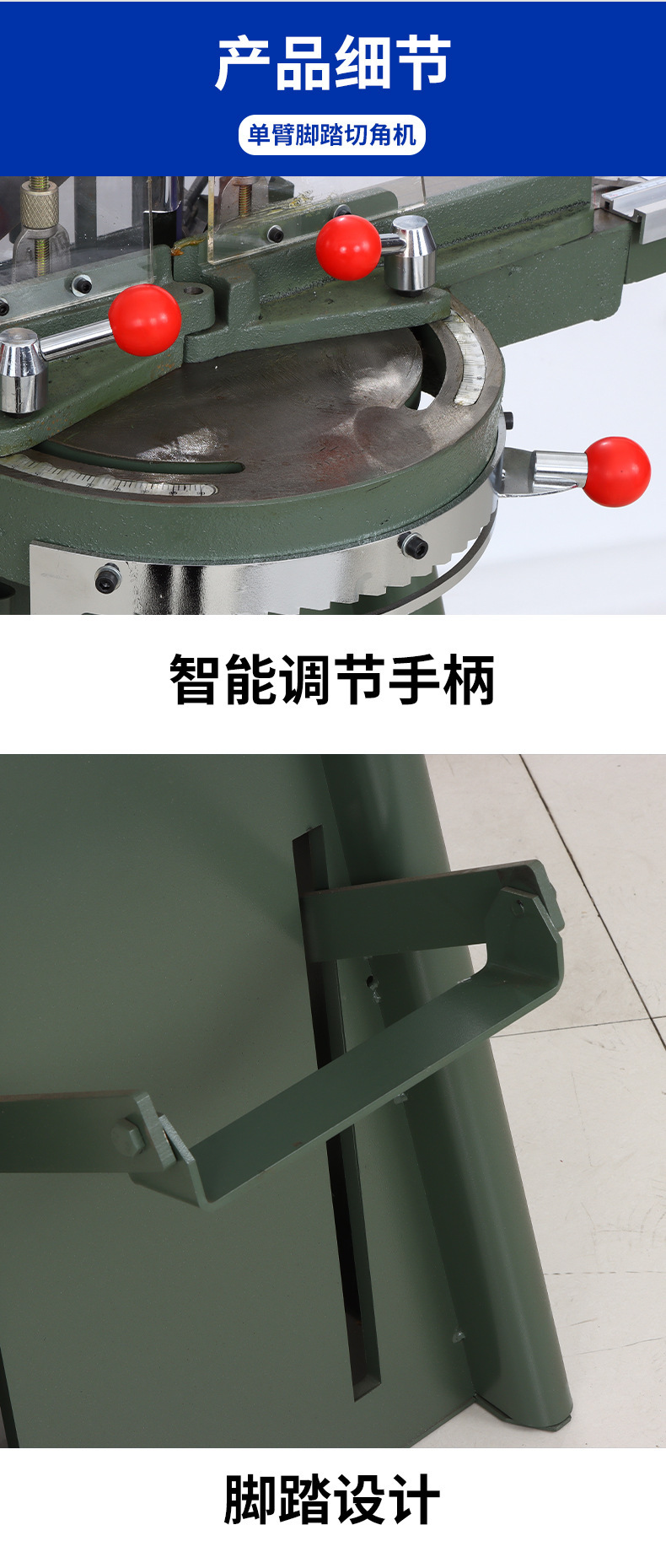

The special joystick system makes operation easier; dual return springs automatically push the blade back to the starting position. The entire process is operated by manual foot pedal to cut angles.
Does not require a power supply, has the advantages of no noise, no dust, convenient to move the working position, and green production.
Main Technical Data:
1、复式切割：45
2. Single blade cutting reach: 90°
3. Maximum cutting width: 100 millimeters (4 inches)
4、Square Cut: 65/66 mm (21/2 inches)
5. Maximum cutting thickness: 160 mm (61/3 inches)
Maximum scale: 1500 mm (60 inches)
Machine Specifications/Weight:
Size: 2503*405*1130mm
Net weight: 102kg

Packing Specifications/Weight:
Outer packaging box: 565*695*1130
Gross weight: 118kg
