Packing: 47*47*92cm

Gross weight: About 20 kilograms

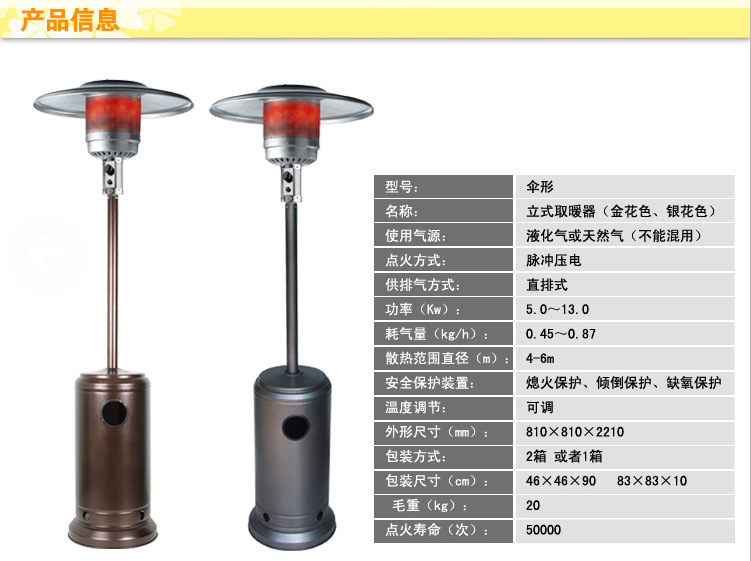

Technical parameters:

● Appearance: ImportedStainless steel"板"在中文中通常指的是木板、木板制品或木板相关的物品。如果是指具体的木板，如木板地板、木板家具等，可以直接翻译为"board"。如果是指与木板相关的活动或概念，如"打板"（打板球），可以翻译为"play board"。请提供具体的上下文，以便我为您提供更准确的翻译。

● Applicable Gas: Bottle Gas

● Ignition Method: Piezoelectric Ignition

● Exhaust Mode: Direct

● Heat dissipation range: diameter 4-6M

● Power: 5kW – 13kW

Size: 810X810X2210mm

● Gas Consumption: 450-850g/h

● Ignition Method: Piezoelectric Electronic Ignition

● Safety Devices: Fire-out Protection, Tumble Protection

It uses ordinary liquefied petroleum gas. It can work by simply connecting a steel cylinder outdoors. Its maximum power is 12 kilowatts/hour, and the minimum power is 5 kilowatts/hour. It mainly provides heat through infrared radiation, and you can feel warm as soon as it is turned on. It has the characteristics of high heat generation rate, fast heat generation, wide heating range, safety, environmental protection, and beautiful appearance. It cannot be used in sealed and narrow environments, and attention should be paid to air circulation when used indoors. It can be used in rooms with an area of more than 50 square meters, depending on the air flow. 15 kilograms of liquefied petroleum gas can be used continuously for about 20 hours at the maximum heat generation, and for about 48 hours at the minimum heat generation.

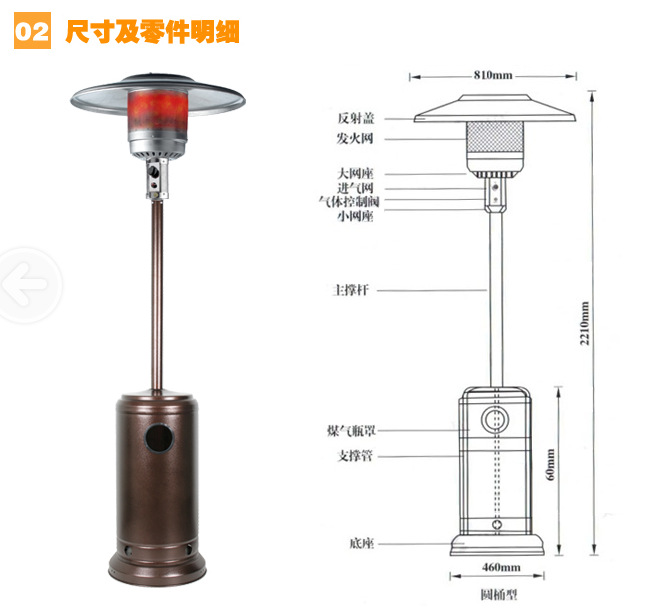

The total height of the product after assembly is 2.2 meters, the diameter of the reflective aluminum lid is 0.81 meters, and the diameter of the bucket bottom is 0.46 meters. The packaging design is dual packaging. The aluminum lid is independently packaged, and the packaging size is 85*85*10.5cm. The stove head, bucket body, etc. are one package, and the packaging size is 46*46*92cm. The total gross weight is 21 kilograms.

This product offers free maintenance service for any issues caused by product quality, such as not being able to start within one year, or for other reasons. The second year includes a cost-price warranty service.

Pressure relief valve, air pipe, dumping protection device, and necessary accessories. We recommend using our company's pressure relief valve. Because the quality of pressure relief valves in the market varies, some may provide insufficient or excessive gas supply pressure, which can affect the heating effect and use safety.

Product Advantages:

1. The product's heat release is from 5 kW to 12 kW, using reflective radiation heating, which heats up quickly and smoothly. Adjust the use and indoor temperature according to your needs at will.

2. Operation and installation are simple. It uses electronic pulse ignition, so no pipes or heat sinks need to be installed.

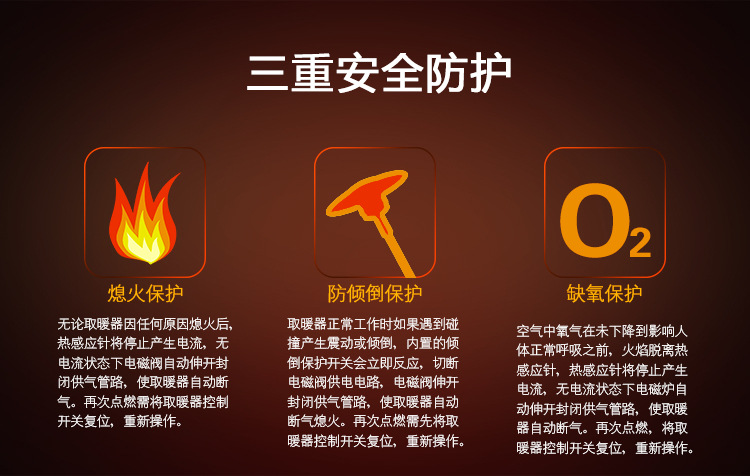

III. Safety and environmental protection, no noise, high heat. The heater is equipped with multiple safety protection devices. During the process of converting liquefied gas into heat, the minor waste gas and the consumed oxygen are within the safety limit, and when there is no discomfort, the safety facilities are activated to turn off the fire and cut off the gas source. If the heater is accidentally tipped over or hit, it will automatically turn off the fire and cut off the gas source. If the fire is not lit or if it is turned off due to other reasons such as wind, the gas source will be automatically cut off. Liquefied gas is considered an environmental-friendly fuel, and using liquefied gas will not cause pollution to the environment.

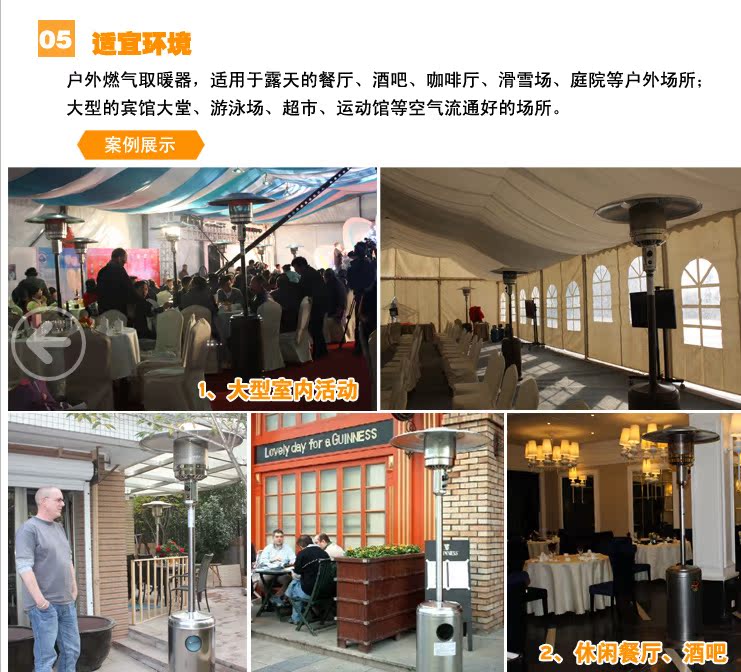

Fourthly, this heater is not only suitable for heating and drying, but also an ideal product for dehumidification and reducing humidity. It can be used without any geographical restrictions. It is suitable for commercial venues such as hotels, restaurants, karaoke bars, bathhouses, and bars.
