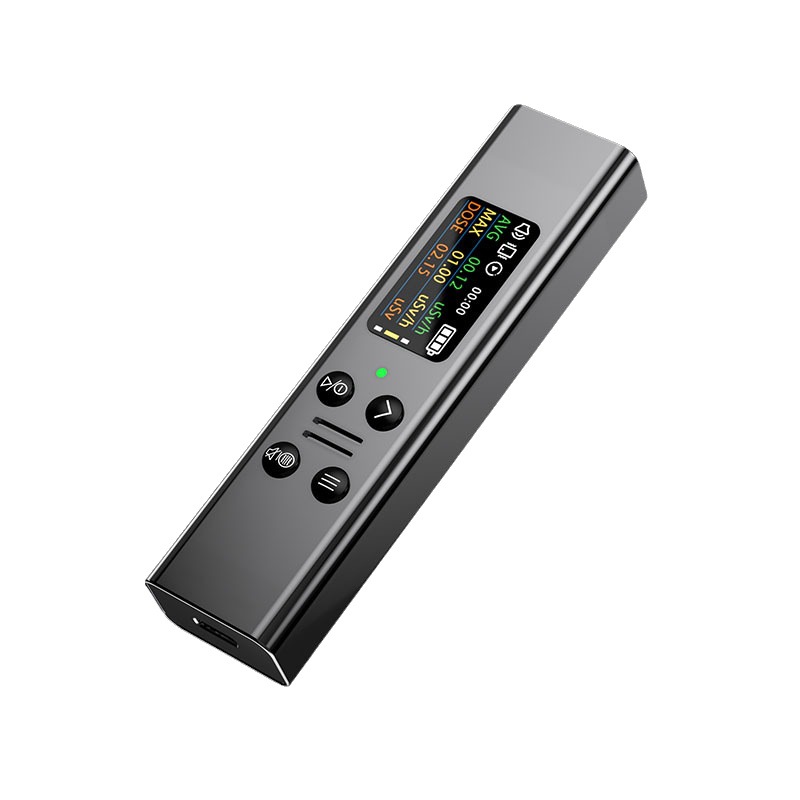

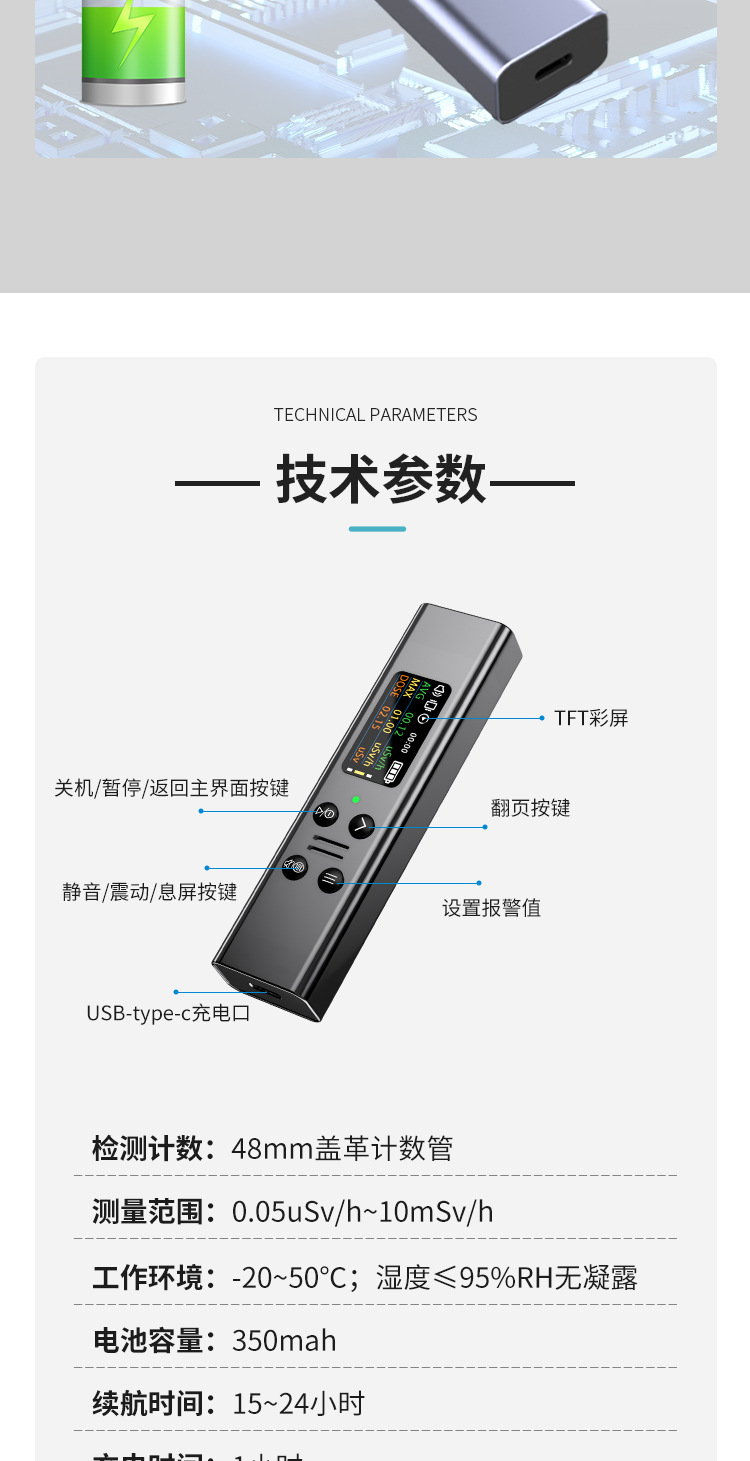

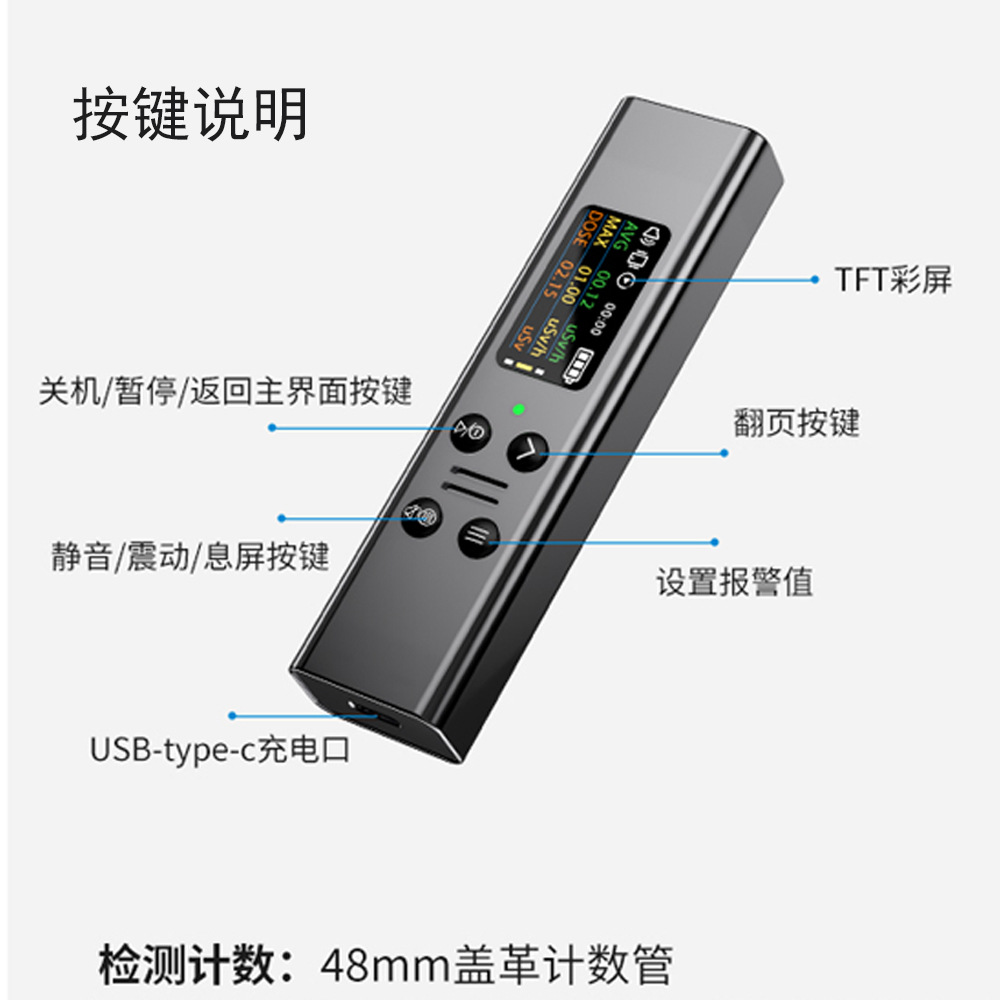

Button Instruction

1.Shut downSlashPause ButtonSlashReturn to the main interface - Long press2Seconds OffSlashPower on, during power-on, press brieflyPause real-time data by pressing once, and press again briefly to resume real-time data.

Any interface other than the main interface can be returned to the main interface by short-pressing this button (pause or real-time icon reminder)

2.Page Turn Button - Short Press to Cycle Through Three Functional Interfaces - Real-time > Maximum ValueplusAverageplusTotal Amount > Bar Chart (with Navigation Bar)

Switch to the other two interfaces for a long time, unless you switch back or press briefly.1Key return to main interface

3.MuteSlashVibration ButtonSlashPower off short press to cycle through reminder modes: Only sound reminder-Only vibration reminder-Sound and Vibration Reminder-Close Reminder This button is only available on the interface.1and interface2Only when there is a role.

"This button has no function when on other interfaces (since there are no sound and vibration reminder icons displayed on other pages, the function of this button is not set on other interfaces)

Long press to turn off the screen, short press any button to turn on the screen during the screen-off period."

4.Set alarm threshold. Press briefly to enter alarm threshold setting: press once for maximum value alarm, press again for total quantity alarm. Long press in these two interfaces will enter the setting mode. When setting, the alarm threshold will flash.

Press the page-turn button briefly to select the alarm value. Press it again briefly to save and exit. In the 4There is no operation in the two interfaces.5Press and hold for seconds1Press the button to save the current settings and exit to the main interface.

Interactive Instruction

Software Interaction Logic:

1.Power-on screenHelloShutdown screengood-bye

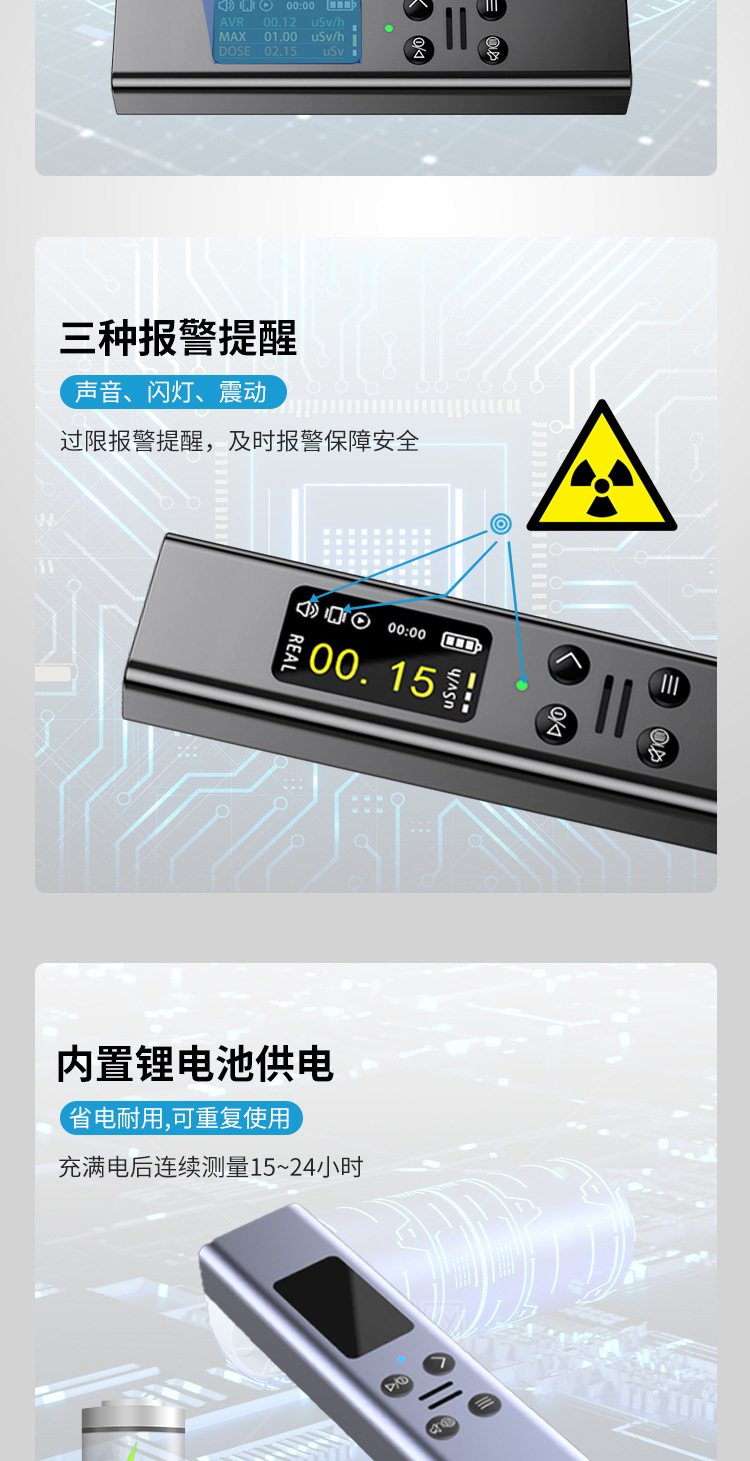

2.Buzzer alarm tone beep beep beep, prompt time1Second (once for each increase from low to high, triggering an alarm)")

3.Vibration Reminder, Reminder Time:0.5Second (once for each increase from low to high, triggering an alarm)",)

4.hostLEDThe light blinks when the value is below the alarm threshold, with a green light blinking, and the flashing frequency1Once per second, flashing red light when above the alarm value,0.5Once per second.

5.When the real-time data on the main interface is lower than the alarm value, it displays a green number, and when it exceeds the alarm value, it displays a red number.

Packing Box Specifications
Naked machine size: 16*27*105mm
Data cable length: 50mm type-c charging cable
Instruction Specifications: English/Japanese
Packing box dimensions: 33 thickness * 75 width * 142 length mm
Individual packaging weight: approximately 120g
Crate dimensions: 350 height * 395 length * 300 width
Packing Quantity: 100pcs
Whole box weight: 13kg

When setting the RATE real-time data, when the number flashes, press the page turn key to select the values of 0.6, 2.5, 4.0, 6.0, and 8.0.

When setting the total amount of DOSE, there are values of 1.3, 2.5, 4.0, 6.0, and 8.0 to choose from.
