The product is packaged in a white box without words. Neutral packaging

1. Function overview:

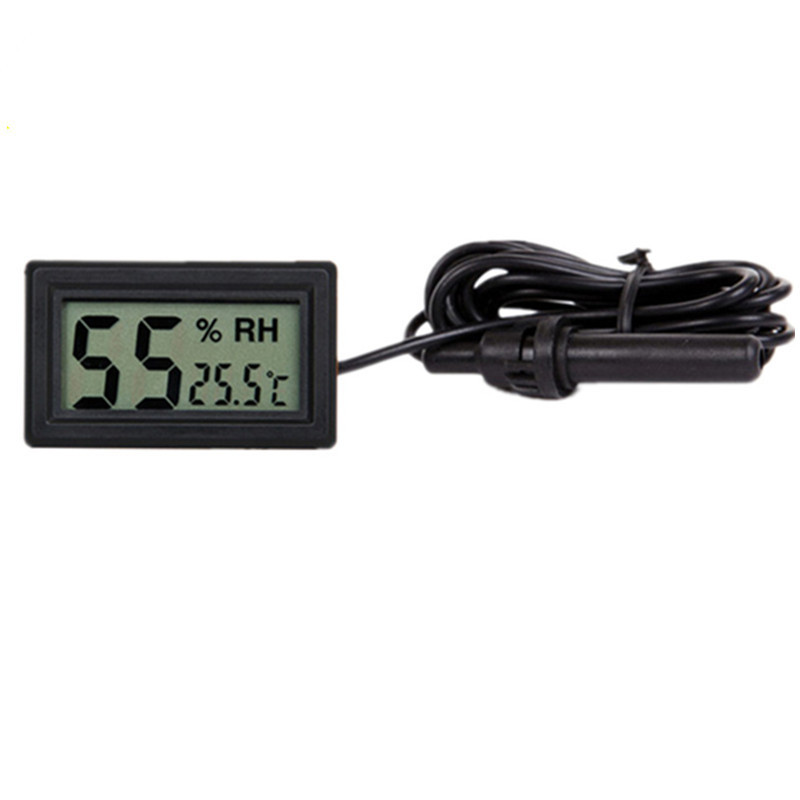

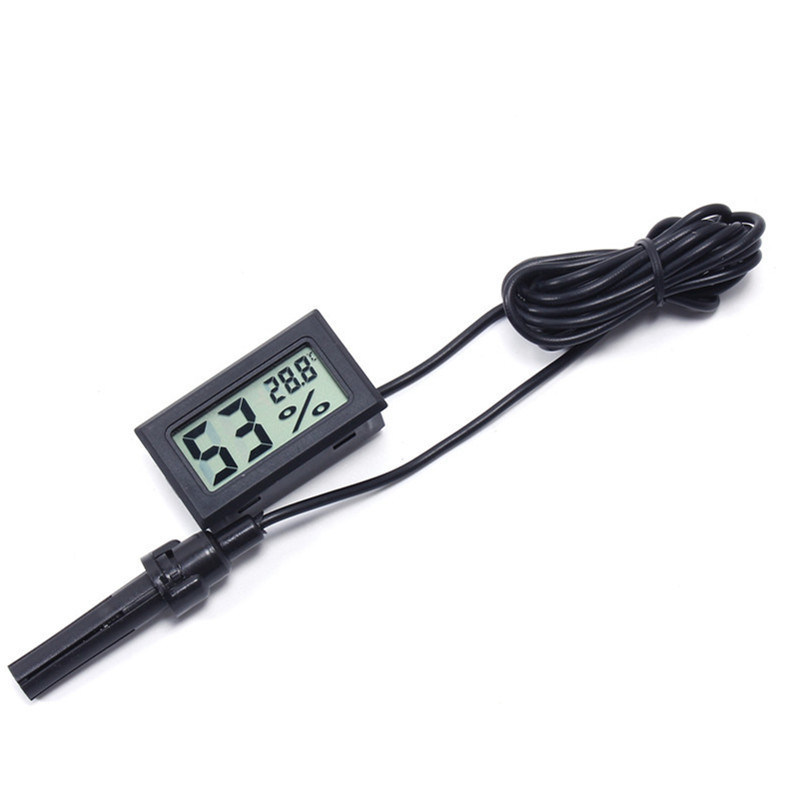

1.LCD display

2. Dimension 48*28.6*15.2mm (measurement has small error)

3.LCD size: 35.7*16.8mm (small measurement error)

4. Weight: 25g (without battery)

5. Humidity display

6. Humidity measurement range: 10% to 99%

7. Humidity display resolution 1%

8. Humidity sampling period 10 seconds (1 minute)

9. Humidity measurement accuracy ± 5%

10. Rated voltage DC1.5v(2 AG13 button batteries)

11. Temperature measurement range-50 to 70

12. Temperature measurement accuracy ± 1 degree (under normal temperature)

II. Battery installation

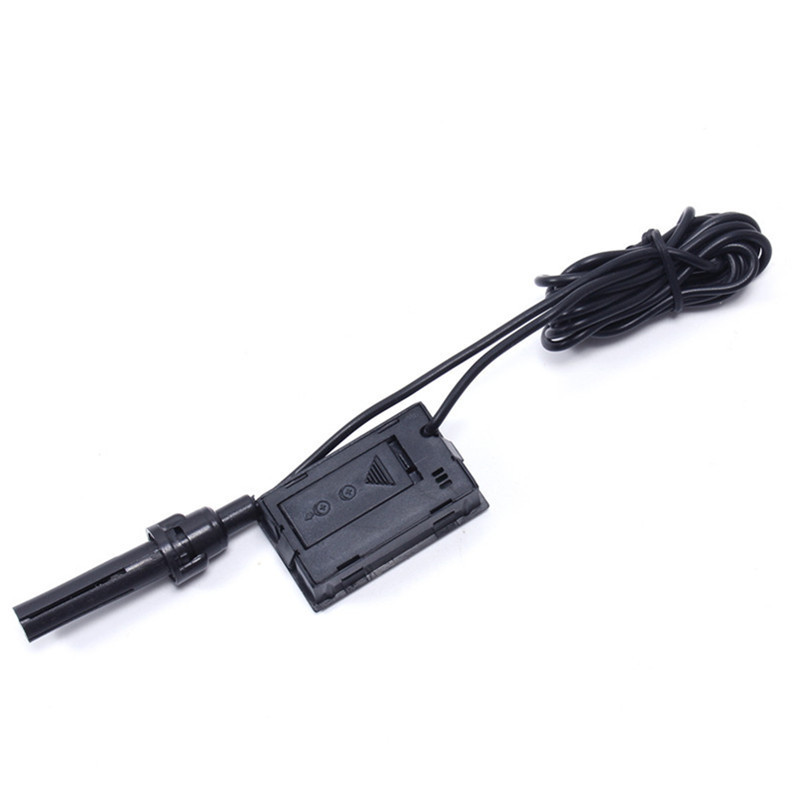

  flip to the back of this product;

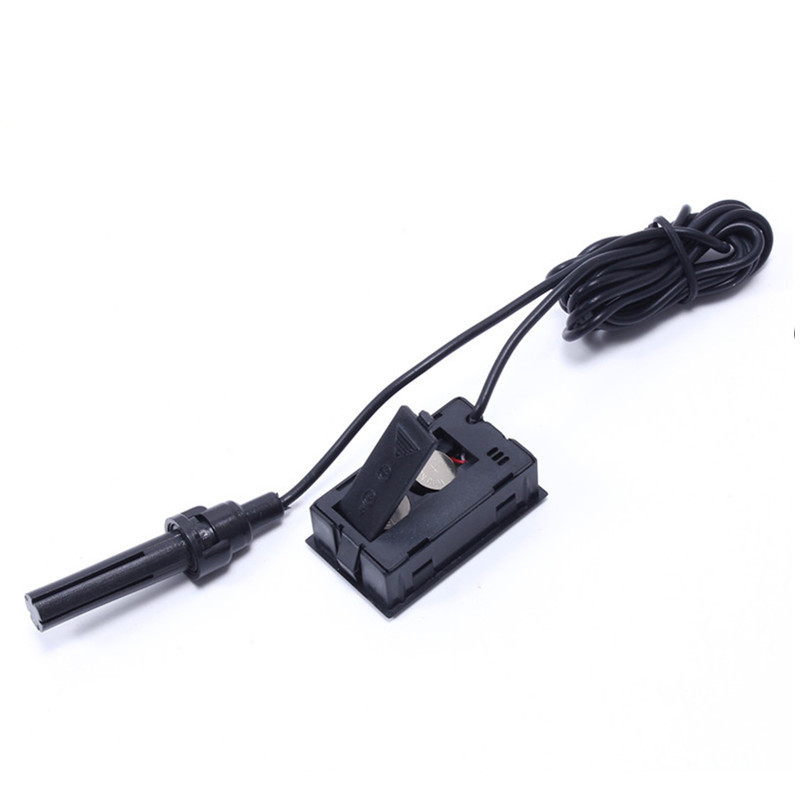

  push the battery cover in the direction indicated by the arrow;

  put two LR44 button batteries into battery containers

III. Installation and operation

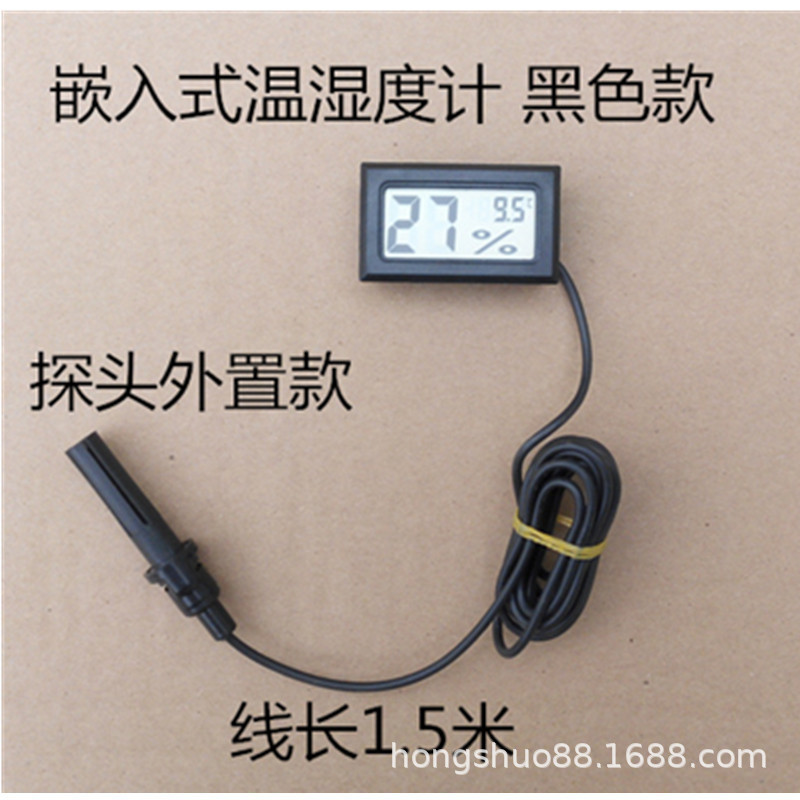

1. Embedded installation
