Description

The upgraded millimeter wave 24G radar provides more accurate detection.

Supports breathing, micro-motion, and movement detection, capable of penetrating glass walls, enabling more automated scenarios.

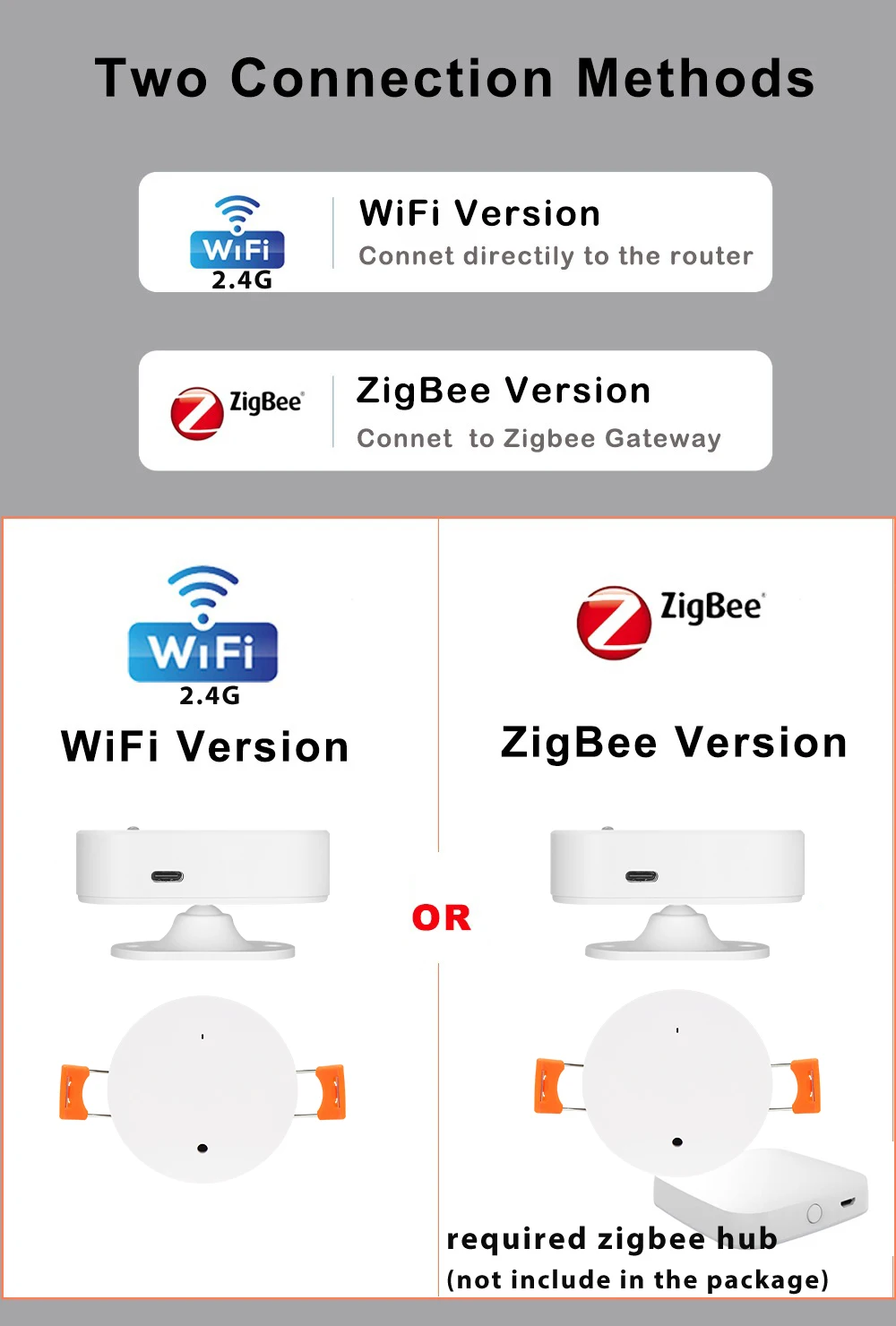

1: Two versions for your choice:

Wifi version can run without a Zigbee hub.

(2) The Zigbee version requires the TUYA Zigbee Hub to run.

2: 5.8G和24G有什么区别?

The 5.8G radar has a shorter detection distance (which meets the basic distance requirements for daily household use). However, the 24G radar offers higher distance detection accuracy (±10cm); more accurate delay time; higher identification accuracy; faster preprocessing speed for unmanned operations; and a proposed FMCW (Frequency Modulated Continuous Wave) fast algorithm for frequency conversion.

3: Wireless Protocol: Zigbee 3.0 / Wi-Fi (Optional)

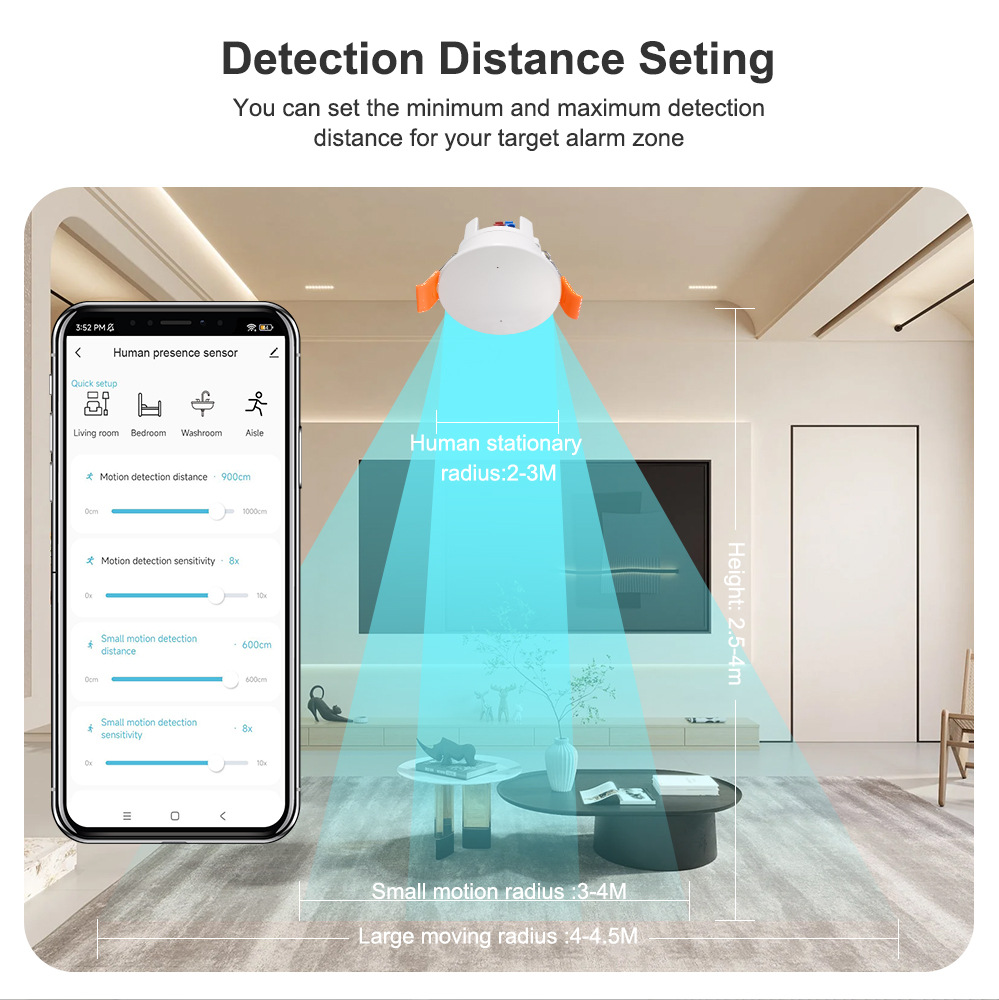

Static detection range: 0~600cm

Detection range: 0~1000cm

Packing includes:

Human body exists sensor X

USB Data Cable × 1 (2M

User Manual X 1

Tuya ZigBee Wireless MmWave Human Presence Motion Sensor With Luminance/ Distance Detection Radar PIR Sensor For Home Automation

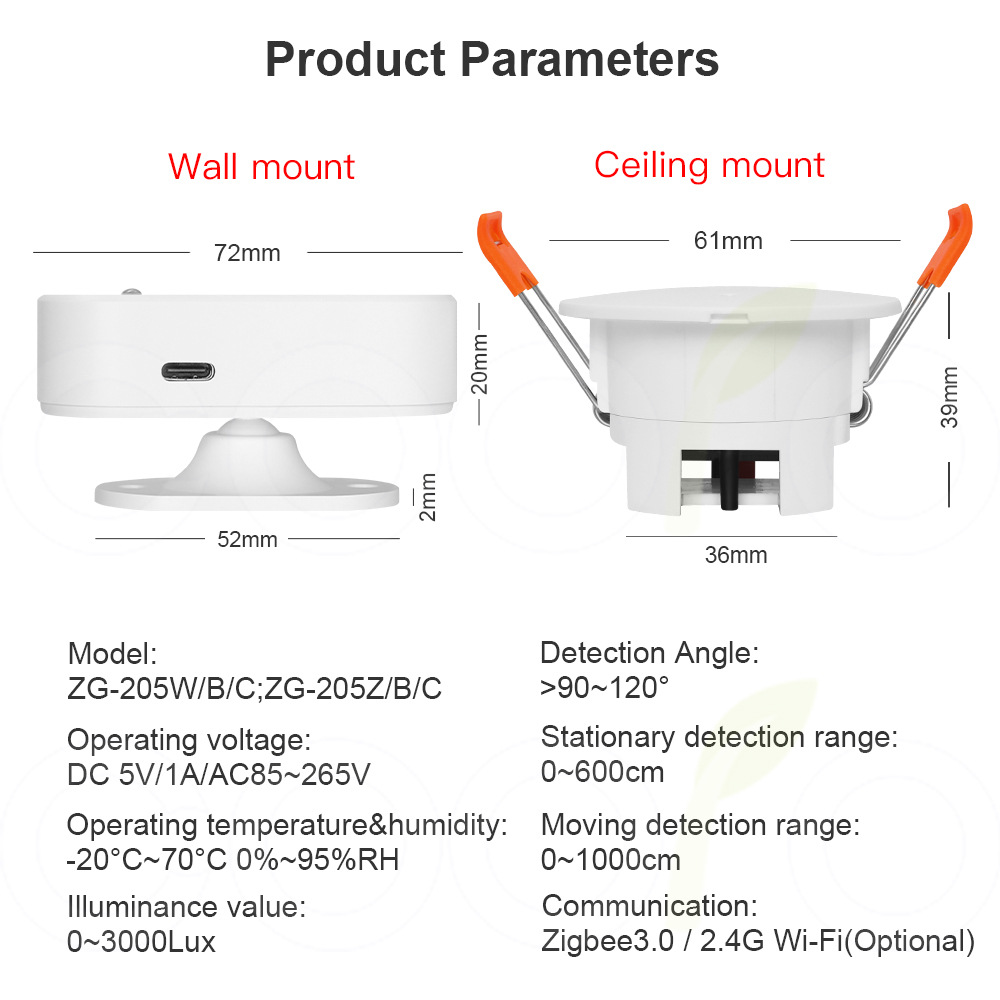

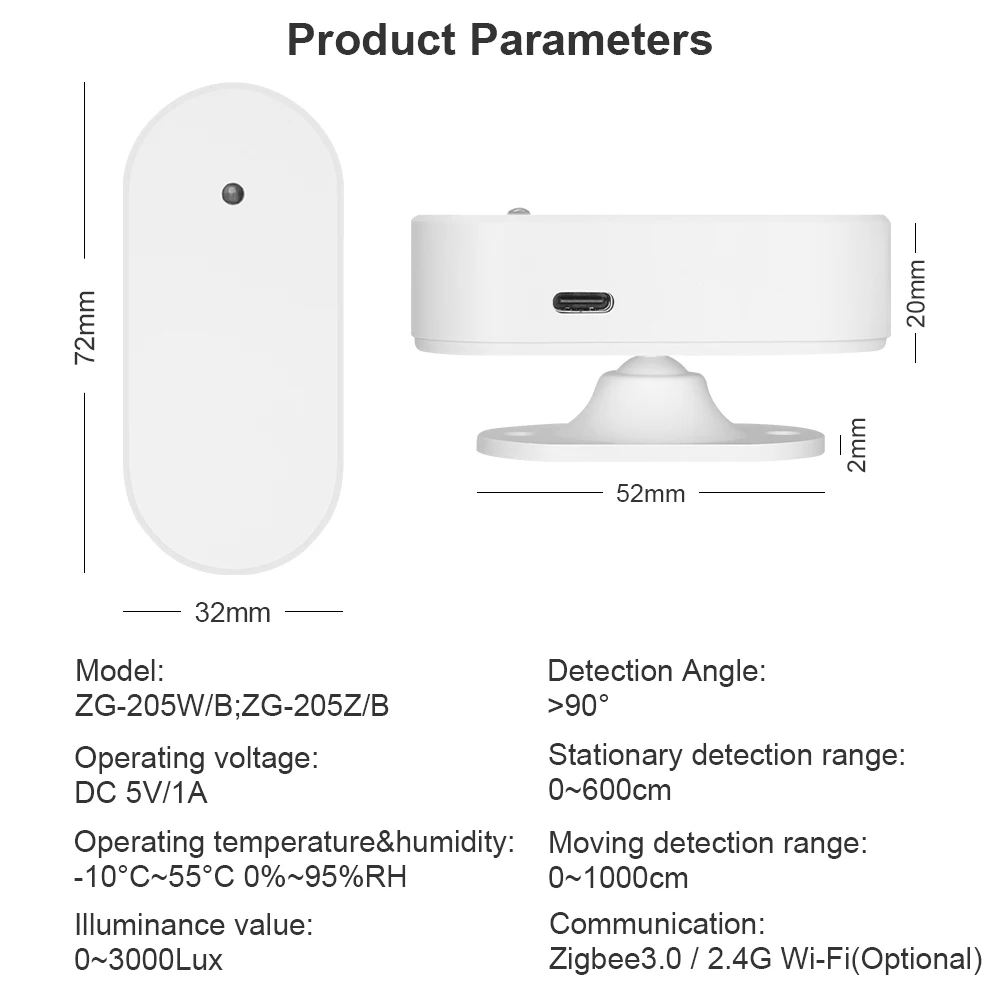

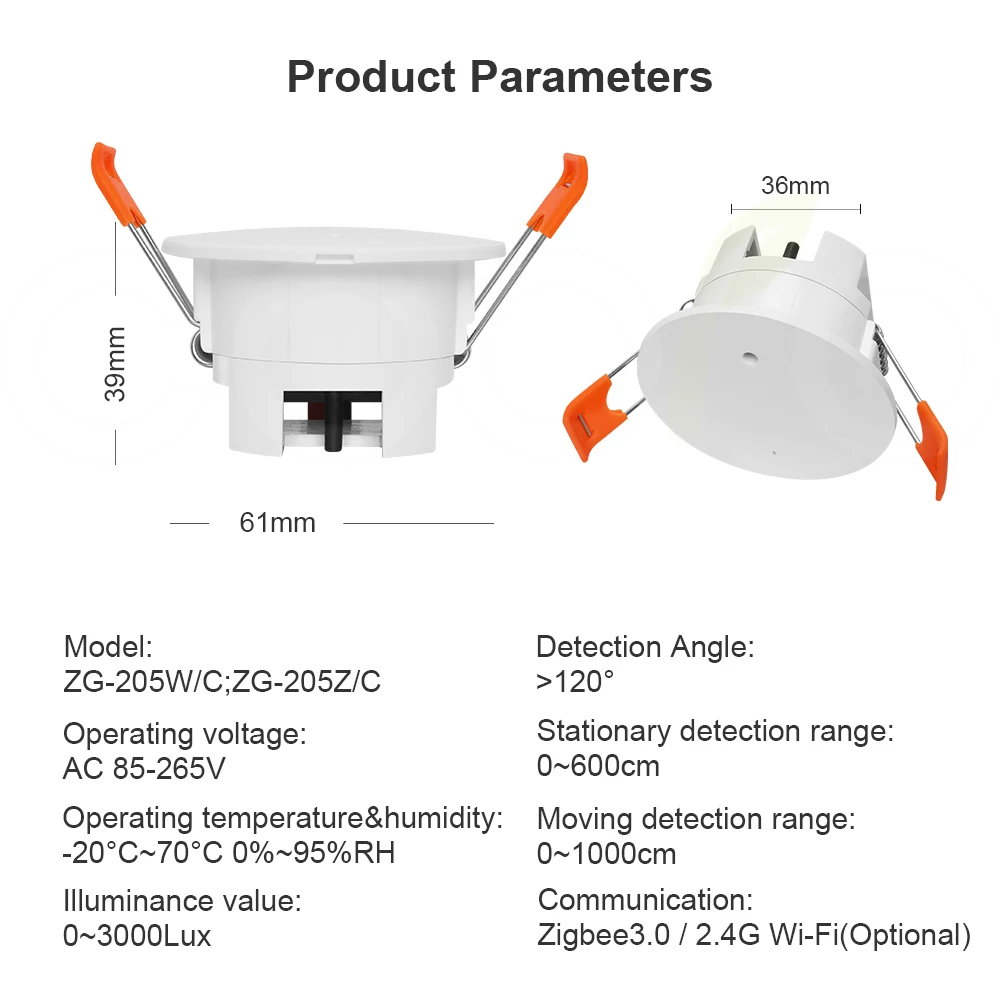

Specification

Item: Smart Human Presence Sensor

Input Voltage: DC5V / 1A / AC85-265V

Operating Current:

Wireless Protocol: Zigbee3.0 / 2.4G wifi (Optional)

Stationary Detection Range: 0~ 600cm

Moving Detection Range: 0~ 1000cm

Illuminance Value: 0~ 3000Lux

Operating Temperature: -10°C ~ 55°C

Operating Humidity: 0% to 95% RH

Functional ZigBee Smart Human Presence Sensor

Featured as human presence, human static, human micro motion and human movement motion detection to detect the presence or absence of people in the area, even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.

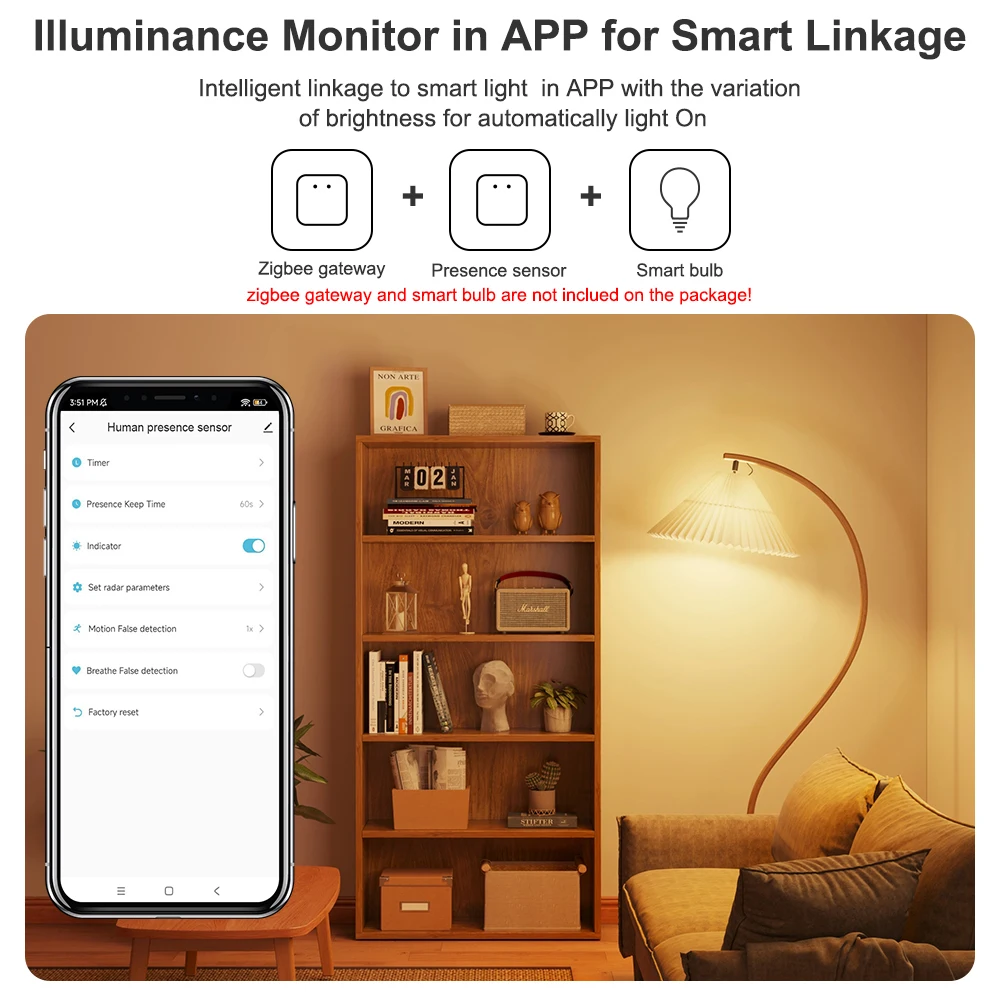

Perceived Light Intensity for Smart & Scene Linkage

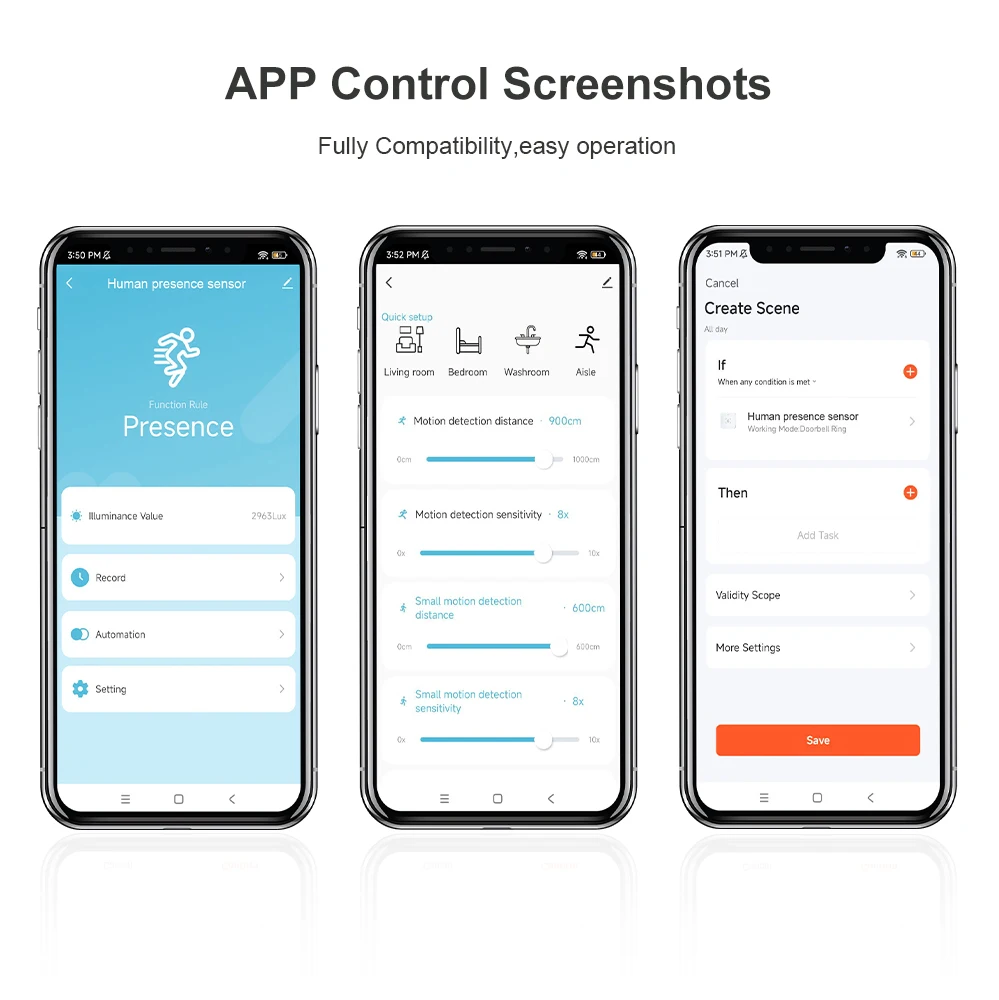

The illuminance monitor in the Tuya Smart APP enables its smart features, such as smart scene linkage with other smart devices, especially your house lights to turn on or off automatically as the brightness changes. In addition, you can intelligently link the sensor to other smart home devices for home automation.

Advanced New Design with Multiple Settings

It supports setting the following parameters: Presence Keep Time/Indicator Status/Radar Parameters (Sensitivity and distance)/Motion False Detection.

ZigBee Hub as Control Center

This ZigBee human presence sensor requires a Tuya ZigBee gateway, which serves as the central bridge for all Tuya ZigBee smart devices, providing extremely stable signal transmission and being a really good necessity for the whole-house intelligence. (Note: We highly recommend using the Tuya ZigBee hub due to its wider compatibility compared to other hubs.)

Update time：20250605115407

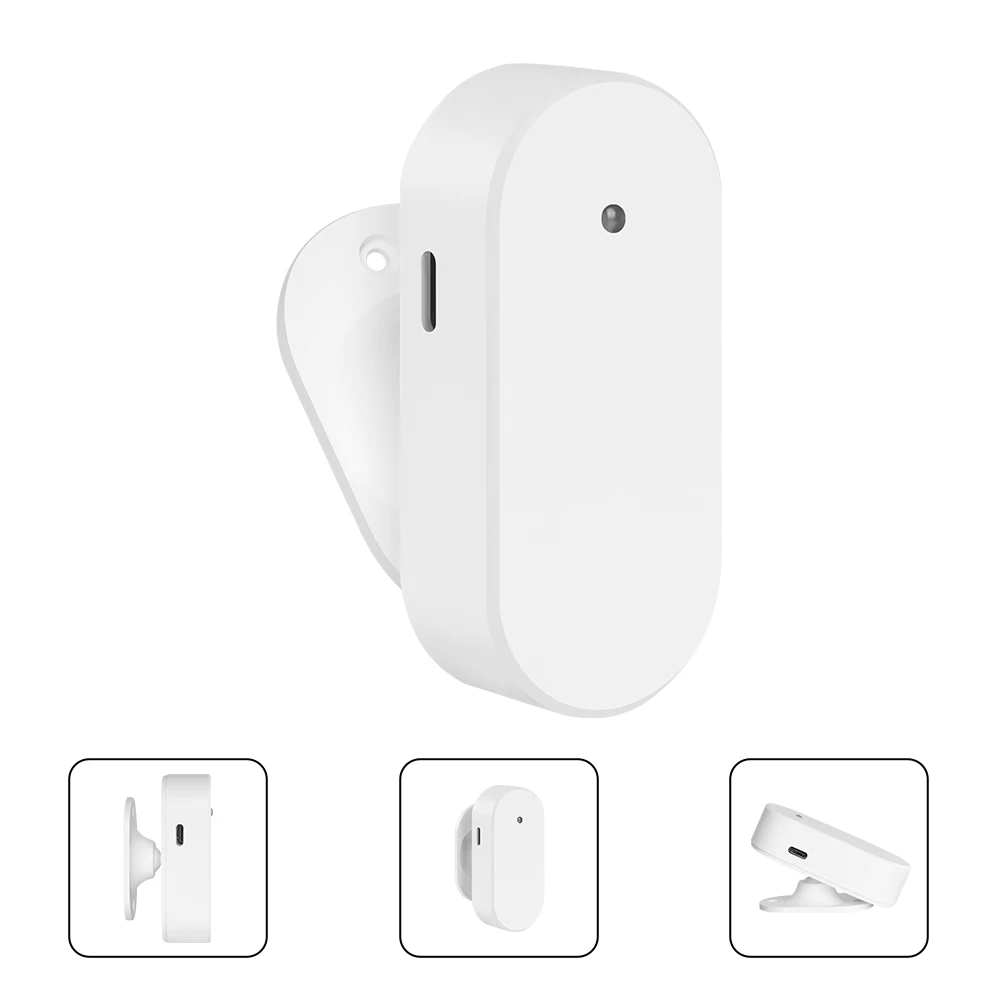

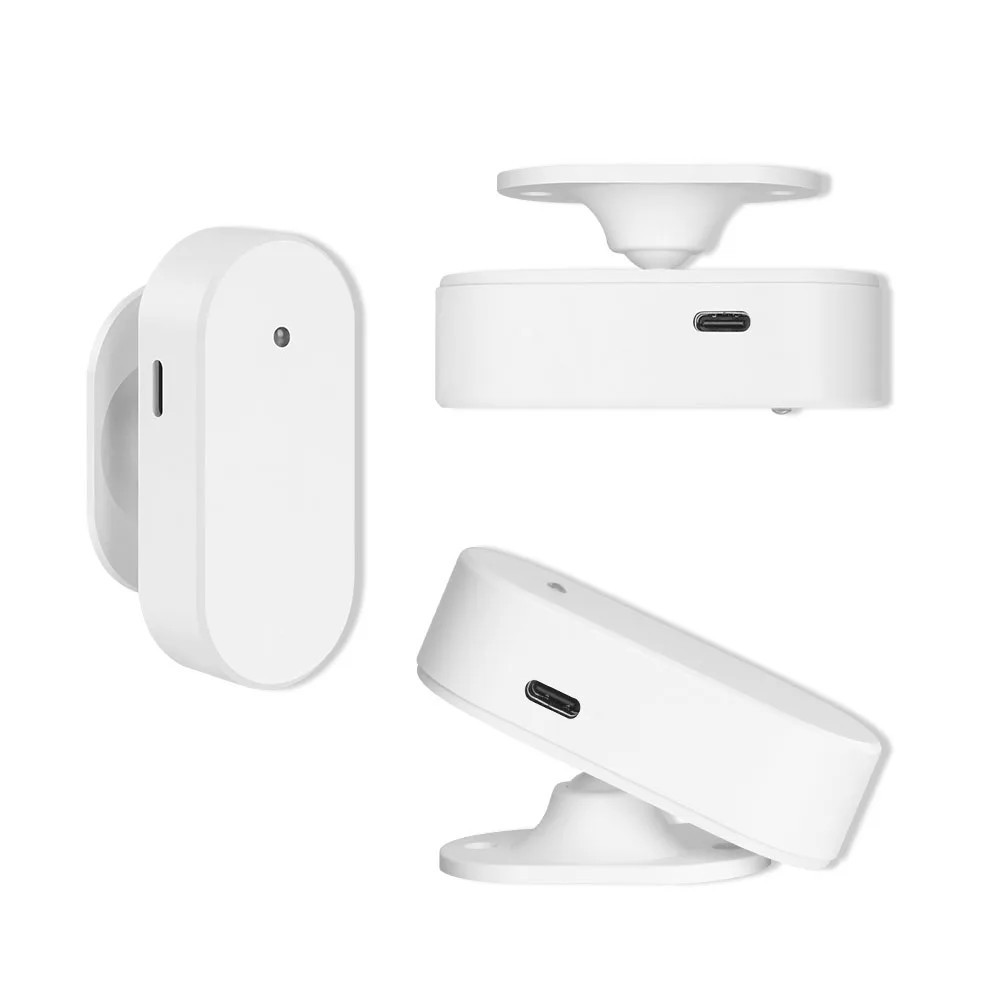

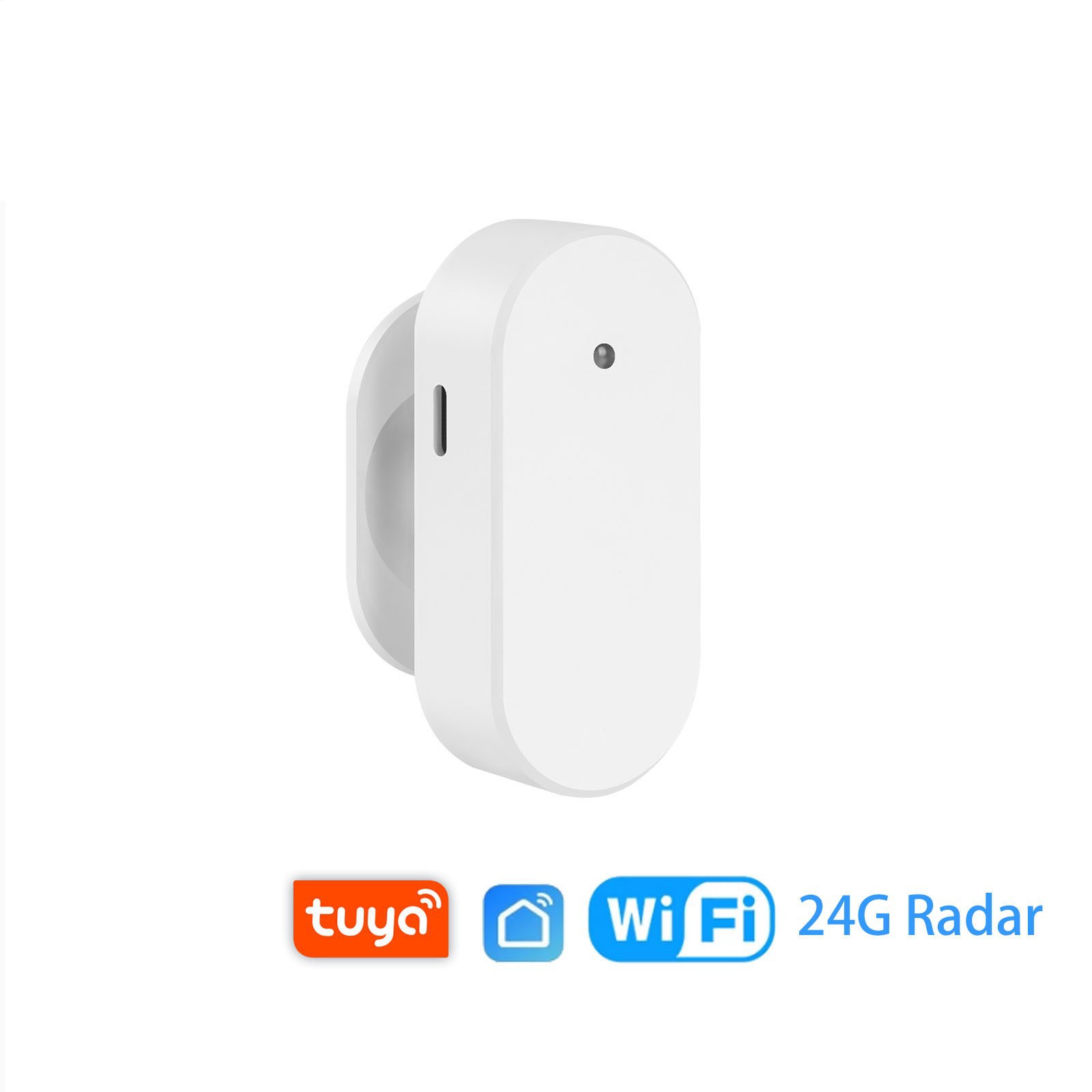

wifi bracket-24g radar + light sense	¥82.0	666 piece available
zigbee bracket-24g radar + light sense	¥82.0	666 piece available

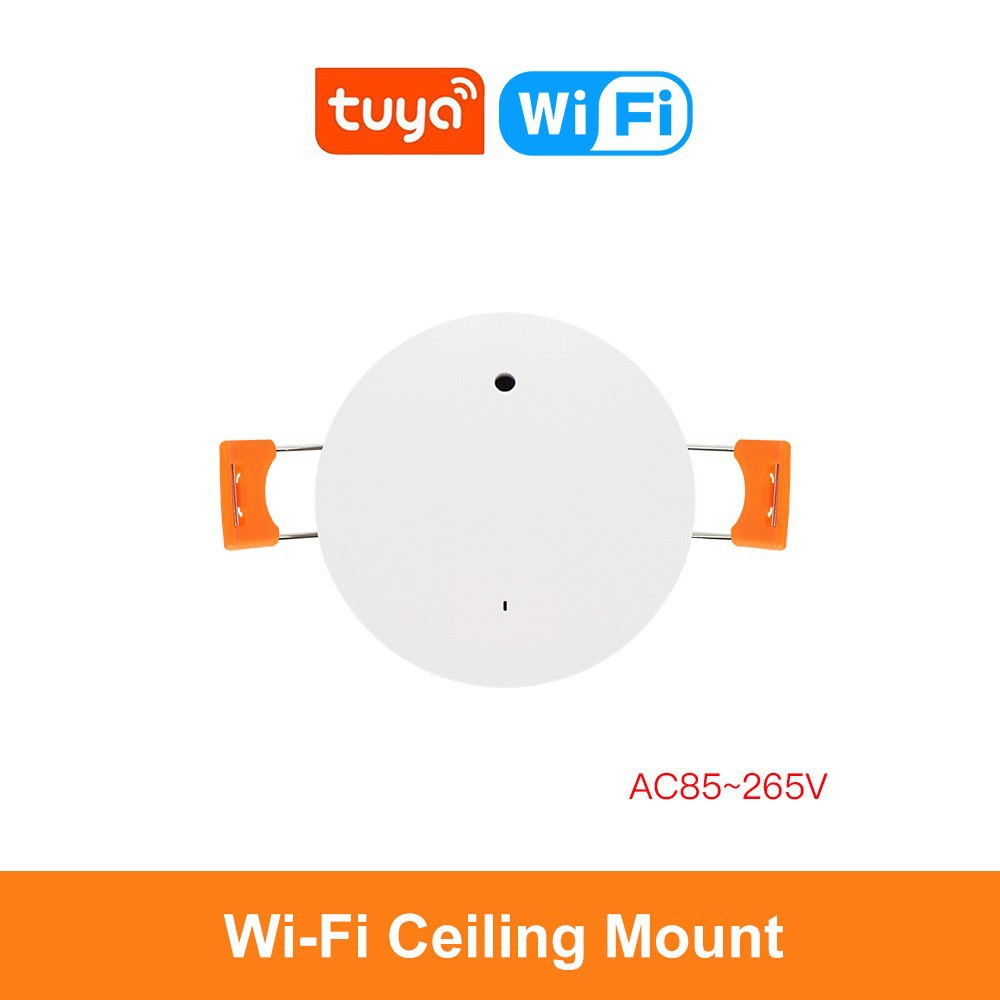

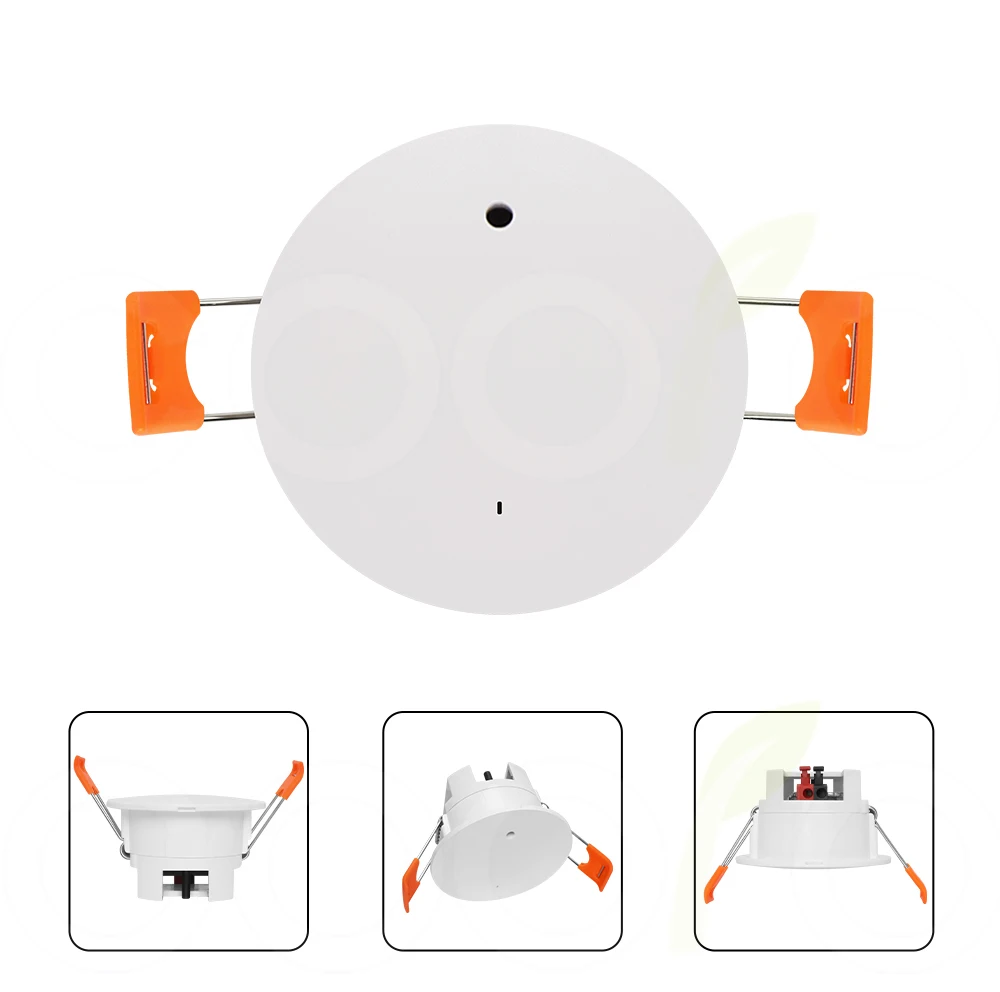

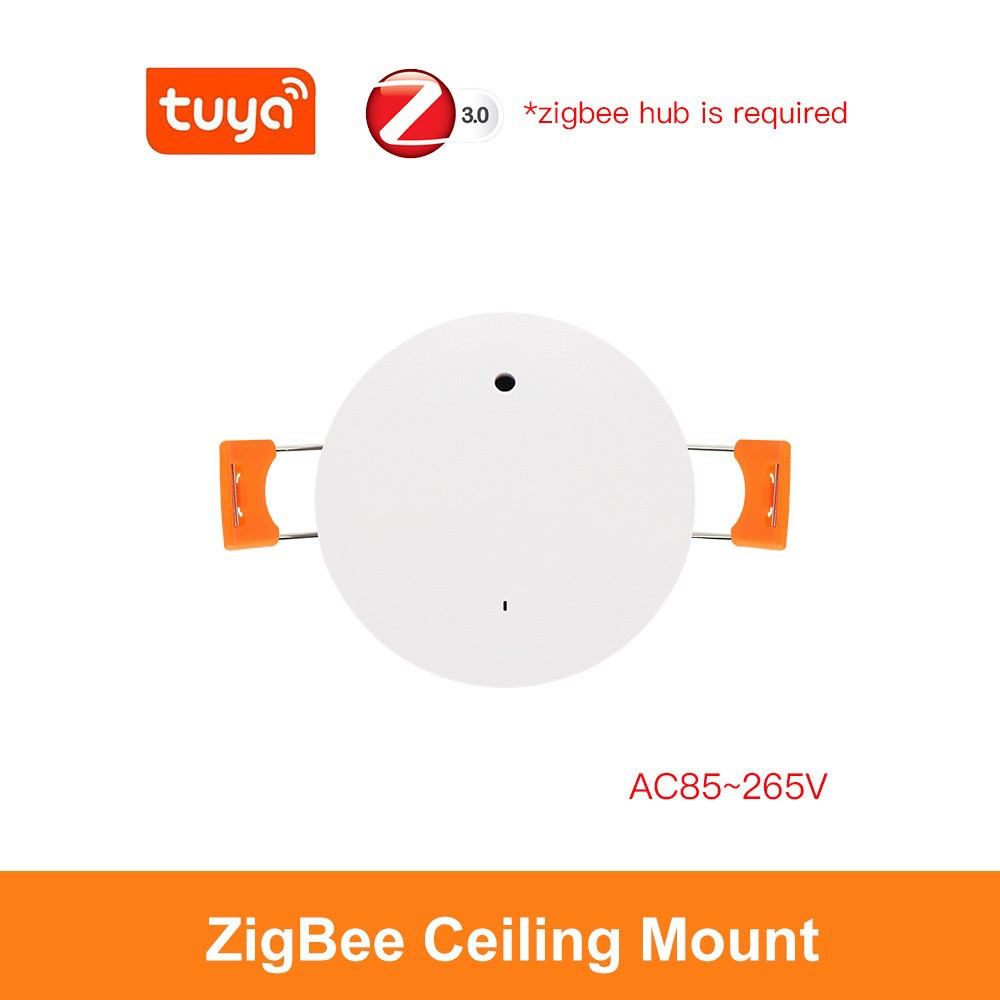

wifi ceiling-24g radar + light sense	¥115.0	666 piece available
zigbee ceiling-24g radar + light sense	¥115.0	666 piece available
wifi ceiling model-5.8g radar + light sense	¥85.0	666 piece available
zigbee ceiling model-5.8g radar + light sense	¥85.0	666 piece available
