for export portable handheld atomizer medical grade electronic nebulizer ultrasonic micro-mesh household atomizer

Product specifications:

Type: HD-WCD03            Operating Frequency: 120KHz

Nebulization rate: ≥0.3ml/min            Nebulizer pellet diameter: 4um

Nebulization particles: ~3.7μm±2.5%          Medication cup capacity: 12ml

Nebulizer tablet material: 304 stainless steel             Operating noise: 40 dB

Mask material: PVC without phthalates            Solution temperature: ≤60℃

Power supply voltage and current: 5V/1A                Power: 1.5W

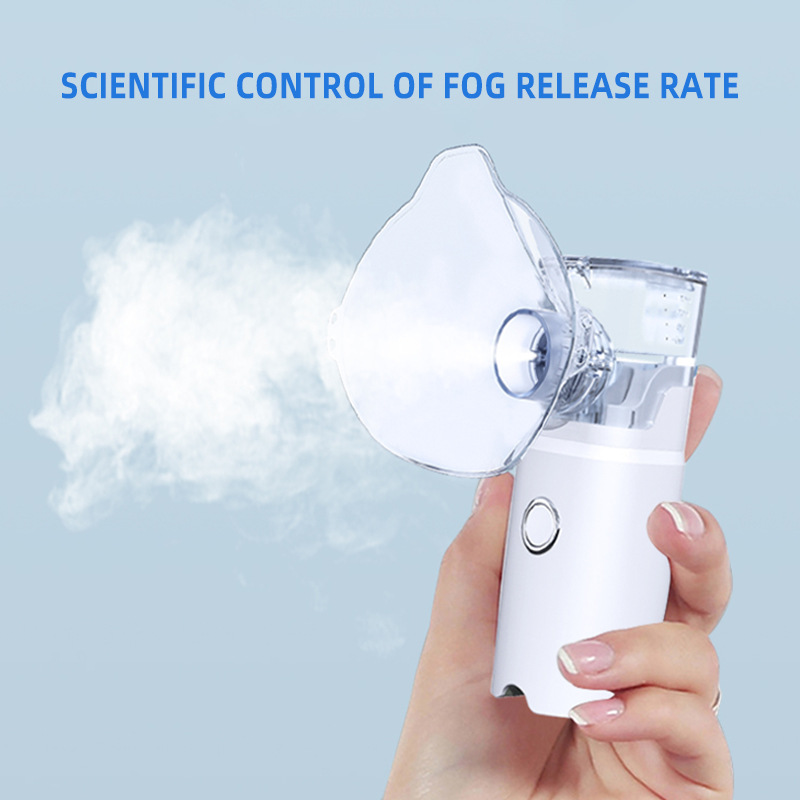

Fog formation rate: Green setting 0.5 ml/min Blue setting 0.3 ml/min

Net weight: 65g

Product dimensions: 37*38*115 mm

Weight: 185g

Outer box dimensions: 53cm x 29cm x 37cm / 59 PCS / 12 KG

Warm reminder 1: Do not spray if there is medication residue, as it may clog the nebulizer drops. After each use, remove the medicine cup and rinse the nebulizer drops with clean water; otherwise, the drops are likely to be damaged and clogged.

Warm reminder 2: Each product undergoes multiple layers of QC testing and spray tests, so water droplets may remain inside the product—this is a normal phenomenon.

Instructions for Use:

【HD-WCD03】It is a charging model + plug-in (with built-in lithium battery), featuring a 450 mAh battery, which can operate continuously for about 50–60 minutes.

【HD-W05】<t_AA alkaline batteries or DC 5V> (When installing AA batteries, be sure to follow the correct orientation; seal the battery cover properly.)When no battery is installed, it can be used directly by plugging in via USB. The power supply is 5V. Do not use the charger together with the battery via USB to prevent damage to the atomizer unit.

【HD-W06】The nebulizer is equipped with a polymer lithium battery that can be charged or plugged in. It has a 450 mAh battery and can operate continuously for about 50–60 minutes.

(<t_CHARGE>Lights flash blue while charging, turn green when fully charged; the charger operates at 5V voltage>)</t_CHARGE>

Use speech

1. Please use clean water before use, and clean the interior of the medicine cup.

2. Connect the nebulizer mask, pour the liquid into the medicine cup. Please note not to exceed the maximum value of 15 ml marked on the scale line.

3. Press the switch; the green light turns on indicating high fog level. Press the switch again to turn on the blue light indicating low fog level. Select the appropriate fog level according to your needs, then press the switch once more to turn off.

4. Do not turn on the device when there is no liquid in the medicine cup, otherwise it may damage the product.

5. After use, please remove the medicine cup separately and clean its interior.

6. The light will flash and give an alert when the battery has about 10% remaining.

7. It will automatically shut down after 10 minutes of power on. If you need to restart, just press the switch once more.

Warm reminder*: The nebulizer has undergone multiple QC tests and is tested with clean water sprays; therefore, water droplets remaining in the cup are normal.
