Description

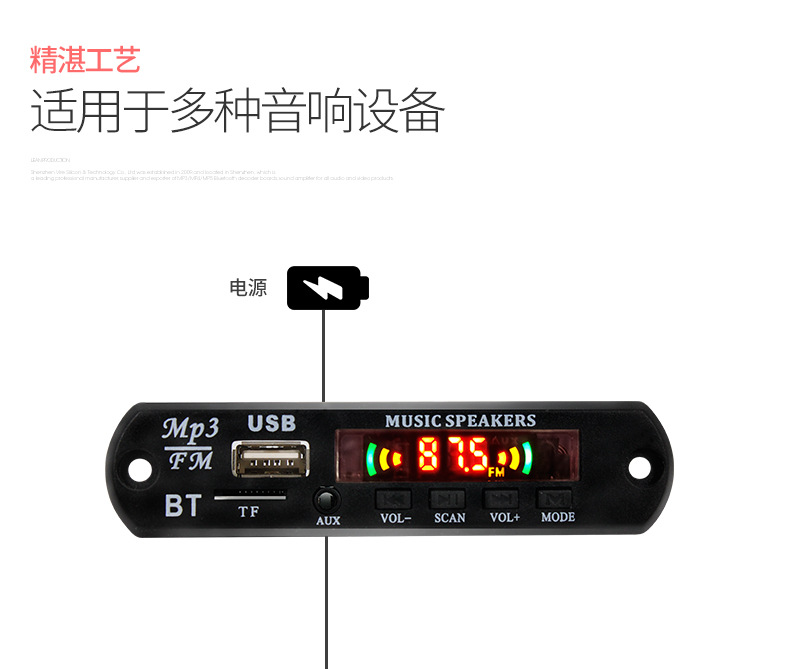

Model: VTF-108BT V8.0 Shell Size: 107*25.5MM

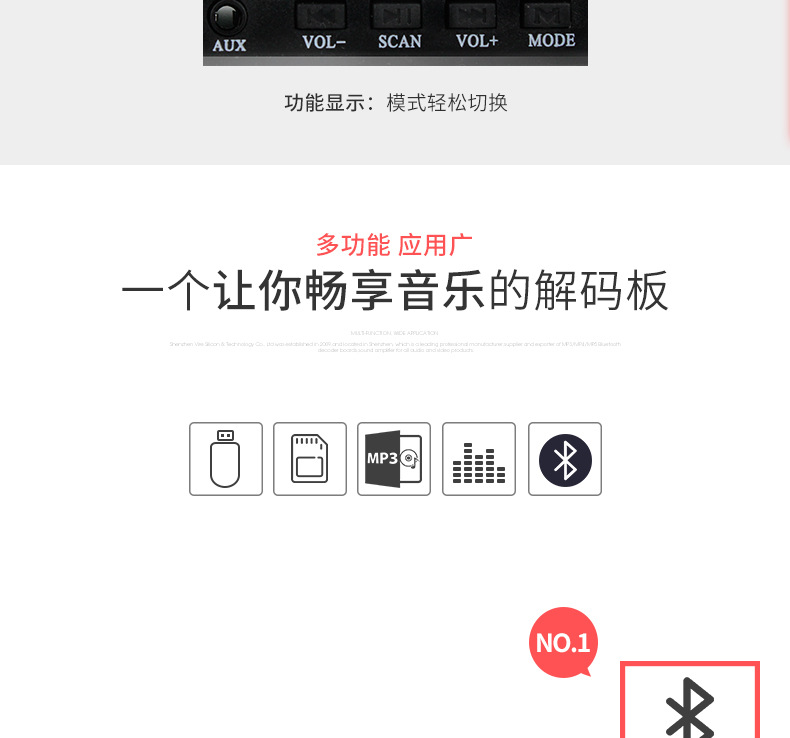

Functional Introduction:

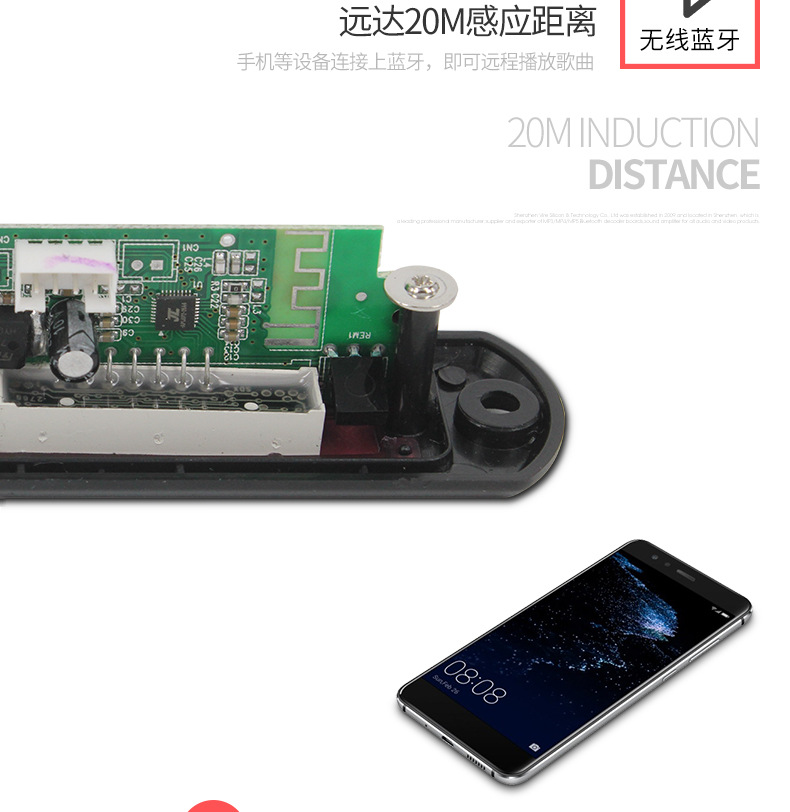

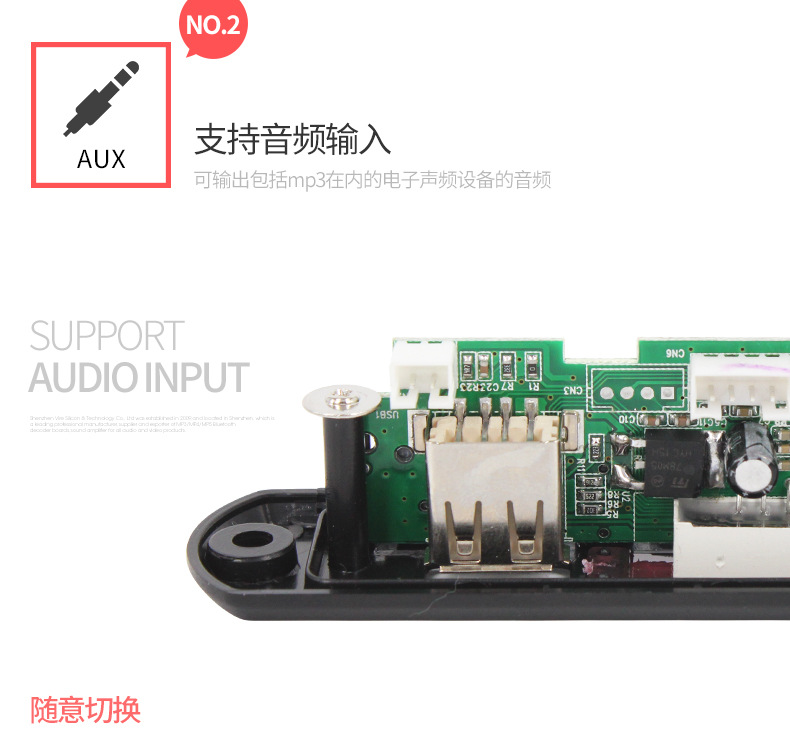

1. Supports FM radio / Bluetooth / USB / TF card / MP3 / AUX

2. Supports an 88:88 LED display with a color flashing light.

3. Supports MP3 songs at 32~320kbps

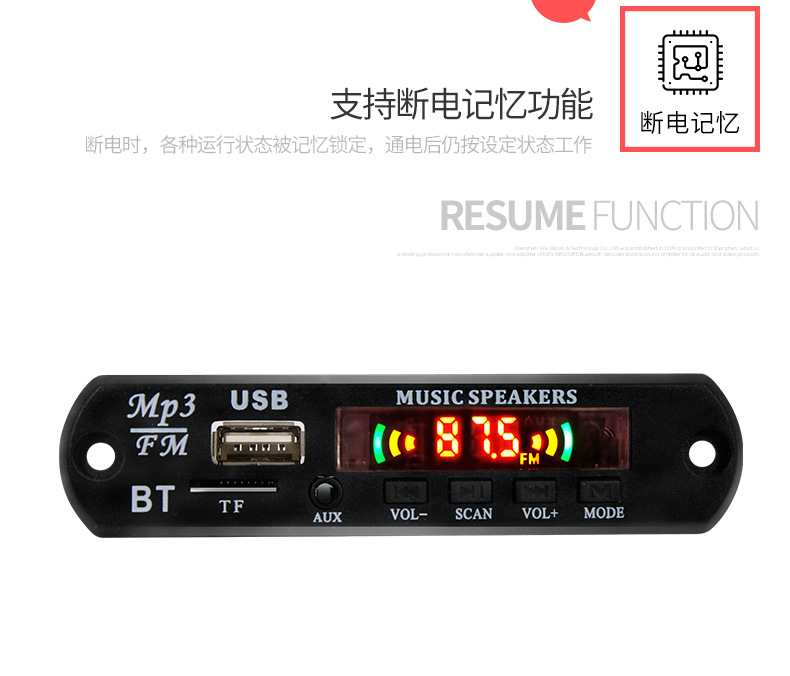

4. Supports power-off memory function (24C02 memory IC)

5. Supports 6 types of sound effects (Jazz/Pop/Classic/Normal/Country/Rock)

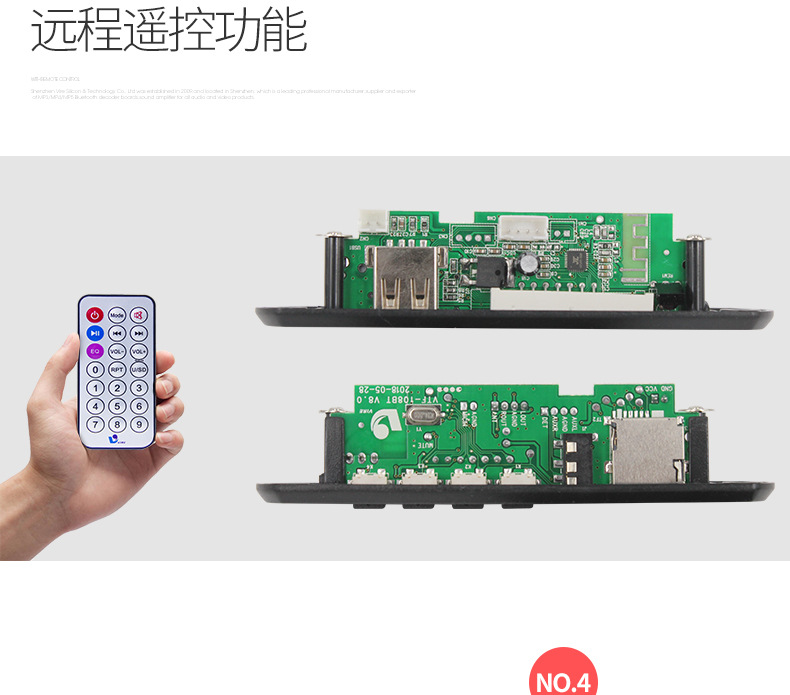

6. Supports infrared remote control, reception range ≤ 10 meters

7. Supports FAT16 and FAT32 file systems

8. Supports full format decoding of MP3Layer3/WMA/WAV/APE/FLAC versions of songs

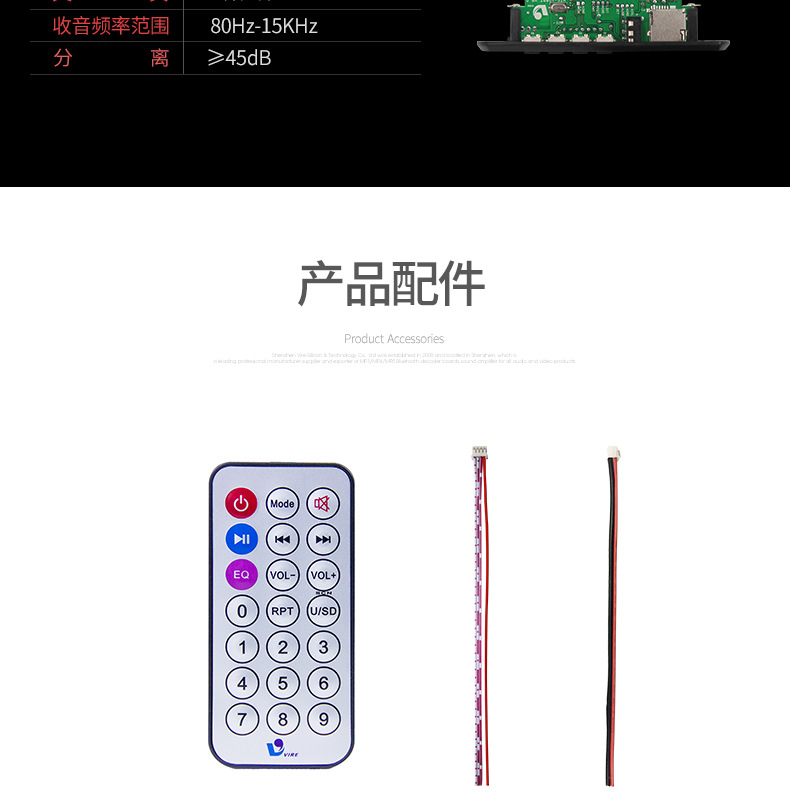

Accessories: Remote Control*1pcs, 2P Power Cable*1pcs, 4P Audio Cable*1pcs (Optional: 2 pieces of 4P Audio Cable. If you need 2 pieces of 4P cable, please communicate with customer service).

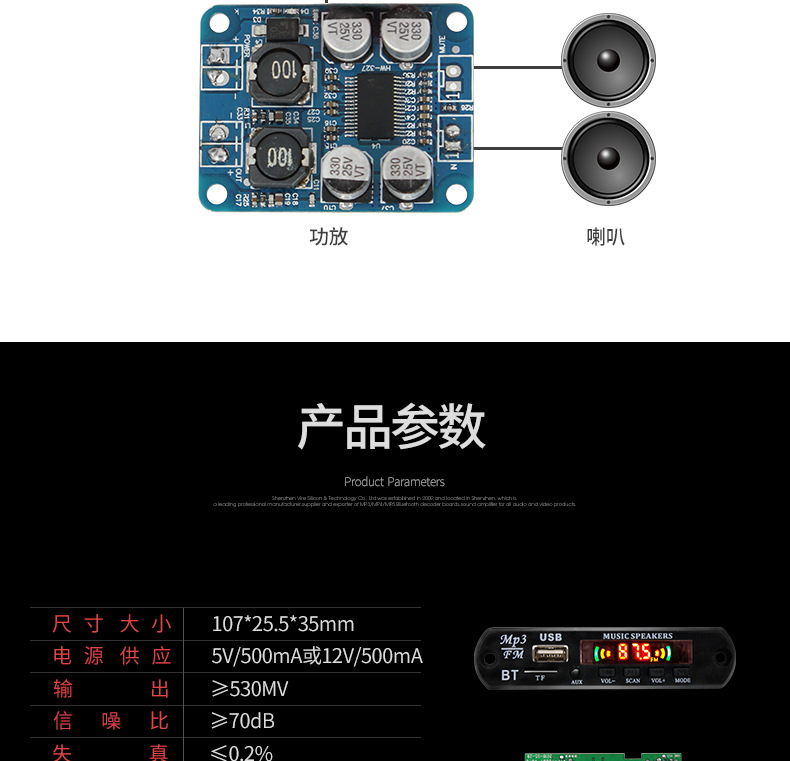

Product Parameters:

1. Power Supply: 5V/500mA or 12V/500mA (optional)

2. Audio output ≥ 530mA

3. Signal-to-noise ratio ≥ 70dB

Frequency Response: 80Hz~15KHz

5. Distortion ≤ 0.2%

6. Separation ≥ 45 dB

Storage temperature: -20°C to 50°C

8. Frequency Range: 87.5~108MHz

9. FM Full Auto Search Sensitivity: 25~30dB

Product power consumption ≤ 150mA

Update time：20240505221434

with remote control + wire	¥7.9	94393 table available
no accessories	¥7.5	99130 table available
with remote control + wire	¥10.5	98747 table available
no accessories	¥10.0	99426 table available
