Description

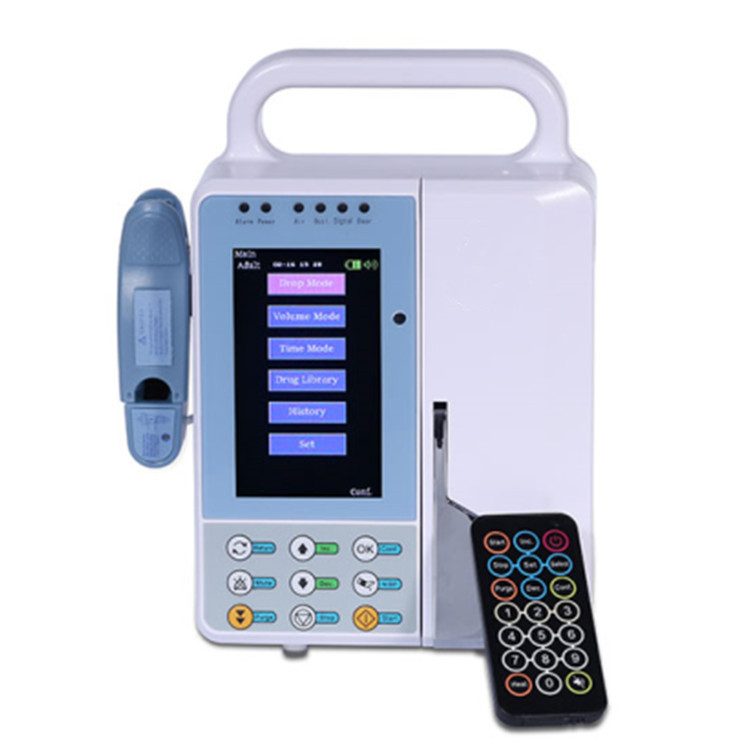

Infusion Pump

——OIP-900

▲1、4.3-inch TFT display with 272×480 resolution, supports multi-language display.

▲2、Display Content: Time, Battery Capacity, Infusion Status, Mode, Rate, Infusion Quantity, Cumulative Quantity, Infusion Time, Volume, Department, Bed Number.

3. Alarm: Infusion completion alarm, empty bottle alarm, signal error alarm, incorrect operation alarm, infusion obstruction alarm, door open alarm, bubble in the tube alarm, battery low voltage alarm, AC power disconnect warning, etc.

▲4. Heating function: Temperature range: 25°C - 50°C.

▲5、Drug Library function, with 210 types of drugs for users to choose from.

▲6、Historical Record Function, with a maximum capacity of storing up to 1500 historical records.

▲7、Mode Selection: Drop Rate Mode, Volume Mode, Time Mode.

▲8andRemote control function: able to control the device from a distance, and directly input numbers to adjust the speed.InfusionTime,DrugThe quantity and parameters can make medical staff more efficient and save time and effort.

9Infusion Drop Rate Adjustment Range: 1 drop/min to 400 drops/min (increments of 1 drop/min per stage).

10、Infusion RateRegulation Range: 1 ml/h to 1200 ml/h (when 1 ml/h to 99.9 ml/h, each increment is

0.1ml/h；当流量大于99.90.1ml/h时，每级增量为1ml/h。

11Accuracy of the rate: In Within ±3% (selecting high-quality infusion set or a calibrated standard infusion set)

12Pump Mechanical Accuracy: In Within ±2%.

13Fast-forward rate: 800 ml/h。

14andKVO Rate: 1ml/h (Infusion Rate: 1ml/h to 300ml/h); 3ml/h (Infusion Rate: 3ml/h)

greater than" 或者 "larger than300ml/h）。

15Infusion volume range:1ml to 9999.9ml (increments of 0.1ml per level)

16Maximum Cumulative Amount: 9999.9ml

17Infusion time range:1min ～ 9999.9min (每级增量为1min)

18. Blockage Alarm Threshold:

high800mmHg ± 200mmHg（106kPa ± 26.7kPa）

中：500mmHg ± 100mmHg (66.7kPa ± 13.3kPa)

Low:300mmHg ± 100mmHg (40.7kPa ± 13.3kPa)

19Bubble Detector: Ultrasonic Detection Method, Detection Sensitivity:≥25μL。

20Power supply: ~220V、50Hz；内置电池：11.1V可充电锂电池组，容量≥2000mAh；

Battery Charging8 hours later, the pump can operate at a rate of 25 ml/h (medium speed as specified in GB 9706.27-2005)

run4 hours or more.

21Dimensions: 188mm(长)×198mm（宽）×228（高）Allowable Tolerance±5%

22Weight: About 2.2kg
