About the identification of machines: Due to the different thread patterns of each batch of batteries, the location of the identification is random.

Basic Information

Net Weight: 205g (Single Unit)
Size: 130mm*34mm

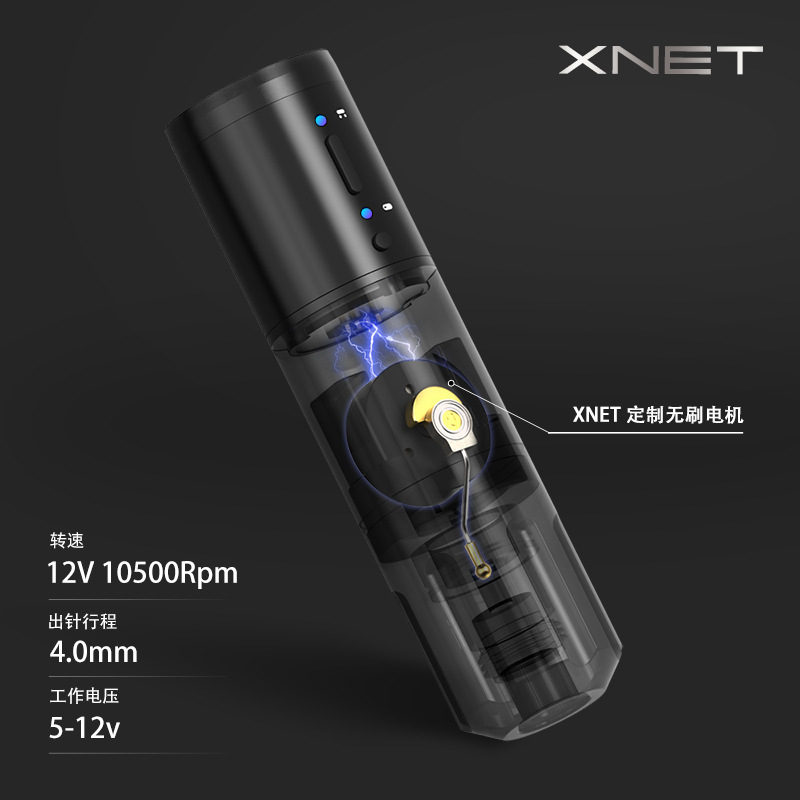

Motor: 12V 10500Rpm
Interface: Type-C interface (USB-C)

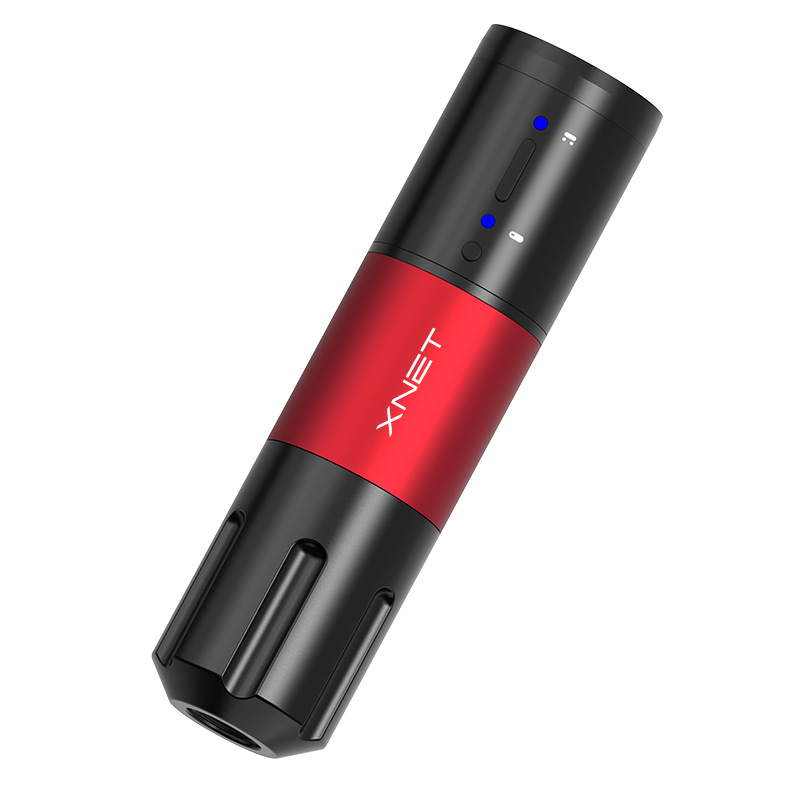

Structure: The pen is designed with a single-piece lithium battery structure, with an internal lithium battery and a rotatable and removable battery compartment.
Configuration: Lithium battery tattoo pen + RCA adapter + RCA soft silicone wire + USB data cable + accessory package, and additional spare batteries can be purchased separately.
Product Parameters
1. Material: Aluminum alloy.

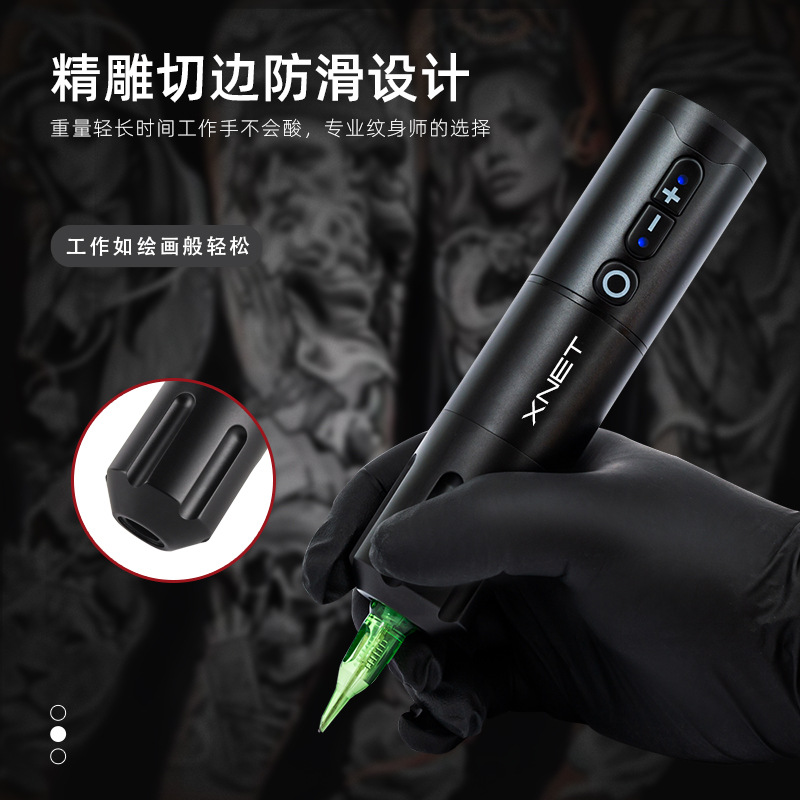

2. Craftsmanship: CNC integrated precision engraving;
Color: Black

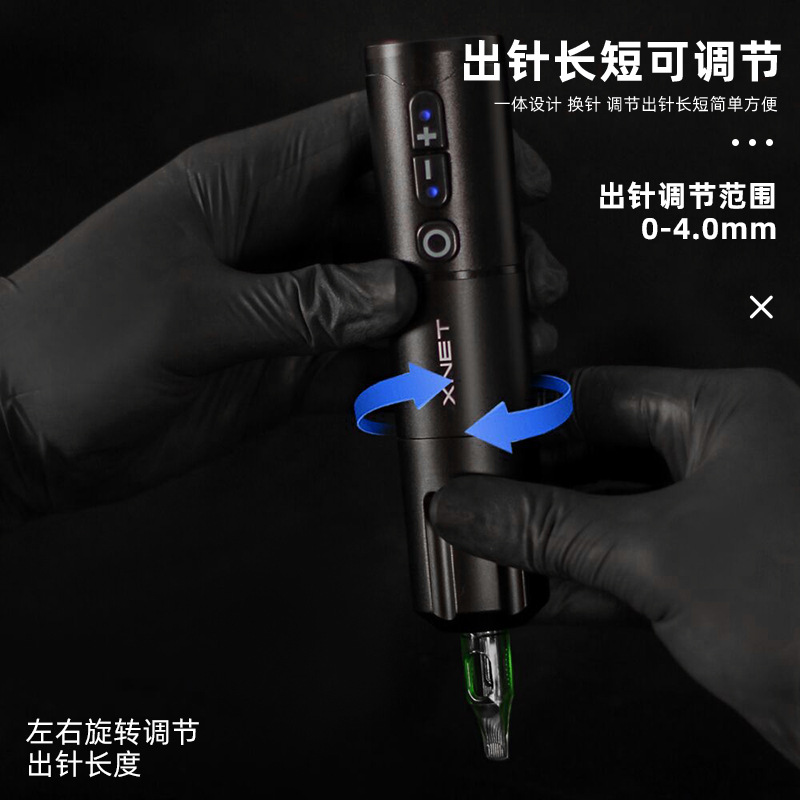

4. Thickness: 0-4mm;
5. Gauge: Adjustable voltage levels 5-12V, short press 0.1V, long press 0.5V.
6. Display: The top of the tattoo pen displays a high-definition LCD screen showing the voltage and battery usage.
7. Applicability: The size of the Xianka needle port is suitable for most integrated needles on the market.
Battery capacity: 1800mAh (milliampere-hour);
9. Working voltage: 5-12V;
Charging time: Fast charging, fully charged in 1.5 hours without power.
11. Operating Time: The output current is 2.0A, and under normal 8V voltage operation, it can sustain for more than 5 hours. The voltage is stable, and intermittent use can last for about 6-7 hours;
12. Start-up Voltage: With memory function, the start-up voltage is the voltage at the time of last use when it was turned off.
13. Override Function: The machine can be started with a strong force to ensure that it does not get stuck, capable of driving large rows of needles.
Instruction Manual
The device is a tattoo pen with built-in lithium battery, which can be directly used without the need for a foot pedal or hook line. It is composed of two parts: 1. The upper half is the lithium battery power supply, and 2. The lower half is the tattoo pen. The middle part can be rotated to replace the upper half of the lithium battery, or equipped with an RCA converter for use. The specific function operation is as follows:

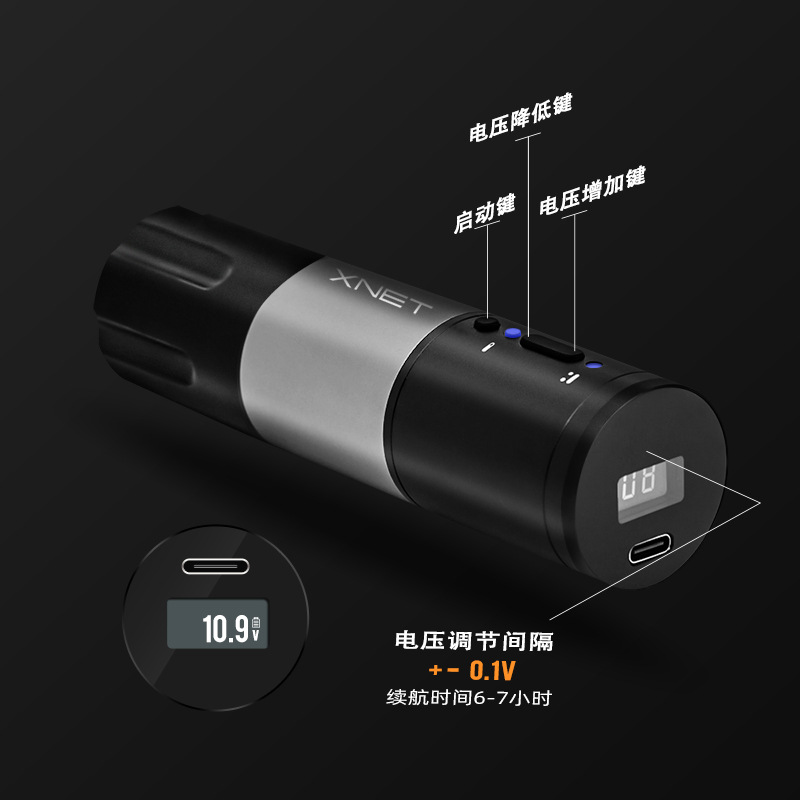

1. Power On: Press and hold the black "●" button on the battery for 5 seconds to turn on the device, then press and hold for another 5 seconds to turn it off.
2. Pause: Press the black '●' key briefly to pause the work, and press it again briefly to resume the working state.

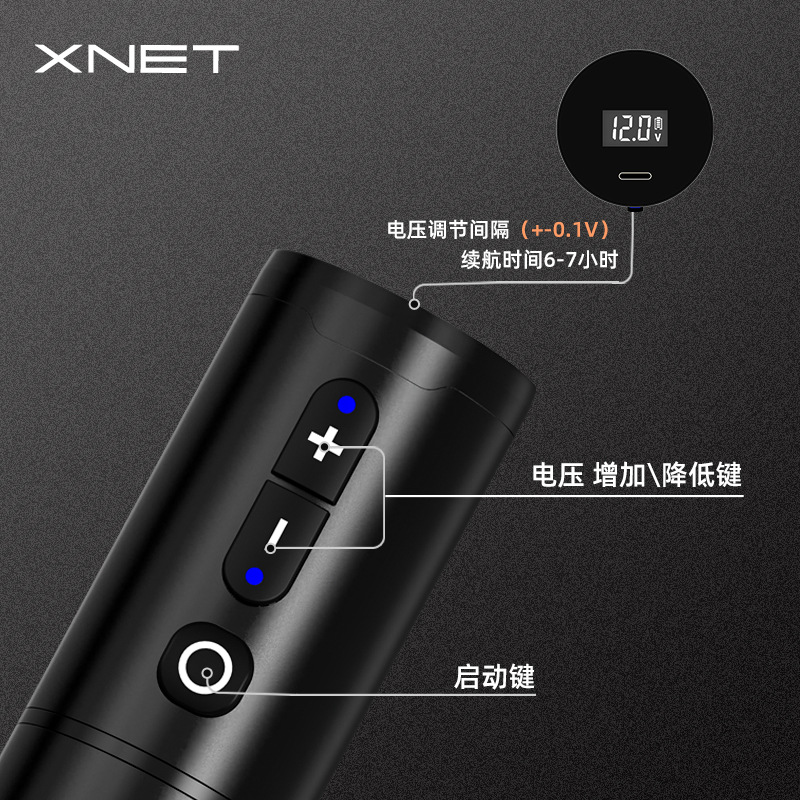

3. Adjust the voltage: Press the up and down keys "∧" or "∨" to adjust the voltage level. Press once to adjust by 0.1V, and long press to adjust by 0.5V.
4. Indicator light display: Blue indicator light: The device is powered on and ready for use; Red indicator light: The device needs to be charged.
5. Daily Charging: The external battery charging port allows charging using a type-c data cable.
Lithium Battery Parameters
1. Input: The device can be charged by connecting a USB cable to the type-C charging port and power supply, and then the lithium battery has a built-in power storage function, with a battery capacity of 1600mAh.
2. Output: The output current is fixed at 2A. The lithium battery releases the stored electricity through the start button, powering the built-in motor, thus starting the tattoo machine and driving the needle out. Output voltage settings: (5-12V), with 5V being the lowest voltage and 12V being the highest.

Supports long-term tattoo work with stable output. The 8V output voltage can operate for 7-8 hours, and it only takes 3-4 hours to fully charge. More importantly, the battery can be replaced at any time.
