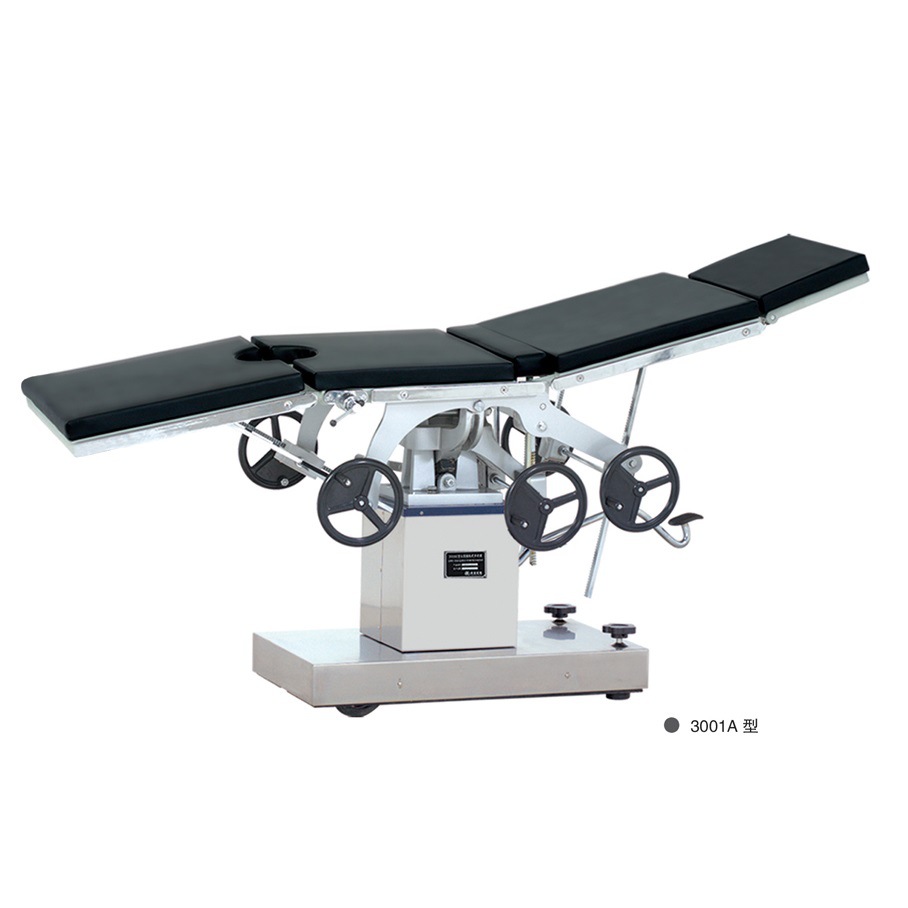

manual hydraulic 4-function stainless steel operating table medical equipment

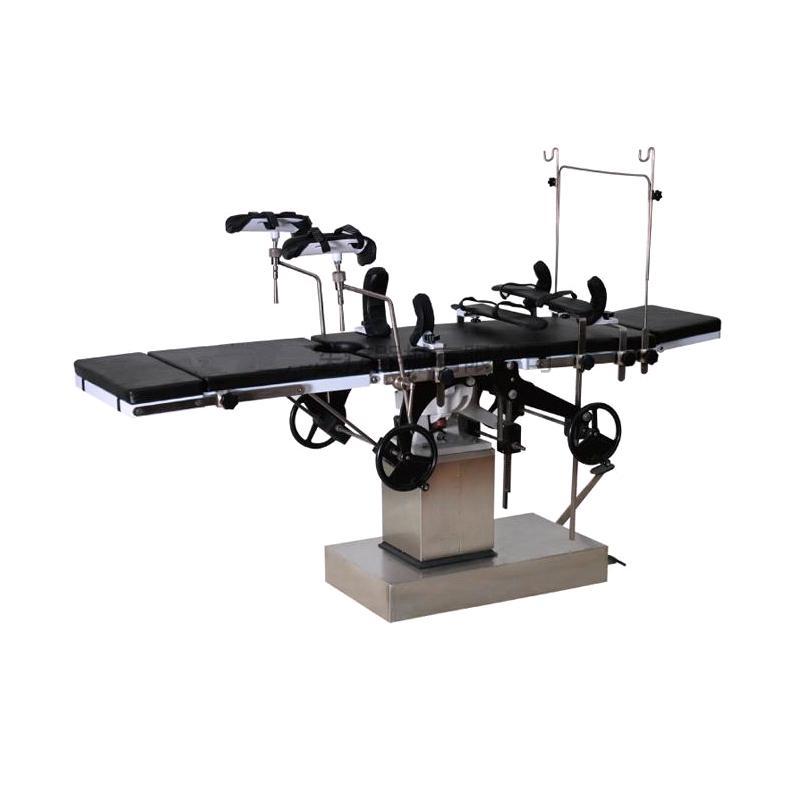

Side-controlled operating table

Optional configuration

Shield material: stainless steel; steel plastic coating

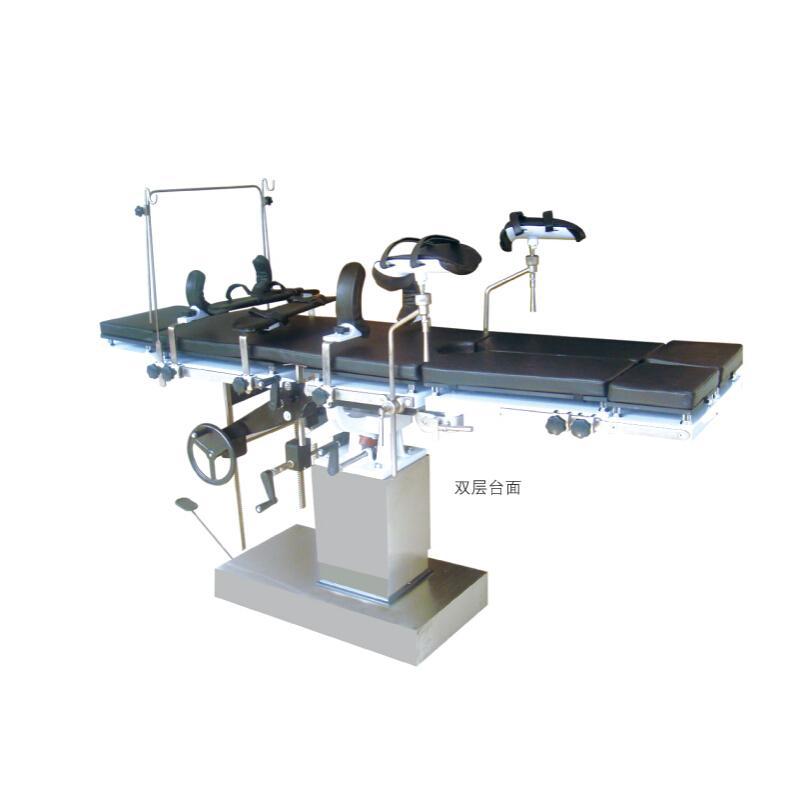

Countertop: Double-layer compartment for dark boxes; Single-layer

Leg panels: split legs; overall structure

Mattress: polyurethane; sponge

Scope of Application

Parameters: 1950*600*940 mm

The base cover comes in two types: 304 stainless steel and steel with plastic coating.

Purpose and Instructions

The back plate folds up and down, and the tabletop tilts back and forth via hand wheels; the main bed is raised and lowered using hydraulic oil pump pressure.

Main Specifications

Countertop size

Length: 1850±500 mm

Width: 600 mm

Countertop Segment Size

Backplate 750×600mm

Board size: 400×600 mm

Leg panel 550×500 mm

Table Top from Floor:

Height of the counter above the floor: 740–940 mm

Countertop Segment Adjustment Range

Fold angle on the back panel ≥ 60°

Underfold of the back plate ≥10°

The front tilt ≥ 10°

Countertop tilt ≥ 25°

Use of attachments

Handhold plate and pad

It can be placed on both sides of the production bed, with arms resting on it for support during infusion, blood pressure and pulse measurements. It is also equipped with a sponge pad for comfort and softness.

Leg support frame

One on each side to support the patient’s legs, and its position can be adjusted as needed.

Mattress

The mattress has a sponge interior wrapped in synthetic leather, providing comfort and ease of use.
