TUYA 涂鸦 ZIGBEE 3.0 蓝牙阀门机械手
There is an English version that can be linked with leakage probe, smoke detector, and gas detector.
Product Specifications and Description
Power Supply Voltage: 12V/1A
Communication Technology: Zigbee 3.0
Product Specifications:
Product packaging size: 130*120*90mm
Product weight: 530G
Outer Carton Packaging:
A case of 30 sets.
Gross Weight: 16.9KG
Crate Size: 62.8*40.5*19.5 CM

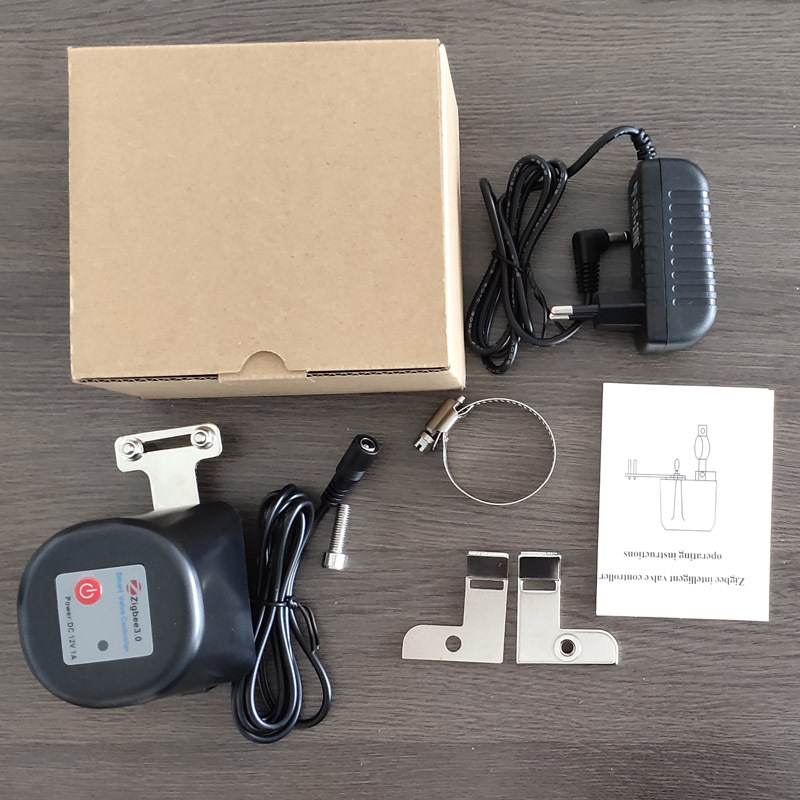

Adjustable support model as shown in the picture:
Can be applied to a variety of pipe diameters

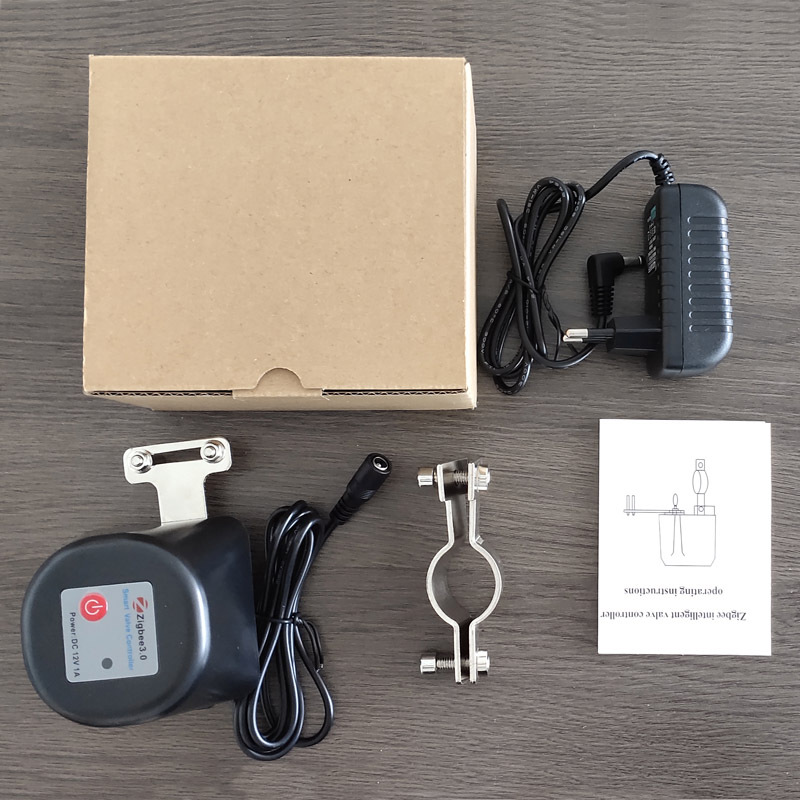

The DN15 support model is shown in the following figure: It is suitable for fixing 4-inch pipes, with a pipe diameter of 1/2 inch, which is 21.3mm.

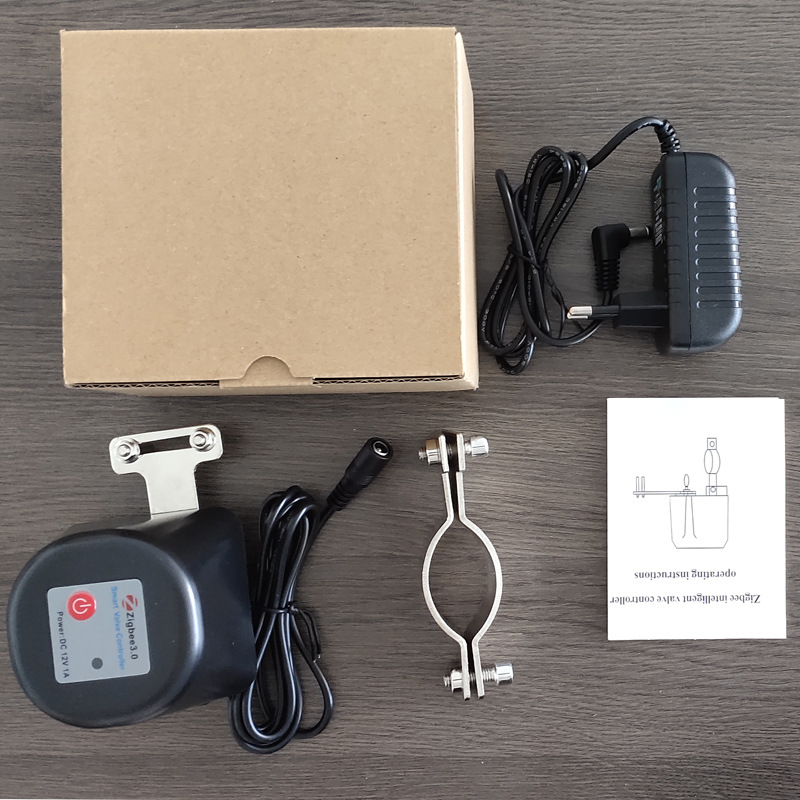

The DN20 support model is shown in the following figure: It is suitable for fixing 6-inch pipes with a diameter of 3/4 inch, which is 26.8mm.
Can be linked with graffiti plan ZIGBEE smoke detector, gas detector, leakage alarm
The ZigBee Version needs to add a TUYA ZigBee Hub.

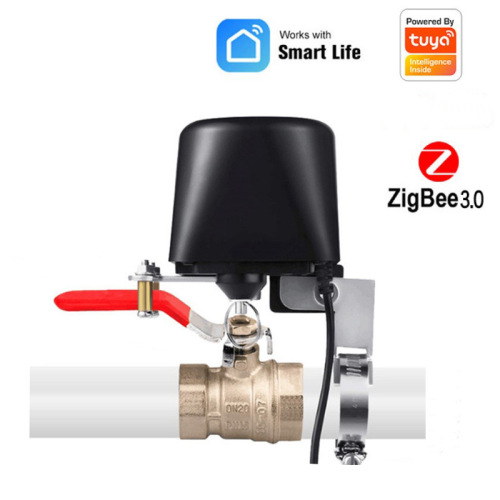

A Smart Add-on for your Existing Water or Gas Ball Valve
Simply add this smart valve controller to your water valve or gas shutoff valve, you can simple control the water supply or turn off gas valve from anywhere at any time with your smartphone, using free Smart Life app.
Compatible with Amazon Alexa and Google Home
When paired with the Amazon Alexa or Google Assistant, the smart shut-off valve gives you hands-free voice control over your home.
Voice Command:
Hey, Google, Turn ON/OFF DEVICE NAME
Alexa, Turn ON/OFF DEVICE NAME
Wide Application
The smart shut-off valve is compatible with water pipe ball valves, electric/ manual control switches, and natural/ liquid/ tap gas valve. Enjoy home automation like automatic irrigation of garden, farmland; timing water supply for feeding farm, stockyards; remote control the gas valve when you are leaving home in a hurry.

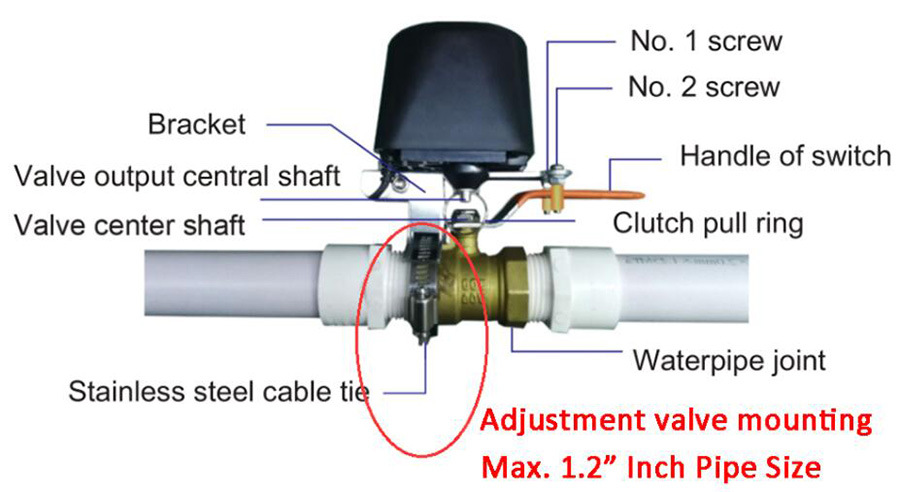

Easy Installation & Pipe Size
Just need a screw to fix over your existing levered ball valve, no additional plumbing is required. With a specially designed metal clamping ring, it is adjustable to fit most widely used pipe sizes like 1/2", 3/4", 1".
与您的家人分享并设定时间表
The smart controller allows you to setup multiple users, and you can also set time schedule to turn on/ off your garden yard sprinkler at certain time.
规格:
Power adapter input: 100V-240V
Power adapter output: DC12V 1A
Radio Range: 30 meters
Valve pressure: 1.6 meters
Valve pressure: 1.6 MPA
Auto time-off valve: 5-10 seconds
Electric time-off valve: 5-10 seconds
Torque: 30-60kgf.cm
Power cord: 2.3 meters (0.9 meter from power adapter, 1.4 meter from the body)
Power cord extendable with 5.5x2.1mm size DC male-female cord.
ZigBee Smart Valve - Requires Hub Integration

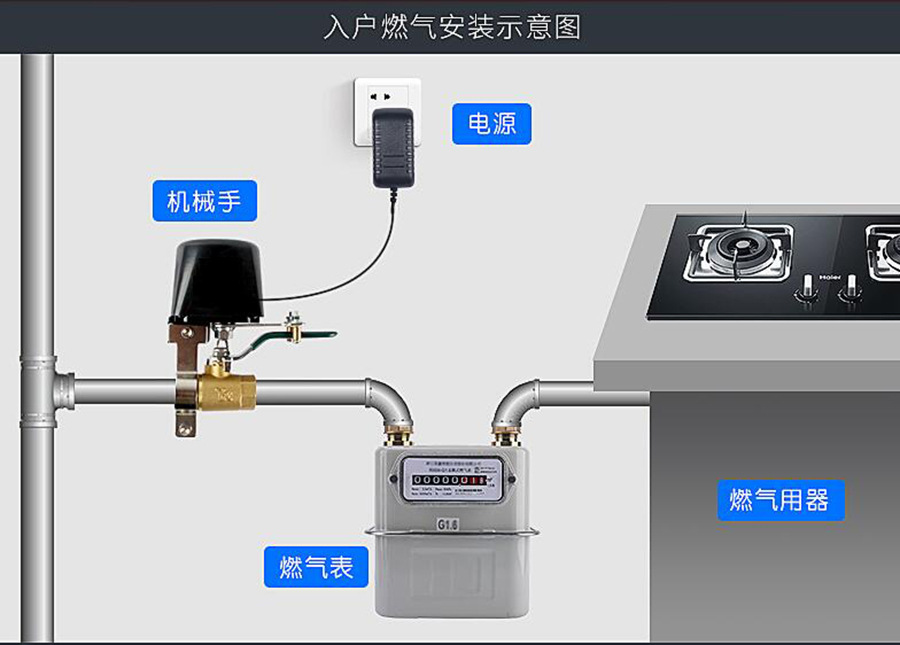

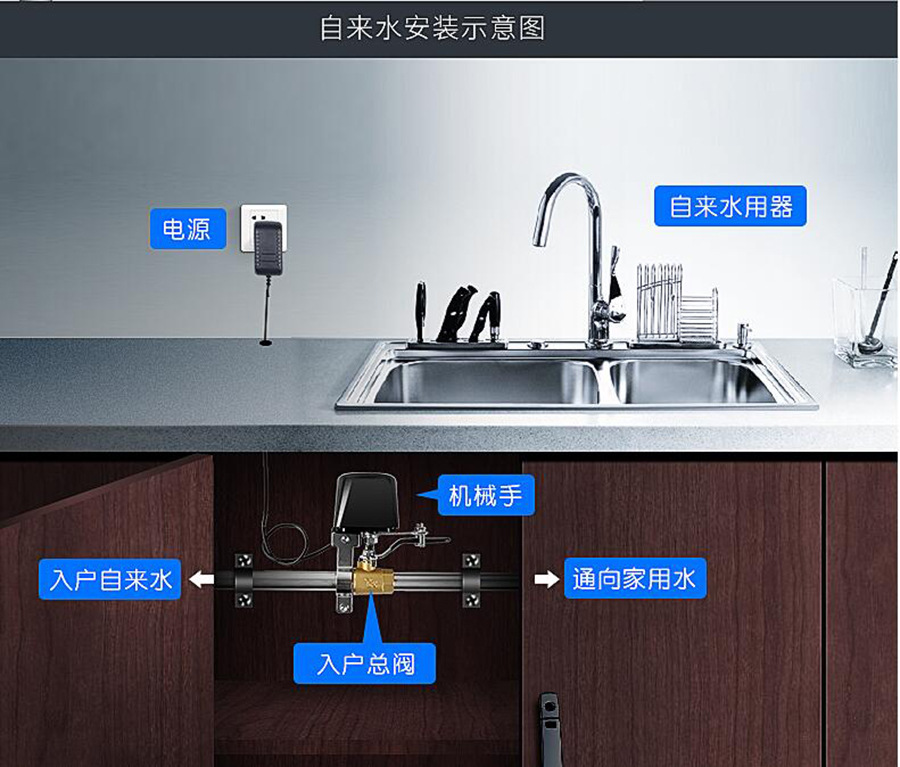

Real-Picture Installation
