wire direct sales 26awg flame retardant tinned copper printing halogen-free radiation wire cable

Specifications		Stock	Quantity
any color * 1525	¥0.0	1525 meters available

Zhejiang Yiwu Guangsheng New Materials Technology Co., Ltd 1yr.

Main Products:

Wire and cable

Contacts:

Mr LIChat

Mobile:

86-15190285910

WeChat:

lbswxbxg

Address:

15514 , 12 Street, 2 F, 44 Gate, International Trade Mart (District 2).

Description

UL3302 Low Smoke Halogen-Free Cross-Linked Cable

Explanation:

Rated temperature: 105°C

Rated voltage: 30V

Conductors are used in single or stranded form with 40AWG or above, tinned or bare copper.

Use standard insulation thickness, easy to cut and peel

UL Model	conductor			insulation		Maximum Conductor Resistance	Pressure Resistance Strength
3302	AWG	Construct	outer diameter （mm）	Thickness （mm）	outer diameter （mm）	(Ω/Km, 20℃, DC)	(Vacuum, 1 minute)
	36	7/0.05	0.15	0.15	0.45	1549	500
	34	7/0.064	0.19	0.15	0.50	966	500
	32	7/0.08	0.24	0.18	0.60	588.85	500
	30	7/0.10	0.30	0.20	0.70	381	500
	28	7/0.127	0.38	0.21	0.80	239	500
	26	7/0.16	0.48	0.26	1.00	150	500
	24	11/0.16	0.61	0.25	1.10	94.2	500
	22	17/0.16	0.76	0.27	1.30	59.4	500

Wire Comparison Table
Halogen-free specification	Rated Temperature (°C)	Nominal Voltage (V)	绝　缘	shielding sheath" 或 "shielding cover	Replaceable PVC Specifications
Halogen-free specification	Rated Temperature (°C)	Nominal Voltage (V)	绝　缘	shielding sheath" 或 "shielding cover	Replaceable PVC Specifications
1640	80	30	PE/XLPE/PP		15711685
1698	105	600	TPE		1015
1790	105	300	TPE		10071569
1792	80	30	Fujian Research Institute of Public Economy		1571
1805	105	300	XLFRPE		100715691430
10602	80	300	Fujian Research Institute of Public Economy		106110951674
10800	80	300	Fujian Research Institute of Public Economy	Fujian Research Institute of Public Economy	11851365
10368	105	300	XLPE		106110951674
10369	105	600	XLPE
2974	125	300	XLPE		2468
20280	80	300	XLPE		2651
21016	105	300
21099	80	30		Fujian Research Institute of Public Economy	27252835202762791
21143	60/80	300/600		FRPE/PE	2464
21307	80	300		Fujian Research Institute of Public Economy	20952405
21143	60/80	300/600		FRPE/PE	2464
21088	80	30		Fujian Research Institute of Public Economy	2027628352725
21311	80	300	PE		2468
3173	125	600	XLPE		1015
3265	125	150	XLPE
3266	125	300	XLPE		100715691430
3271	125	600Vac/750Vdc	XLPE		1015
3272	125	600Vac/750Vdc	XLPE		1015
3275	105	1000	XLFRPE		1032
3289	150	600Vac/750Vdc	XLPE		1015
3302	105	30	XLPE/PE		15711685
3321	150	600Vac/750Vdc	XLPE		1015
3346	80	150	XLPE
3347	80	300	XLPE		1007
3348	80	600	XLPE
3363	125	300	XLPE	XLPE	16721618
3364	125	600	XLPE	XLPE	1617
3368	105	300	XLPE		100715691430
3377	105	600	XLFRPE		1015
3385	105	300	XLPE		100715691430
3386	105	600	XLPE		1015
3398	150	300	XLPE		1007
3439	80	300	XLFRPE		1007
3485	150	600	XLPE
3567	105	300	XLPE		100715691430
3619	80/105	150	XLPE		2576
4384	105	300	XLPE		2468
4411	125	300	XLPE		2468
4412	125	600	XLPE		2468
4413	150	300	XLPE		2468
4478	105	300	XLPE		2651

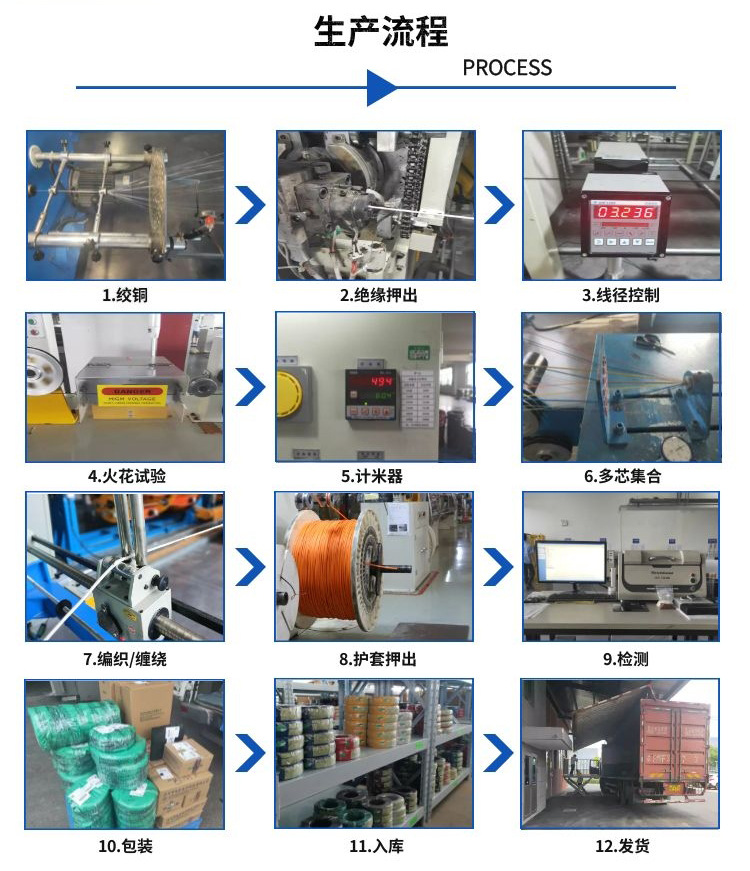

4.详情页—生产流程
