real estate hardcover series new building materials self-generating wireless kinetic energy switch wiring free transformation switch 中文版
  • EXW Price:
    From: ¥ 299.0
    Min. order: 500 piece
  • 500 piece
  • Weight 19.0 kg/piece
  • Item No. 13505
  • specifications
  • Specifications
    Specifications Price(RMB) Stock Quantity
    single key switch + single-channel controller ¥299.0 5000 piece available
    double key switch + dual controller ¥329.0 5000 piece available
    Summary 0 piece Subtotal:¥ 0 Selected ∧
Please select a product
Send Inquiry Please contact the merchant for purchase
Order Via Yiwubuy

A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.

Continue Shopping View Shopping Cart

视佳眼镜 1yr.

Main Products:

眼镜,太阳镜,老花镜

Contacts:

LEEChat

Mobile:

86-13305891974

Address:

Yiwu International Trade City District 2 F2 District 24, 2nd Floor, 9th Street 13554,Yiwu,Jinhua City,Zhejiang Province

  • Description
Program Introduction
  • Product Features:
  • 1. Supports 600W/LED high-power load
    2. Switch-free wiring, reducing the cost of wiring by demolishing walls, and improving efficiency.
    3. The switch does not use batteries, and it has a patent technology for battery-free operation, making maintenance simple.
    4、Ultra-long service life, more than 50,000 cycles of on/off operation


  • Applicable scope: real estate decoration projects, home renovation projects, and enterprises related to electric power and electrical.

  • Hot selling regions abroad: Europe, the UK, the Middle East.

undefined



Project

Parameter

Product Model

ERC303/ERC302

Working Voltage

AC200-240V 50/60Hz

Rated Current

AC 10A

Control Channel Number

"一通道/二通道"可以翻译为 "one-channel/two-channel".

Power Supply Mode

Zero-Line Power Supply

Power Range

Resistive Load: 800W/Each

LED: 600W per channel

Working Frequency

433MHz

Standby Power

<0.5w

Storage Capacity

Each route can store 10 pieces of information about wireless switch controller.

On-off times

>40,000 times (full load condition)

Receiving sensitivity

-107dBm

Communication Protocol

Ebelong1.1

Control Element Type

Relay

Working temperature

-25℃ to +55℃

Receiving distance

80m (outdoor) 25m (indoor)

Switch Waterproof Rating

IP67






Functional Expansion

S2单键_02

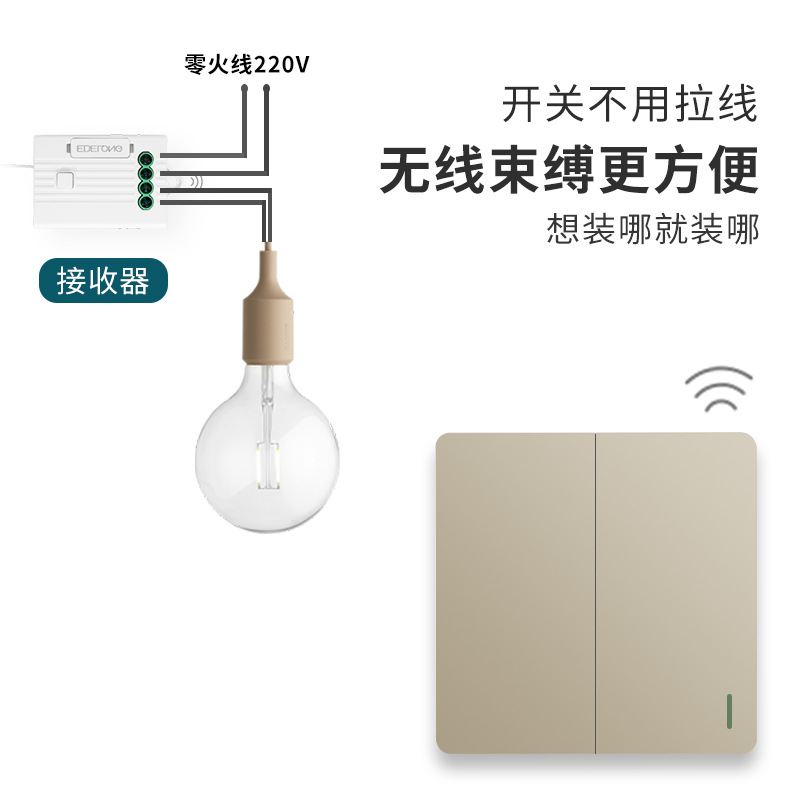

Example of a fully wired and finished set-up:
未命名 -3

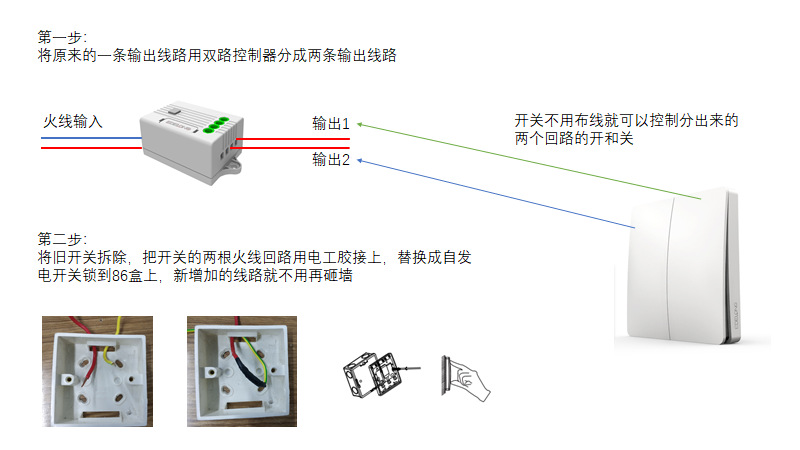

Post-installation modification example:
undefined

Technical Advantage

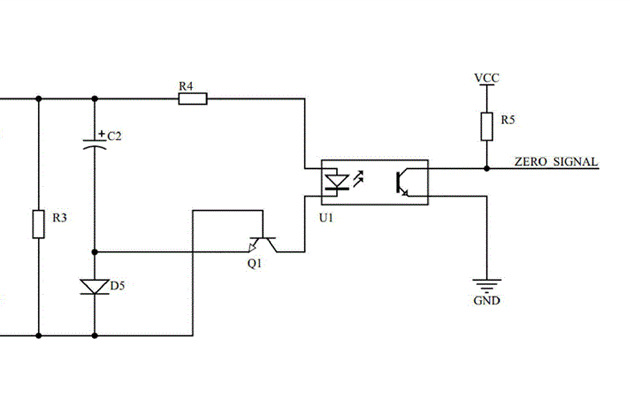

Zero-Hour Protection Technology


Intelligent switches generally employ relays as the 'switch' control element, and contacts are the most important and also the most easily damaged components, particularly in high-voltage and high-power control systems. Contact closing produces contact sparking, and contact opening produces arc discharge, which damages the contacts, leading to control system failure or serious consequences. The contact arc of relays is caused by the reverse electric potential generated when the contacts break if the load is non-pure resistance type, which breaks the air and forms arc discharge. The high temperature generated by the arc will burn the contacts, significantly reducing the life of the relay. Moreover, the electric CI wave interference generated by the arc can affect the normal operation of the electronic equipment of the accessories. If the contact opening happens at the zero-crossing point of the load current, the reverse electric potential will be the smallest, which can reduce the arc discharge. During the design process of intelligent switches, good zero-crossing protection circuit design can significantly improve the product life span.

The controller employs voltage zero-crossing protection technology to eliminate the large current surge during the instantaneous turn-on of LED lights and fluorescent lamps, effectively preventing current overloading during the start-up of thyristor elements. This significantly extends the service life of the switch controller and also serves as a protective measure for the light bulbs.

undefined

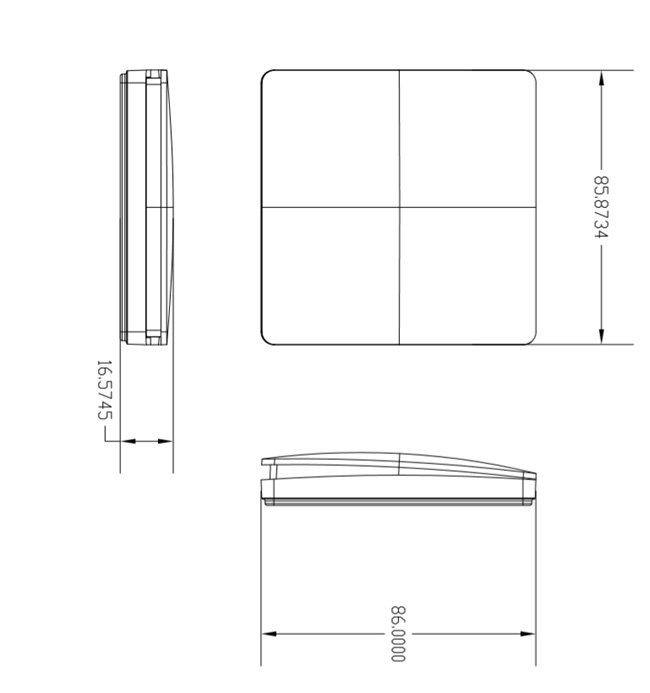

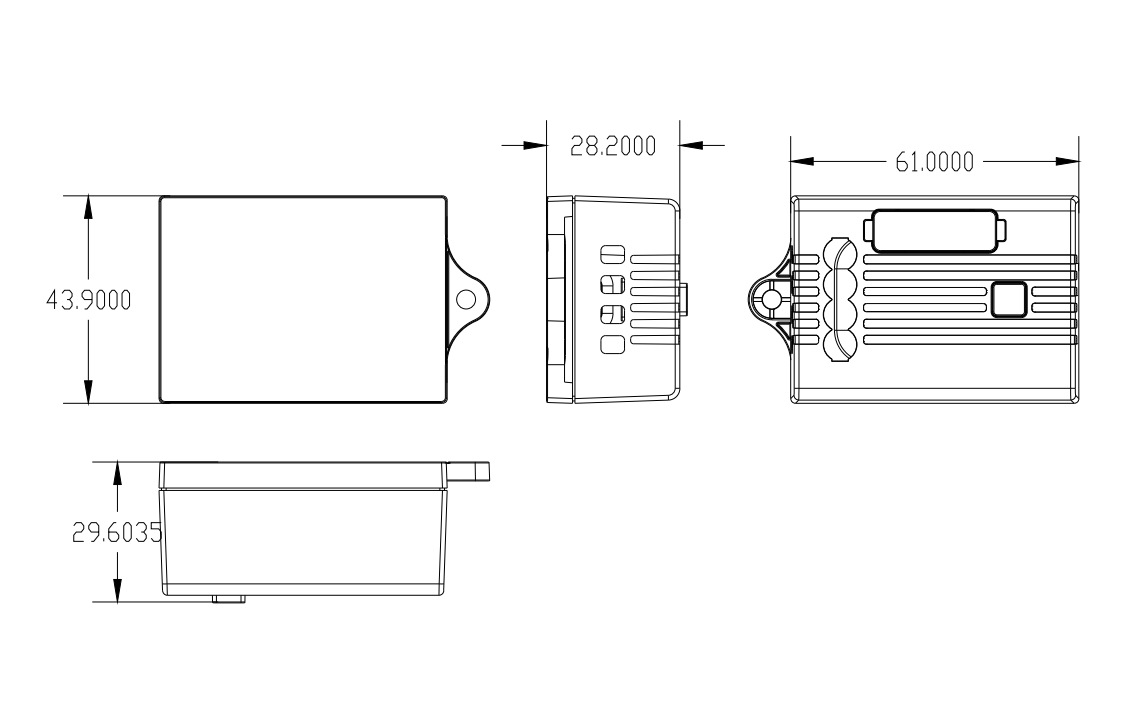

Product Size Reference Diagram
C3尺寸

3346CCC7-344F-4b9b-8B73-540655




Click on the following image to view other styles.

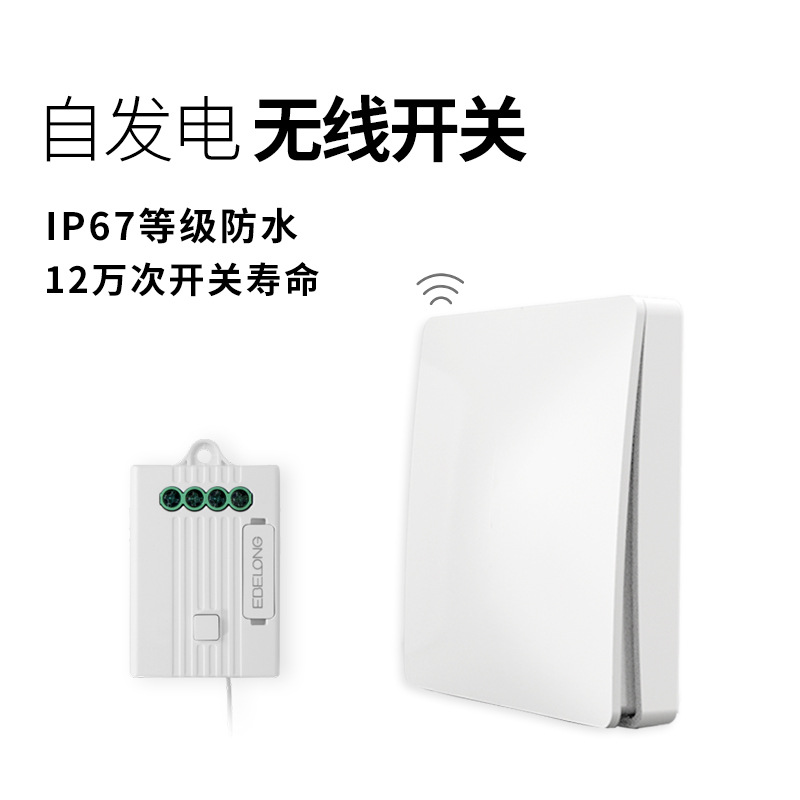

undefined 主图3



Switch color: Pearl Gray Switch color: Champagne gold
