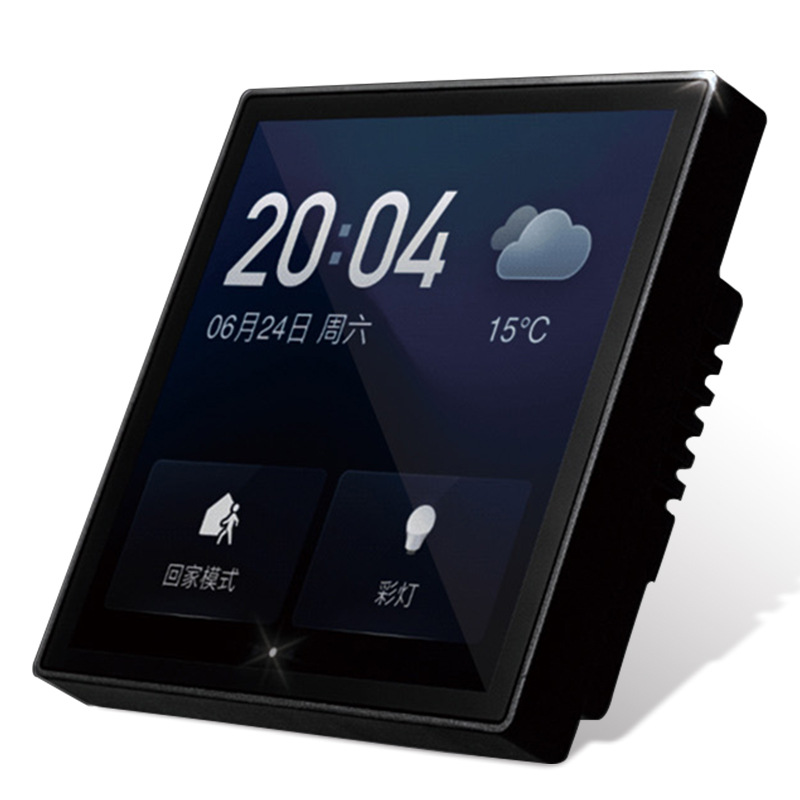

graffiti zigbee intelligent central control switch intelligent xiaozhi manager voice host alexa intelligent touch gateway 涂鸦ZigBee智能中控开关智能小智管家语音主机Alexa智慧触控网关

EXW Price:

CN¥ 395.0 ~ CN¥ 750.0

Min. order: 300 piece

300 piece

Weight 12.0 kg/piece
Item No. 13140

specifications

Specifications

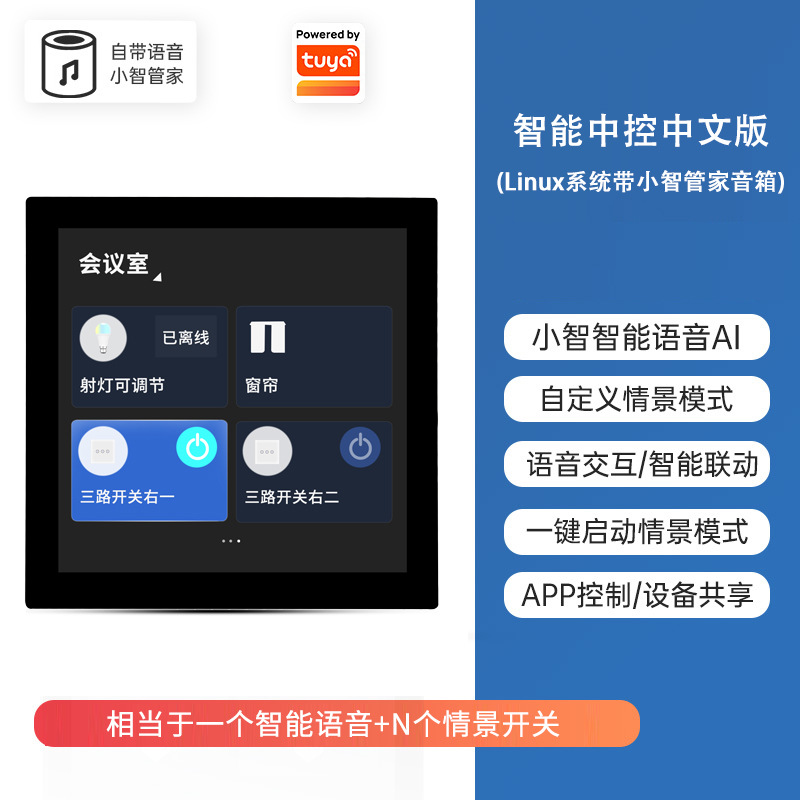

intelligent central control chinese version (linux system with xiaozhi manager speaker) 智能中控中文版（Linux系统带小智管家音箱））	CN¥ 580.0

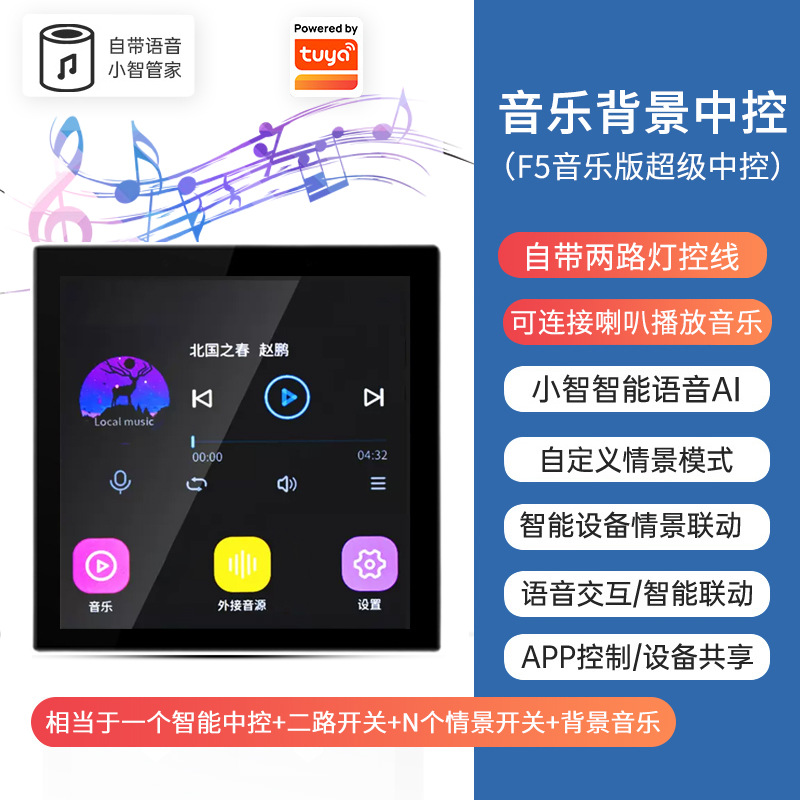

f5 intelligent central control with background music (with xiaozhi manager voice speaker) F5智能中控带背景音乐（带小智管家语音音箱）	CN¥ 690.0
intelligent central control english (with alexa voice speaker) 智能中控英文（带ALEXA语音音箱）	CN¥ 750.0
graffiti intelligent voice speaker 涂鸦智能语音音箱	CN¥ 395.0

Send Inquiry Chat with supplier

Tianli Sporting Goods 3yr.

Contacts Lee Chat

Mobile 15392033619

E-mail 497122303@qq.com

WeChat 13305891974

WhatsApp +8615392033619

Click to Contact Yiwugo official customer service for International sourcing.

Yiwugo official customer service X

Whatsapp:

Email： yiwubuy@yiwugo.com

Description

WiFi Smart Outlet 4AC+2USB Smart Voice Socket ZigBee3.0 Doodle Smart Outlet Board

Voice wake-up, Little Zhi butler

SM-BZ001 Zigbee Gateway

CPU PX30 is built-in with a quad-core Cortex-A35 processor.

RAM 2GB

8GB RAM

Software platform: Android 8.1 or Linux system (please consult the customer for specific determination)

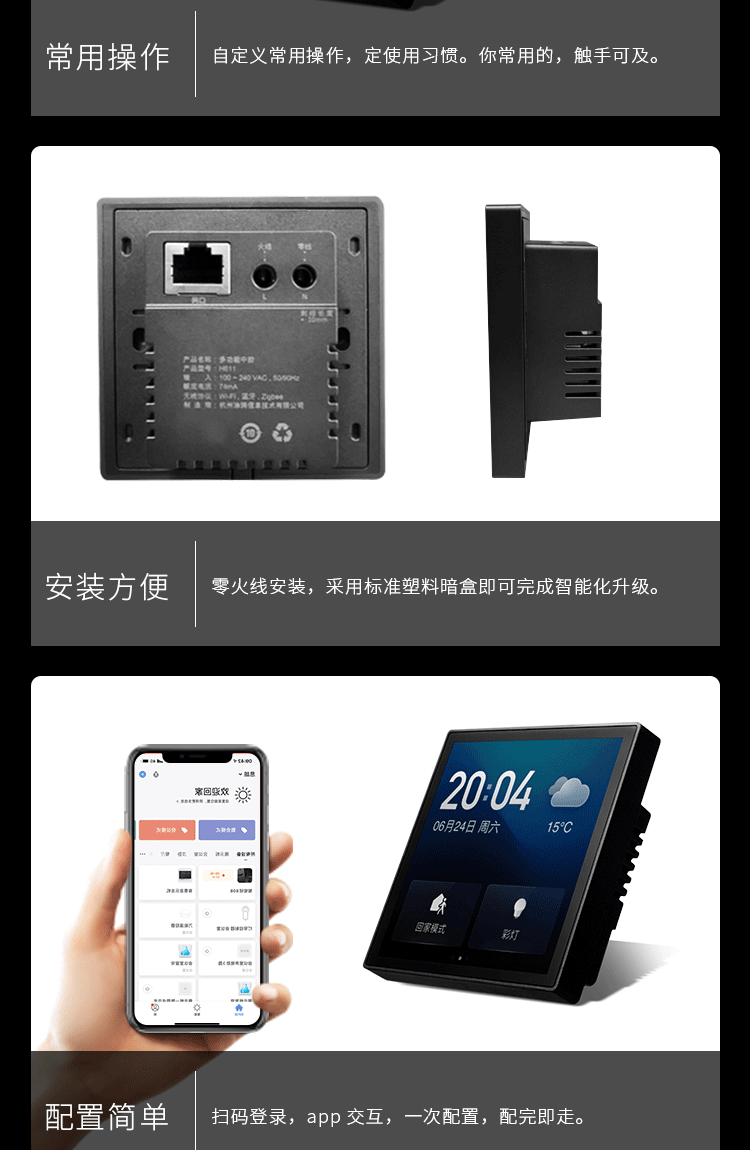

Ethernet port, 100Mbps Ethernet port

Power supply interface, 220V line and neutral wire connection

2-way relay

1路485

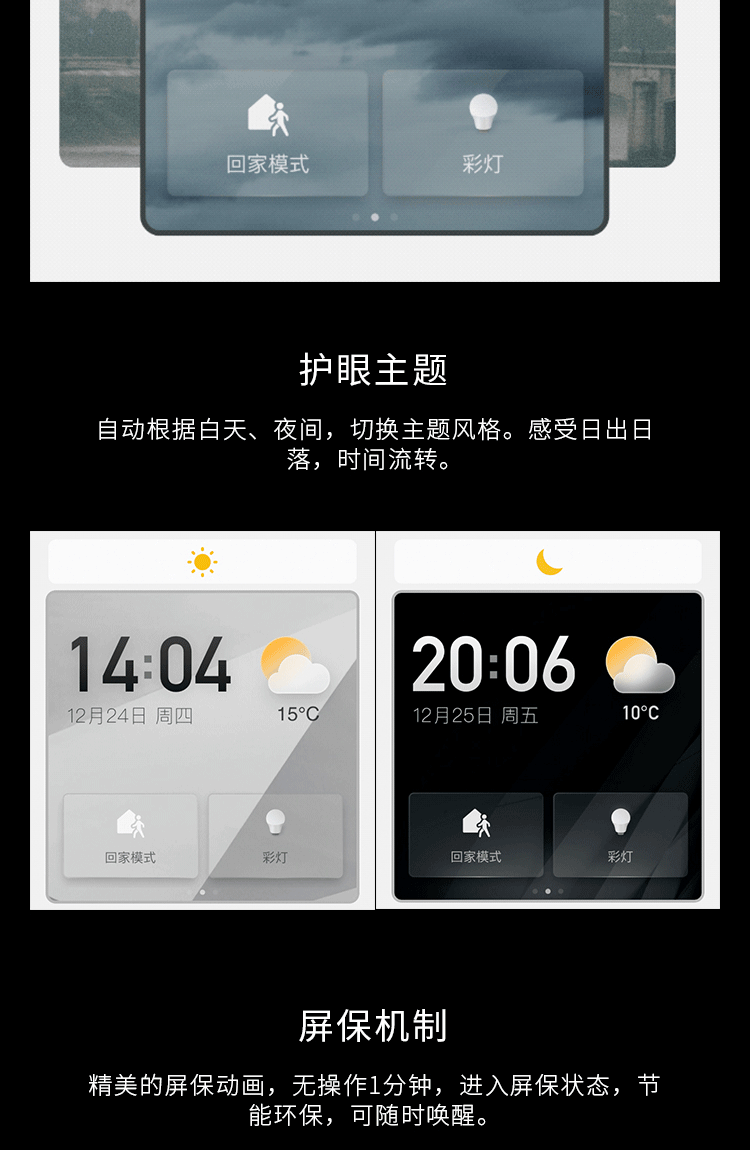

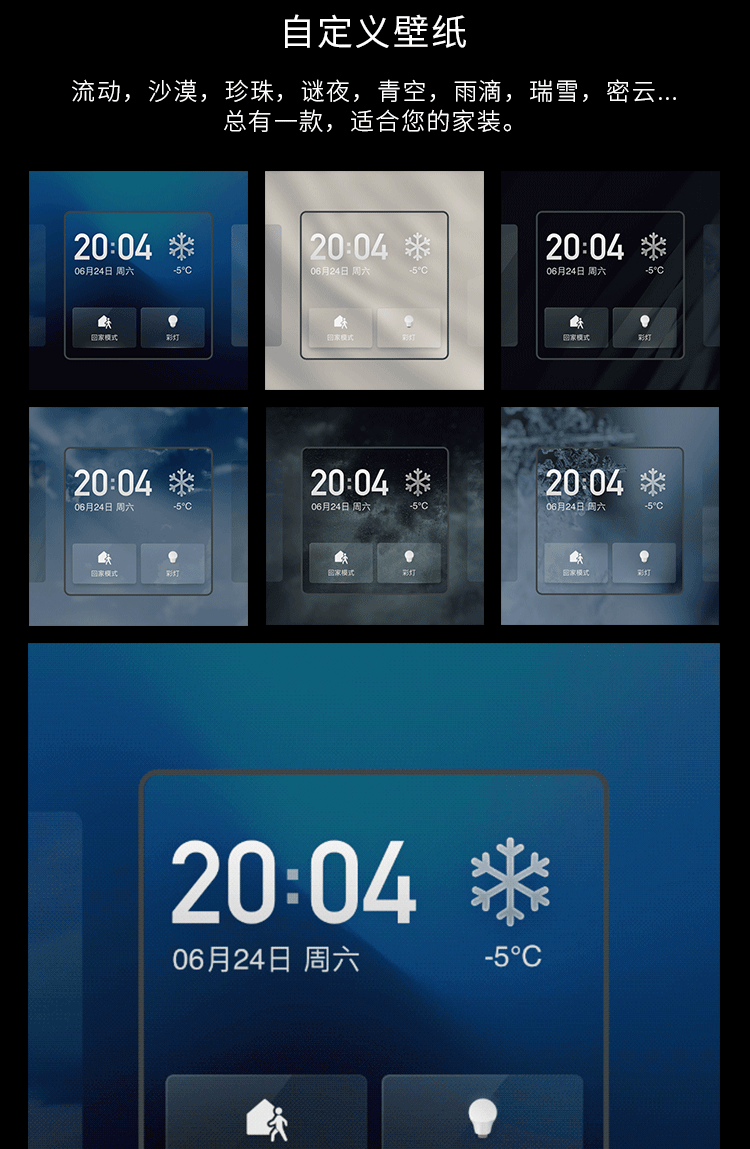

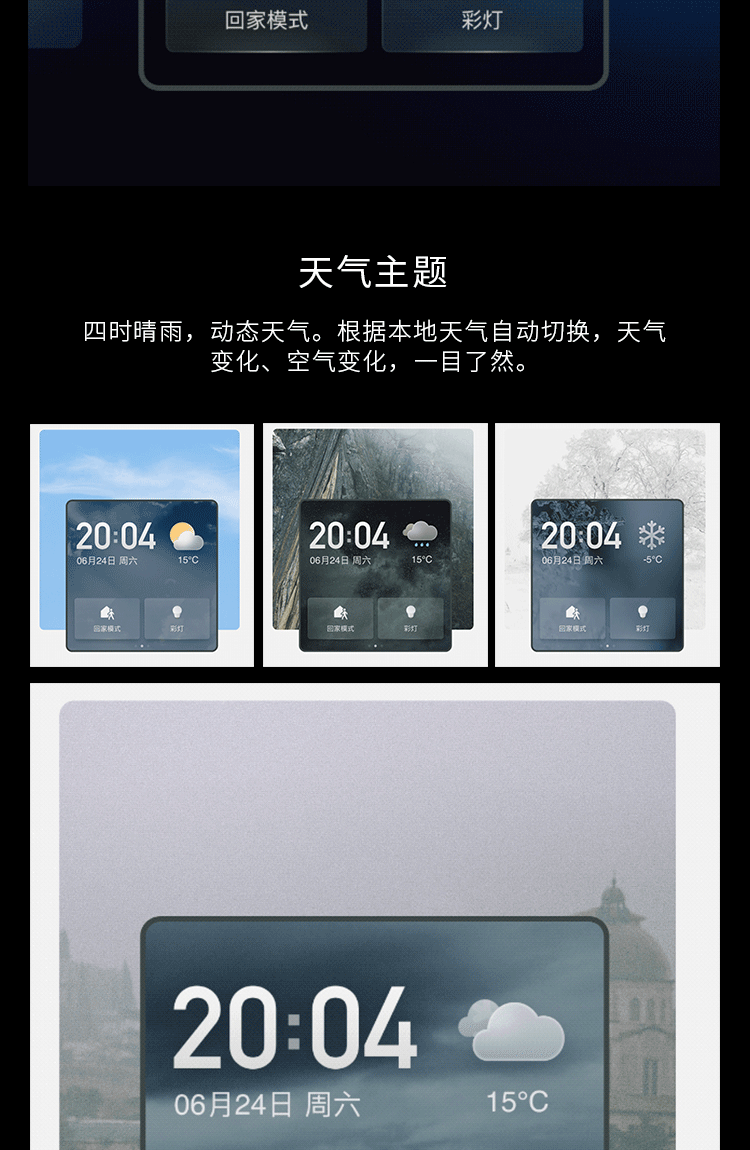

The display is a capacitive multi-touch screen with a 4-inch screen and a resolution of 480*480.

Wi-Fi 2.4GHz, up to 1*1 150Mbps or higher

Bluetooth Bluetooth 4.2 supports Bluetooth downlink single point network.

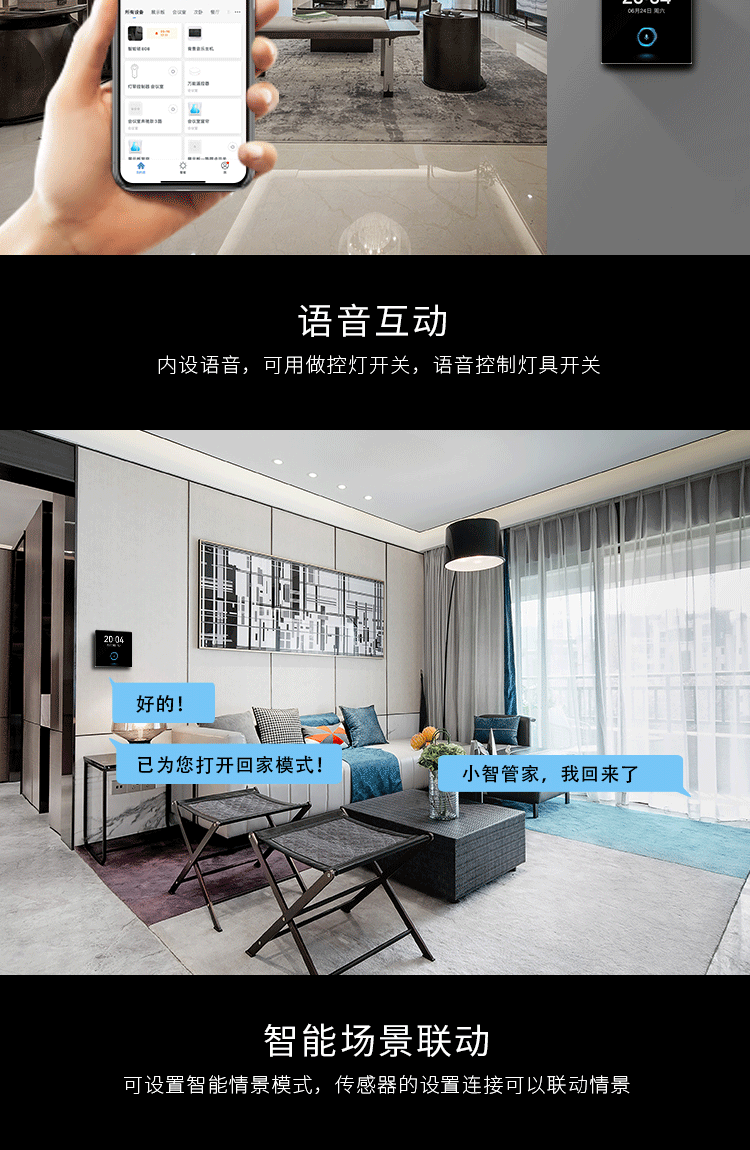

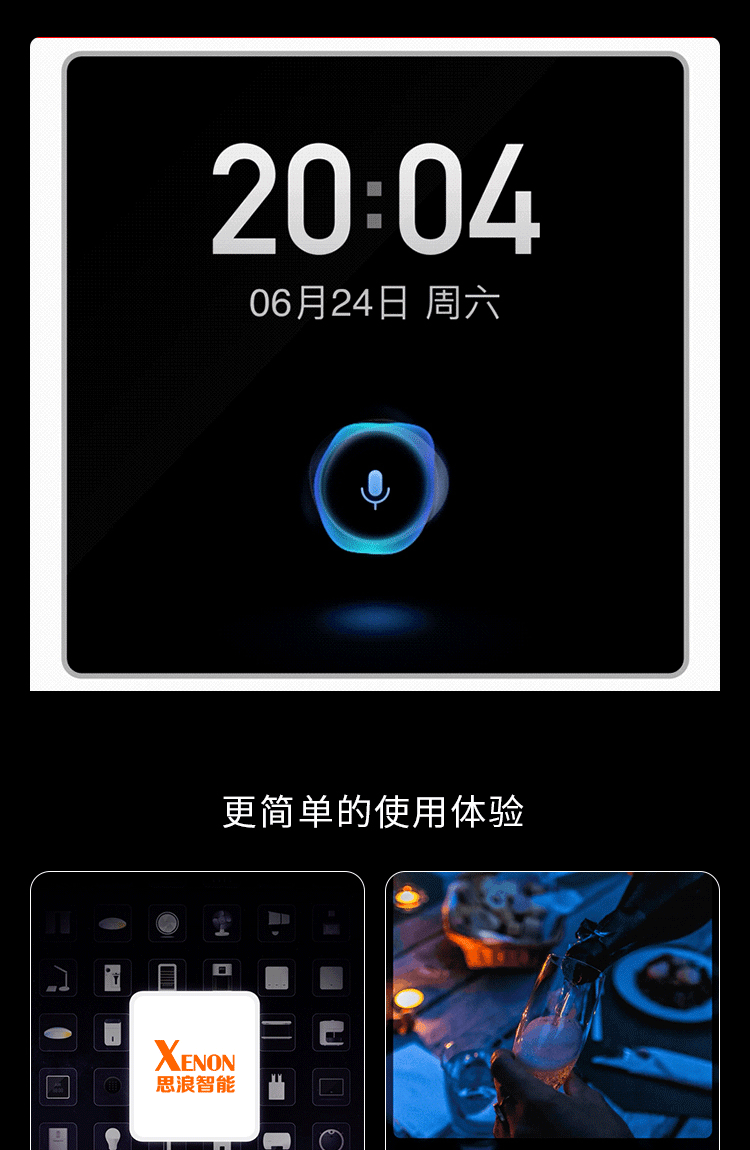

Voice interaction supports intelligent wake-up. Users can wake up the device with a wake-up word from a distance of 3-5m and interact with the device through voice.

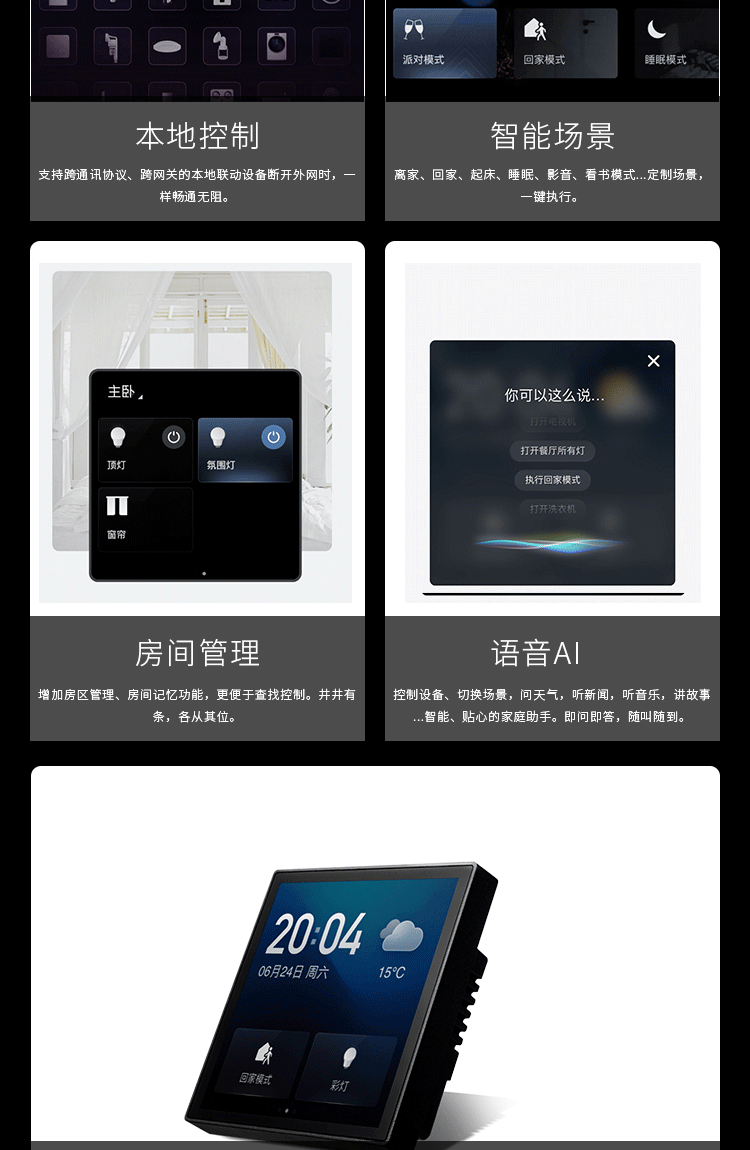

Support voice control for various smart home devices, allowing offline voice control and online operations.

Zigbee supports Zigbee downlink mesh networking.

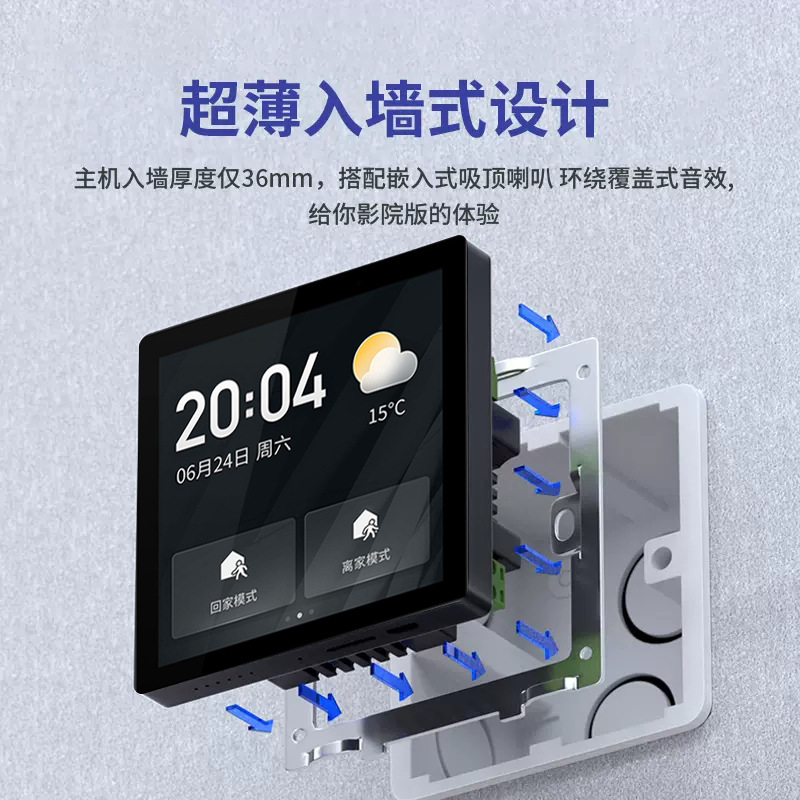

Power supply board type, wall-mounted 86-style power supply board

Input: 100 ~ 240 VAC (±10%), 50/60Hz +-3Hz, Grounded

Output: 5VDC/2A

Voice recognition Mic, 2-mic support, voice noise reduction algorithm, wake word support, 3-5m long-range wake, online

Speaker 1W speaker support

Antenna for Wi-Fi, Bluetooth, and Zigbee on a flexible PCB shell

Equipped with a quad-core Cortex-A35 processor, it is specifically designed for personal mobile internet devices and other digital multimedia applications. It can adapt to the majority of voice algorithms on the market and smoothly run customized APP requirements.

The internal integrated ADC supports 8-channel digital microphone input. With the integrated 1.3W class-D amplifier power management chip RK809, it can achieve voice interaction functionality with very few external circuits. The CPU supports dual-screen heterogeneous display and supports display interfaces such as RGB/LVDS/MIPI-DSI, capable of supporting displays with a maximum resolution of 1920x1080.

In terms of memory, it supports various DDR types such as 32bits DDR4-1600/DDR3-1600/DDR3L-1600/LPDDR3-1600/LPDDR2-1066, and it can support up to 4GB of memory. It can choose the optimal DDR capacity and type according to customer needs.

PX30 also supports RMII interface, and an external PHY chip can support 100M Ethernet functionality.

In addition, it supports a rich set of external interfaces such as SDIO3.0, USB2.0 HOST & OTG, 4-channel I2C, 6-channel UART, 2-channel SPI, and 8-channel PWM, which can flexibly meet different functional requirements.
