Product Model：1804

Product model: 1804

Product Overview:This product can be used as a small stage lighting and atmosphere light, and also as a Bluetooth speaker, suitable for family, gathering places and car interior scenes. The projection lamp projects the effect of a sky full of stars, and the LED light projects patterns. It supports multiple RGB color light modes, voice-controlled flash light mode (voice control sensitivity can be adjusted), stars and RGB lights can be rotated, and the light can be timed off. It has an internal RF wireless remote control reception function, allowing remote control of the product from a long distance with no dead angles, and an internal Bluetooth speaker that can connect to Bluetooth devices such as mobile phones to play music, realizing a unified sound and light, creating a scene full of dreamy colors and dynamic.

Product overview This product can be used as a small stage lighting and atmosphere light and can also be used as a Bluetooth speaker. It is suitable for scenes such as homes, parties, and cars. The projection lamp projects the effect of stars in the sky and the pattern is projected through the LED light.Can switch a variety of RGB color lighting modes, support voice-activated flashing mode, voice-activated sensitivity can be adjusted, stars and RGB lights can be rotated, and can be turned off at regular intervals. Built-in RF wireless remote control reception function can be long-distance and all-round, no dead spots on the product for control.内置蓝牙音频功能可以连接到如手机等蓝牙设备播放音乐，实现声音与光的融合，创造出充满梦幻色彩和动态的场景。

Product Specifications:

USB Power Input: DC5V/2A; Total Machine Maximum Power: 8W; Speaker Power: 4Ω 3w;

White LED light bulb power: 2W; RGB light bulb power: 3W*2; Operating temperature: -10°C~40°C

Laser Module Specifications: Wavelength 515nm, Power Class I；Plastic material: ABS/POM/PC

Product Size:130x75x157(mm)；Packing Size: 136x78x164(mm)；

Product net weight:400GProduct Gross Weight:447g

Product specifications:

USB power input: DC5V/2A;

The maximum power of the whole machine: 8W;

Speaker power: 4Ω 3w;

White LED lamp power: 2W;

RGB lamp power: 3W*2;

Use environment temperature: -10°C~40°C

Laser module specification: wavelength 515nm, power

laser safety class I;

Plastic material: ABS/POM/PC

Product size: 130x75x157(mm);

Packing size: 136x78x164(mm);

Product net weight:;

Product gross weight: ;.

Packing ListProjector Light X1, RF Remote Control X1, Instruction Manual X1, USB Cable X1, Screws X4, Expansion Plug X4, Screwdriver *1

Packing list:

projection lamp X1

RF remote control X1,

manual X1,

USB cable X1,

screw X4

Expansion Rubber Plug X4,

screwdriver*1

Product Usage Instructions:

Product instructions:

1、This product can be used on a desk, or it can be installed on the wall or ceiling using the supplied expansion plug and screws by fixing the base to the wall or ceiling.

1. This product can be used on the desktop, or the base of the product can be installed and fixed on the wall or ceiling with the matching expansion rubber plugs and screws.

2. Insert the USB cable into the USB port and turn on the power. The red power indicator light will turn on, and the group lights will illuminate. At the same time, a pattern and green stars will be projected. The RGB lights default to a color gradient mode, and the stars default to a gradient brightness mode. The RGB lights and stars will automatically slowly rotate;

Plug the USB cable into the USB port. After the power is turned on, the red power indicator will light up, each group of lights will light up, and the pattern and green stars will be projected at the same time. The lights and stars rotate slowly and automatically;

3、You can manually slowly rotate the host to the appropriate angle to adjust the direction of the beam, with a maximum rotation angle of 270°. When rotating the host, avoid pressing on the USB cable;

3, You can manually rotate the host slowly to a suitable angle to adjust the irradiation direction, the maximum rotation angle is 270°, and the USB cable should not be pressed when rotating the host;

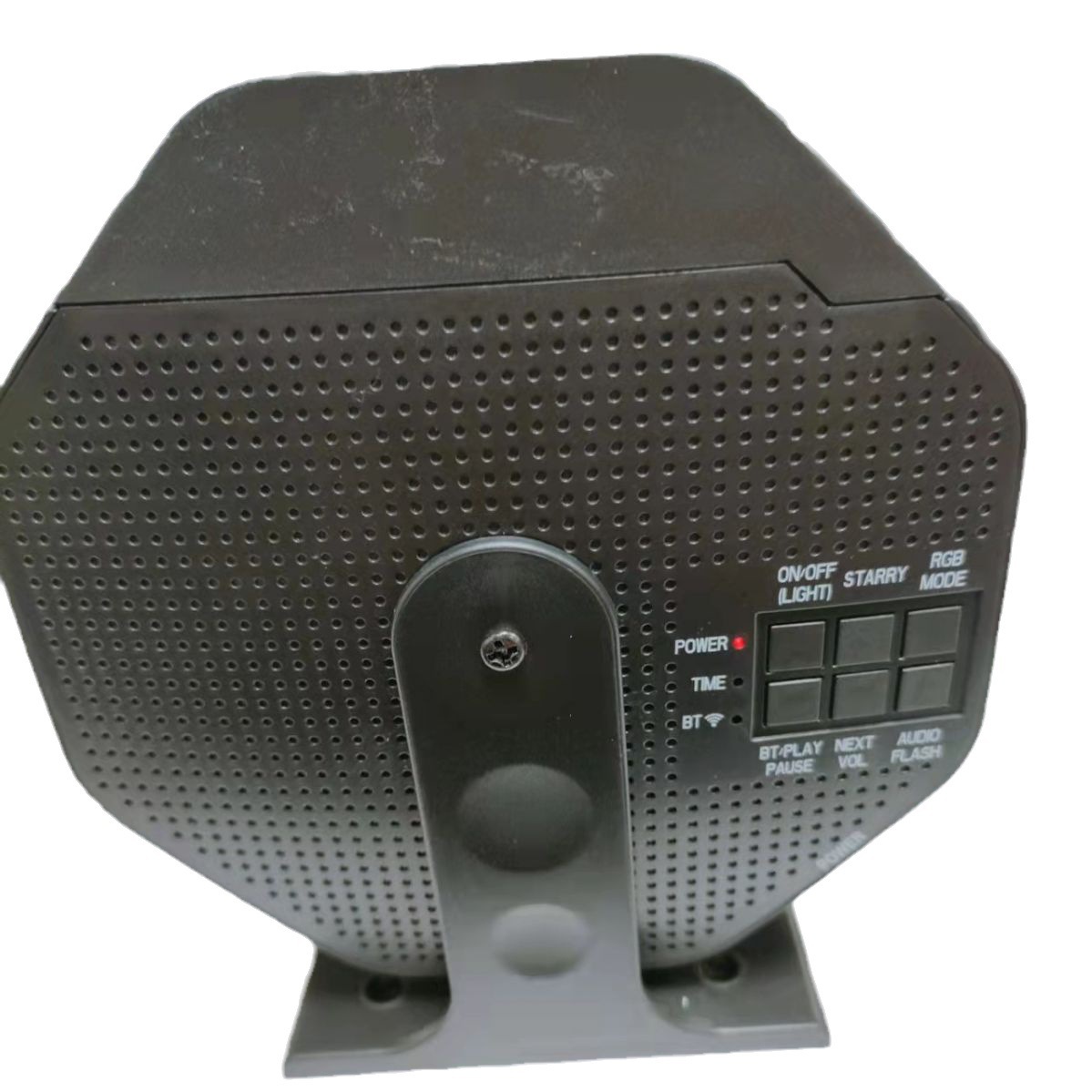

4、Press the 'LIGHT ON/OFF' button on the panel to turn the lights on or off.

4, Press the 'LIGHT ON/OFF' button on the panel to turn off and on the light;

5、Hold the 'BT/PLAY/PAUSE' button on the panel for 3 seconds to turn on the Bluetooth. After the Bluetooth is turned on, a prompt sound will be played, and the blue indicator light will flash rapidly. Turn on the Bluetooth switch on your phone and find the Bluetooth name 'PL-01', click the name and pair it. After the successful Bluetooth connection, a prompt sound will be played, and the blue indicator light will stay on. (Note: After the first time connecting to Bluetooth, the default volume for Bluetooth playback on your phone is 50%, and you can adjust the volume as needed).

Press and hold the BTPLAYPAUSE button on the panel for 3 seconds to turn on Bluetooth. After Bluetooth is turned on, a beep will sound and the blue indicator light will flash quickly. Turn on the Bluetooth switch of the mobile phone and find the Bluetooth name of PL01. Click the name and pair after the Bluetooth connection is successful.A beep will sound and the blue indicator light is always on. Note: After connecting to Bluetooth for the first time, the Bluetooth playback volume of the mobile phone will automatically default to 50 and the mobile phone volume can be adjusted as needed.

6、After connecting via Bluetooth, during the music playback process, the blue indicator light blinks slowly. Press the 'NEXT/VOL' button on the panel to play the next song, and hold it for over 3 seconds to continuously decrease the volume. Hold it again for over 3 seconds to continuously increase the volume, and release your hand when the volume is suitable. Press the 'BT/PLAY/PAUSE' button to pause and resume music playback, and hold it for over 3 seconds to turn off Bluetooth. When Bluetooth is turned off, a prompt sound will be played, and the blue indicator light will turn off (Note: If Bluetooth is turned on but not connected to a device within 3 minutes, it will automatically turn off).

6 After Bluetooth connection during music playback, the blue indicator light flashes slowly. Press the NEXTVOL button on the panel to play the next music. Press and hold this button for more than 3 seconds to continuously reduce the volume. Again, press and hold this button for more than 3 seconds to continuously increase the volume.and release your hand when the volume is adjusted to the appropriate volume press the BTPLAYPAUSE button to pause and resume music playback and hold this button for 3 seconds to turn off Bluetooth When the Bluetooth is turned off a beep will sound and the blue indicator light will go out reminder after the Bluetooth is turned onIf the Bluetooth device is not connected within 3 minutes, the Bluetooth will be automatically turned off.

7、Press the 'AUDIO FLASH' button on the panel to turn on or off the voice control function. After turning on the voice control function, when the sensor detects sound, the lights will flash in response to the sound. At this time, pressing the 'STARRY' button can make the stars stop or resume flashing (Note: pressing other mode buttons after turning on the voice control function will exit the voice control mode).

7, Press the 'AUDIO FLASH' button on the panel to turn on or off the voice control function. After turning on the voice control function, when a sound is sensed, the light will flash with the sound. Press the 'STARRY' button at this time to stop or restore the stars Flashing (Note: After the voice control function is turned on, pressing other mode keys will exit the voice control mode);

8、Press the "STARRY" button on the panel to switch the star mode. The sequence of the mode is: stars are always bright - stars at 60% brightness - turn off the stars - stars gradually brighten and dim, and the cycle continues in turn.

8. Press the 'STARRY' key on the panel to switch the mode of the stars, the mode sequence is: the stars are always bright --- the stars are 60% brightness --- turn off the stars --- the stars are gradually brighter and darker, and cycle in turn;

9、Press the 'RGB MODE' button on the panel to switch between various RGB modes. The sequence of modes is: Lock current color - Multiple colors cycle transformation - RGB off - RGB colorful gradient, which cycles in order.

9. Press the 'RGB MODE' key on the panel to switch between multiple RGB modes, the mode sequence is: lock the current color --- multiple color cycle conversion --- RGB off ---- RGB colorful gradient, cycle in turn;

RF Remote Control Button Function Description:

1--Turn on/off the light; 2--Switch between RGB mode/off/on.

3--Switch to/off/on the star pattern; 4--RGB colorful gradient/lock current color; 5--Voice control on/off; 6--Increase voice control sensitivity;

7 -- Reduce the sensitivity of the voice control; 8 -- Turn on/off the pattern projection; 9 -- Cycle through various colors.

10 - Rotate the light on/off; 11 - Red/Green/Blue; 12 - Red-Green/Blue-Green/Red-Blue Mix Color;

13--Red, Green, and Blue Mix; 14--1-Hour Timed Off/Cancel Timing; 15--2-Hour Timed Off/Cancel Timing;

RF remote control button function description:

1--Light off/on; 2--RGB mode switch/off/on;

3-Star mode switch/off/on; 4--RGB colorful gradient/lock current color; 5--voice control on/off; 6--improve voice control sensitivity;

7--Reduce the sensitivity of voice control; 8--Pattern projection off/on; 9-Multiple colors cyclically change;

10—Light rotation off/on; 11—red/green/blue; 12—red-green/blue-green/red-blue mixed color;

13--Mixed colors of red, green and blue; 14--1 hour to turn off the lights/cancel timing; 15--two hours to turn off the lights/cancel timing.

Timing Function Instructions: Press the timer off button to turn on the timer function, and the green indicator light on the panel will turn on. Press the button again to cancel the timer function, and the green indicator light will turn off.

Sound Sensing Sensitivity Instructions:The device is equipped with a total of +/- 13 levels of sensitivity, with the default being the middle value. You can adjust the sensitivity according to the level of ambient sound and your personal preference using the remote control.

Timing function description: Press the timing light off button to turn on the timing function, the green indicator light on the panel lights up, press the button again to cancel the timing function, the green indicator light goes out.

Voice control sensitivity description: There are 13 levels of sensitivity set up with +/-, the default middle value, which can be adjusted with the remote control according to the environmental sound level and personal preference.

Notes:

1、The green beam emitted by this product may cause damage to the eyesight. When the projector is in operation, please do not look directly at the light source with your eyes, and do not shine the light into others' eyes to prevent any damage to the eyesight.

2、Do not store or operate the product in humid or high-temperature environments.

3. Please turn off the power when not in use. Do not leave the device on for a long time, as this may affect the service life.

Precautions:

1. The green light beam emitted by this product may cause damage to the eyesight. When the projection lamp is working, please do not look directly at the light source with your eyes, and do not illuminate the eyes of others with lights to prevent damage to your eyesight.

2. Do not store or work the product in a humid and high temperature environment.

3. Please turn off the power when not in use, do not power on for a long time, so as not to affect the service life.
