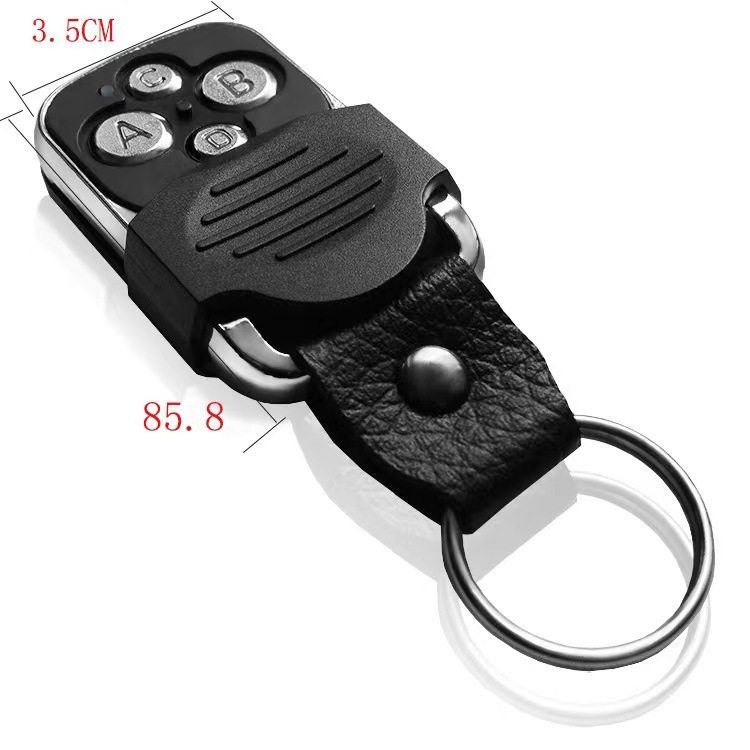

1. Product size: 35.1*85.80mm;

2. Working Voltage: 12V;
3. Working current: ≤0.8mA;
4. Working Frequency: 433/315MHz;
5. Launch power: 10-15 mW;
6. Range: 100 meters (open area);
Frequency Deviation: ±0.2MHz;
8. Transmission rate: 50-60KHZ;
9. Oscillation resistance: according to customer's requirements;
10. Encoding Chip: Standard Copy Remote Control Encoding
The cloning feature allows you to copy a remote control and use it independently.
11. Button Count: Four buttons available; Press
12. Shell color: black;
13. Applicability: Customizable copy/duplicate type roll-up door wireless remote controllers are widely used in various door and window controllers and other industrial applications.Control, anti-theft alarm, smart home and other fields

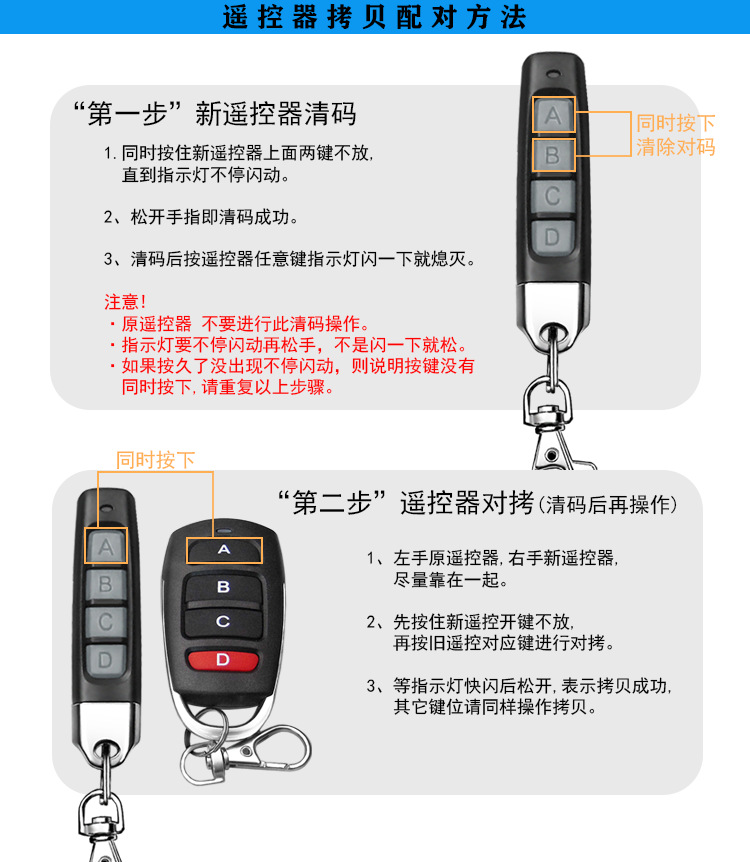

Copy the remote control operation method:

Data Clearing

Press the A and B buttons simultaneously, and the LED indicator will stay on for 1 second before flashing. When you release your fingers, the clearing function is complete, indicating that all stored data for all buttons has been cleared. If this operation is not completed, you can repeat it to clear once. After the clearing function is completed, pressing any key will flash quickly. Pressing a key without data will flash quickly, and pressing a key with data will cause the LED indicator to stay on to send data.

Note: The existing remote control on your hand cannot perform the decoding operation!

One-to-one copy

After the learning process is completed, you can learn the buttons one by one. Place the copy remote control and the original remote control together, and press the corresponding buttons on both at the same time. When the LED indicator on the copy remote control starts blinking, release your hands. This indicates that the one-to-one button copying has been successful. You can repeat the above operation to copy other buttons. The copy remote control and the original remote control should be as close together as possible to reduce the error of the copied data bit and the oscillation resistance, thereby improving the accuracy of the copy. After the copy is successful, pressing the button again will make the LED indicator stay on continuously, and the copy code of the remote control can be sent out.

Data Permanent Protection

Press the A and D buttons at the same time or the B and C buttons diagonally (corner buttons). After the LED indicator remains lit for 1 second, it will flash. Release your hands when the indicator stops flashing. At this time, the data code of the four buttons will be permanently saved in the chip. If the remote control is cleared of all data, the saved remote code can be restored by executing function 5. If data is saved again, it will replace the last saved data code, and so on. If there are very important remote codes, it is recommended to use this function. At any time, you can simply execute function 5 to restore it.

Data Recovery

Press the remote control button C and D simultaneously. After the LED indicator light remains on for 1 second and then flashes, release your hand. This will restore the permanent data of the last saved data.

Purchasing Pre-Notice: Please Note.

1. This remote control is not a universal remote control. It can copy the remote controllers of some single-chip microcontrollers such as PTHC2262, 2260, FP527, SMC918, PT2240 EV1527, etc. Common copying objects include electric vehicle remote controls, smart home remote controls, electric door remote controls, garage door remote controls, retractable door remote controls, sliding door remote controls, gate barrier remote controls, roll-up door remote controls, remote controls used in alarms, various fixed code, learning code remote controls, and lighting remote controls, etc. For example: Yanxu (101 rolling code), Yijie (rolling code), Xianfeng (301 rolling code), Master, Xapu tube 315, New Door Man, Old Door Man, New Model Jienxi, Old Model Jienxi, Oumake, Longkeduo, Old Xiside, Old Suoma, Old Suoge, Old Maple Flier (Old Model), Master (Old Model), Zhongtian B, Zhongtian (Old Zhongtian), Changshun (New Model CHS600), Best (Dalein rolling code), Chibao (Chibao Blue), Ideal (Ideal Blue), Senma, Jiahe, Ruineng, Jisu, and Haitong (Haitong).2）、Karting、Fudy、Haizhou (Old Haizhou)、HaoDi、Siyuan、Spring (Old Model)、Yide (Yide 2)、Kangda、Minghe、Kangma (Old Model)、Hengfuwei、NUTECH、Guwei Te、Ping'an Bear (Old Model)、Anfusheng (New Model)... Can be copied: welding code, programming code, 1527 learning code, learning code for single-chip microcomputer self-written program (such as Dongrong 433 single-chip microcomputer learning code, Baisheng T19, Jingyuan 433 learning code, Duya,... Dalian Xisided series (including New Suoma), Hangzhou Menren series, Shenzhen Zhongtian A, Zhongtian B, Foshan Hosui White Hosui Blue Hosui Transparent 315MHz Hosui sliding door, Ningbo Duya 1 Duya 2, Ideal series, Yantai Shengda series, Yantai Boda series, Shenyang Haitong series, Shenyang Weilai Red Light Green Light (including welding code and learning code), Xuji S60S66 series, barrier series, Supersonic series, Changshun series, Master series (including learning code), Shenzhen Shunchang series, Jiangxi Baisheng Dalihens series (including welding code, learning code, rolling code), Juguang series, Haizhou series, Haiyu series (including Sharp 315MHz), Jiahe series (including Jiahe 315 dedicated rolling code), Iron General fixed code seriesTo be continued, updates will be posted soon.

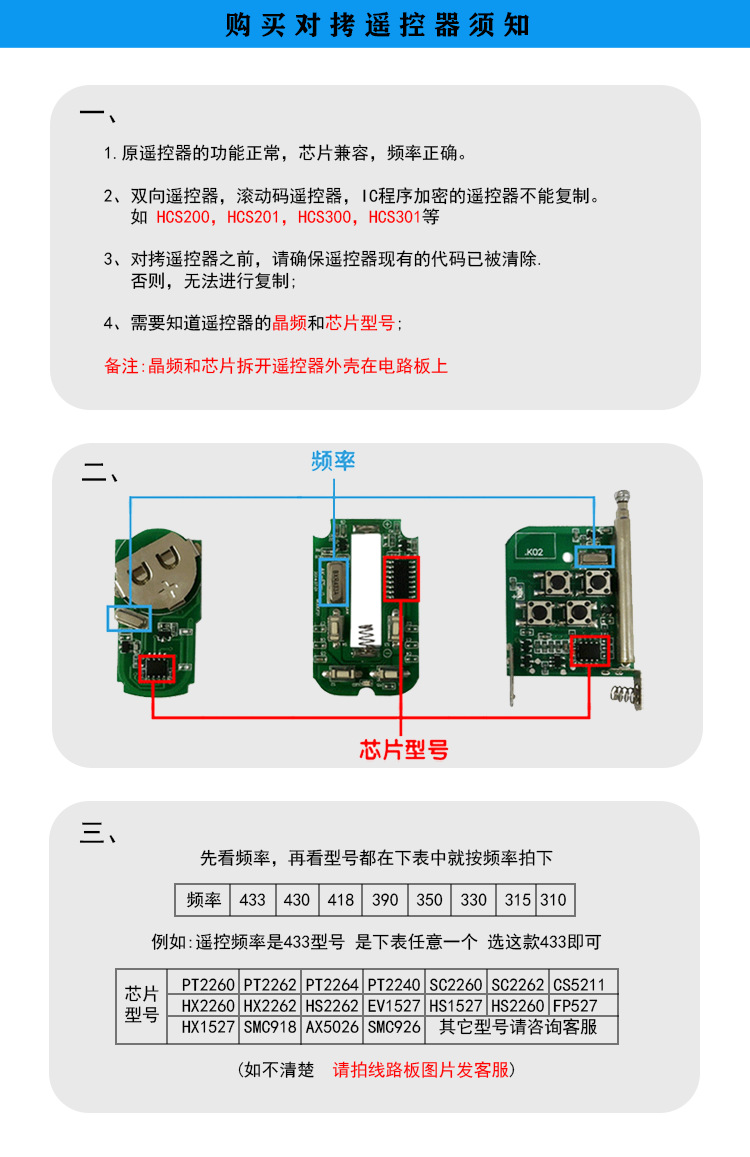

2. Before pairing a remote control, make sure your original remote control is functioning normally. Additionally, be clear about the transmitting frequency of the remote control. Most people are not familiar with the transmitting frequency of the remote control. Please open your remote control and refer to the images above to know the frequency and chip of the remote control you need to copy.
