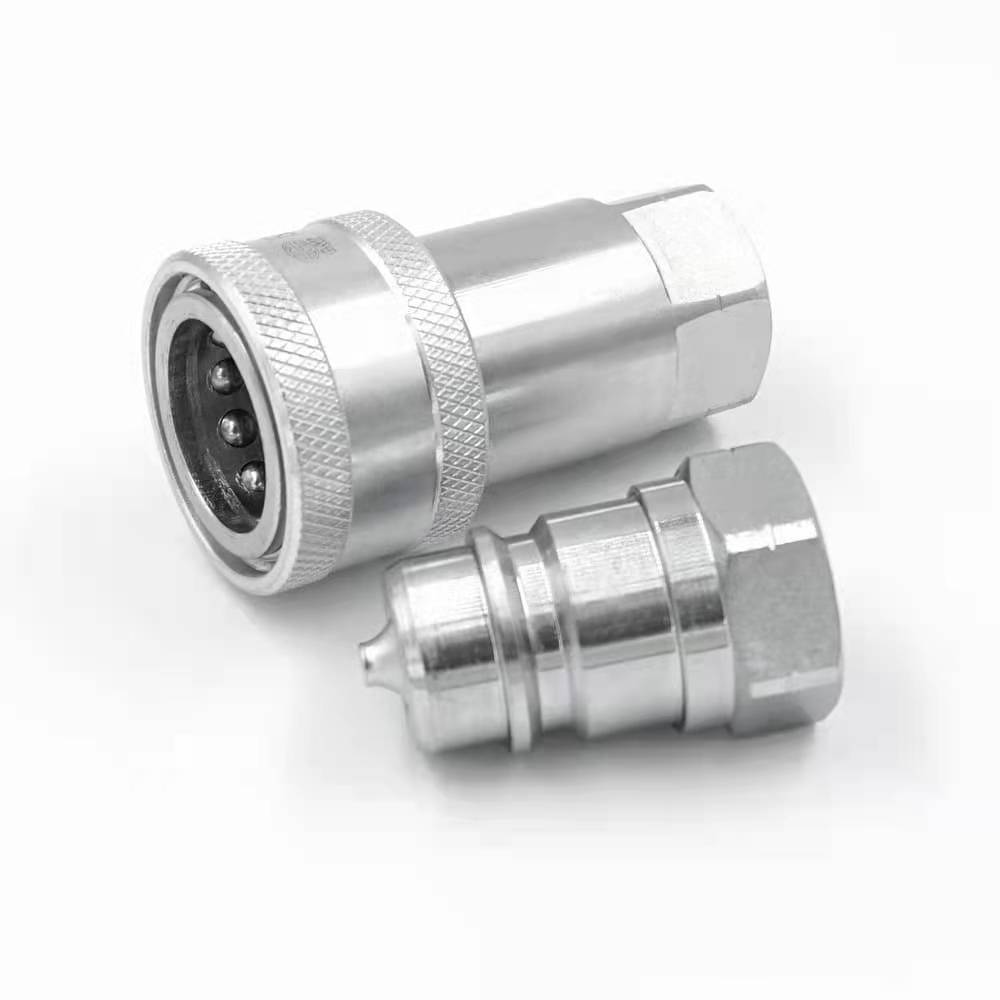

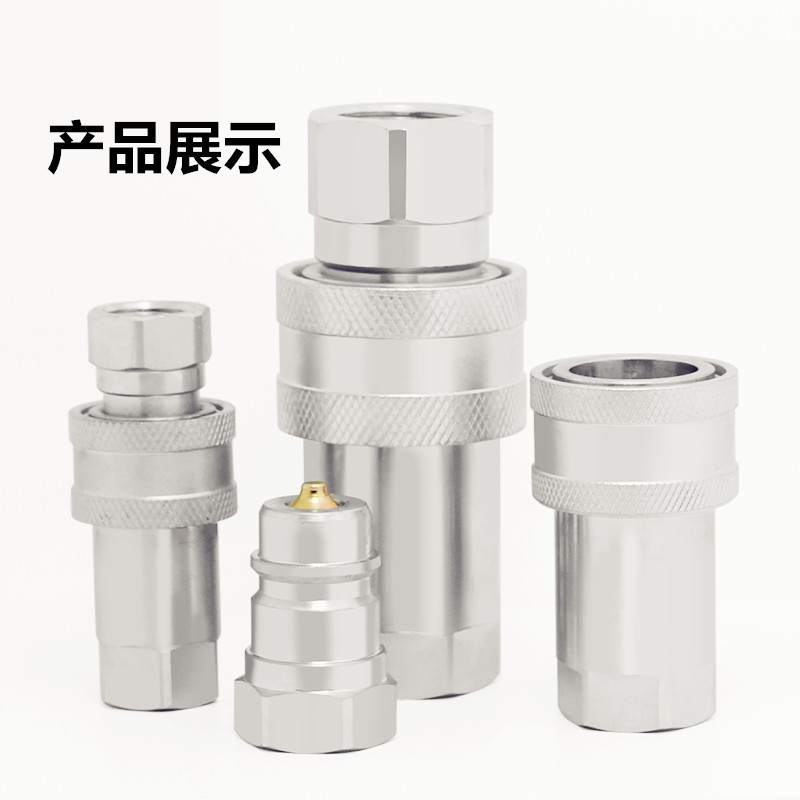

oil pipe connection quick change kze type hydraulic quick release coupling isoa thread npt connector with dust protection cap

The quick connector has the following features:

1) Easy to install: The quick-connect series connectors have matching dimensions when connected to compatible components.

The connector and its matching cable allow for simple installation, saving time and labor.

2) Diverse models: The quick-connect connectors offer 8 options for customers to choose from; additionally, they are more...

Different customers' requirements necessitate different thread standards.

3): The quick-connect fitting can be connected via threads and used in conjunction with valves; when the quick-connect

When breaking and connecting, the oil is controlled by a valve to prevent leakage and protect the environment.

4) Equipment design for easy transportation: Large-scale equipment or hydraulic systems that need to be easily carried

Tools should be transported after being disassembled using a quick-connect fitting, and assembled again upon arrival at the destination.

5) Economy: All the above advantages create economic value for customers.

Precautions for using the quick-connect fitting:

1) Please do not use it for fluids other than those applicable to it.

2) Do not exceed the operating pressure limit during use.

3) Do not use it outside the specified temperature range, as this may cause wear or leakage in the sealing material.

4) Do not perform any artificial hitting, bending, stretching, or causing damage.

5) Do not use in areas with metal powder or sand dust, which may cause poor performance or leaks.

6) Installation of threaded components: Do not exceed the tightening torque during installation to avoid damage.

7) Do not use hoses with cracks, which may cause leaks or detachment.

8) If used in machines that experience vibration and impact, it may lead to reduced durability.

9) The fluid used is clean fluid filtered through a filter.

10) Do not disassemble the quick connector.

O-ring Instructions:

Nitrile rubber: It has high oil resistance, wear resistance, good heat resistance, and strong adhesion. The downside is its low resistance to...

The poor thermal conductivity is mainly used for oil resistanceRubber products, the temperature can reach 100℃, and the hardness is 65°.

Fluororubber: Possesses weather-resistant aging properties, resistance toOzonePerformance: resistant to high temperatures, oil, and high vacuum

With the characteristics of resistance to acids and alkalis, as well as various chemical substances, the temperature can reach 200°C, and the hardness is 80°.

EPDM rubber: Resistant tooxidation, AntiOzoneand antierosioncapability, excellent resistance to chemical substances,

resistant to acids, alkalis, detergents, animal and vegetable oils, alcohols, ketones, etc.; excellent resistance to water, high-temperature water, and steam

Performance; resistance to polar oil, abbreviated as EPDM.

Silicone: It has a strong moisture absorption capability. It is mainly used for absorbing moisture in instruments, meters, equipment, etc. under sealed conditions.

Anti-rust coating.

Perfluoroprene: It possesses high temperature resistance, resistance to chemical solvents, and excellent cleanliness properties among all elastic sealing materials currently available.

Rubber materials, resistant to chemicals and corrosive substances, with temperatures reaching up to 300°C.
