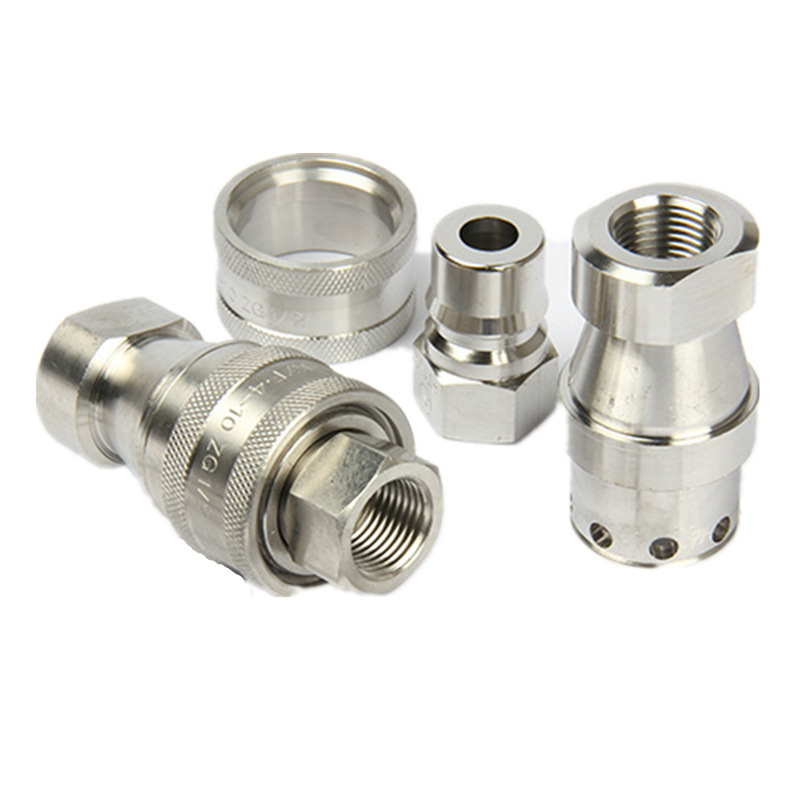

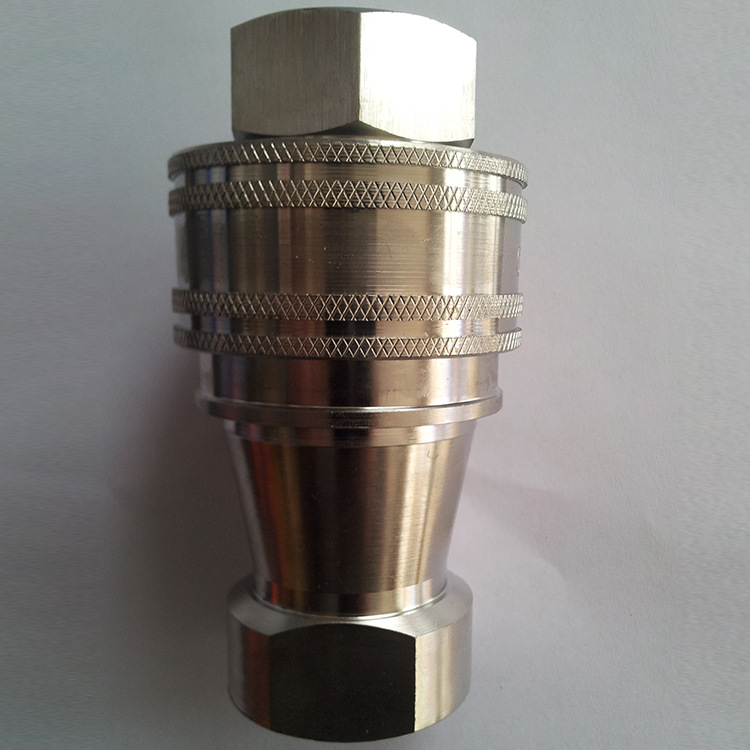

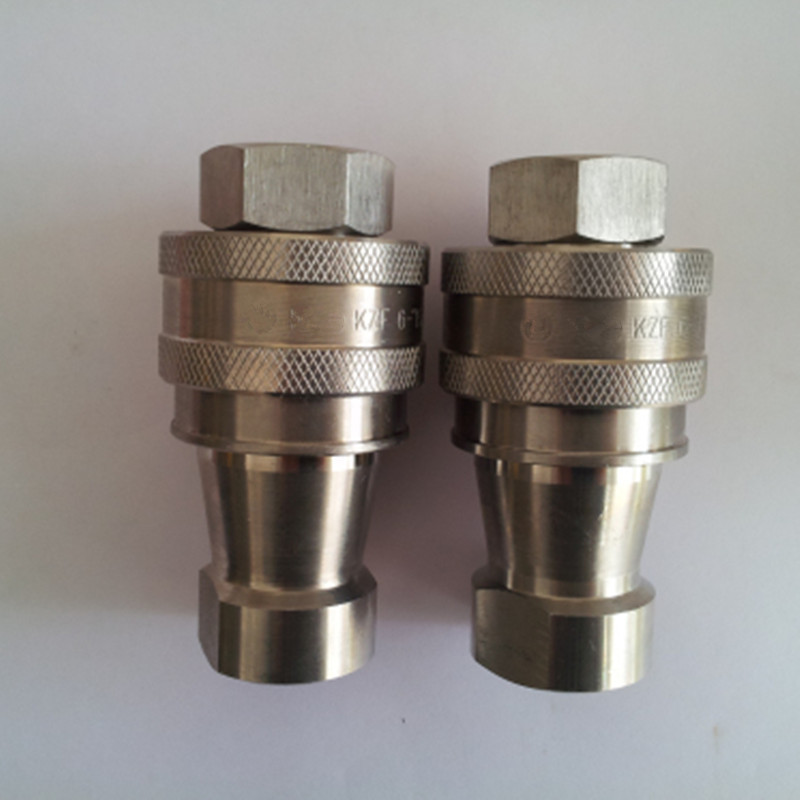

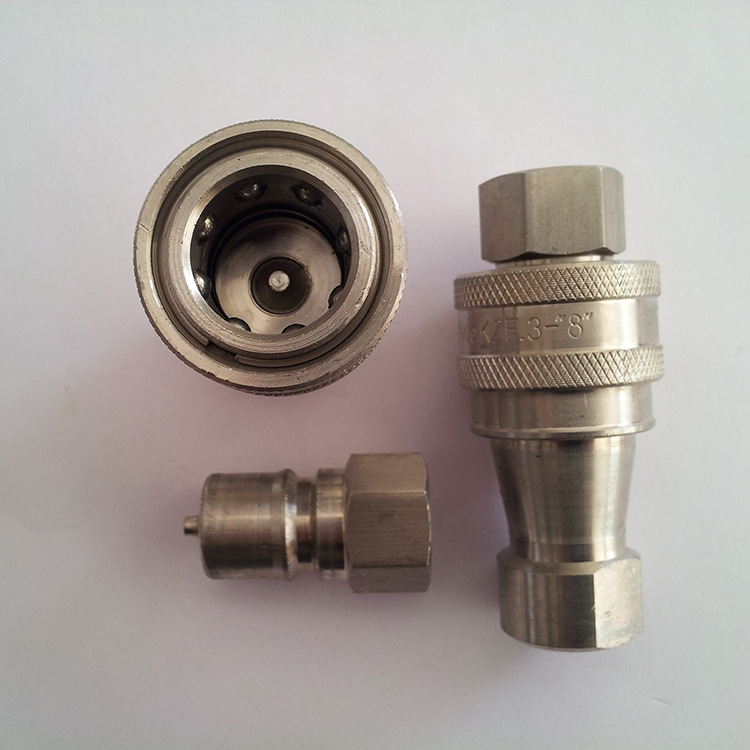

"KZF Open-Closed Air-LiquidQuick Coupler304 stainless steel
Application: The KZF connector is suitable for a variety of hydraulic applications. This type of dual-clamp connector can be used in the following scenarios: when fluid conveyance pipelines need to be connected and disconnected due to equipment operation or maintenance, and without any fluid loss. The KZF connector is primarily used in hydraulic fluid pipelines, but it is also applicable to chemical water, steam, and certain gas pipelines.
Technical Specification:
|
Specification (Inches) |
1/8 |
1/4 |
3/8 |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
2 |
|
Rated Pressure (PSI) |
2000 |
2000 |
1500 |
1500 |
1500 |
1000 |
1000 |
1000 |
1000 |
|
Rated Flow (GPM) |
1 |
3 |
6 |
12 |
28 |
50 |
75 |
100 |
150 |
|
Temperature Range (Standard Seals) |
-20℃ to +120℃ |
||||||||
|
Standard seal material |
Fluorocarbon rubber VITON |
||||||||
The KZF series connectors have the following features:
1. When the joint is broken, the valve core automatically closes, causing a leak.
2. After the connection is made, the valve automatically opens, and within the rated working range, it maintains the unobstructed flow of the fluid at all times.
3. A reliable ball lock mechanism combines the two halves together.
4. The female socket and the male plug are made of solid rod material.
5. This connector complies with the ISO 7241-B standard.
6. Interchangeable with the following products: PARKER 60 series, FASTER HNV series, and American Alic.
The AEROQUIP FD45 series and the American HANSEN HK series.
Performance: Tested Liquid Oil - 150SUS
Performance: (3/4"&1) Tested Liquid Oil - 150SUS
(11/4",11/2",2") Tested Liquid Oil - 200SUS
1GPM=3.78L/Min,1PSID=0.0069MPa.
KZF Series (1/8", 1/4", 3/8", 1/2") KZF Series (3/4", 1", 11/4", 12/2", 2")
Description:
KZF Close Type Hydraulic Quick Coupling (stainless steel 304)
KZF couplings are widely used in a variety of hydraulic applications. These Double Shut-Off couplings can be found anywhere fluid transfer lines need to be connected and disconnected for equipment operation or maintenance, and a loss of fluid is undesirable. They are primarily used with hydraulic fluid. KZF couplings are also used with chemicals, water, steam, and some gases.
Specification
| Body Size (in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Rated Pressure(PSI) | 2000 | 2000 | 1500 | 1500 | 1500 | 1000 | 1000 | 1000 | 1000 |
| Rated Flow (GPM) | 1 | 3 | 6 | 12 | 28 | 50 | 75 | 100 | 150 |
| Temperature Range | -20℃ to +180℃ | ||||||||
| Standard seal material | VITON | ||||||||
KZF Series couplings feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expediently.
3. A reliable ball-locking mechanism holds the mating halves together.
4. Socket and plug are precision machined from solid bar stock.
5. KZF series conforms to the standard of ISO 7241-B
6. Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.
KZF (1/8", 1/4", 3/8", 1/2") KZF (3/4", 1", 11/4", 12/2", 2")
receptacle
|
ISO |
PARTNO. |
LS |
￠D |
HEX1 |
A |
T |
|
5 |
KZF-01SF |
48 |
24 |
14 |
8 |
G1/8 |
|
6.3 |
KZF-02SF |
58 |
28 |
19 |
12.5 |
ZG1/4 |
|
10 |
KZF-03SF |
65 |
35 |
22 |
13 |
ZG3/8 |
|
12.5 |
KZF-04SF |
72.5 |
45 |
29 |
14 |
ZG1/2 |
|
20 |
KZF-06SF |
88 |
54 |
36 |
17 |
ZG3/4 |
|
25 |
KZF-08SF |
102 |
64.5 |
41 |
23 |
ZG1 |
|
31.5 |
KZF-10SF |
115 |
69 |
54 |
27 |
ZG1-1/4 |
|
40 |
KZF-12SF |
124 |
79 |
60 |
27 |
ZG1-1/2 |
|
50 |
KZF-16SF |
132 |
102 |
77 |
30 |
ZG2 |
|
Note: Only sizes 01-08 comply with the ISO 7241-B standard. |
||||||
Public plug
|
ISO |
PARTNO. |
LP |
d |
C |
HEX2 |
A |
T |
|
5 |
KZF-01PF |
29 |
10.8 |
19 |
14 |
8 |
G1/8 |
|
6.3 |
KZF-02PF |
36 |
14.2 |
22.5 |
17 |
12.5 |
ZG1/4 |
|
10 |
KZF-03PF |
40 |
19 |
25 |
22 |
13 |
ZG3/8 |
|
12.5 |
KZF-04PF |
44 |
23.5 |
28 |
27 |
14 |
ZG1/2 |
|
20 |
KZF-06PF |
52 |
31.4 |
36 |
36 |
17 |
ZG3/4 |
|
25 |
KZF-08PF |
62 |
37.8 |
40 |
41 |
23 |
ZG1 |
|
31.5 |
KZF-10PF |
70 |
45 |
45 |
52 |
27 |
ZG1-1/4 |
|
40 |
KZF-12PF |
75 |
50 |
49 |
60 |
27 |
ZG1-1/2 |
|
50 |
KZF-16PF |
80 |
70 |
52 |
77 |
30 |
ZG2 |
|
Note: Only sizes 01-08 comply with the ISO 7241-B standard. |
|||||||
Connector assembly
|
ISO |
PARTNO. |
L |
￠D |
HEX1 |
HEX2 |
T |
|
5 |
KZF-01 |
58.5 |
24 |
14 |
14 |
G1/8 |
|
6.3 |
KZF-02 |
72.5 |
28 |
19 |
17 |
ZG1/4 |
|
10 |
KZF-03 |
80.5 |
35 |
22 |
22 |
ZG3/8 |
|
12.5 |
KZF-04 |
89 |
45 |
29 |
27 |
ZG1/2 |
|
20 |
KZF-06 |
105 |
54 |
36 |
36 |
ZG3/4 |
|
25 |
KZF-08 |
124.5 |
64.5 |
41 |
41 |
ZG1 |
|
31.5 |
KZF-10 |
140.5 |
69 |
54 |
52 |
ZG1-1/4 |
|
40 |
KZF-12 |
150.5 |
79 |
60 |
60 |
ZG1-1/2 |
|
50 |
KZF-16 |
160.5 |
102 |
77 |
77 |
ZG2 |
|
Note: Only sizes 01-08 comply with the ISO 7241-B standard.
|
||||||
