dedicated for export alcohol tester driver safe breath alcohol gas detector alcohol tester

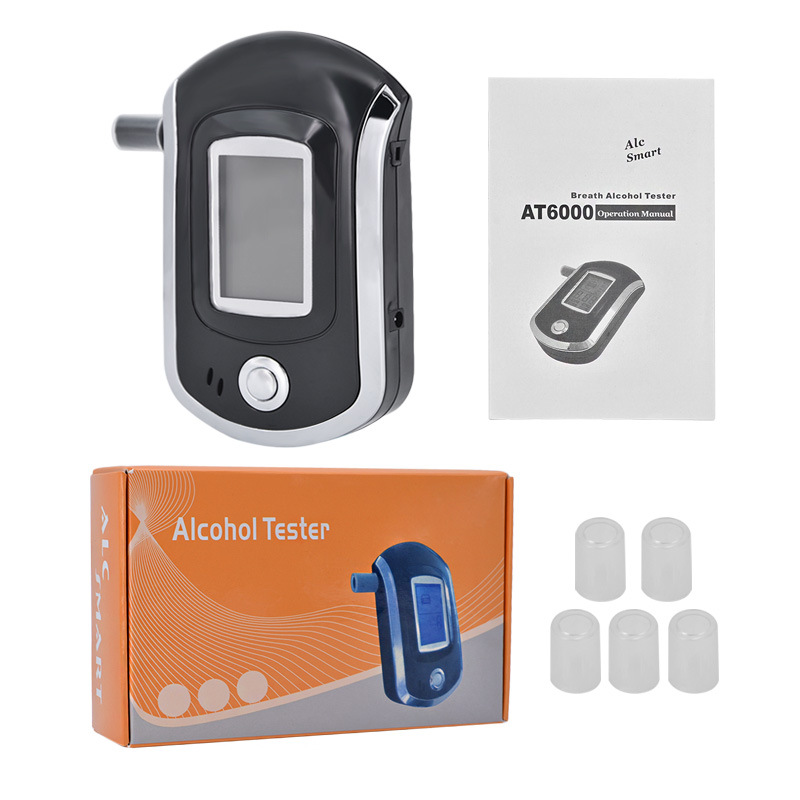

Product Name: Alcohol Test Device
Model: AT6000

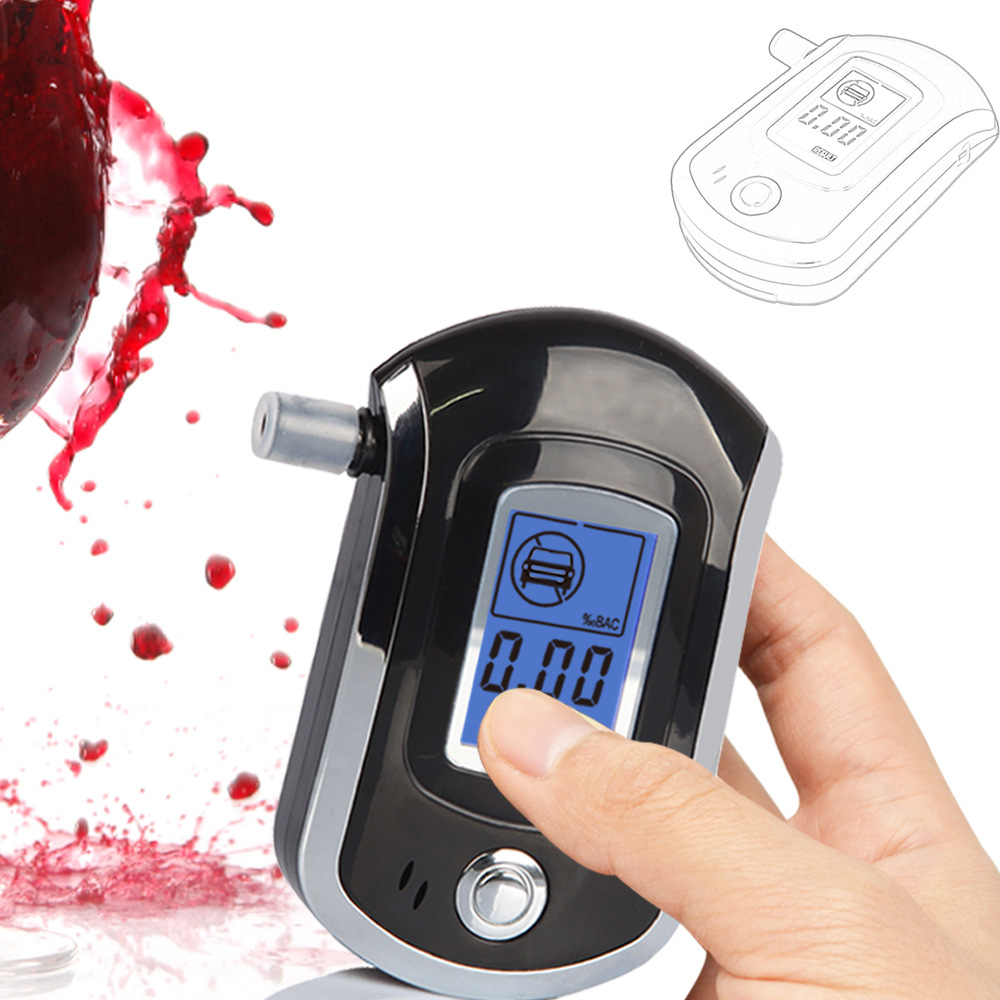

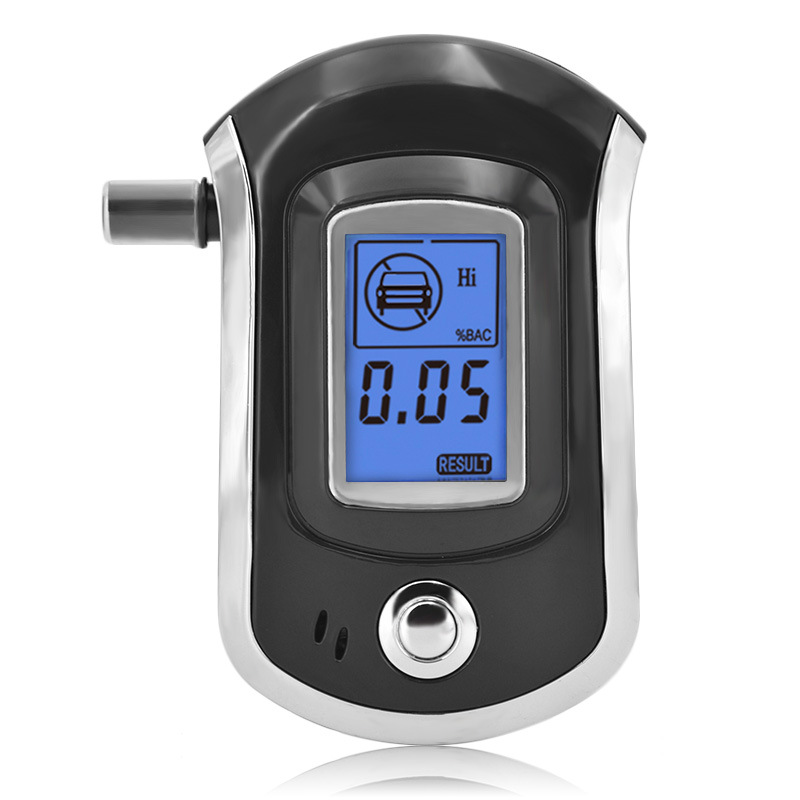

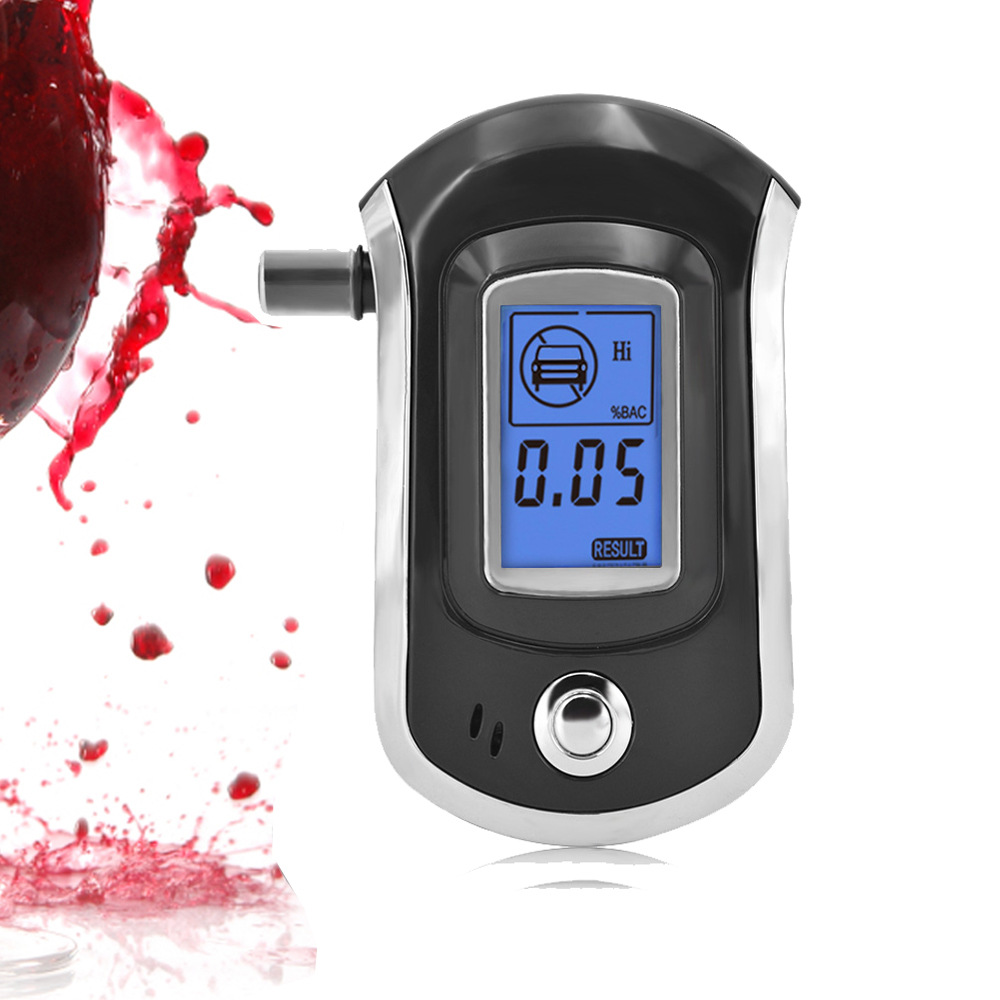

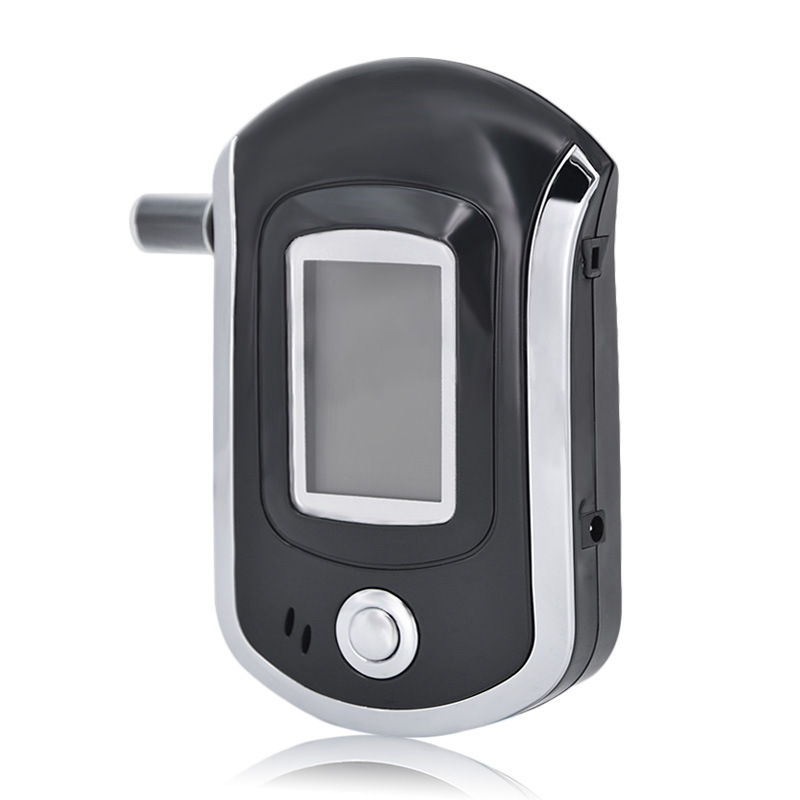

The AT6_000 exhaled gas alcohol detector is a device specifically used to measure the alcohol content in human exhaled air. Its sensitive components utilize advanced nano-semiconductor alcohol sensors from Hanwei Electronics, offering excellent sensitivity and repeatability. The testing procedure is controlled by a microcomputer designed with artificial intelligence, featuring a logical and convenient workflow, comprehensive functions, and multiple adaptive capabilities. The LCD digital display with backlight provides an intuitive and clear visualization. Its compact portable design makes it easy to use while moving. When the alcohol level in the measured exhaled gas exceeds the set value, the device automatically emits an audible alarm to provide additional safety alerts.

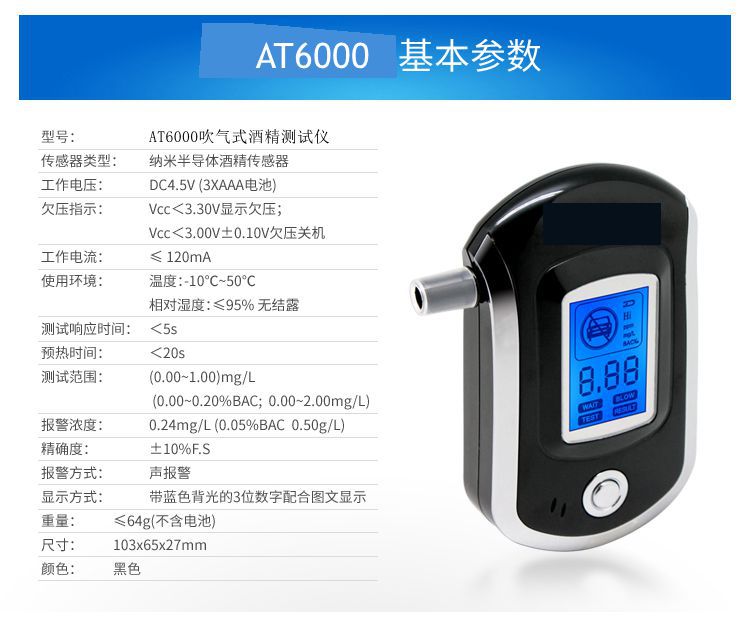

【Primary Technical Parameters of the Product]
【Model Number】AT6OO0
【Sensor Type】Nano semiconductor alcohol sensor

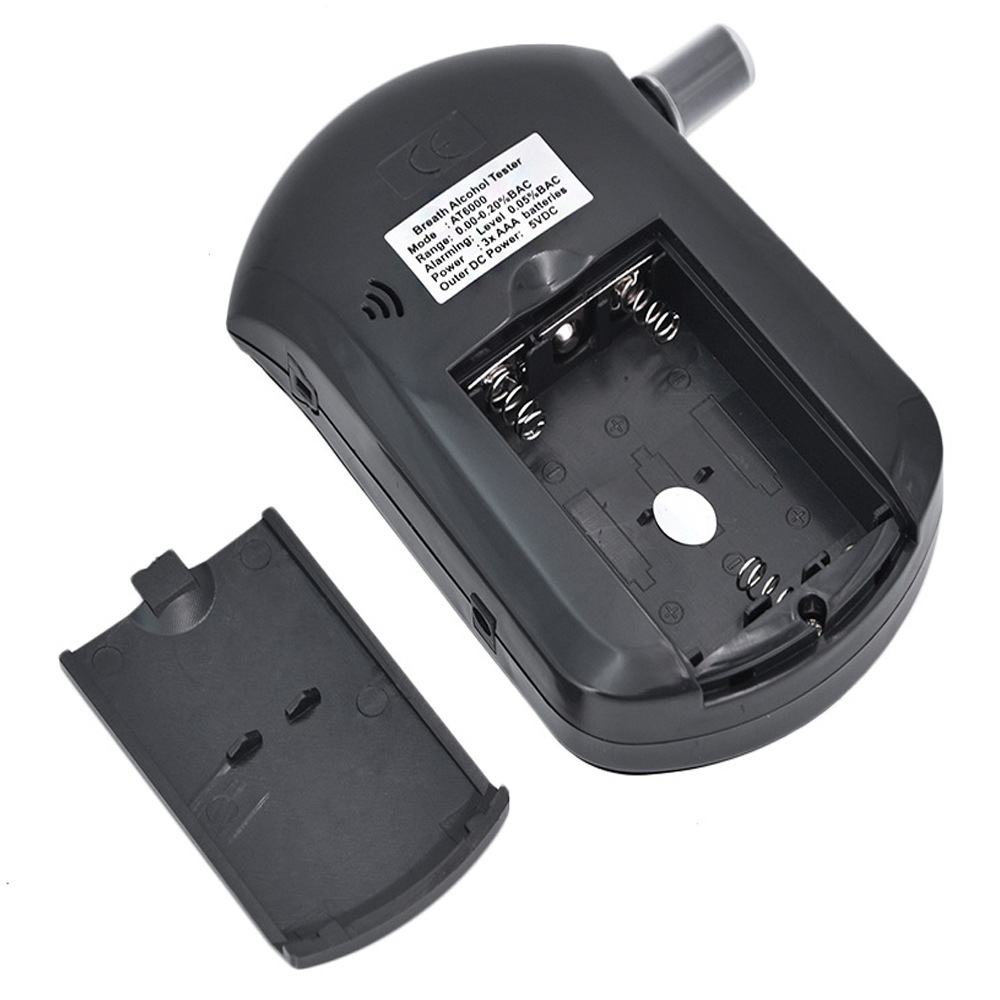

【Working Voltage】 DC4.5V (3×AAA batteries)
【Undervoltage Indicator】 When Vcc is <3.30V±0.10V, undervoltage is indicated; when Vcc is <3.00V±0.10V, the device shuts down due to undervoltage.
【Working Current】 ≤120mA
【Operating Conditions】 Temperature: -10℃ to 50℃, Relative Humidity: ≤95%, No dew formation
【Test Response Time】 ＜5s
【Preheating Time】 ＜20s
【Measurement Range】 (0.00～1.00) mg/L (0.00～0.20% BAC; 0.00～2.00 mg/L)
【Alarm Concentration】 0.24mg/L (0.05% BAC; 0.50 g/L)
【Accuracy】 ±10% F.S
【Alarm Method】 Sound alarm
【Display Method】 A 3-digit LCD display with blue backlighting, combined with graphic displays
【WEIGHT】 ≤64g (without battery)
【Physical Dimensions】 l×b×h, mm: 103×65×27
【Color】Black

Features:
◆ Advanced nano-semiconductor alcohol sensors;
◆ Quick response, rapid recovery, and convenient testing;
◆ SMD assembly process, with stable and reliable performance;
◆
Artificial intelligence controlled by microcomputers;
◆ The test process is visually displayed on the screen;
◆ Blue backlight illuminated LCD digital and graphic display;

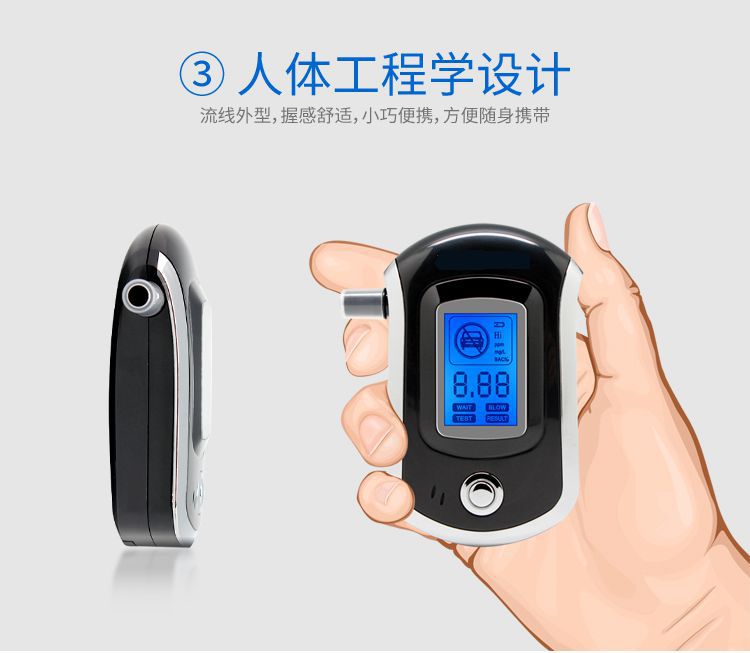

◆ Portable design, compact and lightweight;
◆
Automatic sound alarm for excessive alcohol consumption;
◆ Sensor self-check for faults;
◆ Smart power-saving design, battery under-voltage indication
