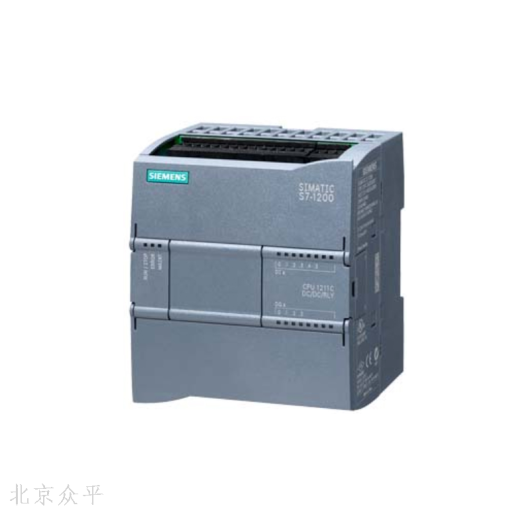

Original PLC Controller SIEMENS S7 1200 Compact CPU SIMATIC S7-1200 CPU DC/DC/relay 6ES7211-1HE40-0XB0

Original PLC Controller SIEMENS S7 1200 Compact CPU SIMATIC S7-1200 CPU DC/DC/relay 6ES7211-1HE40-0XB0

SIMATIC S7-1200, CPU 1211C, compact CPU, DC/DC/ relay, airborne
I/o: 6 24V DC digital inputs; 4 2A relay digital outputs; 2 AI 0-10V DC，
Power supply: DC 20.4-28.8V DC, program memory/data memory 50 KB.
General information
Product type mark CPU 1211C DC/DC/relay
Firmware version V4.5
Packaged
● STEP 7 V17 and above versions of process system.
Power supply voltage
Rated value (DC)
● DC 24 V is
Allowable range, lower limit (DC) 20.4 V.
Allowable range, upper limit (DC) 28.8 V.
Reverse polarity protection is
Load voltage L+
● rated value (DC) 24 v.
● Allowable range, lower limit (DC) 20.4 V.
● Allowable range, upper limit (DC) 28.8V.
Current transmission
Current consumption (rated value) 300 mA; CPU only
Current consumption, the maximum value is 900 mA; CPU together with all expansion modules
Turn-on current, the maximum value is 12 A; At 28.8 V DC
I²t 0.8 A²·s
output current
On the backplane bus (DC 5 V), the maximum value is 750 mA; Up to 5 V DC for CM
Sensor power supply
24 V sensor power supply
● 24 V L+ minus 4 V DC (maximum)
power loss
Power loss, 8 W typical
storage
As a memory
● Integrated 50 kbyte
● Extensible No
Load memory
● Integrated 1 Mbyte

ruler
Width 90 mm
100 mm
Depth 75 mm
weight
Weight, about 380 g
