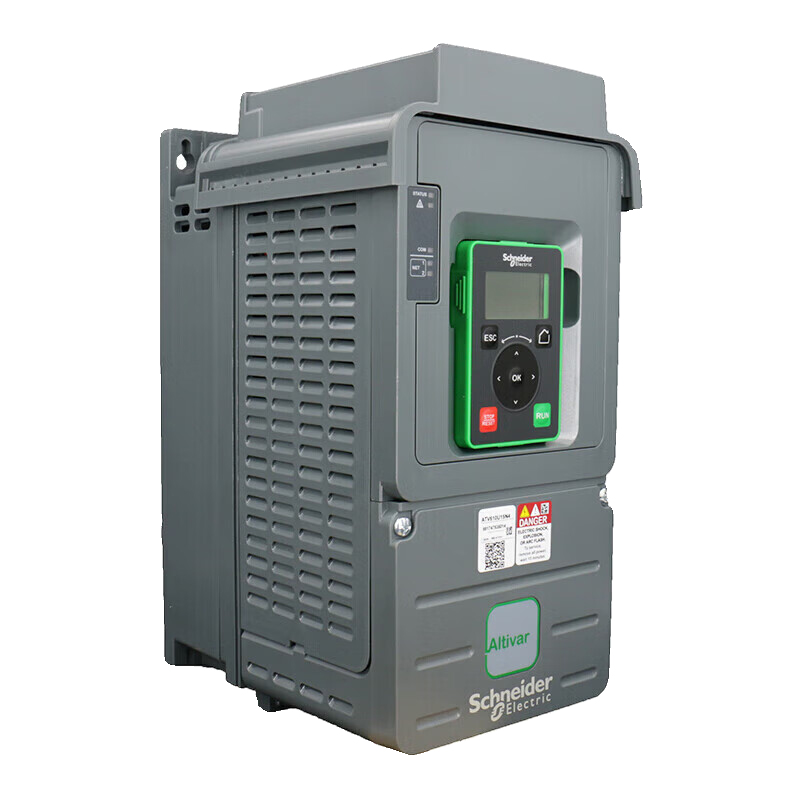

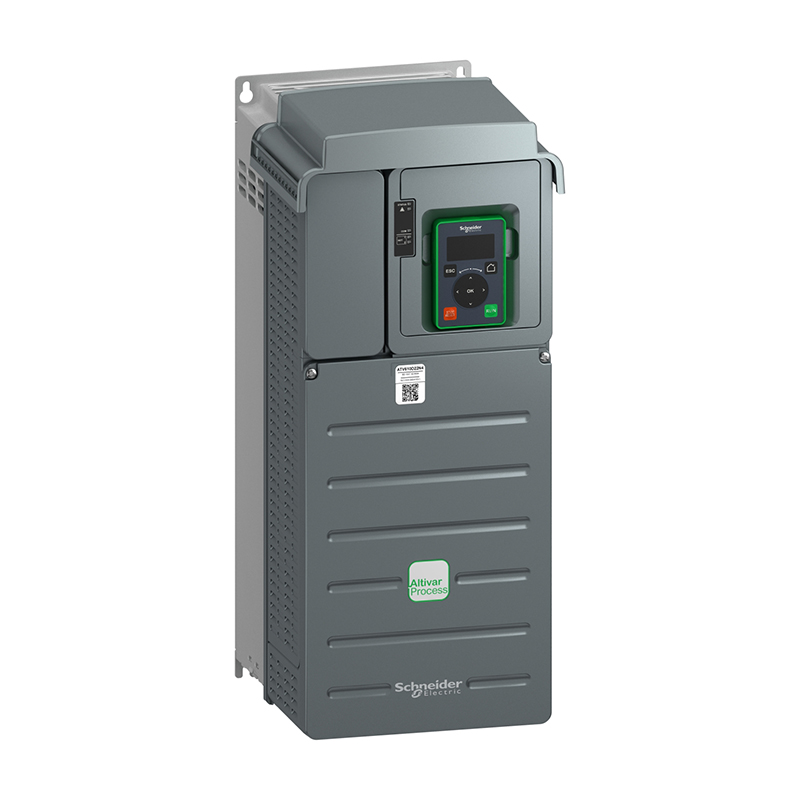

ATV610U22N4/15/30/55/75kw/D11/18/22/C13N4 three-phase 380v Schneider frequency converter

Main information
product line
Easy Altivar 610
product category
frequency changer/inverter
application area
Fans, pumps, compressors, conveyor belts
Short name of product
ATV610
variable
Standard version
Product application scenario
Asynchronous motor
synchronous machine
Installation type
Cabinet loading
emc filter
Integrated longest motor cable conforming to IEC 61800-3 safety level C3 and 50 m.
IP protection level
IP20
Cooling mode
forced ventilation
Power supply frequency
50...60 Hz +/-5 %
Network phase number
3 phase
Rated power supply voltage [Us]
380...460 V - 15...10 %
Motor power (kW)
2.2 kW applies to standard load.
1.5 kW is suitable for heavy load.
power of motor
3 hp applicable standard load
2 hp is suitable for overloading.
Line current
7.8 A 380 V (standard load) on ...
6.5 A 460 V (standard load) on ...
5.6 A 380 V (heavy load) on ...
4.6 A 460 V (heavy load) on ...
Expected line Isc
5 kA
apparent power
5.2 kVA on … 460 V (standard load)
3.7 kVA on ... 460 V (heavy load)
Continuous output current
5.6 A 4 kHz standard load is applicable on ...
4 A is suitable for overloading at 4 kHz on …
Maximum transient current
6.2 A at 60 s (standard load)
6 A in 60 s (overload)
Asynchronous motor control configuration file
Standard variable torque
Optimized torque mode
Standard constant torque
Output frequency
0.1…500 Hz
Rated switching frequency
4 kHz
switching frequency
2...12 kHz adjustable
number of preset speeds
16 preset speeds
Communication port protocol
Modbus serial
Tab
Card slot a: communication card, Profibus DP V1
Card slot a: logical or analog I/O expansion card
Slot a: relay output card
additional information
Output voltage
< = supply voltage
Motor slip compensation
Not applicable to the law of permanent magnet synchronous motor
Automatic regardless of load condition
Can inhibit
adjustable
Acceleration and deceleration tilt
S, U or custom
Independent linear adjustment from 0.01 to 9000 s
Brake to stop
Using DC injection
Protection type
Thermal protection: motor
Motor phase failure: motor
Thermal protection: drive
Overheating: driving
Overcurrent between output phase line and ground: drive
Output voltage overload: driving
Short circuit protection: drive
Motor phase failure: drive
DC Bus Overvoltage: Driving
Overvoltage of line power supply: driving
Bus Power Undervoltage: Driving
Bus Power Supply Out of Phase: Driving
Overspeed: drive
Brake on Control Circuit: Drive
Frequency resolution
Display unit: 0.1 Hz
Analog input: 0.012/50 Hz
electrical connection
Control, screw terminal: 0.5 ... 1.5mm.
Line side, screw terminal: 2.5 ... 16mm
Motor, screw terminal: 2.5 ... 16mm
Port type
1 RJ45 (in remote graphic terminal) is suitable for Modbus serial.
physical interface
2-wire RS485 is suitable for Modbus serial.
Transmission frame
RTU is suitable for Modbus serial.
transmission rate
Modbus serial is applicable to 4.8, 9.6, 19.2, 38.4 kbit/s/s.
Polarization mode
Impedance-free Modbus serial application
Number of addresses
1 ... 247 is suitable for Modbus serial.
Access method
From (station)
Power Supply
External power supply for logic input: 24 V DC (19…30 V), <1.25 mA, protection type: overload and short circuit protection.
Internal power supply is used for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short circuit protection.
Local signal indication
2 LED for local diagnosis:
1 LED (yellow) for integrated communication status:
2 LED (two colors) for communication module status:
1 LED (red) for voltage status:
width
145 mm
height
297 mm
350 mm with EMC board
depth
203 mm
net weight
3.135 kg
Analog input quantity
three
Analog input type
AI1, AI2, AI3 software-configurable voltage: 0...10 V DC, impedance: 30 kOhm, resolution: 12 bits.
AI1, AI2, AI3 software-configurable current: 0...20 mA, impedance: 250, resolution: 12 bits.
AI2, AI3 software-temperature detector or water level sensor can be configured.
Discrete input quantity
six
Digital quantity input type
DI1...DI6 can be programmed as logic input, with 24 V DC (< = 30 V) and impedance of 3.5 kOhm.
Di5 and di6 can be programmed as pulse input: 0…30 kHz, 24 V DC (< = 30 V).
Input compatibility
DI1...DI6: Logic input Class 1 PLC conforms to IEC 61131-2.
DI5, DI6: pulse input level 1 PLC conforms to IEC 65A-68.
Discrete input logic
Positive logic (source): DI1...DI6 configurable logic input, < 5 V (state 0), > 11 V (state 1)
Negative logic (leakage): DI1...DI6 configurable logic input, > 16 V (state 0), < 10 V (state 1)
Positive logic (source): DI5, DI6 configurable pulse input, < 0.6 V (state 0), > 2.5 V (state 1)
Analog output quantity
2
Analog output model
Software-configurable current AQ1, AQ2: 0...20 mA, resolution 10 bits.
Software-configurable voltage AQ1, AQ2: 0...10 V DC impedance 470, resolution 10 bits.
Sampling period
5 ms +/- 0.1 ms (AI1, AI2, AI3)-analog input
2 ms +/- 0.5 ms (DI1...DI6) configurable-discrete input
5 ms +/- 1 ms (DI5, DI6) configurable-pulse input
10 ms +/- 1 ms (AQ1, AQ2)-analog output
precision
+/-0.6% AI1, AI2 and AI3 are used for analog input of temperature variation at 60 C.
+/-1% AQ1 and AQ2 are used for analog output of temperature change at 60 C.
linearity error
AI1, AI2, AI3 ai3: +/- 0.15% of the maximum value is applicable to analog input.
AQ1, AQ2: +/- 0.2% for analog output.
Relay output quantity
three
Relay output type
Configurable relay logic R1: Fault relay NO/NC electrical life is 100,000 times.
Configurable relay logic R2: The electrical life of serial relay NO is 100,000 times.
Configurable relay logic R3: The electrical life of serial relay NO is 100,000 times.
turnover time
Relay output (R1, R2, R3): 5 ms (+/- 0.5 ms)
Minimum switching current [Imin]
Relay outputs R1, R2, R3: 5 mA at … 24 V DC.
Maximum switching current
The resistance (load) of relay outputs R1, R2, R3 and R3 at …, cos phi = 1: 3 A at … 250 V AC.
The amount of resistance (load) of relay outputs R1, R2, R3 and R3 at …, cos phi = 1: 3 A at … 30 V DC.
The inductive load of relay outputs R1, R2, R3 and R3 on …, cos phi = 0.4 L/R = 7 ms: 2 A on … 250 V AC.
The inductive load of relay outputs R1, R2, R3 and R3 on …, cos phi = 0.4 L/R = 7 ms: 2 A on … 30 V DC.
isolation;quarantine
Between power supply and control terminal
insulance
> 1 MOhm grounding 500 V DC for 1 minute.
environment
Noise level
55 dB conforms to 86/188/EEC
Power consumption w
54 W (forced ventilation) 380 V on …, switching frequency 4 kHz.
27 W (natural ventilation) 380 V on …, switching frequency 4 kHz.
operating position
Vertical direction+/-10
Electromagnetic compatibility
Electrostatic discharge anti-interference level 3 conforms to IEC 61000-4-2.
Radio frequency electromagnetic field radiation immunity test level 3 conforms to IEC 61000-4-3.
Fast transient resistance level 4 conforms to IEC 61000-4-4.
1.2/50 and 8/20 s complex wave (test) level 3 conforms to IEC 61000-4-5.
Level 3 of resistance to conduction fluctuation caused by RF field conforms to IEC 61000-4-6.
class of pollution
2 conforms to IEC 61800-5-1.
Vibration resistance
Peak-to-peak 1.5 mm (f= 2…13 Hz) conforms to IEC 60068-2-6.
1 gn (f= 13…200 Hz) conforms to IEC 60068-2-6.
resist the impact
15 gn for 11 ms conforms to IEC 60068-2-27.
relative humidity
5 ... 95% non-condensation conforms to IEC 60068-2-3.
ambient temperature
-15 … 45 C (no capacity reduction)
45 ... 45…60 °C (with)
Working altitude
< = 1000 m without capacity reduction.
1000...4800 m current derating 1%/100m
Environmental characteristics
Chemical pollution resistance grade 3C3 conforms to IEC 60721-3-3.
The dust pollution resistance level 3S3 conforms to IEC 60721-3-3.
