Beijing Zhongping Technology Co., Ltd 4yr.
Contacts Huang Ting Chat
Mobile 86-13811814778
E-mail ht@gongboshi.com
gbsbjzp
|
|
Model
|
MT8052iP
|
|
|
Reveal
|
Displayer
|
4.3"TFT
|
|
|
|
Resolution ratio
|
480x272
|
|
|
|
Luminance（cd/㎡）
|
400
|
|
|
|
Contrast ratio
|
500:1
|
|
|
|
Backlight type
|
LED
|
|
|
|
Backlight lifetime
|
>30000 hours
|
|
|
|
Color
|
16.7M
|
|
|
|
LED viewing Angle(T/B/l/R)
|
50/70/70/70
|
|
|
|
Dot pitch(mm)
|
0.198(H) x 0.198(V)
|
|
|
Touch panel
|
Type
|
Four-wire resistive type
|
|
|
|
Touch accuracy
|
Operation area length (X)±2%, width (Y)±2%
|
|
|
Storage
|
Flash
|
256 MB
|
|
|
|
RAM
|
128 MB
|
|
|
Processor
|
Dual core RISC central processing unit
|
|
|
|

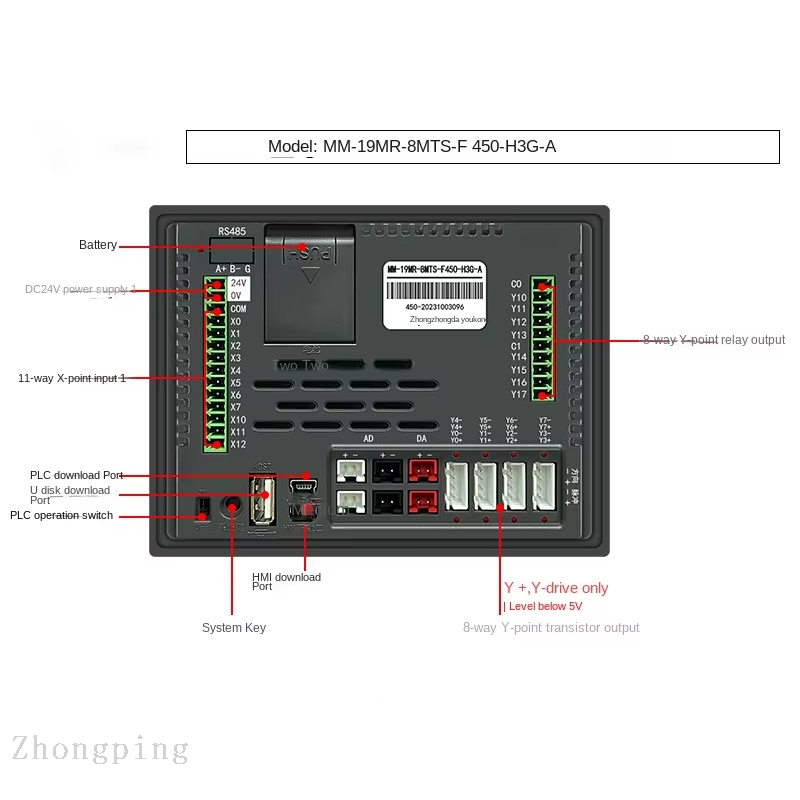

I/O port
|
USB Host
|
no
|
|
|
|
USB Client
|
USB 2.0 x 1 (Micro USB)
|
|
|
|
Ethernet interface
|
no
|
|
|
|
Serial interface
|
COM1:RS-232/RS-485 2W/4W,COM3:RS-4852W
|
|
|
permanent calendar
|
built-in
|
built-in
|
|
|
power supply
|
Input power
|
24±20%VDC
|
|
|
|
Power isolation
|
built-in
|
|
|
|
Power dissipation
|
450mA@24VDC ;
|
|
|
|
Proof voltage
|
500VAC (1 minute )
|
|
|
|
Insulation resistance
|
More than 50MΩ @ 500VDC
|
|
|
|
|
|
|
|
Specification
|
Shell material
|
engineering plastics
|
|
|
|
Dimension WxHxD
|
128 x 102 x 32 mm
|
|
|
|
Hole size
|
119x 93mm
|
|
|
|
Weight
|
0.25KG
|
|
|
|
Way to install
|
panel mounting
|
|
|
Operating environment
|
Level of protection
|
NEMA4 / IP65 Front panel protection class
|
|
|
|
Storage ambient temperature
|
-20° ~ 60° C (-4° ~ 140° F)
|
|
|
|
Operating ambient temperature
|
0° ~ 50° C (32° ~ 122° F)
|
|
|
|
Relative ambient humidity
|
10% ~ 90% (non-condensing)
|
|
