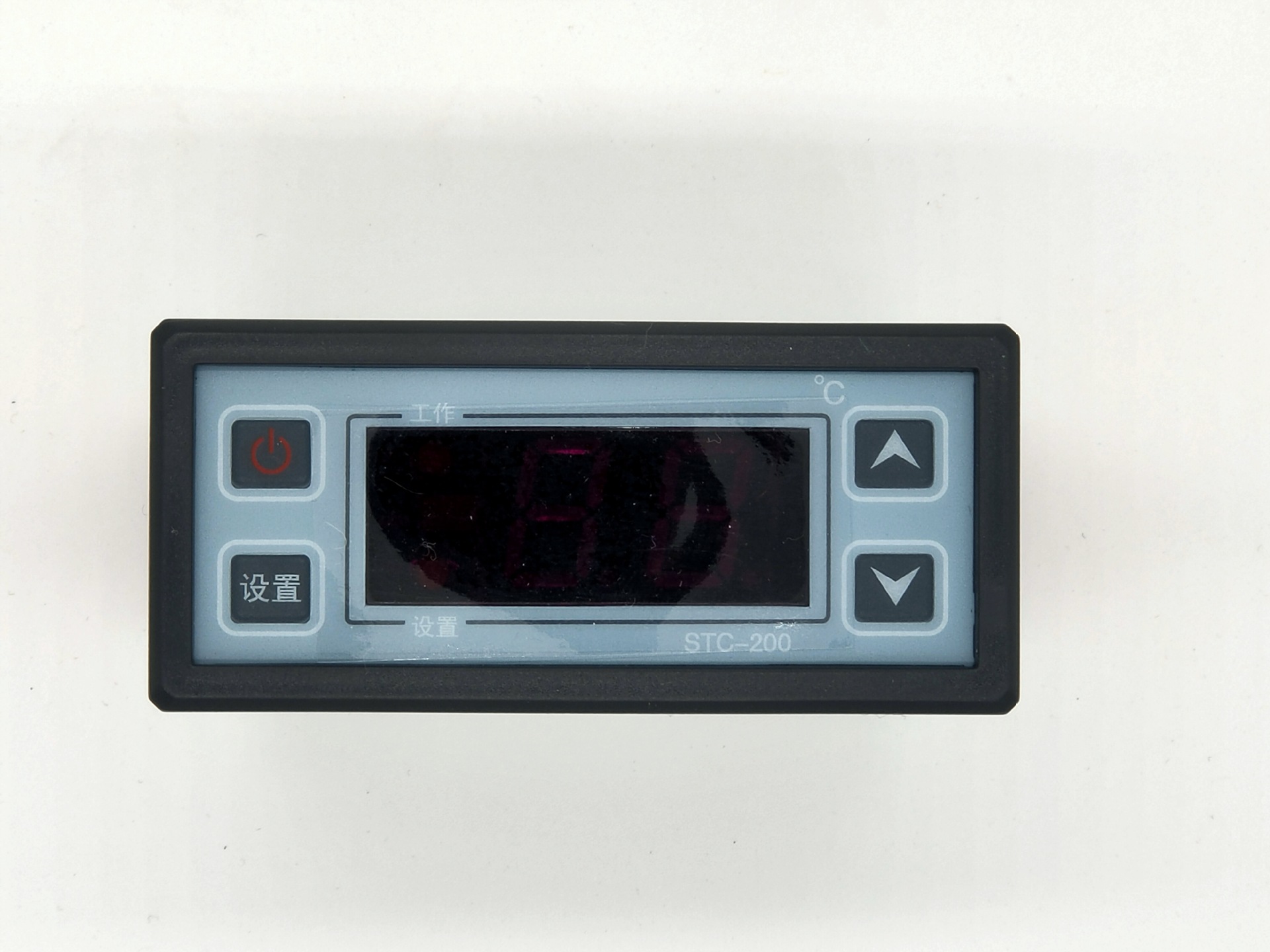

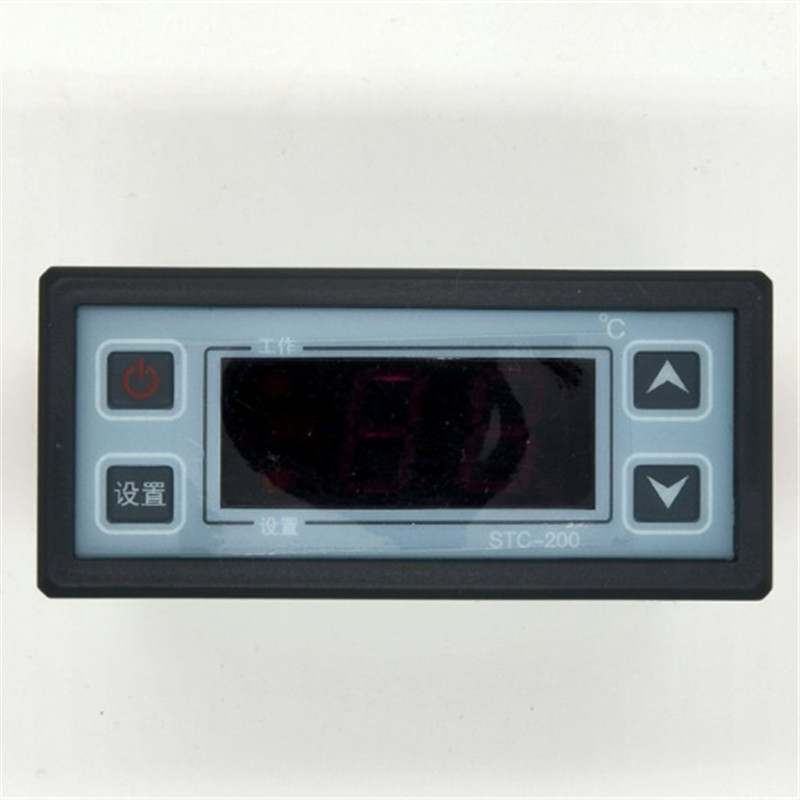

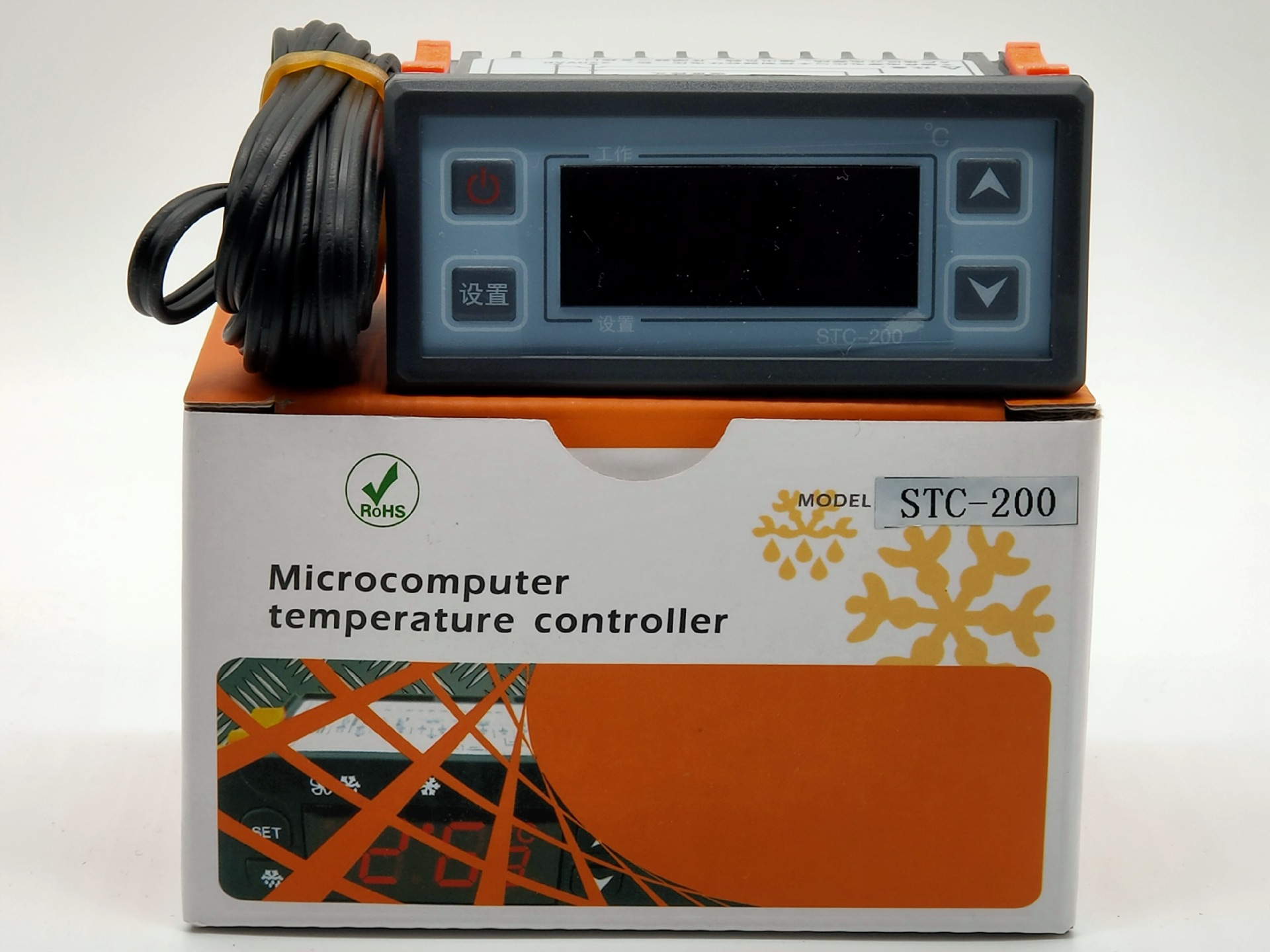

STC-200
I. Product Overview:
Suitable for various types of high-temperature cold storage, direct cold cabinets, cold water machines, seafood machines, and some small-scale refrigeration and heating equipment, etc.
Product Features
1. Cooling, heating, and alarm function modes are optional
2. Temperature control by back-and-forth difference method
3. Set user parameters and administrator parameters separately
4. The user-set temperature control parameters with upper and lower limits can prevent improper operation by non-professional personnel, including heating, cooling, alarm, single sensor, and temperature calibration.
Section Three: Main Features
Cooling, heating, alarm, single sensor, temperature calibration, temperature control based on the set temperature value plus hysteresis.
Section 4: Technical Specifications
Measuring range: -50℃～99℃;
Temperature resolution: 1℃;
Temperature measurement accuracy: ±1℃.
Control range: -50℃～70℃;
Power supply: 220VAC ±10%, 50/60Hz;
☆ Power consumption of the entire machine: less than 3W;

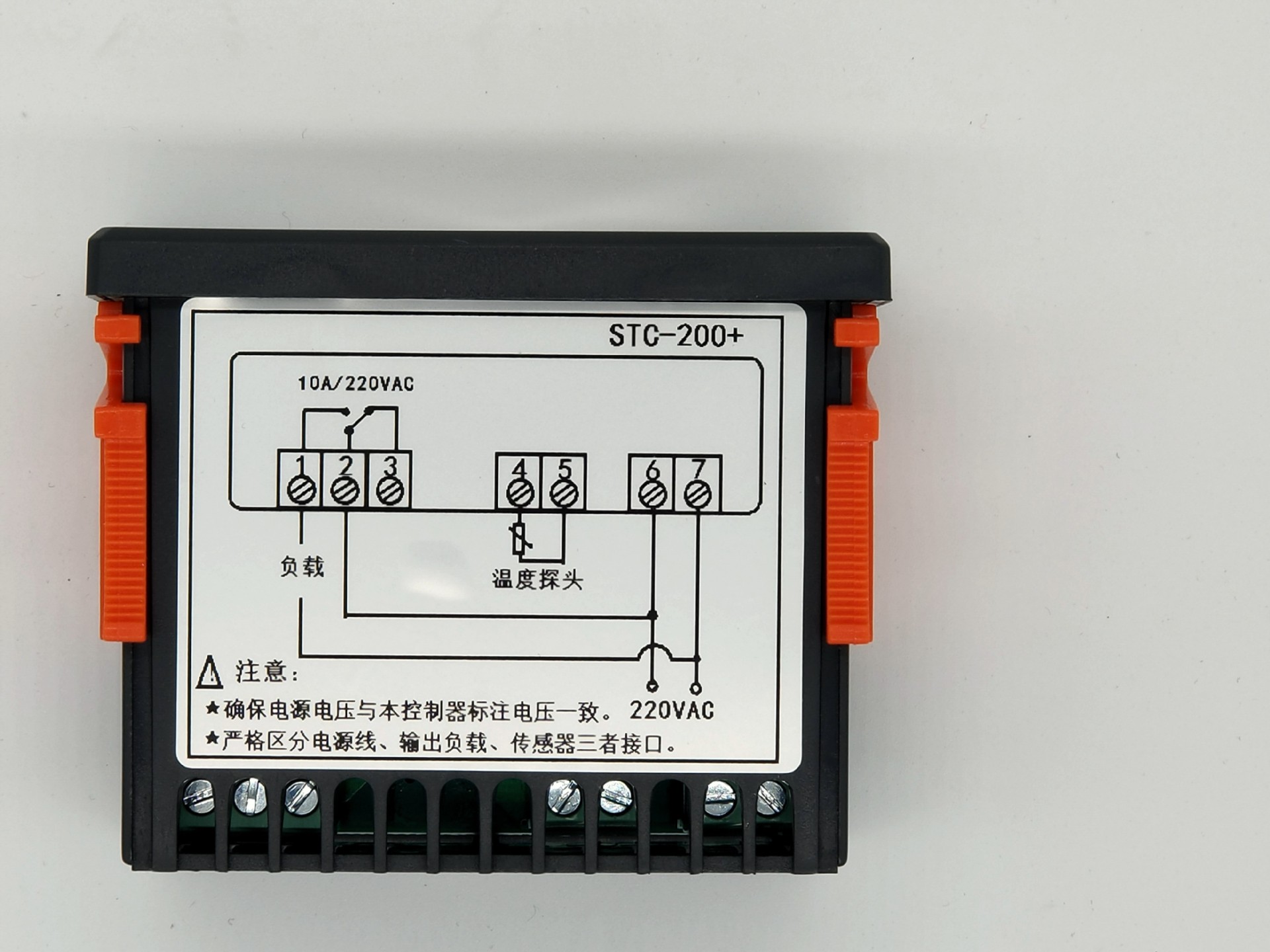

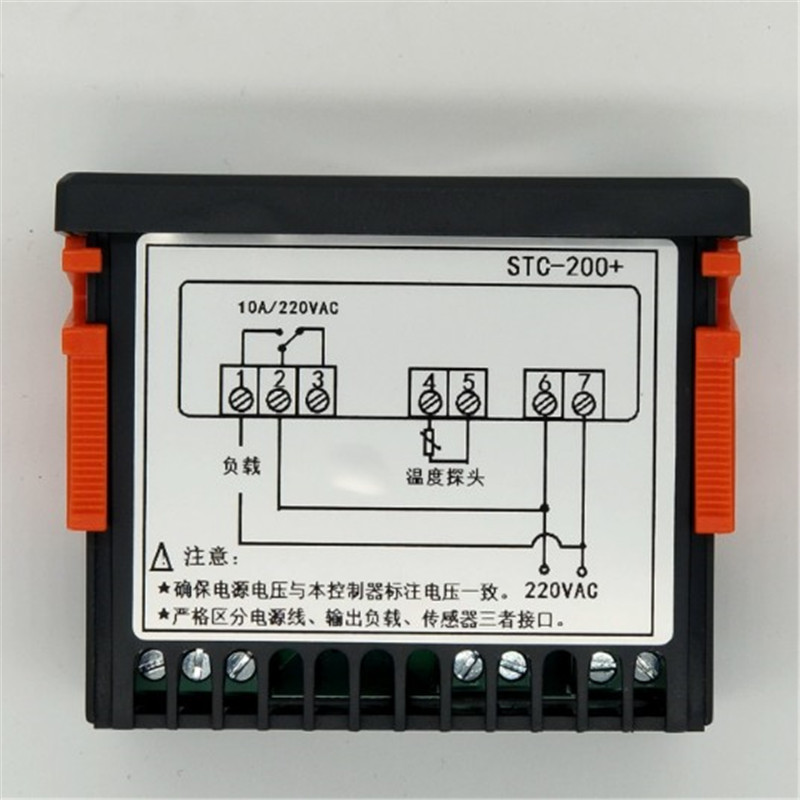

Relay Output Capacity:
Refrigeration: 10A/250VAC, always-on output, can directly drive single-phase 300W/220VAC and below loads;
Front panel protection level: IP65;
☆ Operating temperature: 0℃ to 55℃;
Storage temperature: -25℃ to 75℃.
Relative Humidity: 20～85％ (No Condensation).
Specifications and Dimensions
Panel size: 77mm (width) x 34.5mm (height).

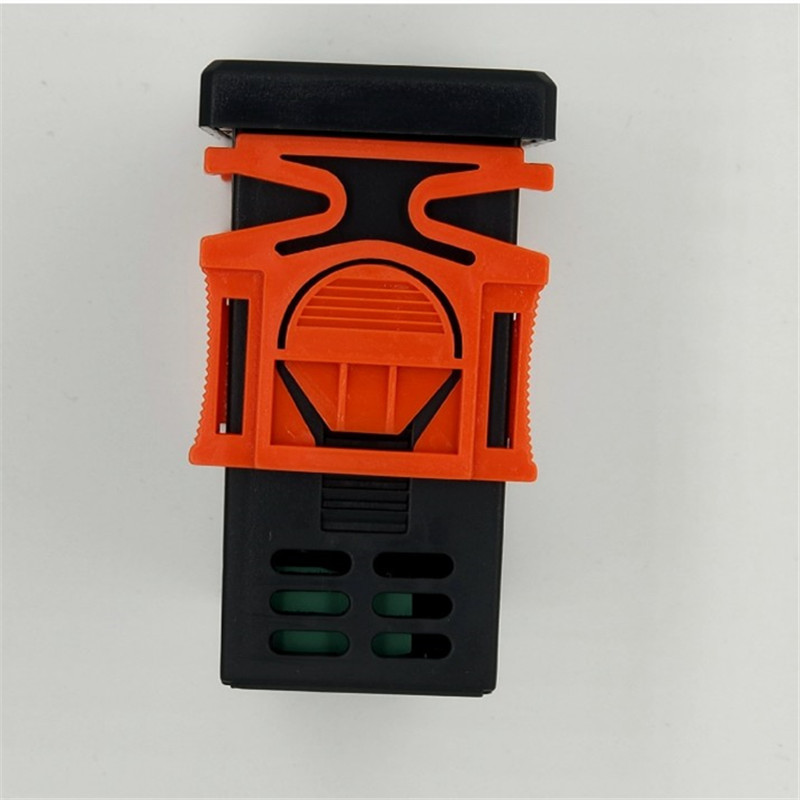

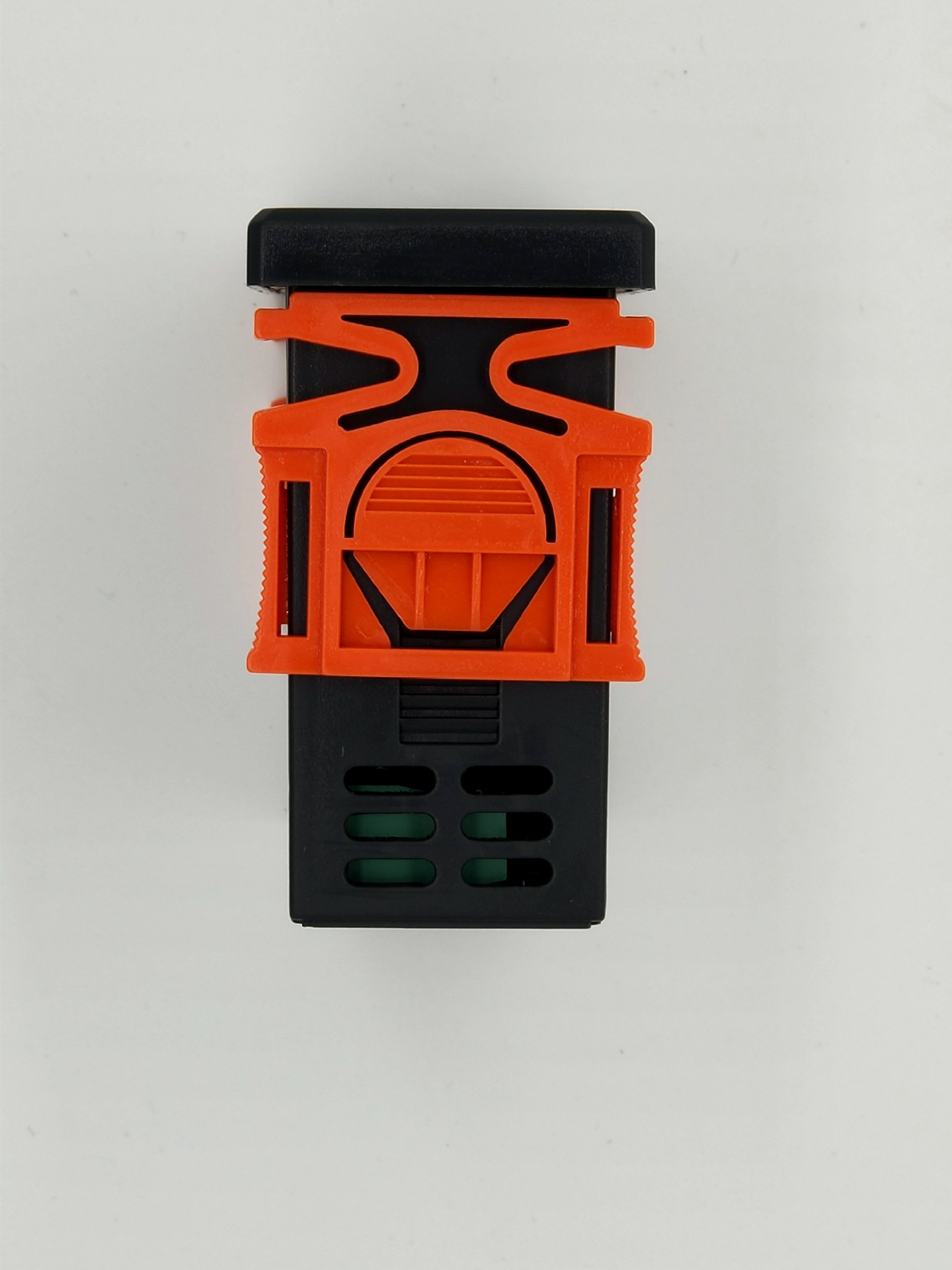

☆ Installation hole size: 71mm (width) × 29mm (height);
☆ 整机尺寸：77mm（宽）×34.5mm（高）×65mm（深）
