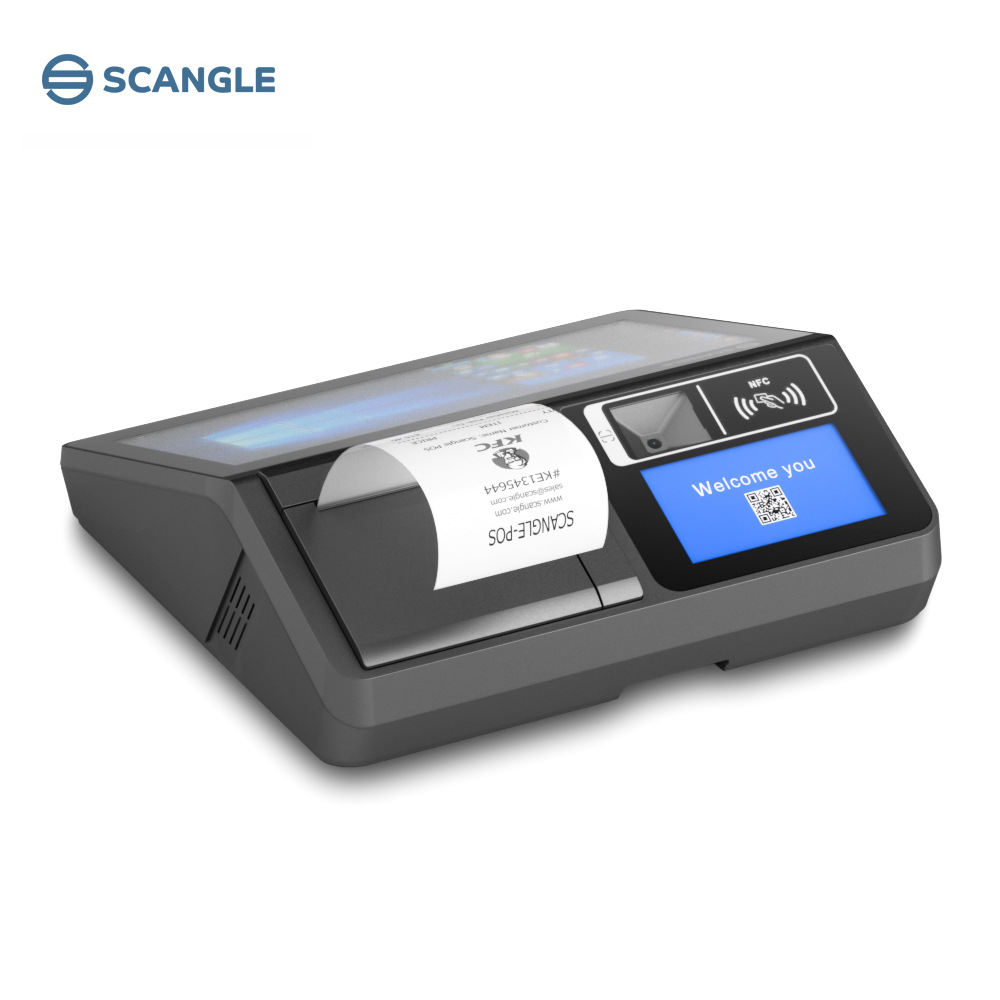

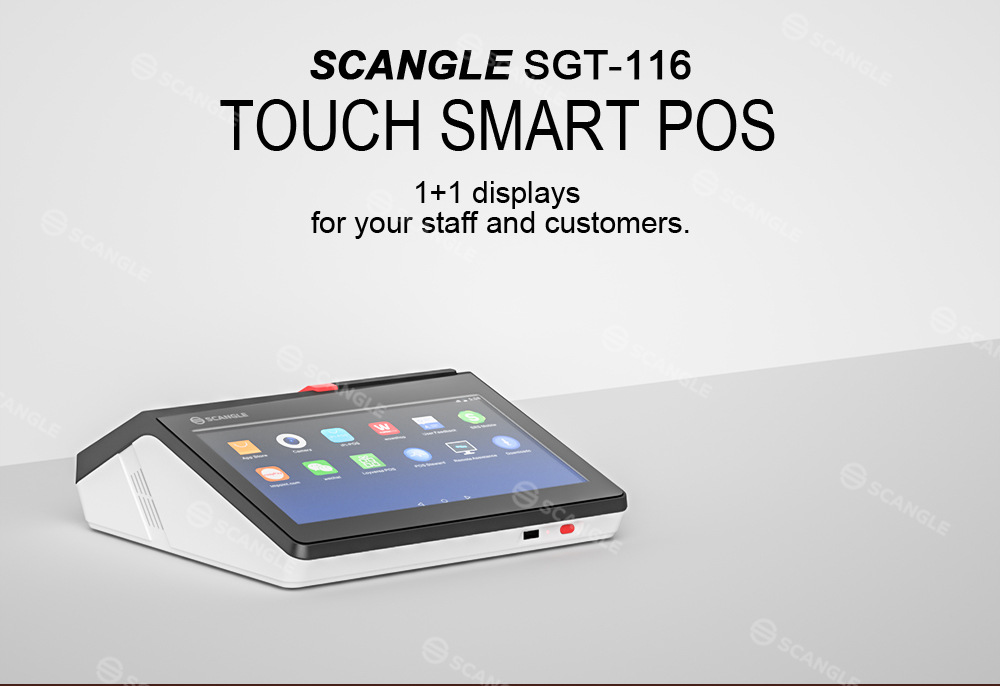

source factory 11.6-inch foreign trade export english tape 80 printing touch pos system terminal order cash register

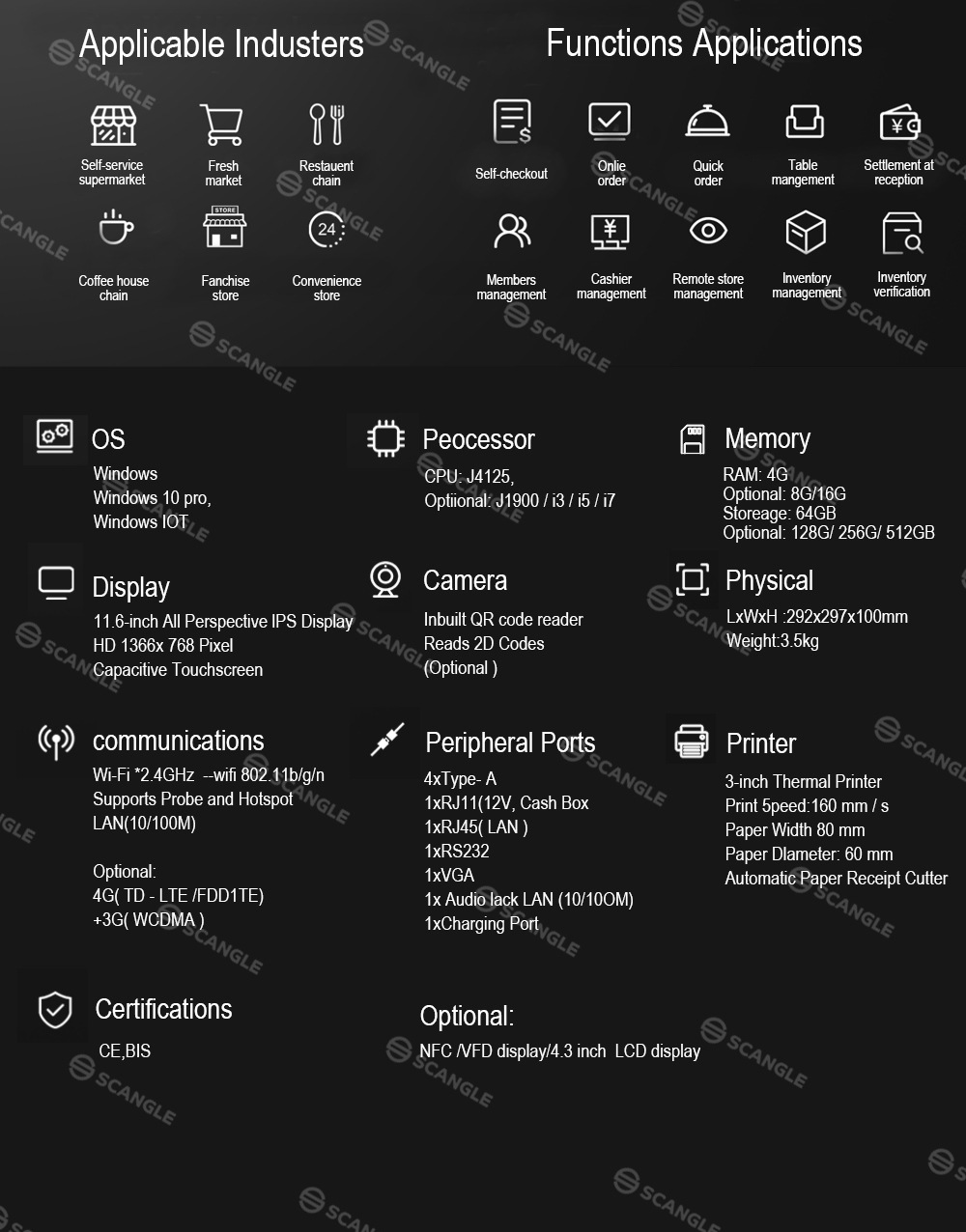

Windows version,

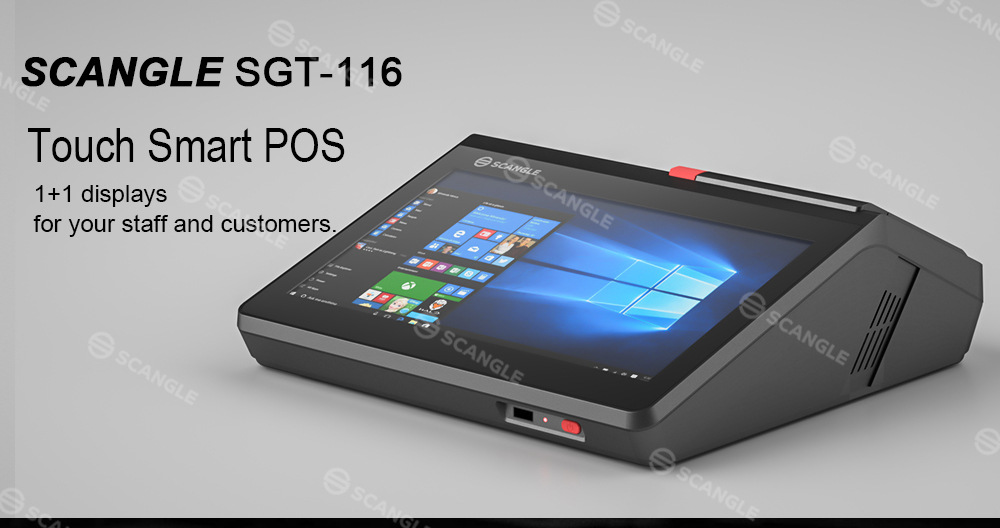

Model: SGT-116W

System: Win10 Pro English / Chinese SystemCustomizable Linux System

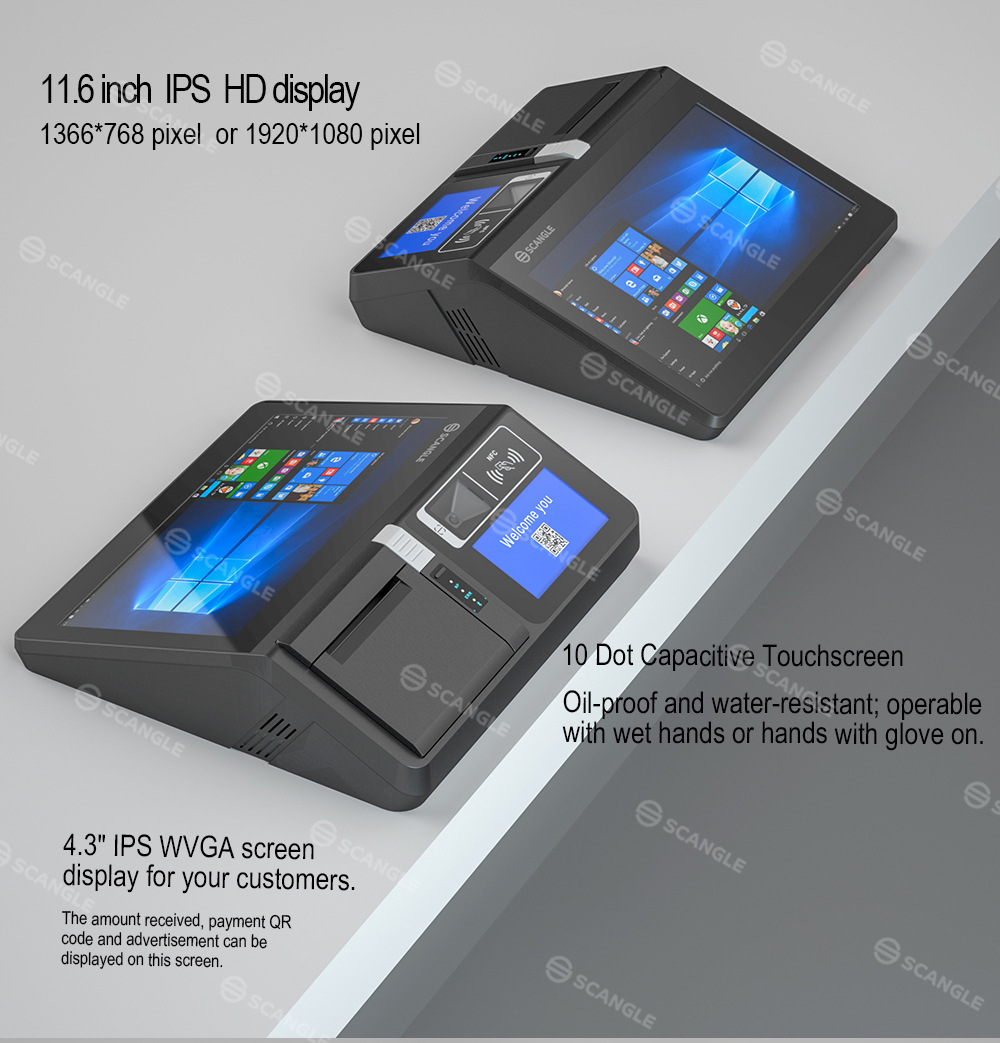

Screen: 11.6-inch IPS (BOE) original display, screen resolution: 1366*768 (Upgradable to 1920*1080) Brightness: 250CD

CPU: Intel J4125(Optional Intel J1900/i3/i5/i7)

Memory: Default 4GB(Can be upgraded to 8GB/16GB)

SSD: Default 64GB（Upgradable to 128GB/256GB）

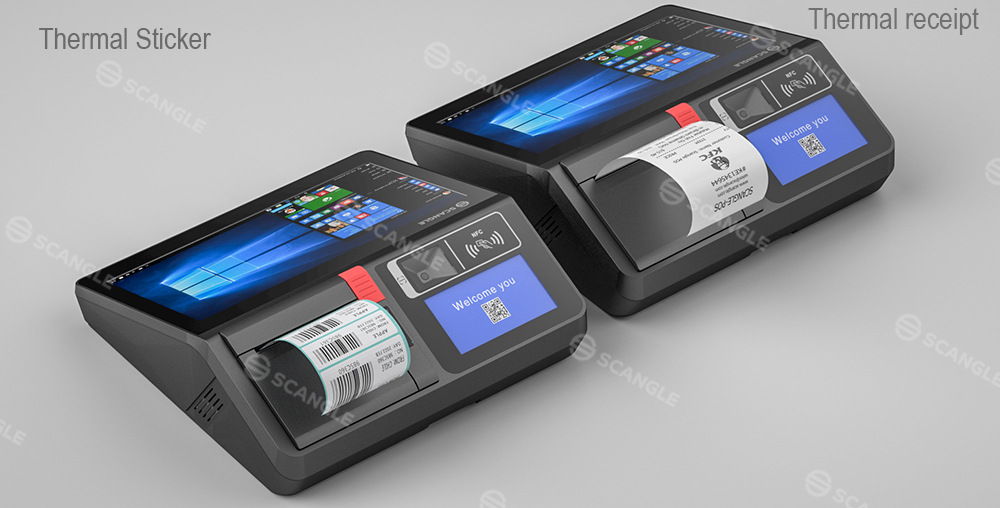

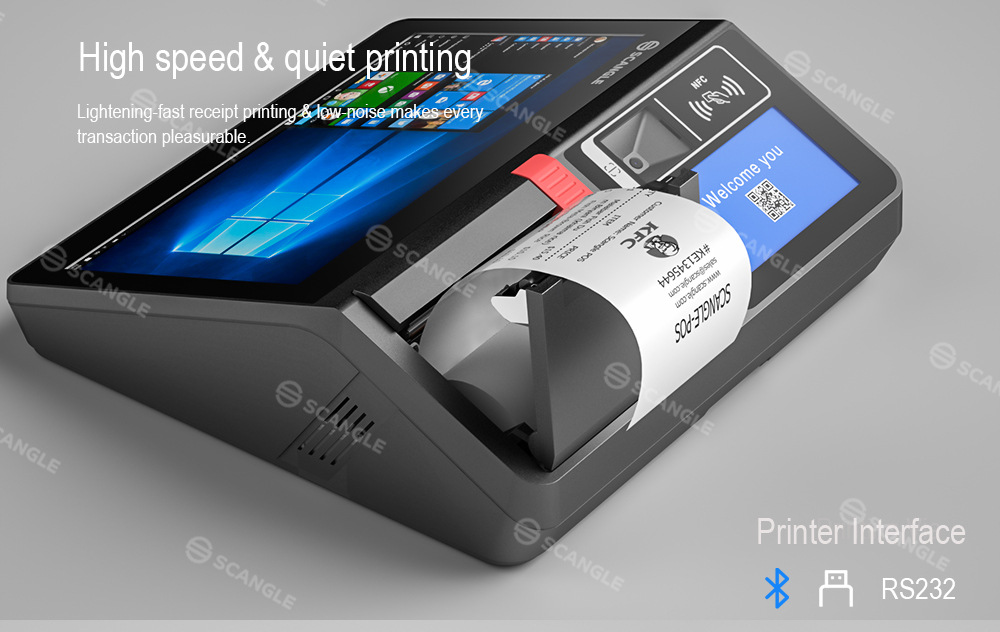

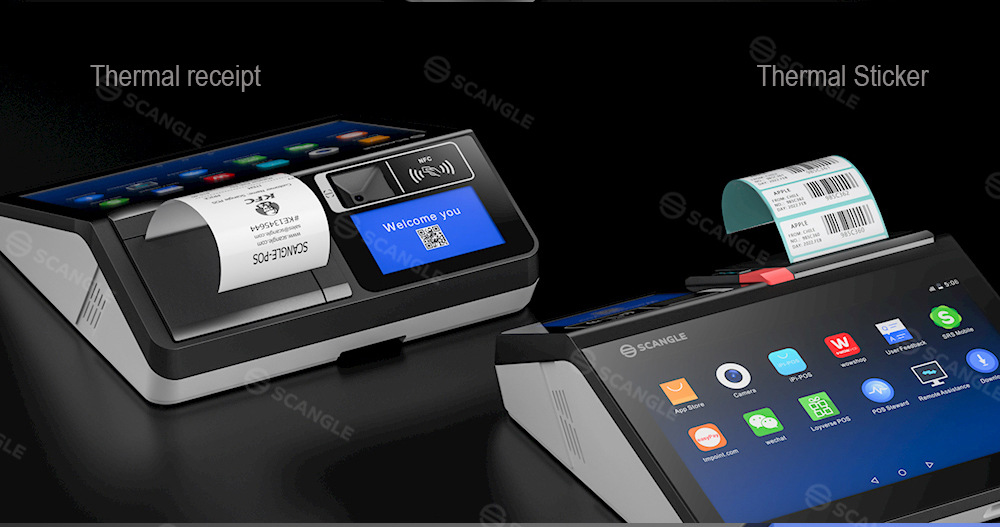

Printer:Built-in 80mm thermal printer(Supports thermal paper/thermal label paper printing,With an automatic knife, paper width: 80*60mm, print speed: 160mm/s)

Built-in printer interface: Default: USB(Optional serial port, Bluetooth communication interface. If required, please specify with customer service)

Print Language: Supports printing major languages worldwide, such as: Chinese, English, French, Spanish, Portuguese, Arabic, Hebrew, etc.

Motherboard Interface:DC*1，VGA*1，COM*1，LAN*1，USB*5(USB3.0*1)，RJ11(12V)*1，LINE-OUT*1，MAC-IN*1

Windows system standard configuration:Windows 10 Professional + CPU: J4125 + Memory: 4GB + SSD: 64GB + Built-in 80mm Thermal Printer (with Automatic Cutter, Interface: USB)

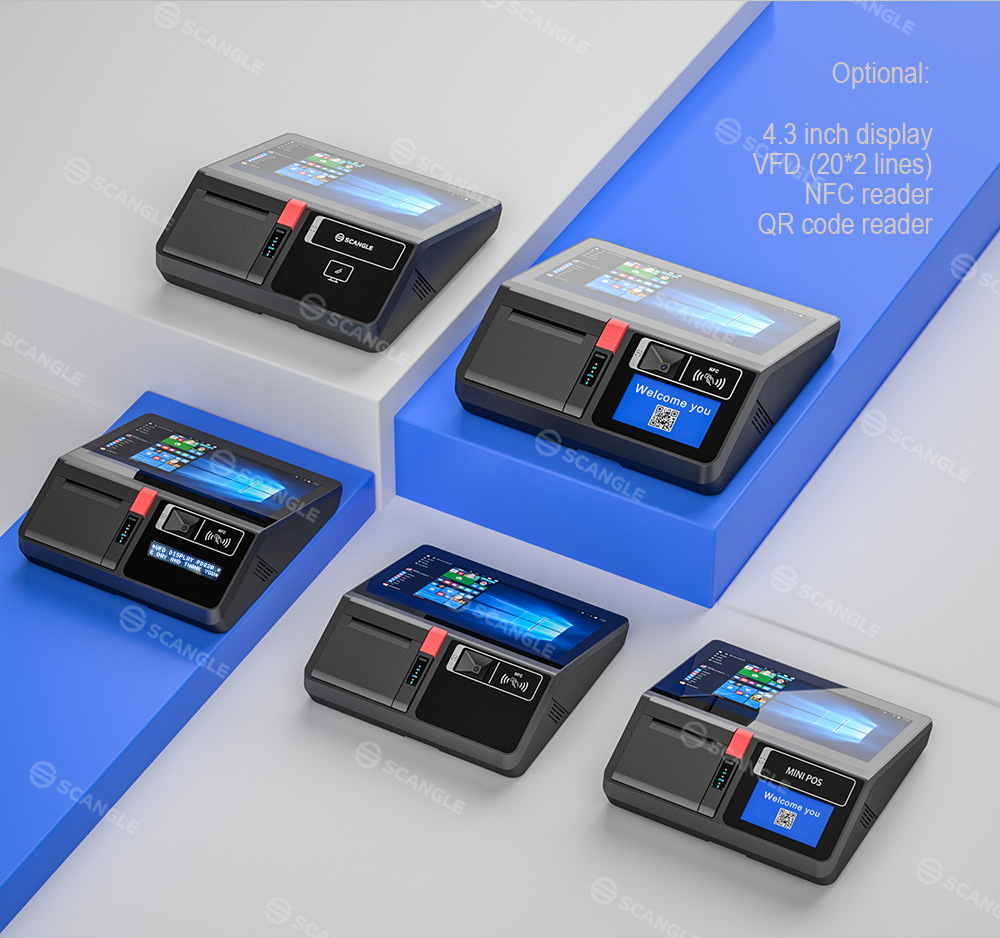

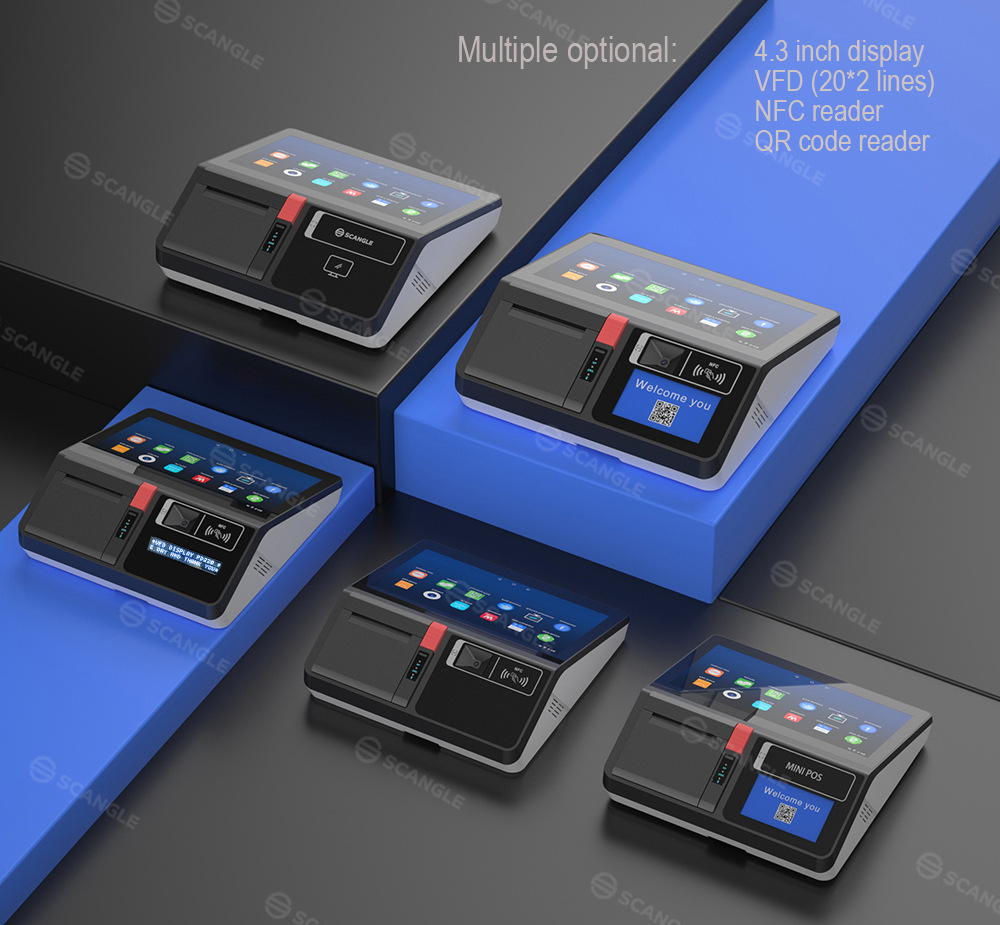

Option Function:

1. HornVoice announcement function

2. Printer BluetoothConnect your mobile phone to the Bluetooth and send commands to the printer through the APP.

3. WIFIConnecting to the WiFi network for internet access.

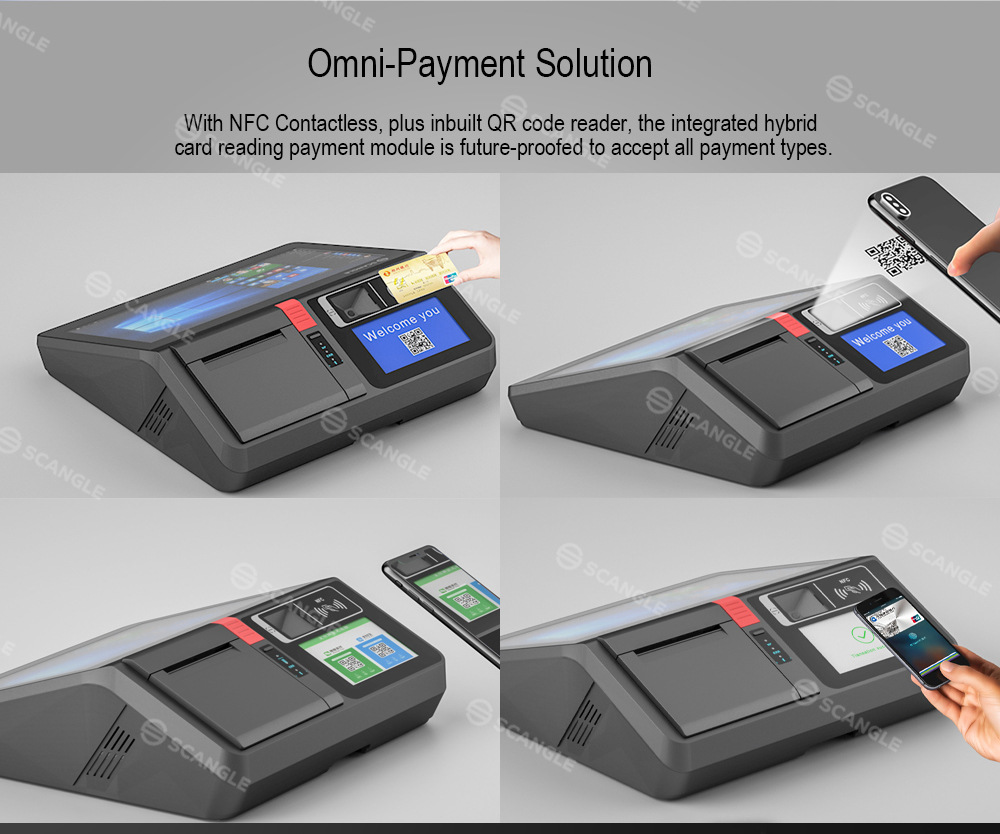

4. NFCSupports ISO14443 TYPE A standard / Mifare standard cards

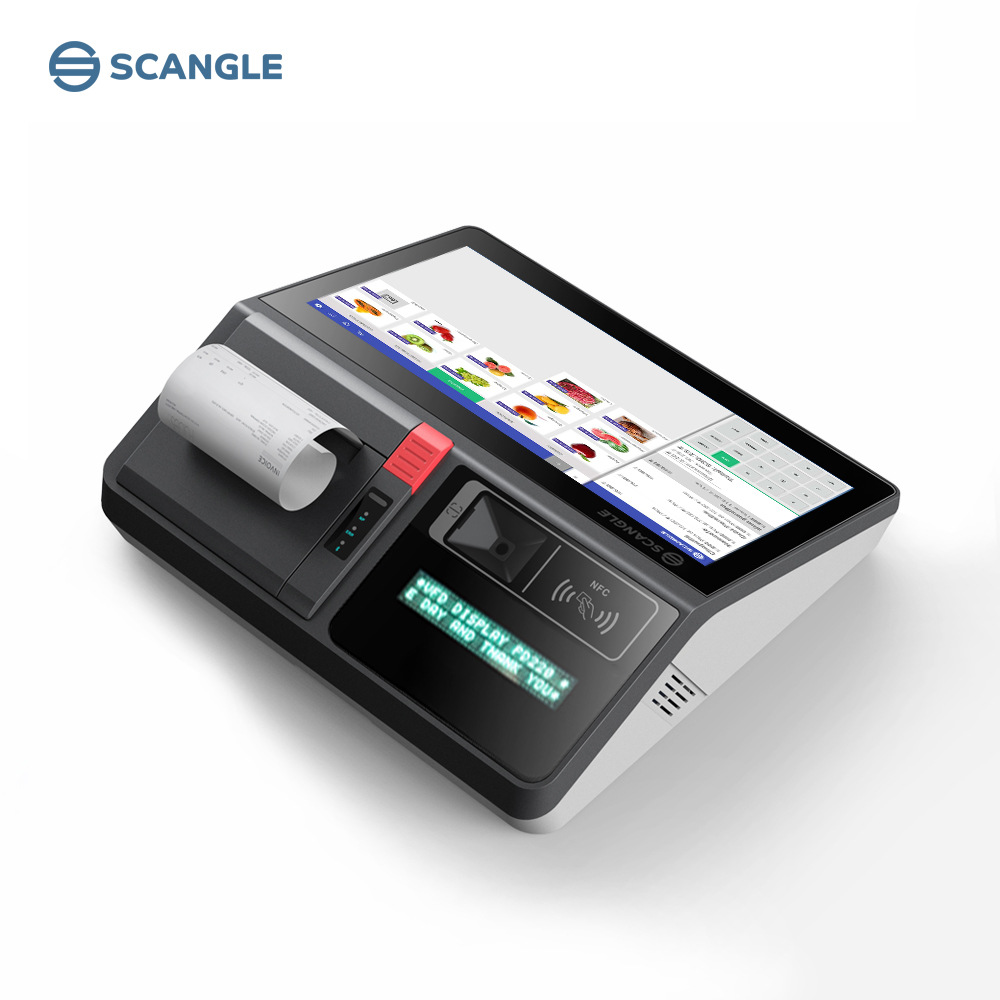

5. VFD Guest Display（20*2 display, supports multiple languages. Provides SDK development package）

6.4.3-inch secondary screenSupports dual screen display

2D barcode scannerMobile payment quick scan and read

Upgrade to a resolution of 1920*1080High-score display screen

If you have any questions, please consult the customer service.

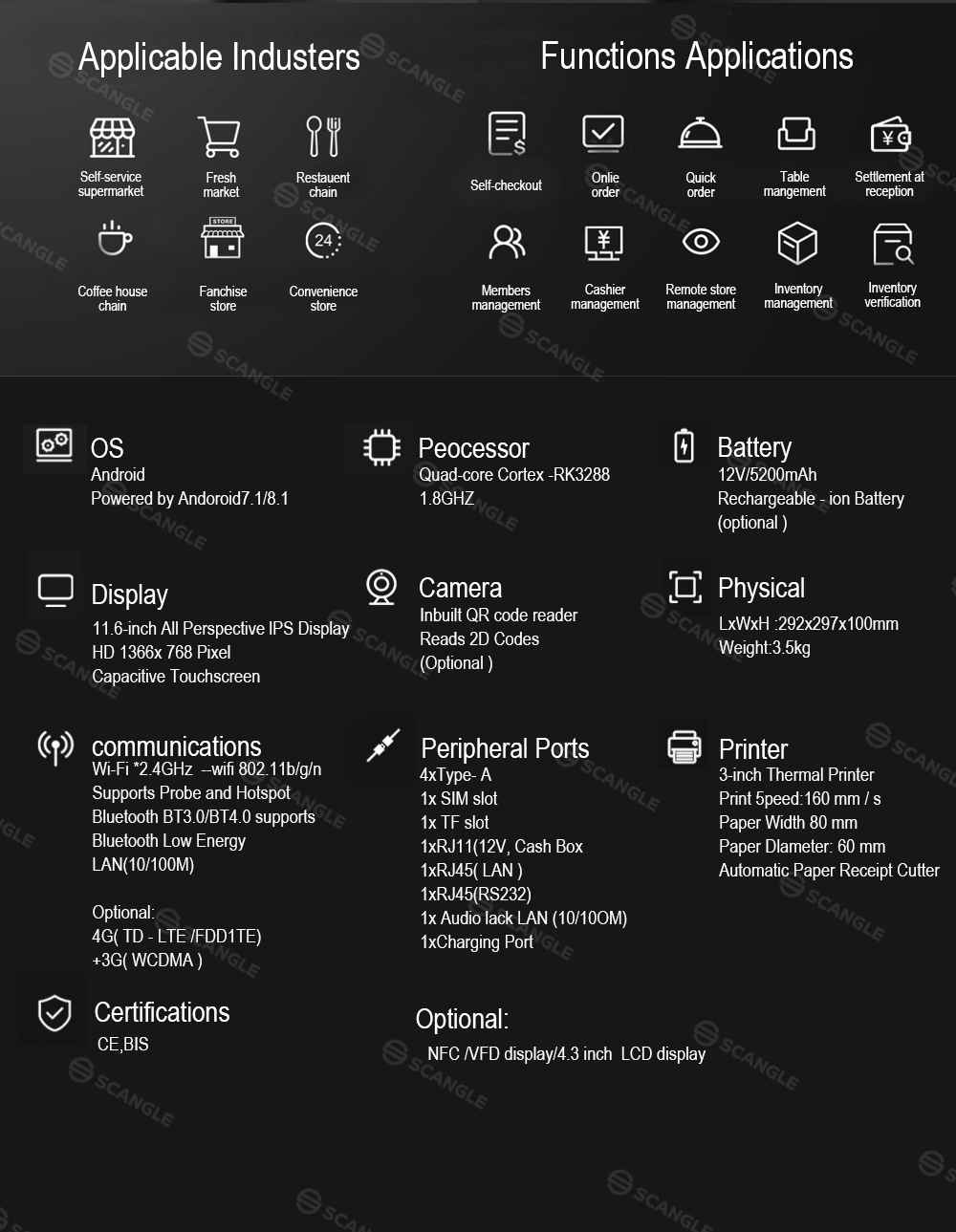

Android version,

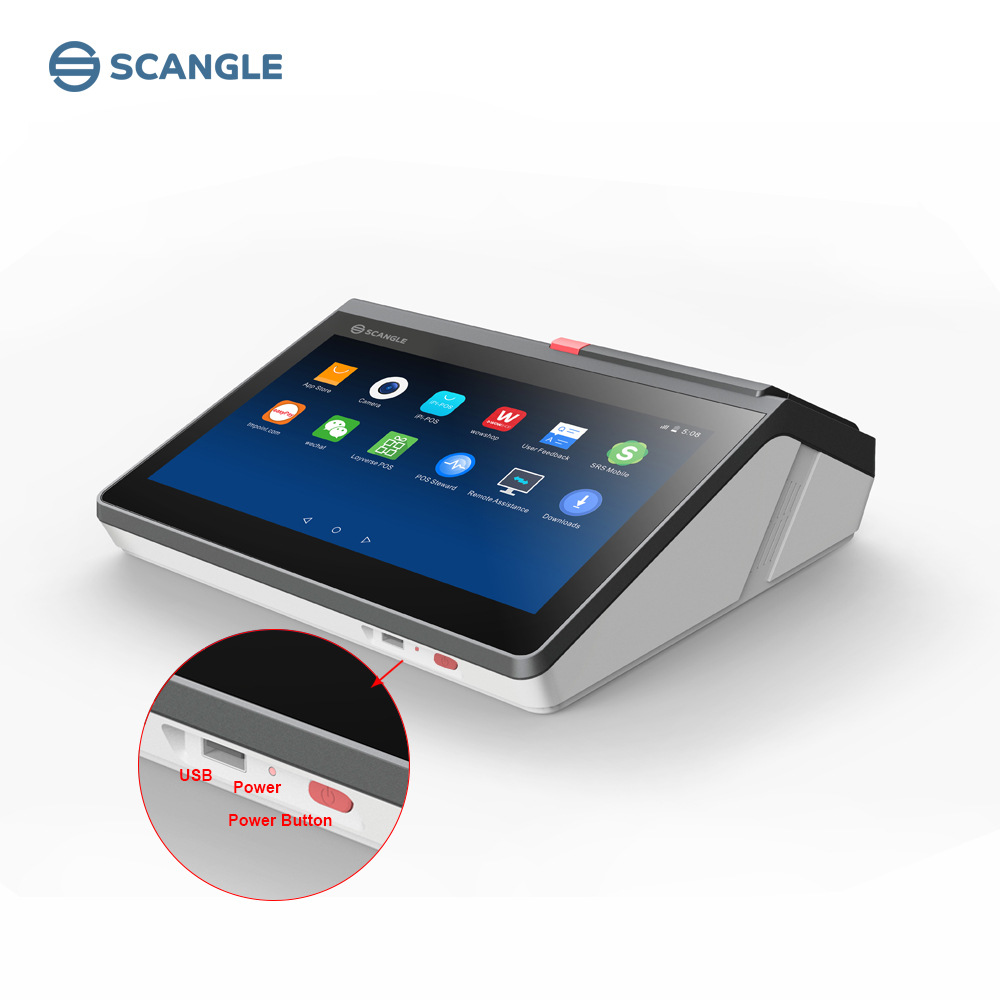

Model: SGT-116A

System: Default Android 7.1,Android 8.1/Android 11(Defaultly supports WIFI and Bluetooth functions, and the system language can be switched to the main languages worldwide in the language setting.

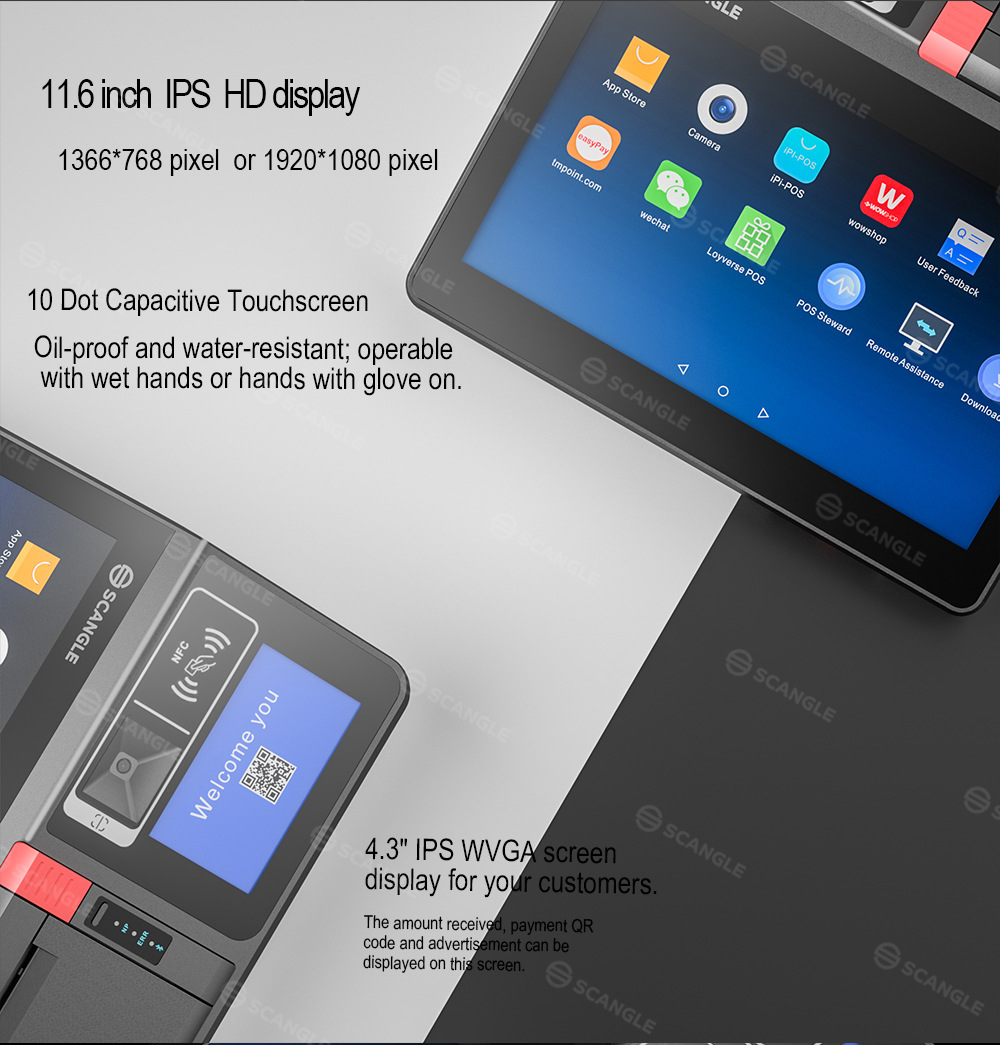

Screen: 11.6-inch IPS (BOE) original display, screen resolution: 1366*768 (Upgradable to 1920*1080)Brightness: 250CD

CPU: RK3288 quad-core, 1.8GHz

RAM: Default 2GB(Upgradable to 4GB)

ROM: Default 16GB（Upgradable to 32GB)

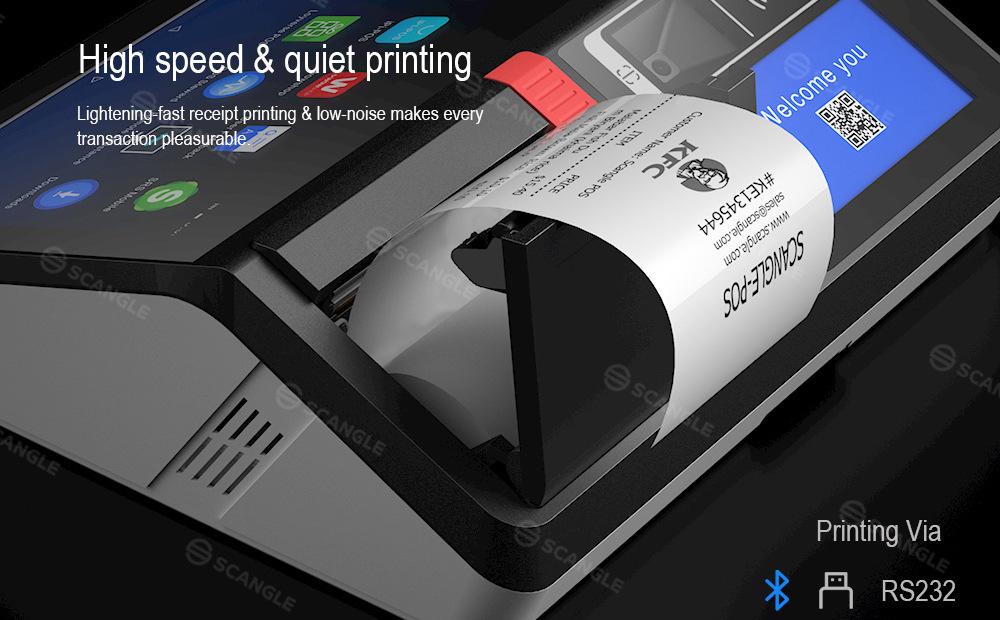

Printer:Built-in 80mm thermal printer(Supports thermal paper/label printing, with an automatic cutter, paper width: 80*60mm, print speed: 160mm/s)

Built-in printer interface: Default: USB + Bluetooth(Optional serial communication interface, please indicate if required to customer service)

Print Language: Supports printing major languages worldwide, such as: Chinese, English, French, Spanish, Portuguese, Arabic, Hebrew, etc.

Motherboard Interface:： "DC*1，COM*1，LAN*1，USB*5(USB3.0*1)，RJ11(12V)*1，SIM Card *1，TF Card*1

Android system standard equipment:Android 7.1+CPU: RK3288+RAM: 2GB+ROM: 16GB+Built-in 80mm thermal printer (with automatic cutter, interface: USB+Bluetooth)

Option Function:

1. HornVoice announcement function

BatteryPower outage can continue to work

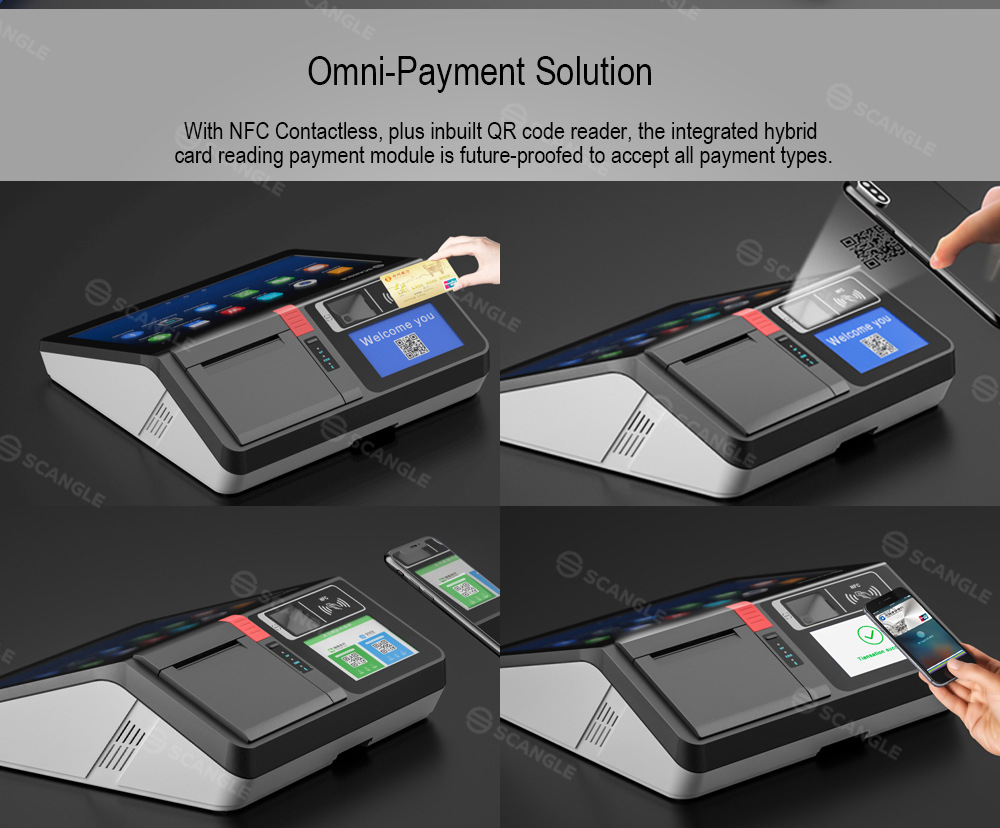

2.NFC(Supports ISO14443 TYPE A standard/Mifare standard cards.

4. VFD Guest Display（20*2 display, supports multiple languages. Provides SDK development package）

5.43-inch secondary screenSupports dual screen display

2D barcode scannerMobile payment quick scan and read

Upgrade to a resolution of 1920*1080High-score display screen

8.4G module（指可插SIM卡连接4G网络）

If you have any questions, please consult the customer service.
