TaiwanThe following are the translated results: - ME300 Series - MS300 Series - MH300 Series - CH2000 Series - C2000 Series - VFD-B Series - CP2000 Series

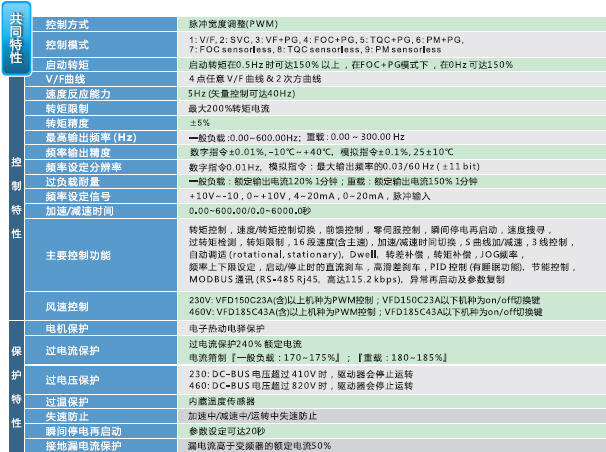

Technical Specification:

Integration of Induction Motor and Synchronous Motor Control

Speed/Torque/Position Control Mode

Built-in 10k capacity PLC

Standard configuration with LCD panel, optional with LED.

Overload Capacity: General Load Rated Output Current 120% for 1 Minute; Heavy Load Rated Output Current 150% for 1 Minute

Built-in DC reactors (37kW), brake braking unit (30kW)

Embedded CANopen fieldbus and Modbus, and can be selected: DeviceNet, Profibus, Modbus TCP and EtherNet-IP

Built-in temperature sensor

DC-BUSDC Bus can be parallel shared

Through-the-wall installation method, which enhances the protection level of the system.

Detachable fan, control terminals

Enhanced environmental tolerance and protection

Application field:

Large fans, pumps, winding equipment, air compressors, machine tool equipment, precision processing centers, food packaging, medical equipment, dyeing and printing equipment, elevator hoisting industry, etc.
