Packing details
carton size: 460 x325x440(mm)
quantity per box: 30 sets
weight: 15KG
color box size: 225x135x65 (mm)
A set of weight: 450g

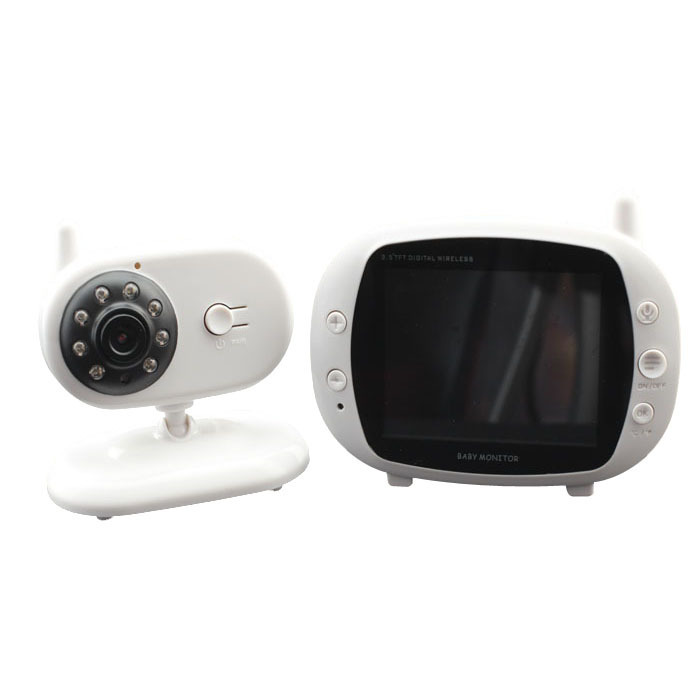

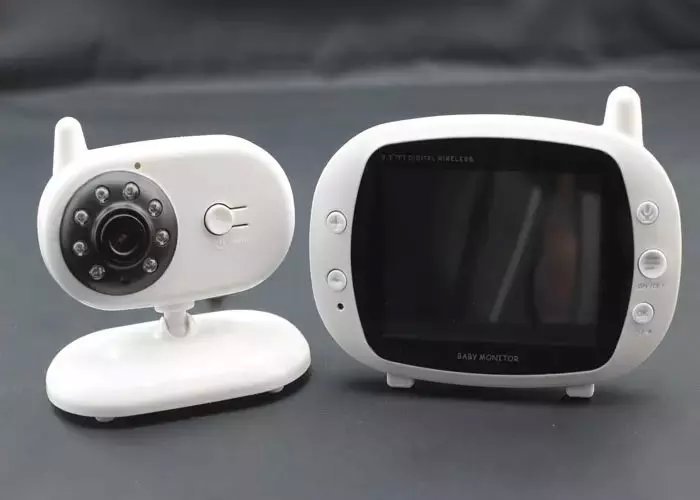

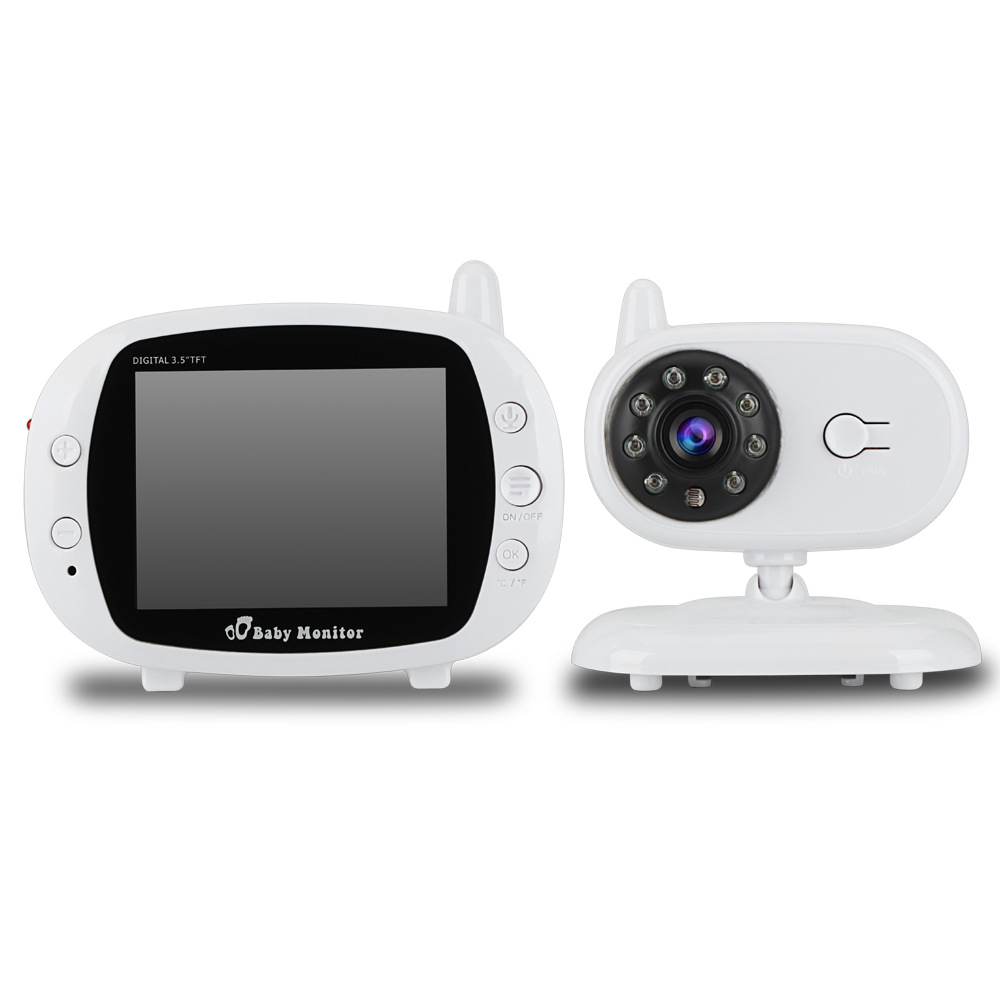

product selling points:
> 2.4g wireless digital signal transmission, more than 250 frequency hopping, free from WIFI interference
> digital signal encryption transmission, good security
> barrier-free transmission distance reaches 200 meters, partition wall distance is 30 meters

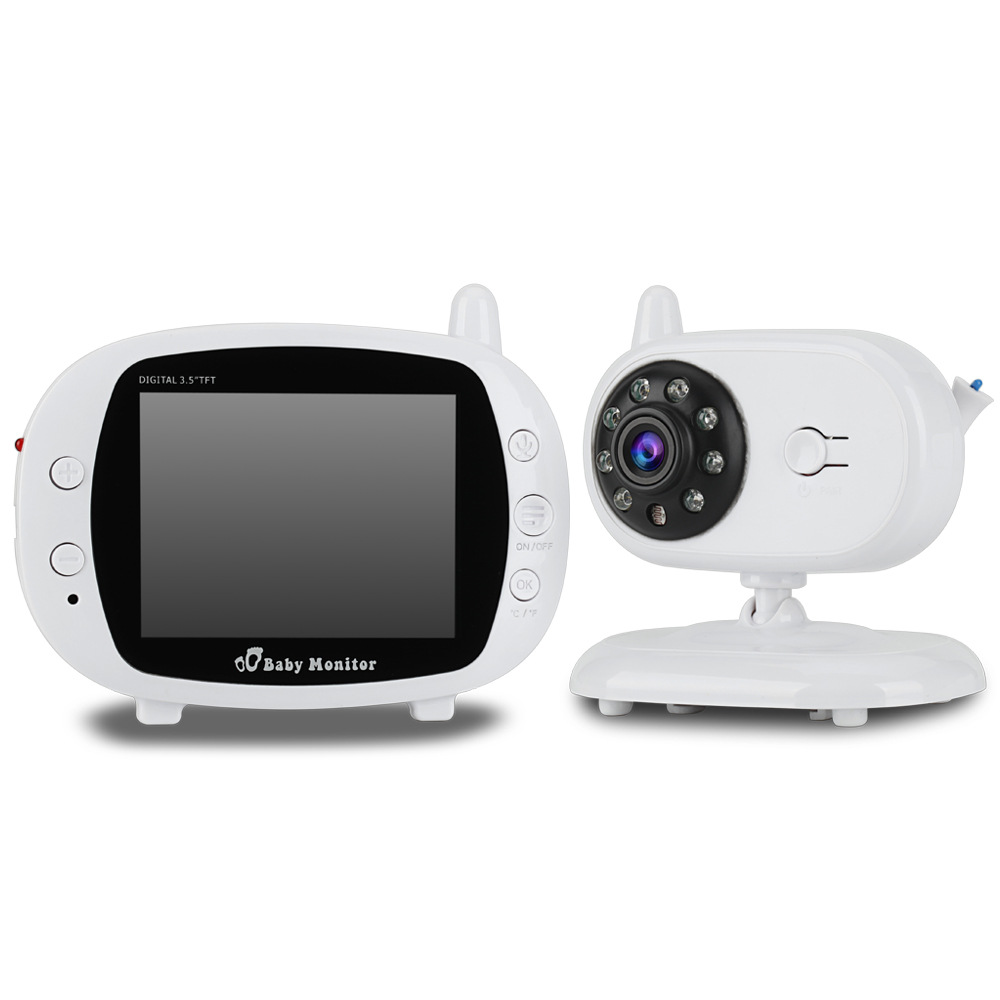

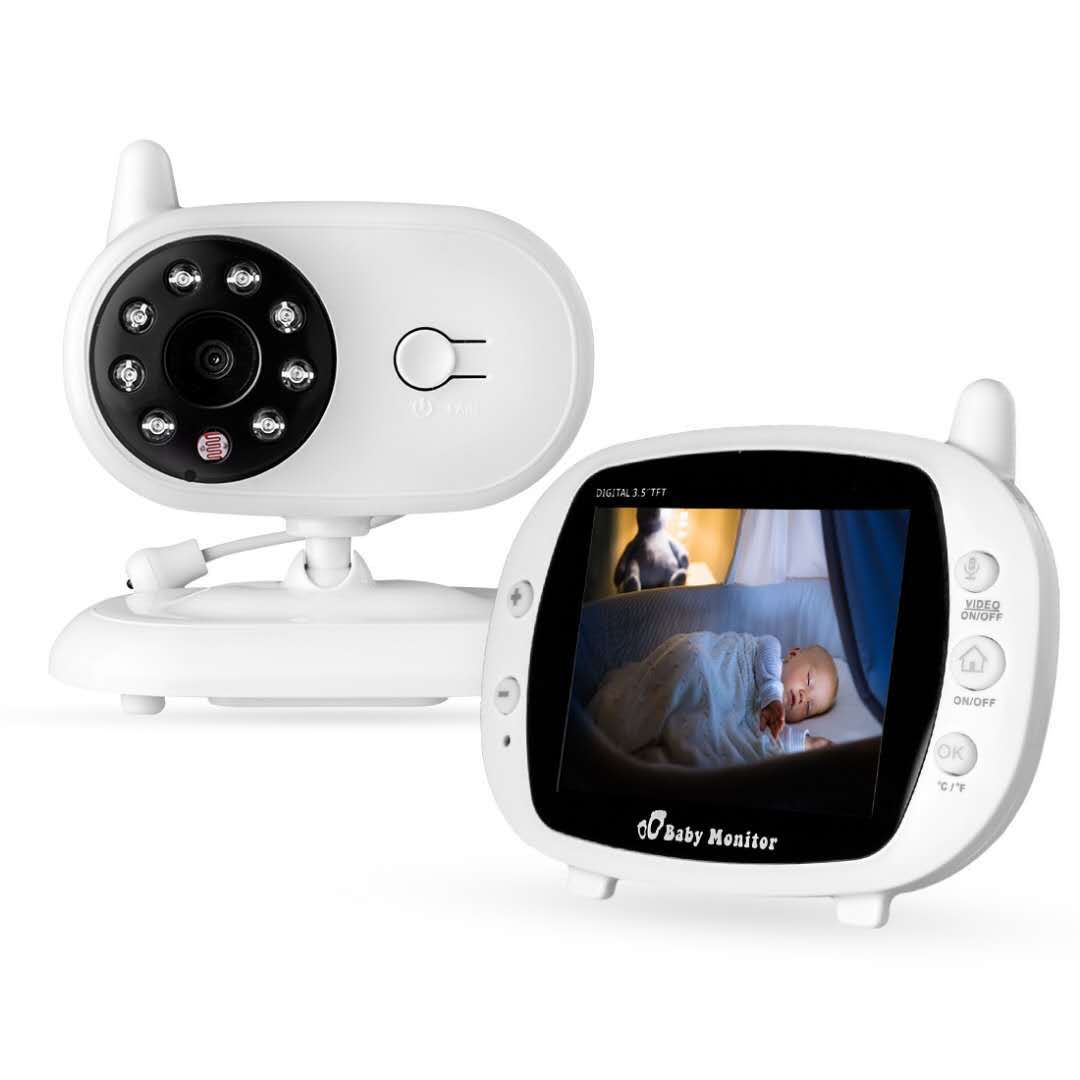

> 3.5-inch HD LED screen, more clear Image Display
> both the camera and monitor have built-in batteries, and the service time exceeds 2H.
> Built-in baby sleeping hypnosis, you can control the camera to play through the screen
> monitor with temperature display, Celsius and Fahrenheit switching
> baby monitor with two-way intercom function
technical parameters
|
project |
parameter |
||
|
transmission frequency |
|
ISM 2,400~2,483 MHz 4 frequency points * |
|
|
modulation mode |
|
FM |
|
|
antenna |
|
camera: omnidirectional antenna; Receiver: built-in hidden |
|
|
transmission distance |
|
100m |
|
|
operating temperature |
|
-10 ℃ ~ +50 ℃/ +14 ~ + 122F |
|
|
storage Temperature |
|
-20 ℃ ~ +60 ℃/ -4 ~ + 140F |
|
|
working humidity |
|
85%RH |
|
|

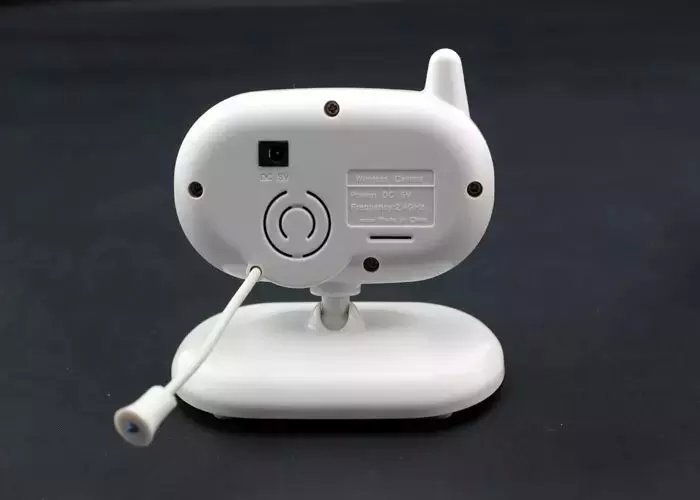

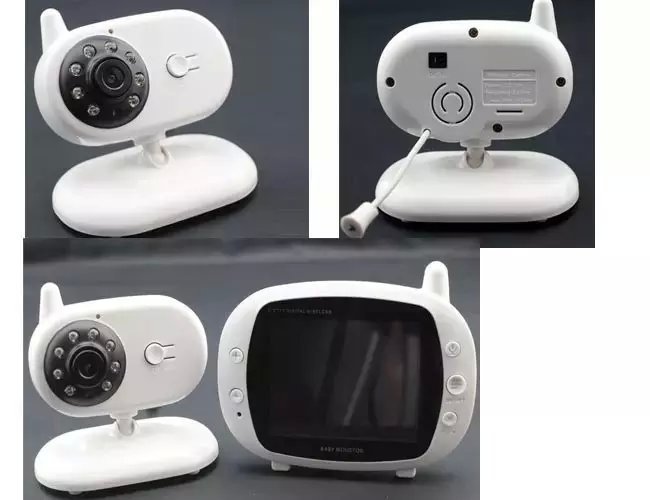

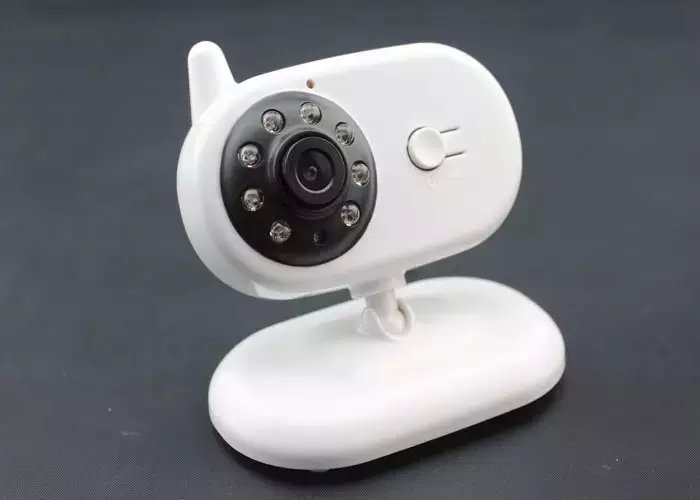

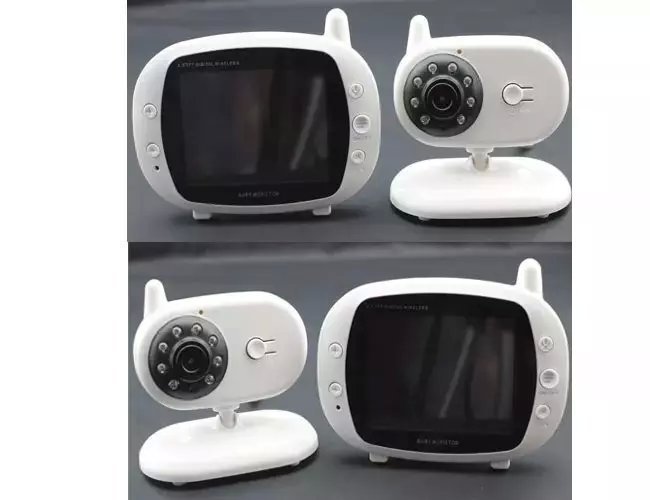

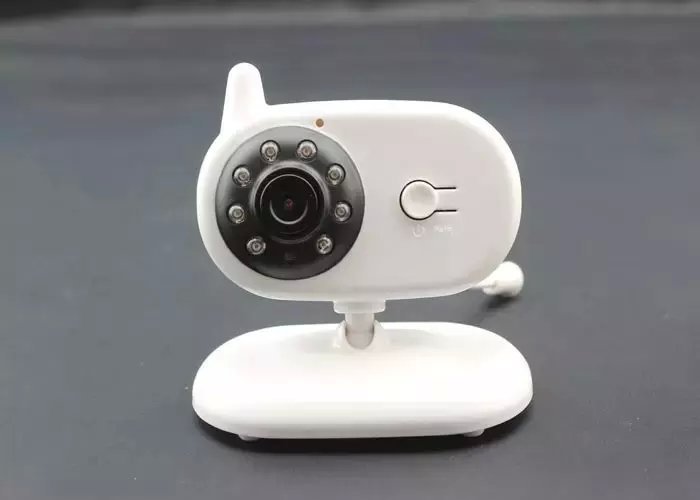

camera |
photosensitive chip |
CMOS |
|
|
image pixels |
628×582(PAL);510×492(NTSC) |
||
|
perspective |
PAL:62° NTSC:46° |
||
|
minimum illuminance |
1.5Lux/F1.5 |
||
|
transmission power |
80MW |
||
|
power supply |
DC 5V 1A |
||
|
night vision distance |
8m |
||
|
size |
* 57mm * 67mm |
||
|
weight |
120g |
||
|

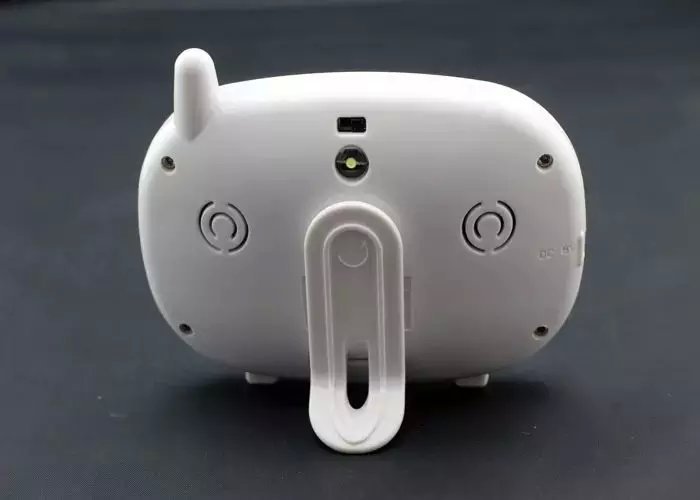

receiver |
receiving sensitivity |
≤-85dBm |
|
|
LCD screen material |
TFT |
||
|
lcd size |
3.5" |
||
|
resolution |
480 × 240 |
||
|
effective area |
49.2mm × 38.142mm |
||
|
point distance |
0.1025mm × 0.163mm |
||
|
visual angle (up/down/left/right) |
10°/ 30°/ 45°/ 45°(Min.) |
||
|
brightness |
250 cd/m3 |
||
|
contrast |
15;1 |
||
|
consumption current |
DC 12V 700mA |
||
|
size |
80mm * 80mm * 50mm |
||
|
weight |
180g
|
||
380TVL display, 480X234 resolution
built-in lithium battery, it can be used after charging, reducing the trouble of replacing the battery
digital RF modulation with frequency hopping function (RF channel automatically switched)
dynamically select clear channels to avoid interference from other 2.4GHz Devices
data privacy protection (user ID identification is supported)
hypnosis music playback function
temperature display function
two-way intercom supports data encryption
night vision function (valid range: 5 m)
both receiver and camera have built-in microphone and speaker
open space transmission range up to 300m (990 feet)
