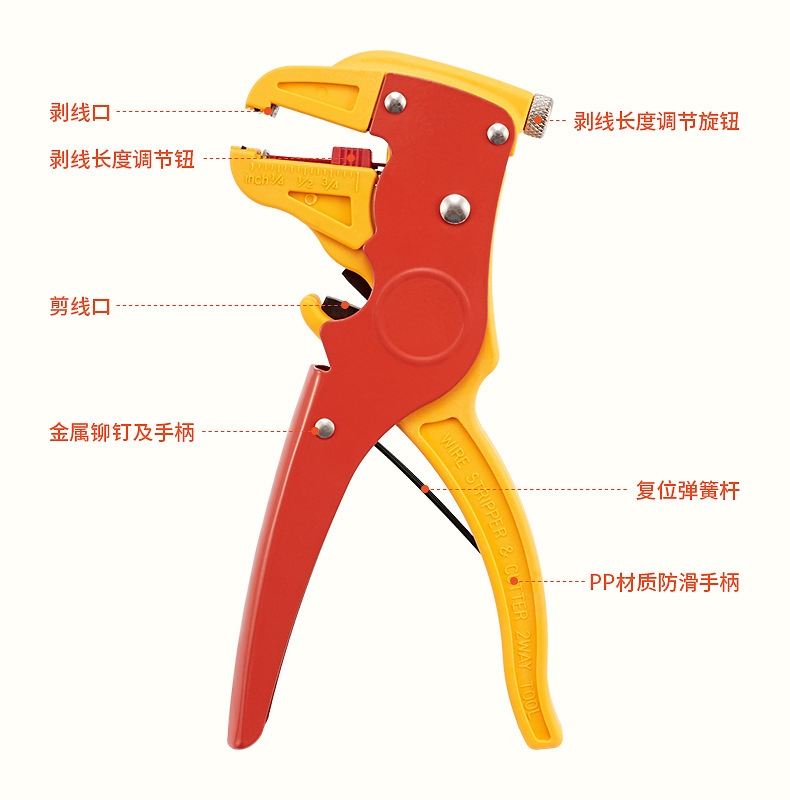

Product material: front handle: nylon PA worker/rear handle: high carbon steel/ wire stripper mouth: alloy steel/Spring: high quality steel

process: front handle: Injection Molding/rear handle: spray paint

product features (scope of use):

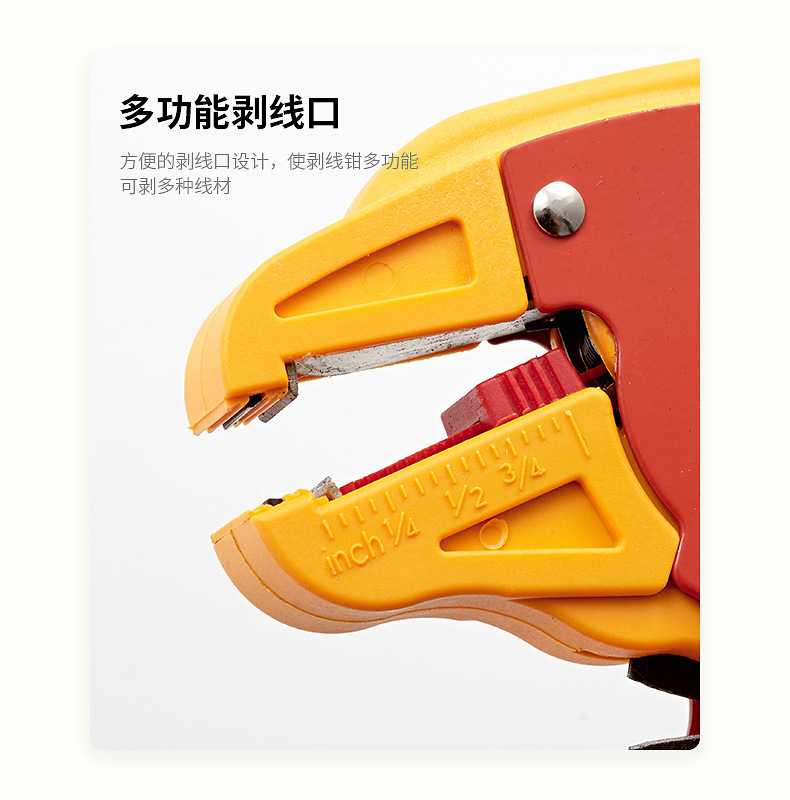

a) stripping:

single Core: 0.5-2mm; AWG12-24,0.2-3.3mm ²/multiplied yarn AWG10-24,0.2-5.5mm ²/cable AWG24-20,0.2-0.5mm ²

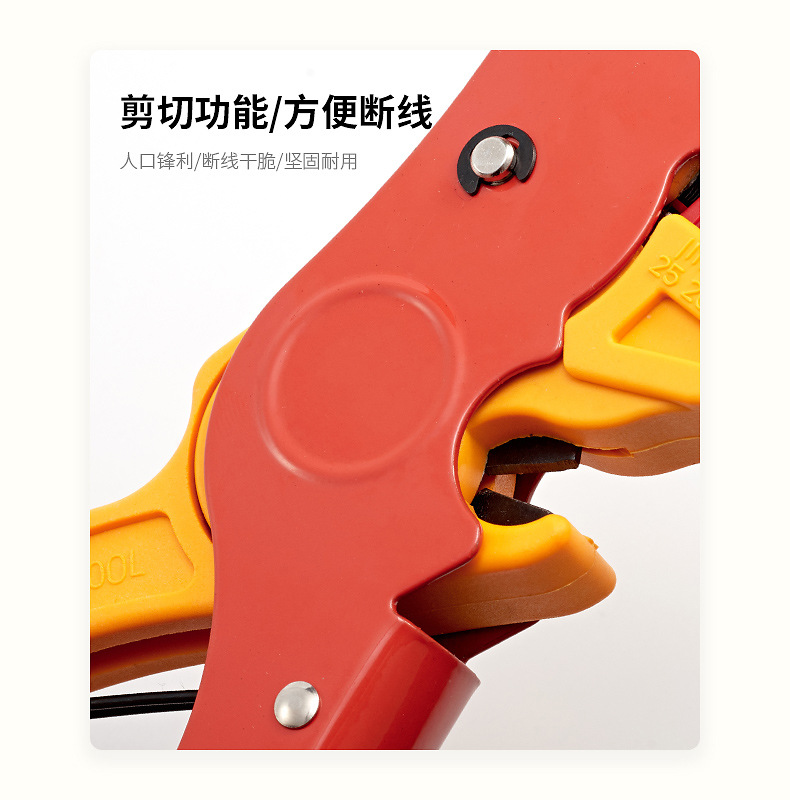

b) Disconnection:

single Core: 0.32-1.6mm; AWG14-28,0.08-2.0mm/multiplied yarn AWG12-28,0.09-3.5mm/cable AWG24-20,8mm(MAX)

product description:

1. The stripping strength can be adjusted, suitable for insulated wire of different thickness, without damaging the copper core.
2. Adjustment range of glue stripping length: 2mm-20mm
3.8mm wide and flat cable wide can be peeled, and wider cable can be peeled for many times.

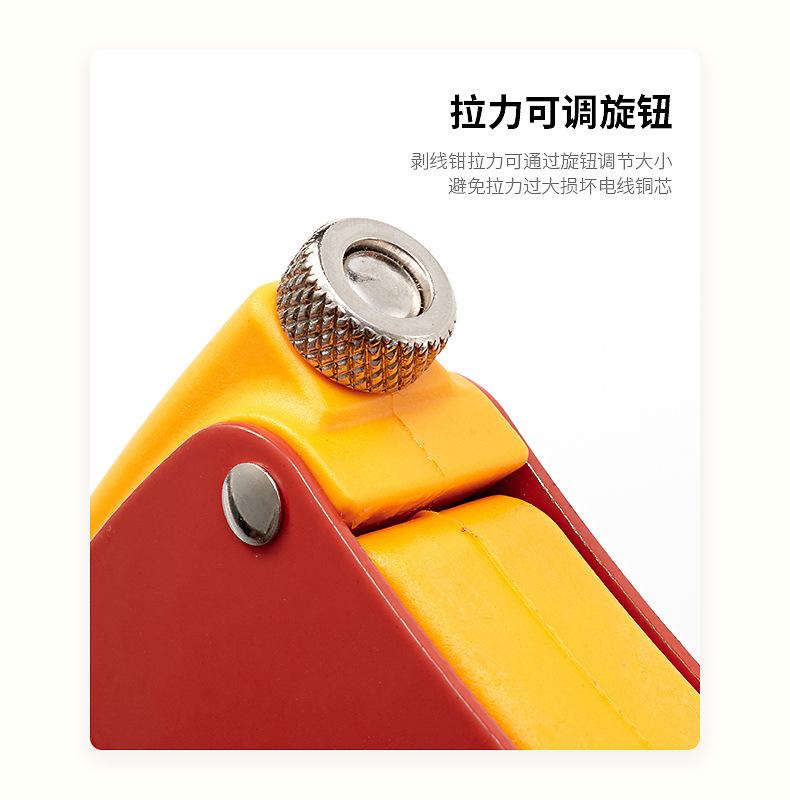

4. Pulling force adjustment knob: wire stripper pulling force can be adjusted by using the knob to avoid excessive pulling force damaging the copper core of the wire. The pulling force is increased clockwise and the pulling force is reduced anticlockwise.
