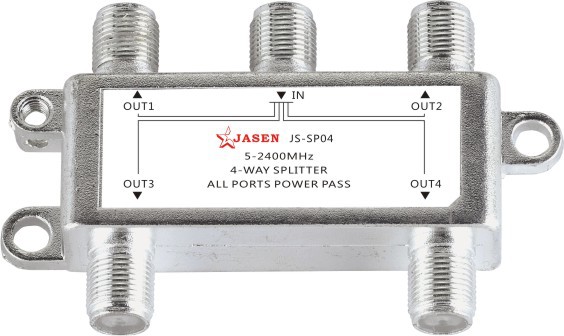

Features:
zinc alloy die-casting shell with tin plating
small size and light weight
easy to install, the holes on both sides are used to fix the main body
shielding degree: 5-2400MHz ≥ 100dB
low insertion loss, high isolation and excellent performance index
designed for SATV/CATV
input and output can pass the maximum current: 24V0.8A
75Ω F joint design
parameter description:
|
frequency range (MHz) |
insertion loss (dB) |
isolated from each other (dB) |
reflection loss (dB) |
|
5-40 |
≤ 8.0 |
≥ 22 |
≥ 10 |
|
40-1000 |
≤ 8.5 |
≥ 25 |
≥ 12 |
|
1000-1750 |
≤ 9.5 |
≥ 22 |
≥ 12 |
|
1750-2400 |
≤ 11.0 |
≥ 20 |
≥ 10 |
|
Frequency Range (MHz) |
Insertion Loss(dB) |
Mutual Isolation(dB) |
Return Loss(dB) |
|
5-40 |
≤ 8.0 |
≥ 22 |
≥ 10 |
|
40-1000 |
≤ 8.5 |
≥ 22 |
≥ 12 |
|
1000-1750 |
≤ 9.5 |
≥ 20 |
≥ 12 |
|
1750-2400 |
≤ 11.0 |
≥ 20 |
≥ 10 |
