| sp-02 | CN¥ 0.0 | 8261 only available |
|
A new item has been added to your Shopping Cart. You now have items in your Shopping Cart.
runda communicaton tech producs 5yr.
Contacts:Jenny Chat
Mobile:86-15817368069
E-mail:Jenny18686@163.com

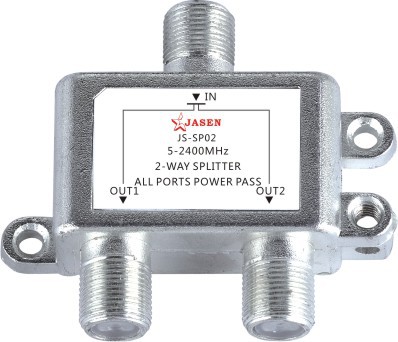

Features:
Zinc alloy die-casting shell with tin plating
Small in volume, light in weight
Installation is simple, with holes on both sides to secure the main body.
Shielding: 5-2400MHz ≥ 100dB
Low insertion loss, high isolation, excellent performance indicators.
Designed specifically for SATV/CATV
Input and output current capacity: Maximum 24V0.8A
75ΩF Type Joint Design
Parameter Description:
|
Frequency Range (MHz) |
Insertion Loss (dB) |
Mutual isolation (dB) |
Reflective Loss (dB) |
|
5-40 |
≤3.5 |
≥14 |
≥10 |
|
40-1000 |
≤3.8 |
≥25 |
≥12 |
|
1000-1750 |
≤4.0 |
≥22 |
≥12 |
|
1750-2400 |
≤4.5 |
≥22 |
≥10 |
