lz-1 foreign trade thermal belt heating aromatherapy crystal tea wax tablets cating machine candle butter lamp can filling machine

Note: For large items, shipping is not included in the package.

Direct orders without confirmed addresses or incorrect shipping fees may not be shipped. Please understand and thank you for your cooperation.

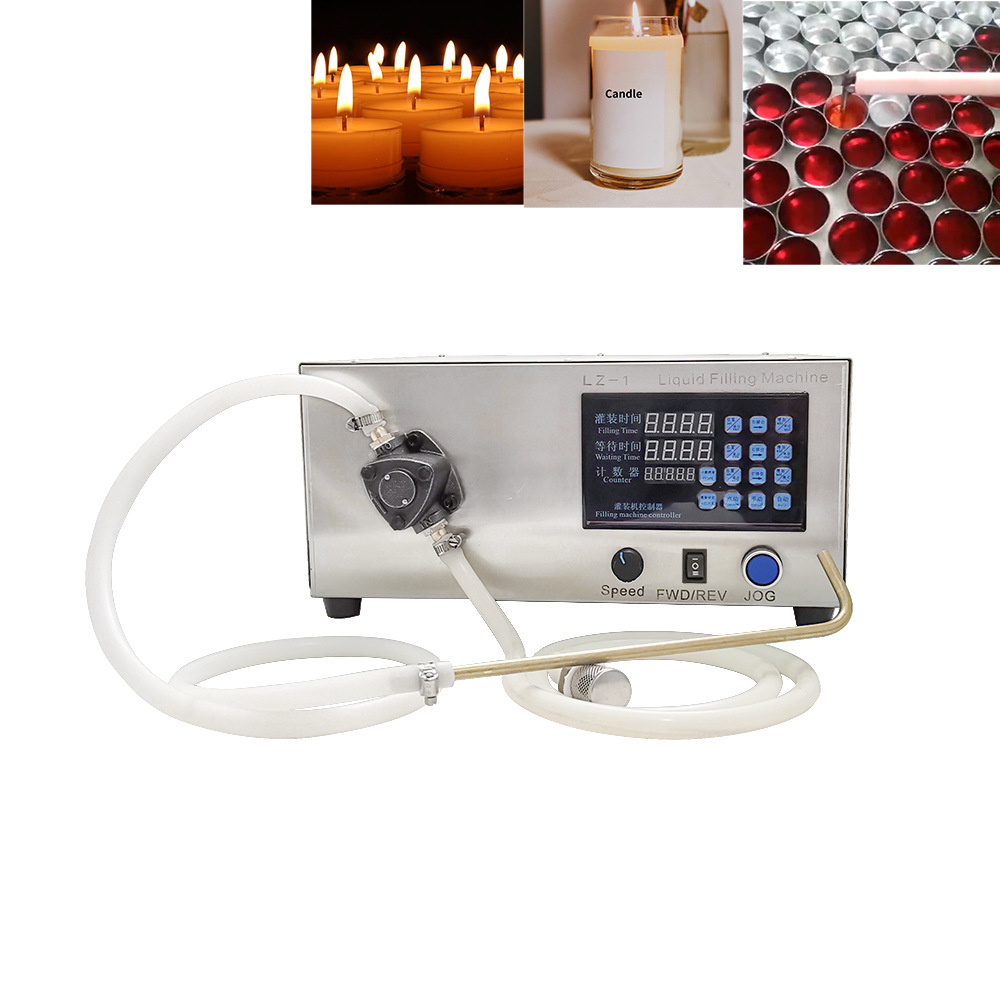

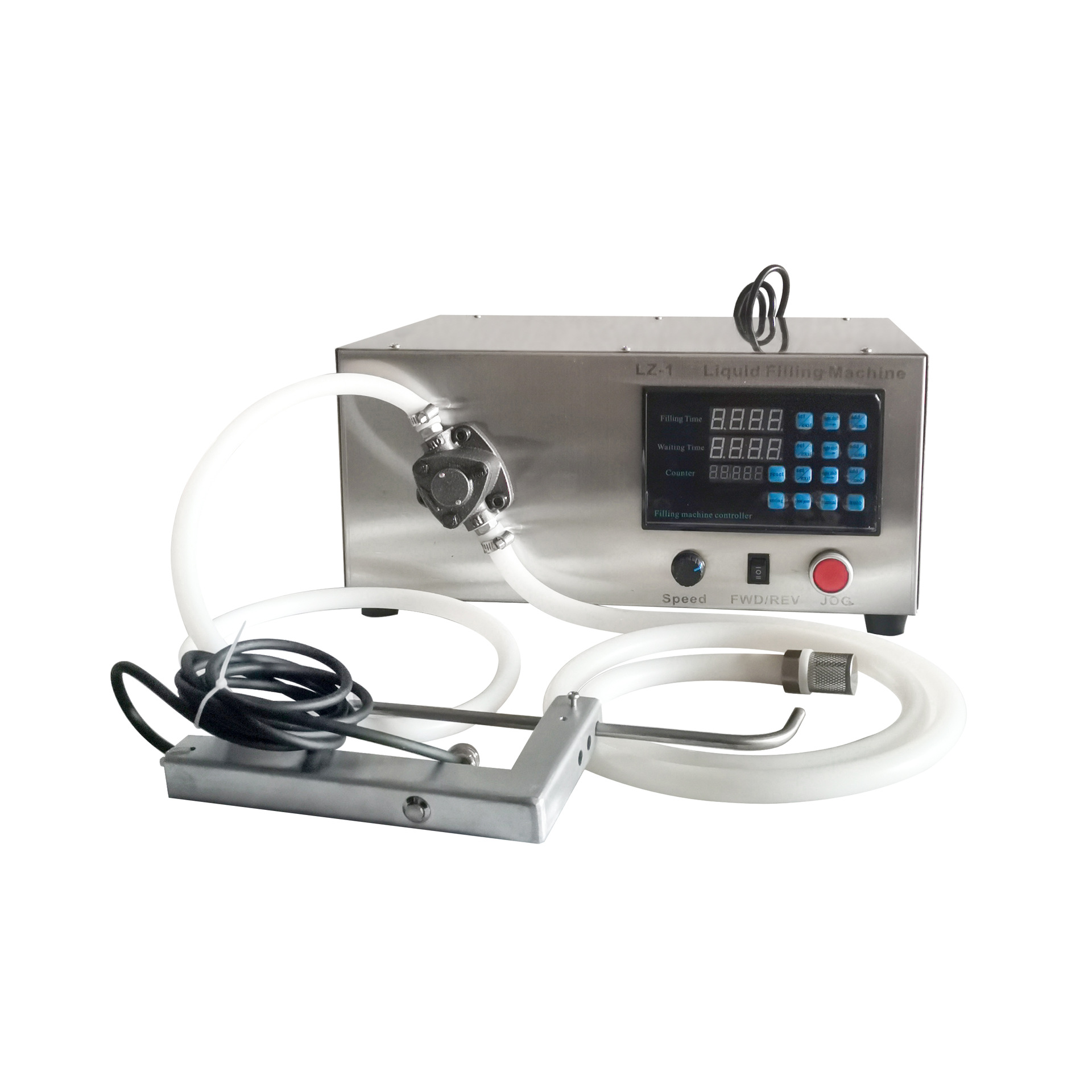

This machine is a specialized machine for filling crystal candle, tea oil, and other oil-based materials. It has forward and reverse wax return functions, a large power, is not easy to clog, and if it does clog, it is easy to clean up.

This machine uses a micro-motor self-suction cycloid pump head and is controlled by a microcomputer to set the working and interval times of the pump, enabling automatic and quantitative filling. It is suitable for filling 5ml or more oily liquids, such as candle wax, shortening, crystal candles, cooking oil, and salad oil.

If you need to fill candles, melt them into liquid in the accompanying heating bucket, and then follow our instructions for easy filling. The trolley is mobile for filling.

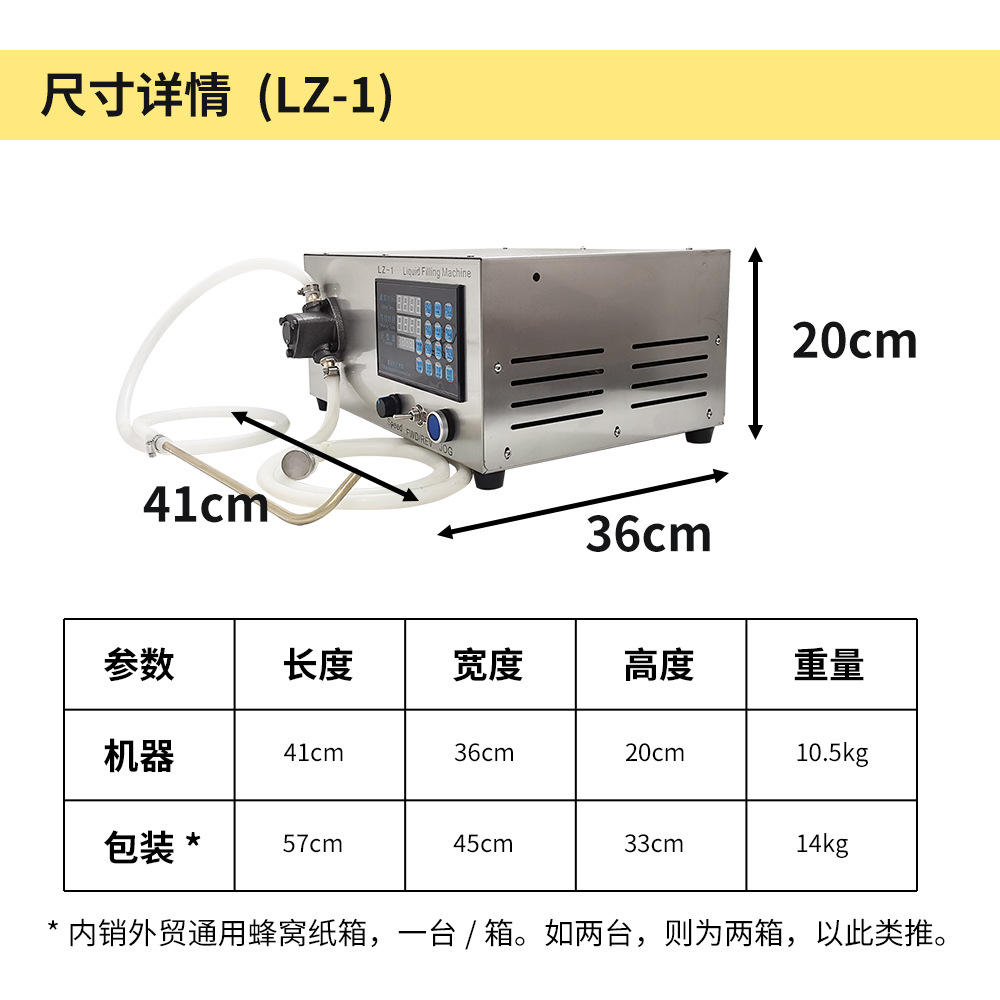

The packaging dimensions of the picture are the dimensions of the individual filling machine. The packaging dimensions and weight of the complete set, including the heating bucket and the trolley, are as follows: the corrugated cardboard box,87*61*66cm，36KG。

We normally equip with a 40-liter steaming pot, which has a small power and heats up a bit slowly. If you have a large production volume, you can equip yourself with a larger heating pot.

Foreign Trade Freight Reminder: This is a loose cargo (usually charged by volume weight). During the transportation process, the outer box dimensions may experience slight compression/deformation. Please remind you to inquire about the price from the freight forwarder or quote to the customer, and the dimensions can be reserved by 1-2cm or so, to avoid excessive differences in freight prices causing unnecessary losses. Thank you.

Usage Method

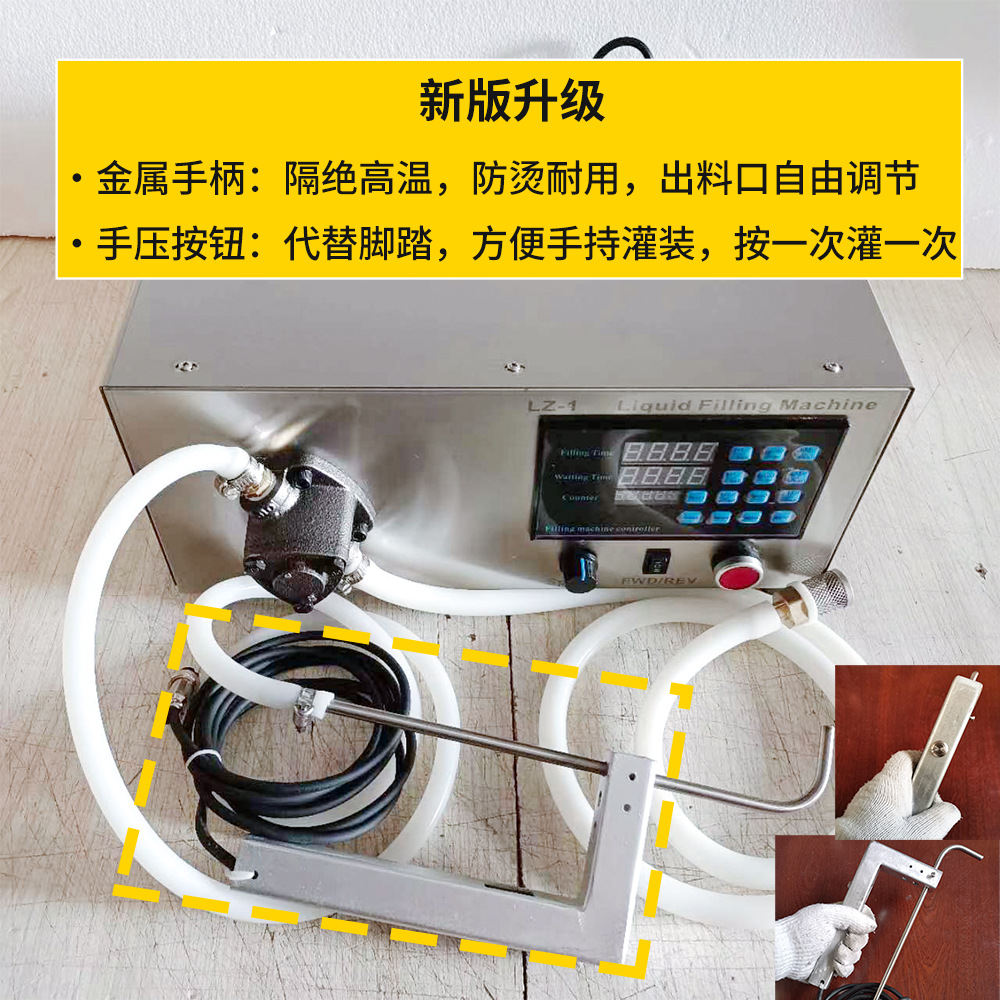

Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key or the handle switch to control the filling machine, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.

Steps

1. Time Adjustment for Filling

A, press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press B, then press the right shift key to the specified position, press the increase key to adjust the time for that position, and repeat the operation.

Press the unit key to move the decimal point up and down, and set the time unit

Press the exit key to complete the setup.

2. Adjustment of Intermission Time: The same as the adjustment of filling time.

3. Timer Adjustment

Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.

Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.

4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.
