lz-1 tealight paraffin wax tablets lubricating oil emergency aromatherapy candle butter lamp sub-tank filling machine pouring equipment

Foreign trade customers attention: must confirm well with the customer.Voltage: 220V or 110V and Plug: EU, US, UK, AU, SA, etc.If the voltage or the plug is not compatible, it will directly affect the use.

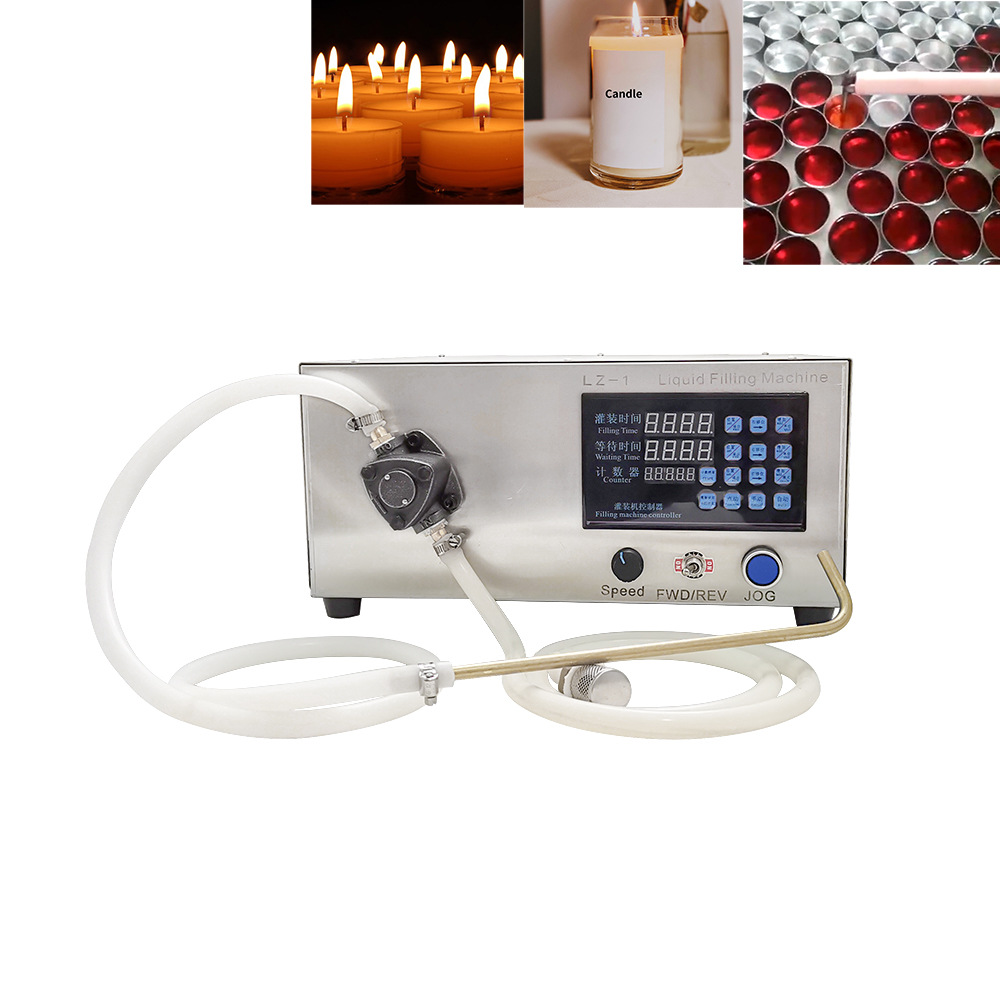

This machine is a specialized machine for filling crystal candle wax, oil, and lubricating oil. It has forward and reverse return material functions, high power, and is not easy to clog. The pump head structure is simple, and it is easy to clean even if it is blocked.

This machine uses a micro-suction pump, controlled by a microcomputer to set the working and rest periods, enabling the function of automatic and precise filling. It has a simple structure and is easy to operate, making it suitable for small enterprises, small shops, and households for filling purposes.

The pump head is made of iron, which can withstand high temperatures during the filling process, making it particularly suitable for filling oil-based liquids, such as shortening and wax.

Note: This model is not suitable for filling aqueous solutions or corrosive liquids (if you need to fill, please contact customer service for other models).

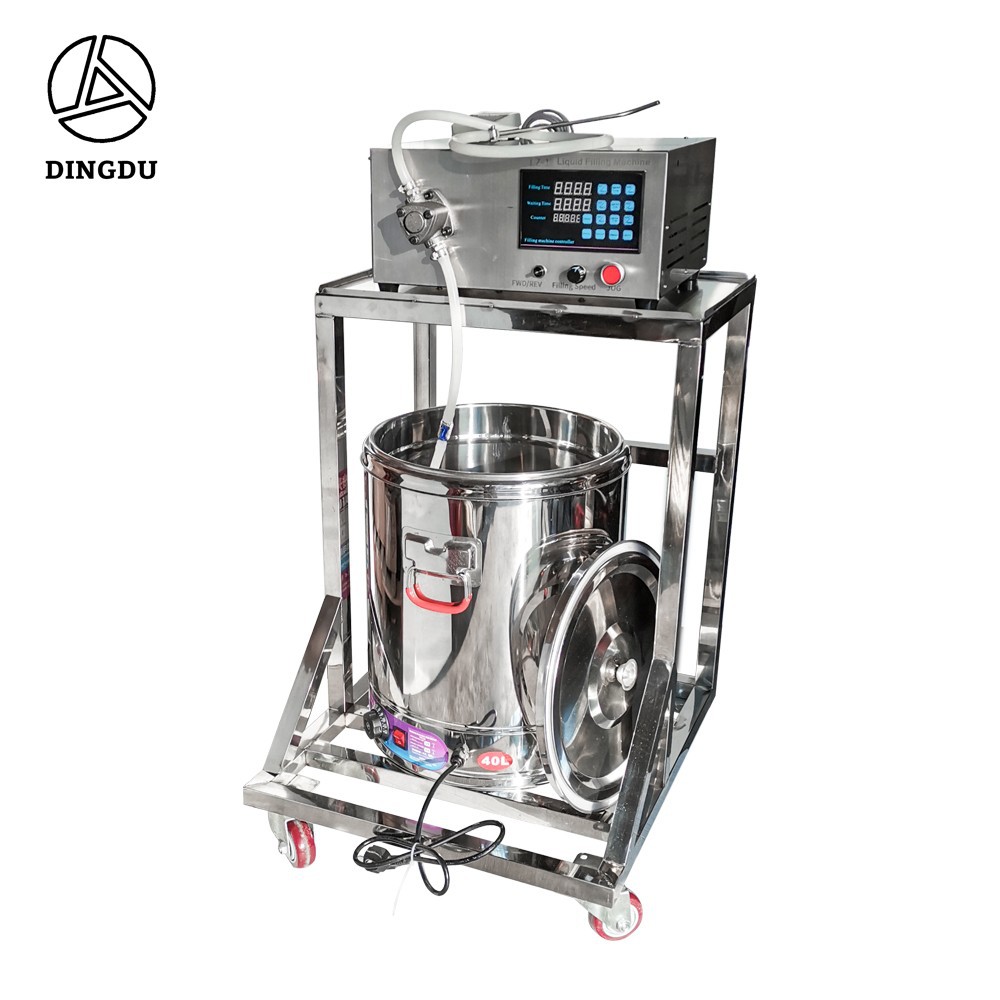

There is a machine set with a filling machine, a heating bucket, and a mobile stand, priced at ￥.2680Suitable for customers who need heating, filling, and mobile equipment.

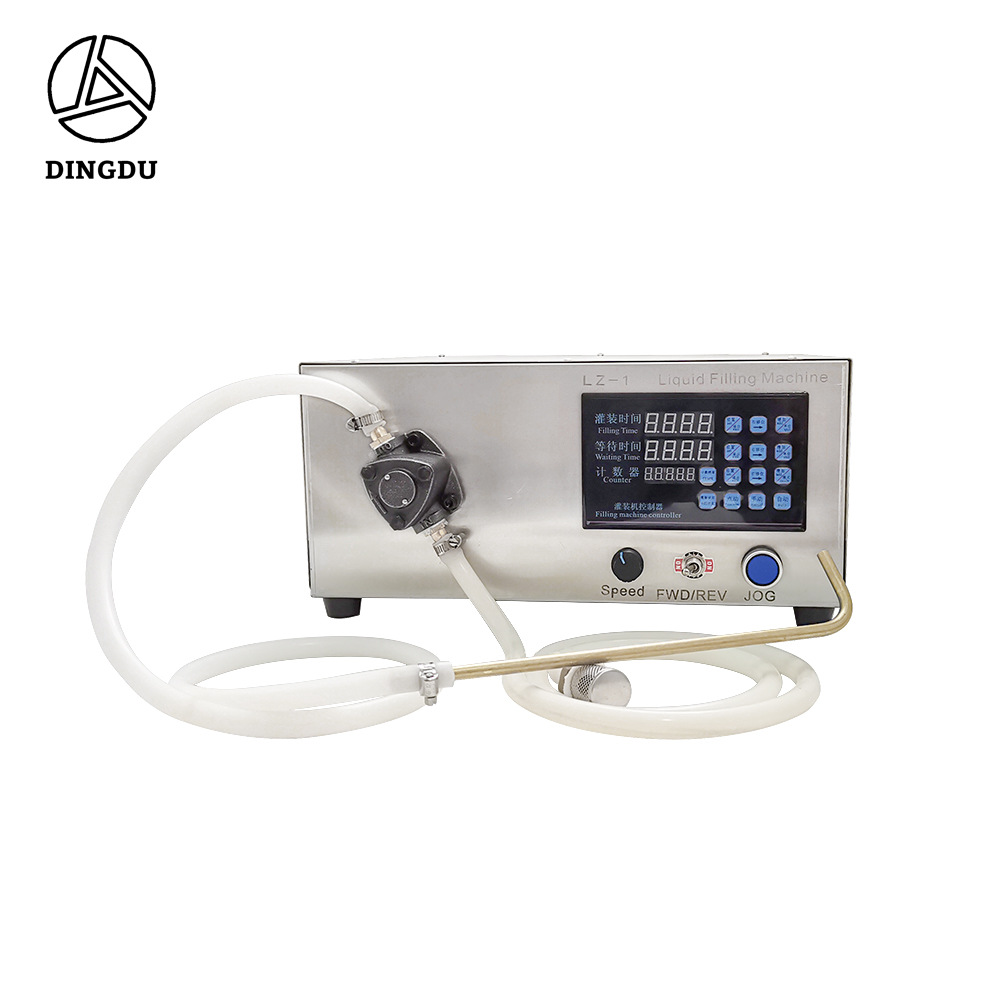

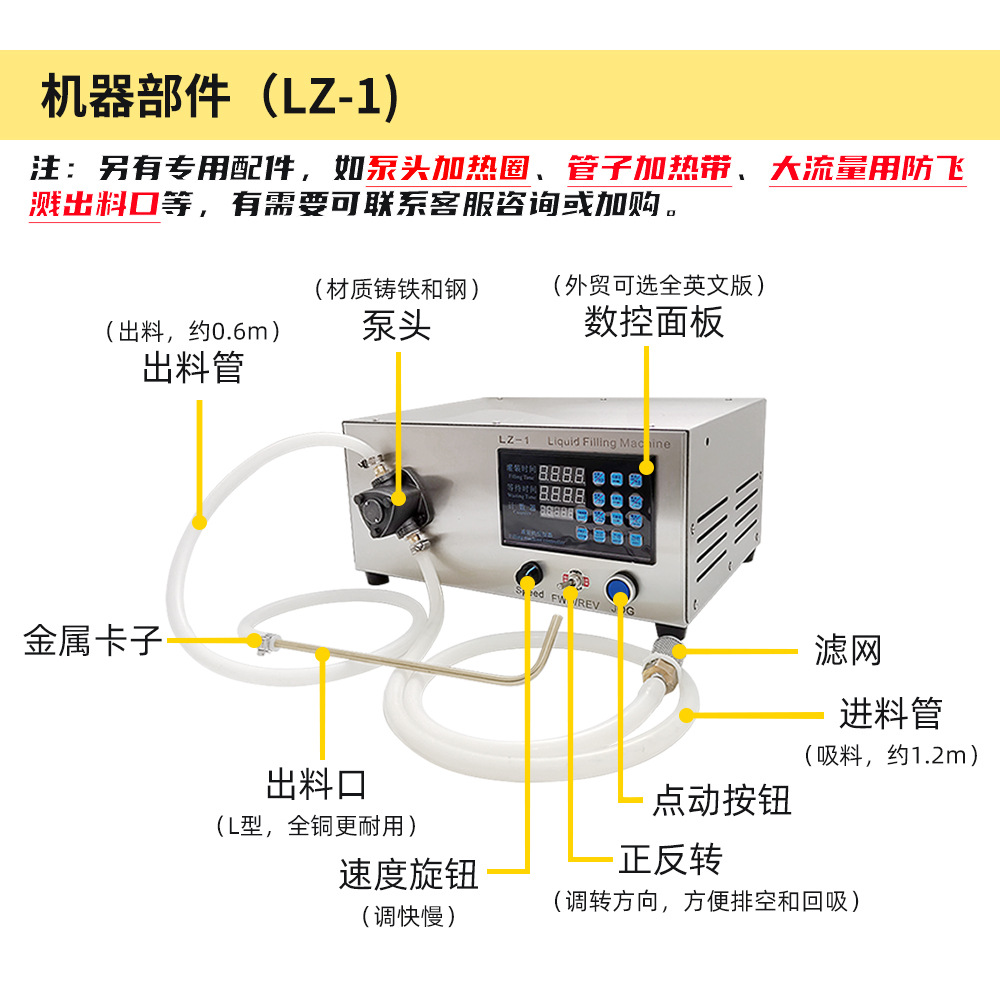

1.The operation panel is equipped with a CNC display.Filling time range is more flexible, adjustable from 0.01 to 999.9 seconds

2. With reverse function, it is more convenient for wax removal/emptying.

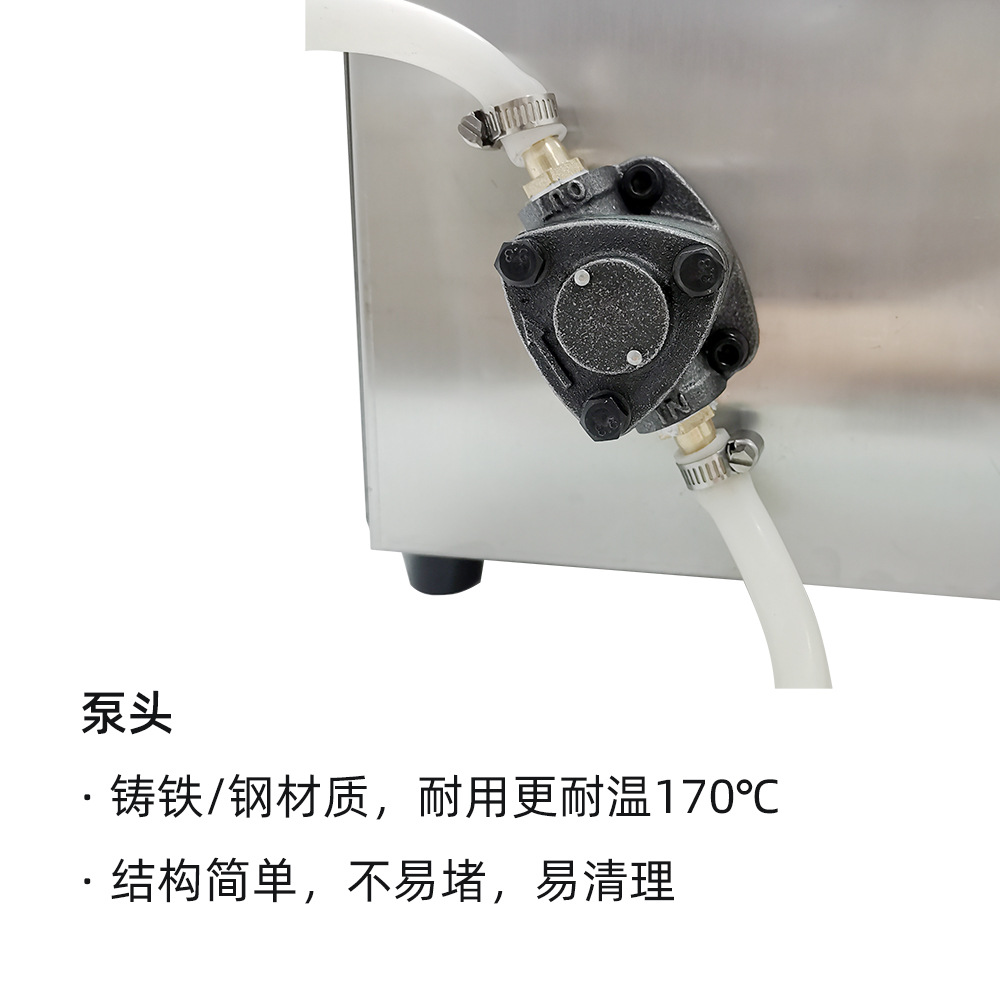

3. Pump HeadThe material is more durable and resistant to high temperatures.Simple structure, easy to clean after blocking

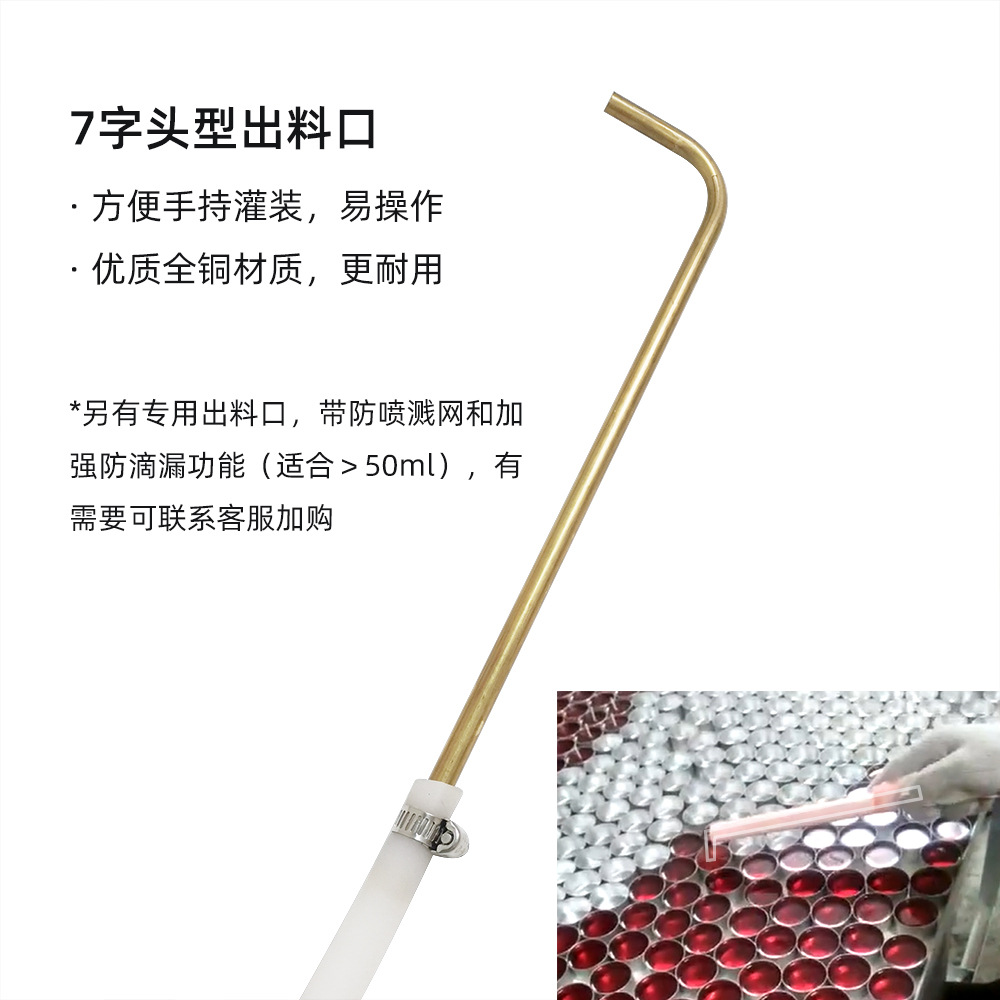

4. A wide range of custom accessories for candle adapters. There are anti-spray nozzles (suitable for over 50ml), heating rings for pump heads, heating belts for tubes, and more can be purchased, making the filling of candles even more convenient.

Now usedHandle SwitchReplace the foot pedal switchDefault shipping for the order is the handle switch. If you need the foot pedal switch, please contact customer service to note, thank you!

Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key, and control the filling machine with the foot switch, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.

Steps

1. Time Adjustment for Filling

A, press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press B, then press the right shift key to the specified position, press the increase key to adjust the time for that position, and repeat the operation.

Press the unit key to move the decimal point up and down, and set the time unit

Press the exit key to complete the setup.

2. Adjustment of Intermission Time: The same as the adjustment of filling time.

3. Timer Adjustment

Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.

Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.

4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.

Usage Method
Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key, and control the filling machine with the foot switch, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.

Steps
1. Time Adjustment for Filling
A. Press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.
Press the right shift key again to move to the specified position, press the increase key to adjust the time for that position, and repeat the operation to achieve the desired effect.
Press the unit key to move the decimal point up and down to set the time unit.
Press the exit key to complete the setup.
2. Adjustment of Interval Time: The same as the adjustment of filling time. 3. Adjustment of Timer.
Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.
B. Press the pattern key, and when the light is on, the filler will stop working once the specified quantity has been filled. If the light is off, it will continue to work and count continuously. 4. Filling Setting Press the filling setting key to start the filler. When the amount you need has been filled, press the key again.
