stainless steel magnetism forle pumps crystal car wax tea candle butter lamp quantitative handmade soap liquid jar filling machine cy-1d

Model: CY-1D

Power: 0.08 (kW)

Dimensions: 15*28*33

Filling Head Count: 1

Filling Capacity: 5-100,000 (ml)

Flow rate: 5000ml/minute

 Filling Accuracy: 1%

Packing Type: Can

Working Principle: At Normal Pressure

Applicable objects: Candle wax, fuel additives, toilet cleaner, juice drinks, carbonated drinks, alcoholic beverages, mineral water, pure water, yogurt, fresh milk, oils, hair care products, skin care categories, cosmetics, cleaning products, oral liquid, medicine, soy sauce. Rice vinegar, liquid shoe polish, acid-base liquids, high-temperature liquids

Applicable industries: catering, food, daily chemicals, medicine, chemistry

Material Type: Liquid

Name: Stainless Steel Magnetic Pump Microcomputer Liquid Multi-Functional Filling Machine

Features:

1. Adjustable time range is large. 0.01-999.9 seconds

Pump body is made of 316 stainless steel, which can be filled with corrosive liquids.

3, Quickly set the filling time

4, Easy to clean, when filling different liquids, you only need to remove the filling head to clean, without opening the machine box.

5, with leak-proof function, equipped with a filter screen

6, using microcomputer control, operation is simpler, can be used for automatic, manual, foot control three methods to operate

7, the size of the discharge mouth can be replaced according to the size of your bottle opening.

8, the motor power is large, and the flow rate is large. The flow rate of this machine is 5000ml/minute.

The characteristics of the Magnetic Pump Liquid Filling Machine:

It is a device that uses a microcomputer to control factors such as filling time and motor speed of a micro pump to complete the liquid filling process. It is widely used in the filling of liquids such as beverages and chemicals.如饮料、酒、油类、洗涤液、酸碱液等。The pump head is made of 316L stainless steel, suitable for filling corrosive liquids, with stable and reliable performance and long service life.

The machine has a simple structure.Can be microcomputer automatic/manual/foot control filling,Easy to operate. It can be extended with a longer hose for mobile filling, making it a reliable and durable filling equipment. It is often used in small enterprises, small shops, and homes.

Technical parameters:

Flow rate: 5 liters per minute

Working Power Supply: AC220V

Power: 80 W

Delay Range: 0.01s～999.9s

Counting range: 1 to 59999 times

Work Mode: Power-On Delay

Data program settings Display mode: Upper row shows filling time, middle row shows interval time, lower row shows count display

Dimensions: 160*280*330mm

Weight: 8kg

Filling nozzle diameter: 4mm

Body Material: Stainless Steel

Pump body material: Stainless steel

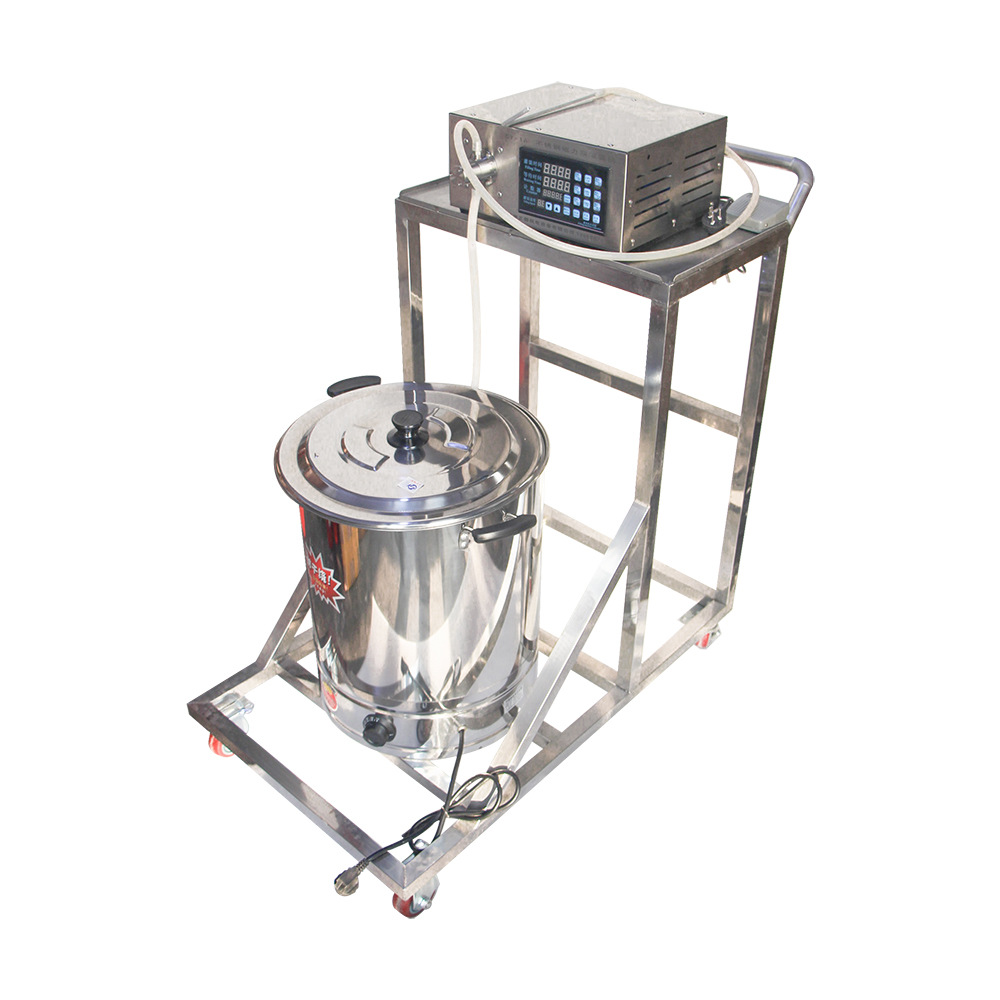

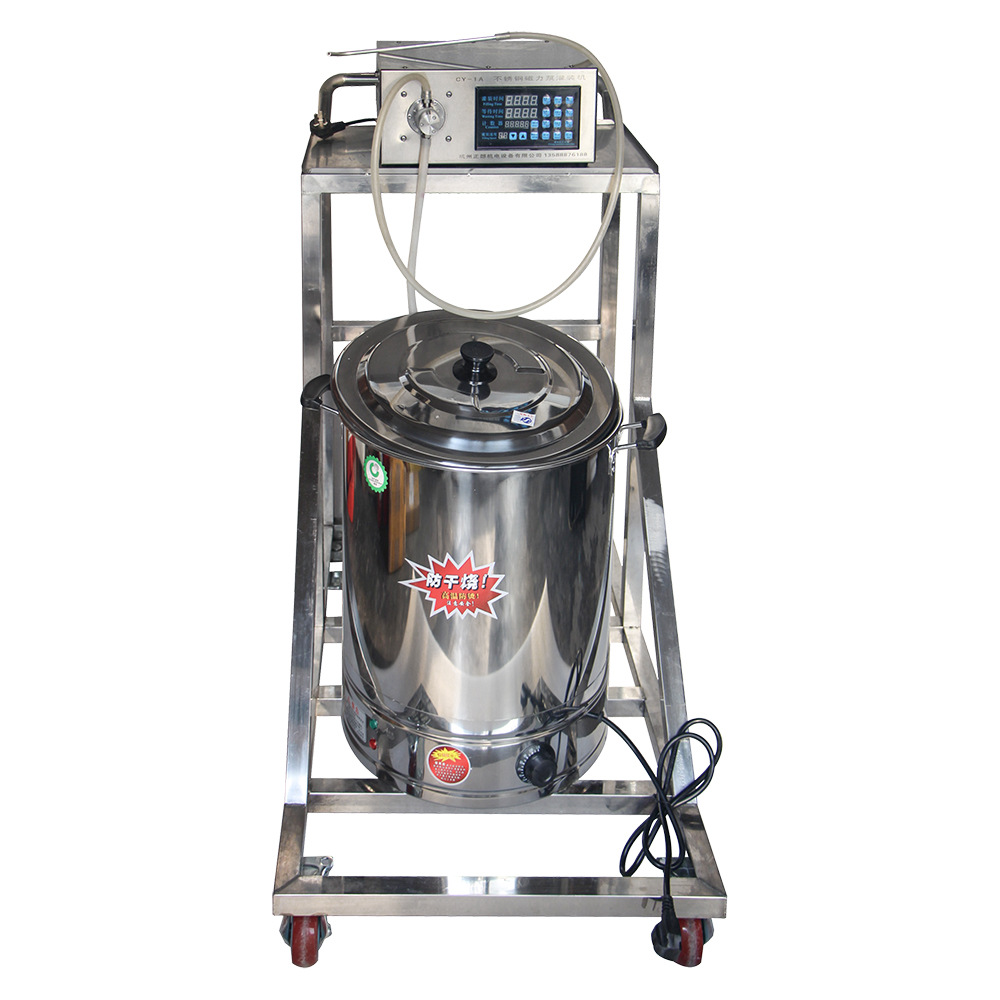

Our standard configuration is a 40-liter heating pot, which heats up quite slowly. If you have a large production volume, you might want to configure a larger heating pot yourself.

Usage Method

Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key, and control the filling machine with the foot switch, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.

Steps

1. Time Adjustment

A, press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press B, then press the right shift key to the specified position, press the increase key to adjust the time for that position, and repeat the operation.

Press the unit key to move the decimal point up and down, and set the time unit

Press the exit key to complete the setup.

2. Adjustment of Interval Time: The same as the adjustment of filling time. 3. Adjustment of Timer.

Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.

Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.

4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.
