detergent clear detergent sub-installed machine ink ink organic solvent laundry detergent hand sanitizer filling machine rdb-1g

This machine works without contact with the liquid, and the liquid does not pass through the pump body, flowing in the pipes. There is no contamination during the filling process, and no cleaning is required. Just use a set of pipes for each different liquid.

Error 1%, high temperature 170 degrees, for different corrosive liquids, with different materials of the special pipe, suitable for filling corrosive strong, high temperature, a variety of liquid filling machine.Avoid cross-contamination between different products, eliminating the hassle of cleaning tubes,Use hygiene, save time, convenience, practical

Applicable to:Juice drinks, alcoholic beverages, mineral water, purified water, oils, hair care products, skin care products, cosmetics, cleaning and laundry products, glue, oral liquids, medicines, liquid alcohol, wax, superglue, UV glue, engine oil, diluent, latex, organic solvents, chemical liquid.

Technical parameters:
Working Power Supply: AC220V
Power: 300W
Flow rate: 12,000 ml/minute
Delay Range: 0.01s～999.9s
Counting range: 1 to 59999 times
Work Mode: Power-on Delay Data Program Setting
Display mode: top row shows filling time, middle row shows interval time, bottom row shows count.
Error: 1%
Filling nozzle diameter: 8mm
Body Material: Stainless Steel

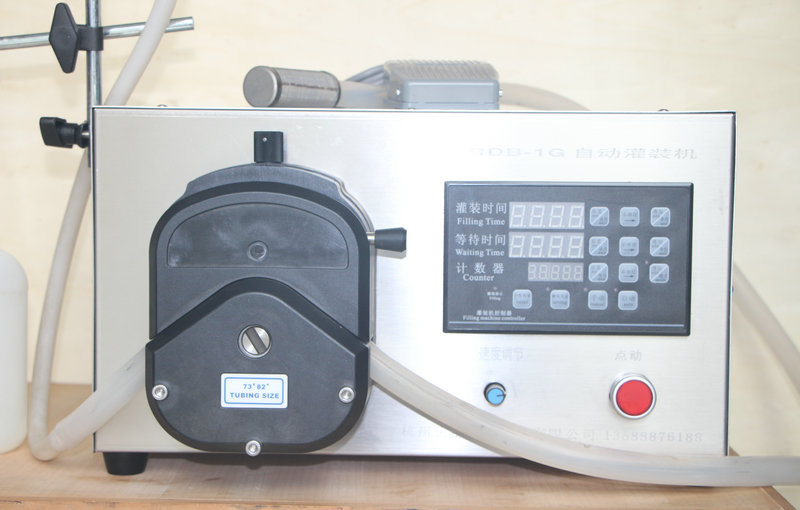

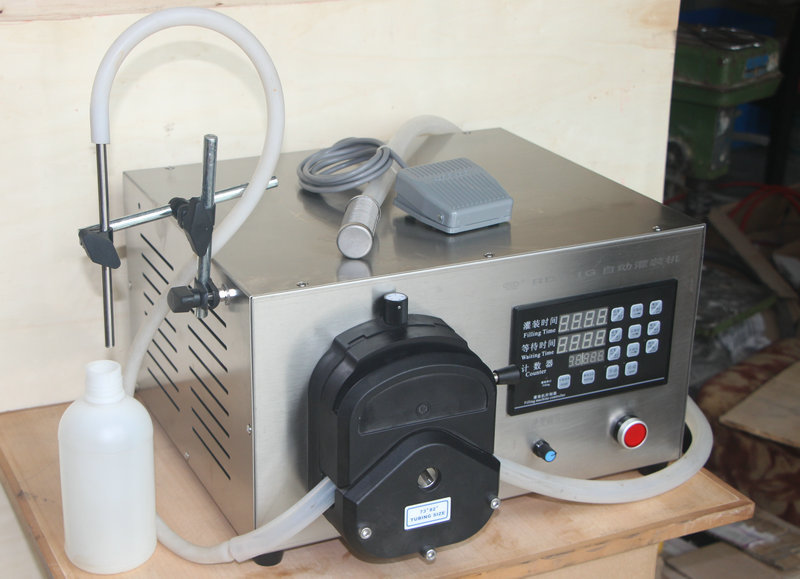

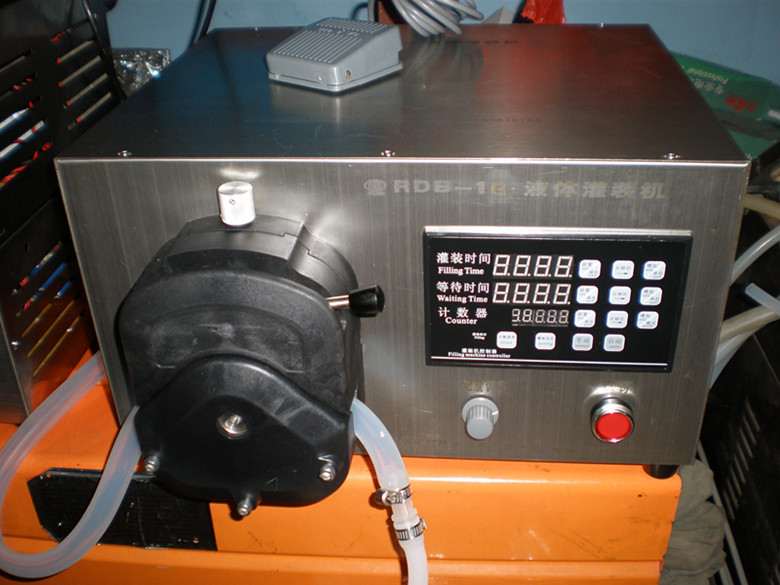

Name: Liquid Multi-Functional Filling Machine
Model: RDB-1G
This machine uses an electric motor-driven peristaltic pump, controlled by a microcomputer to set the working and pause times, and it is an automatic, quantifiable filling device with an automatic setting for the filling time.
Suitable for filling thick liquids such as cooking oil, detergent, 502 adhesive, engine oil, and salad oil, with high flow rate.

Usage Method
Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key, and control the filling machine with the foot switch, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.
Steps
1. Time Adjustment for Filling

A, press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press B, then press the right shift key to the specified position, press the increase key to adjust the time for that position, and repeat the operation.

Press the unit key to move the decimal point up and down, and set the time unit

Press the exit key to complete the setup.
2. Adjustment of Intermission Time: The same as the adjustment of filling time.
3. Timer Adjustment A. Press the setting key, and the timer will flash. Press the increase key 0-9 to adjust the quantity of the position, and press the right shift key to adjust the quantity of other positions. Set the required quantity. B. Press the mode key, and when the light is on, the filling machine will stop working when the specified quantity is reached. If the light is off, the machine will continue to work and count continuously.
4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the amount you need, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.

The unique feature of this machine is
1. Filling time can be adjusted to 999 seconds.
The controller of this machine has the function of filling setting, which can quickly set the required time for the amount of filling you need.
3. The filling machine controller typically uses full-Chinese display for easy operation and understanding.
4. Can be filled with relatively viscous liquids
5. This machine uses a step motor, which provides more stable rotation speed and longer operating time.
6. This machine is suitable for filling organic solvents and other chemical products. The liquid does not pass through the pump body, and a silicone tube is used to deliver the liquid, which does not contaminate and has good performance for filling corrosive liquids.
7. This machine is suitable for filling a variety of different liquids, and no cleaning is required. By changing the tubes, it can be converted to fill different liquids, making it convenient for multi-purpose use.
This machine is based on the principle of peristaltic pumps, with an error of 1%.
