laboratory liquid conveyor rdb-8 micro constant current multi-channel infusion machine peristaltic pump filling machine

Customized Processing: Yes

Automatic level: semi-automatic

Packing Type: Can

Model: RDB-8, this model has 8 channels and can be customized to 4-24 channels.

Filling quantity: 8*100 (ml)

Applicable industries: Micro-volume liquid transportation, food, daily chemicals, medicine, chemical industry, constant flow transportation in laboratories, etc.

Filling Accuracy: 0.5%

Material Type: Liquid

Brand: Zhengdu

Filling Head Count: 8

Dimensions: 350*350**200

Working Principle: At Normal Pressure

Brand: Zhengdu

Model: RDB-8

Name: Micro-volume Liquid Peristaltic Pump Filling Machine

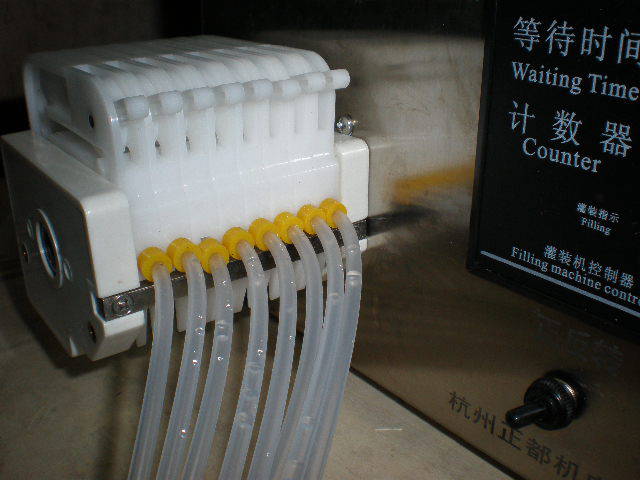

This machine uses a step motor self-suction peristaltic pump, controlled by a microcomputer to set the working time and the interval time, and it is an automatic dosing device that can automatically set the filling time. It is suitable for the filling of micro-liquids over 0.2ml, with small error.

Technical parameters:

Working Power Supply: AC220V

Power: 100 W

Flow rate: 8*100ml/minute,

Delay Range: 0.01s～999.9s

Counting range: 1 to 59999 times

Work Mode: Data Program Setting with Power-on Delay

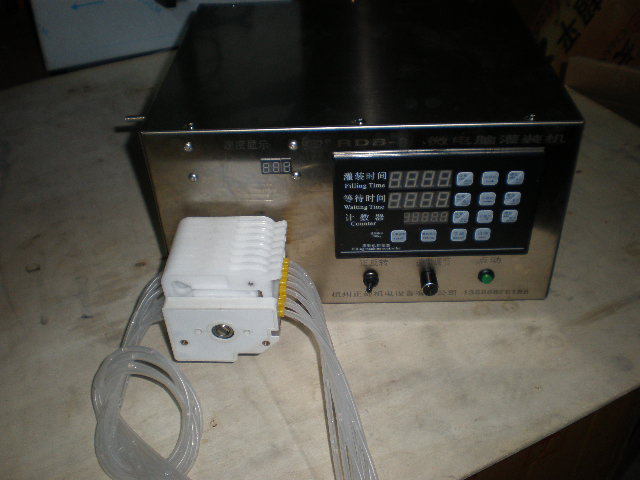

Display Mode: Upper row shows filling time, middle row shows interval time, lower row shows count. Dimensions: 350*350*200mm.

Weight: 10kg

Error; 0.5%

Filling nozzle diameter: 1.5mm (over 0.5mm)

Body Material: Stainless Steel

Usage Method

Prepare the liquid to be filled, connect the 220V power supply, adjust the filling time and the interval time, set the timer, press the point-and-click switch to test the machine, ensure that the motor is working normally, press the manual key, and control the filling machine with the foot switch, press once to operate the filling machine once, and press the automatic key to let the filling machine work continuously automatically according to the set time.

Steps

1. Time Adjustment

A, press the setting key first, and the time will flash. Then press the increase key 0-9 to set the time for that position.

Press B, then press the right shift key to the specified position, press the increase key to adjust the time for that position, and repeat the operation.

Press the unit key to move the decimal point up and down, and set the time unit

Press the exit key to complete the setup.

2. Adjustment of Intermission Time: The same as the adjustment of filling time.

3. Timer Adjustment

Press the setting button, and the timer will blink. Press the increase button 0-9 to adjust the quantity of the corresponding position, and press the right shift button to adjust the quantity of other positions. Set the required quantity.

Press the pattern key, when the light is on, the filling machine stops working when the specified quantity is reached. If the light is off, it will continue to work and count continuously.

4. Filling Setting Press the filling setting to start the filling machine. When the filling reaches the desired amount, press the filling setting key again. The time displayed on the filling time is the time required to fill the amount.

The unique feature of this machine is

1. Filling time can be adjusted to 999 seconds, whereas for similar products, it is only 99 seconds.

2. This machine's controller has the function of filling setting, which can quickly set the required time for the amount of filling you need. Similar machines generally do not have this function.

3. The filling machine controller typically uses full-Chinese display for easy operation and understanding.

4. Small volumes of liquid filling, as little as 0.1ml

5. This machine uses a step motor, which provides more stable rotation speed and longer operating time.

6. This machine is suitable for filling organic solvents and other chemical products. The liquid does not pass through the pump body, and is delivered through a silicone tube, which prevents contamination and is corrosion-resistant.

7. This machine is suitable for filling a variety of different liquids, without the need for cleaning. By simply changing the tubes, it can be used to fill different liquids, which is convenient, does not contaminate, and one machine can fill multiple liquids.

8. This machine is based on the principle of peristaltic pumps, with high filling accuracy and an error of 0.5%, which is very stable.

9. The filling machine is particularly suitable for liquid with strong acid and alkali, corrosive chemical solutions, and organic solvents, and can also be used for the filling of liquids with small particles.

10. Small error, error 0.5%
